American Range AR-24G-6B-CL-SBR Gas Ranges
Description

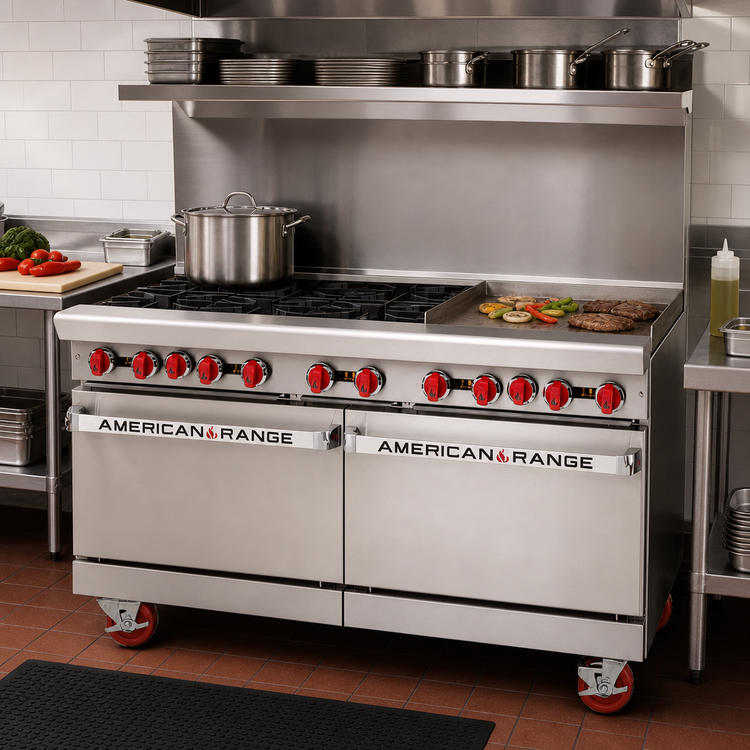

American Range 60" Gas Restaurant Range
24" Manual Griddle • 6 Open Burners • Convection Oven / Storage Base ComboBuilt for high-volume, multi-tasking kitchens, this 60-inch American Range gives you the power of six 32,000 BTU cast-iron open burners, a full 24-inch griddle, and a 26 ½-inch convection oven – all in one rugged, stainless-steel chassis that’s Designed & Built in the USA.
Why You’ll Love It

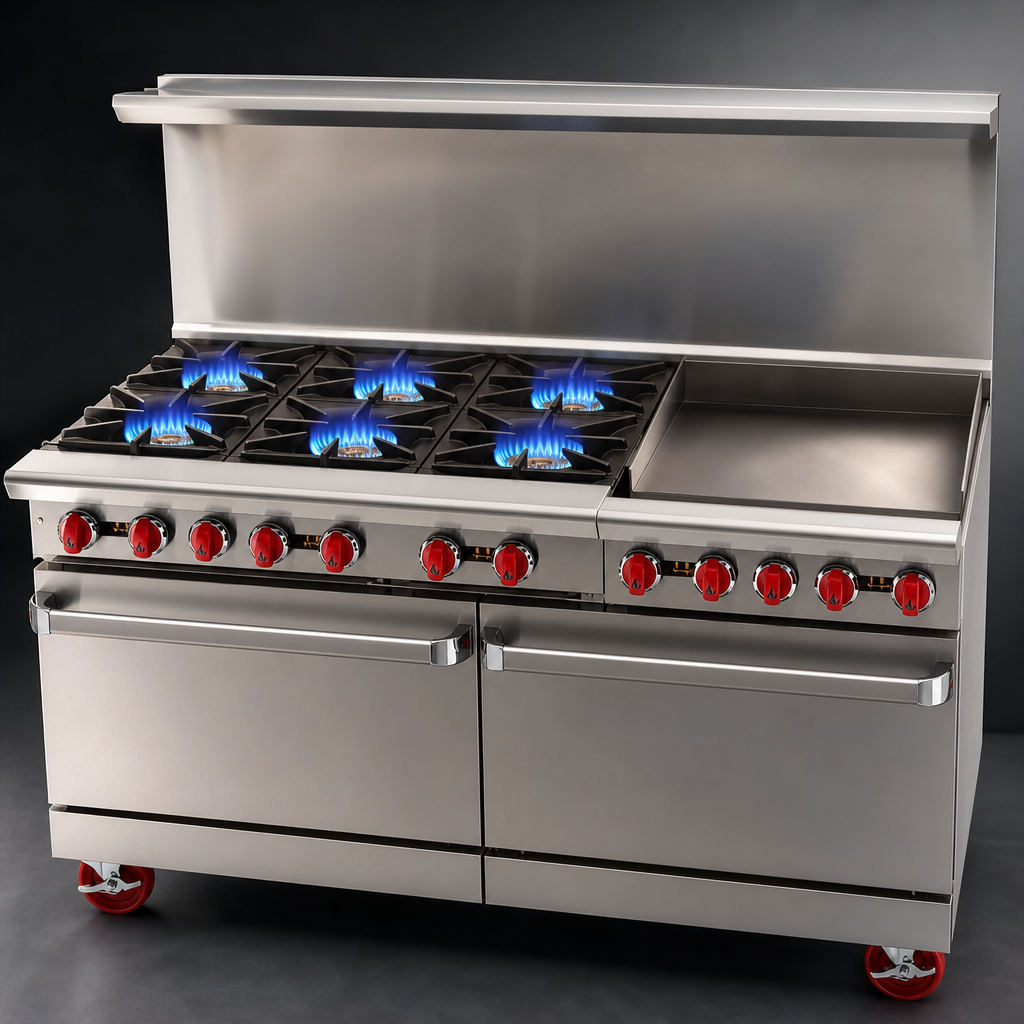

- Six lift-off 32,000 BTU open burners with 12" × 12" heavy-duty cast-iron grates

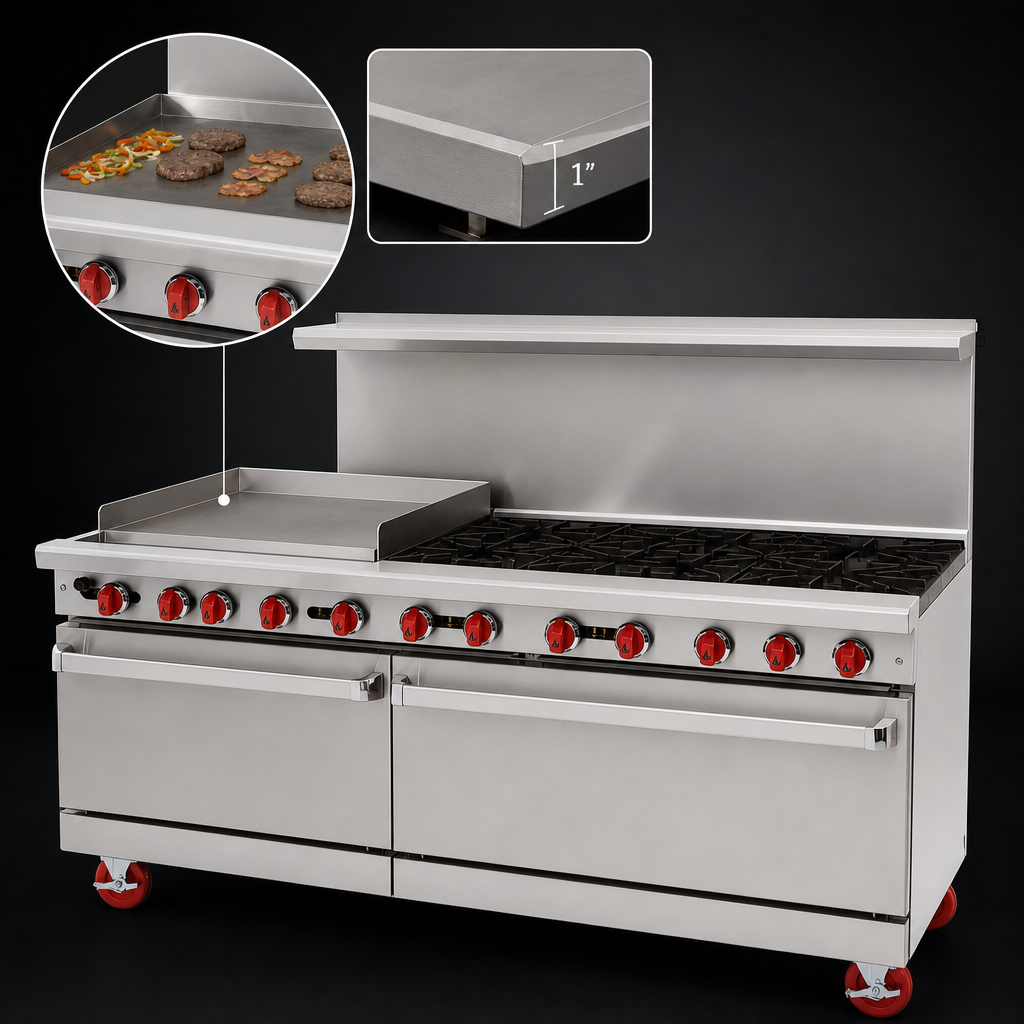

- 24" manual-control griddle (1" thick polished steel plate) with two 20,000 BTU burners
- 26 ½" convection oven (30,000 BTU) left-side mounted; includes two chrome-plated racks & five rack positions
- 26 ½" storage base on the right keeps sheet pans, utensils, or dry goods within reach
- Stainless-steel front, sides, landing ledge, and backsplash for quick wipe-downs and lasting durability
- Choice of rear flue: 6" stub back, 20" riser, or high-shelf riser (factory installed)
- 6" chrome-plated, adjustable legs for easy leveling or optional casters (sold separately)
- Total output: 262,000 BTU / 77.0 kW
- Certified cETLus & ETL-Sanitation for use in commercial kitchens
- Backed by a two-year limited parts & labor warranty
Technical Specs
| Overall width | 60" (1524 mm) |
|---|---|
| Depth × Height* | 32 ½" × 36" cooking height (826 mm × 914 mm) |
| Open burners | 6 × 32,000 BTU lift-off heads 12" × 12" cast-iron grates |
| Griddle | 24" W manual, 1" thick plate 2 × 20,000 BTU U-burners |
| Oven | 26 ½" convection, 30,000 BTU Temperature range 250 °F – 500 °F (121 °C – 260 °C) |
| Racks supplied | 2 chrome racks, 5 positions |
| Right-side base | 26 ½" non-heated storage cabinet |
| Total input | 262,000 BTU / 77.0 kW |
| Gas connection | ¾" NPT rear manifold 5.0" W.C. Natural | 10.0" W.C. LP |
| Clearances | 0" sides & back to non-combustibles† |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |
| Origin | Made in USA |
*Height excludes optional riser.
†Observe all local codes and clearances for combustible construction.
Peace-of-Mind Coverage
Every American Range product is factory-tested and ships with a two-year limited parts & labor warranty. Register your range within 90 days of shipment to activate extended coverage and expedite any future service requests.
