American Range AR-24G-6B-CC Gas Ranges
Description
American Range 60" Gas Restaurant Range
Model AR-24G-6B-CC — 24" Manual Griddle, 6 Open Burners & Double Convection OvensBuilt in the USA for high-volume, all-day service, this 60 inch American Range lineup combines a 1" thick steel griddle, six powerful open burners and two full-size convection ovens in one rock-solid chassis. With 292,000 BTU of total cooking power, a stainless exterior and modular backguard options, it’s the perfect centerpiece for busy kitchens that refuse to compromise on versatility or durability.
Highlights- (6) 32,000 BTU lift-off open burners with 12" x 12" cast-iron grates

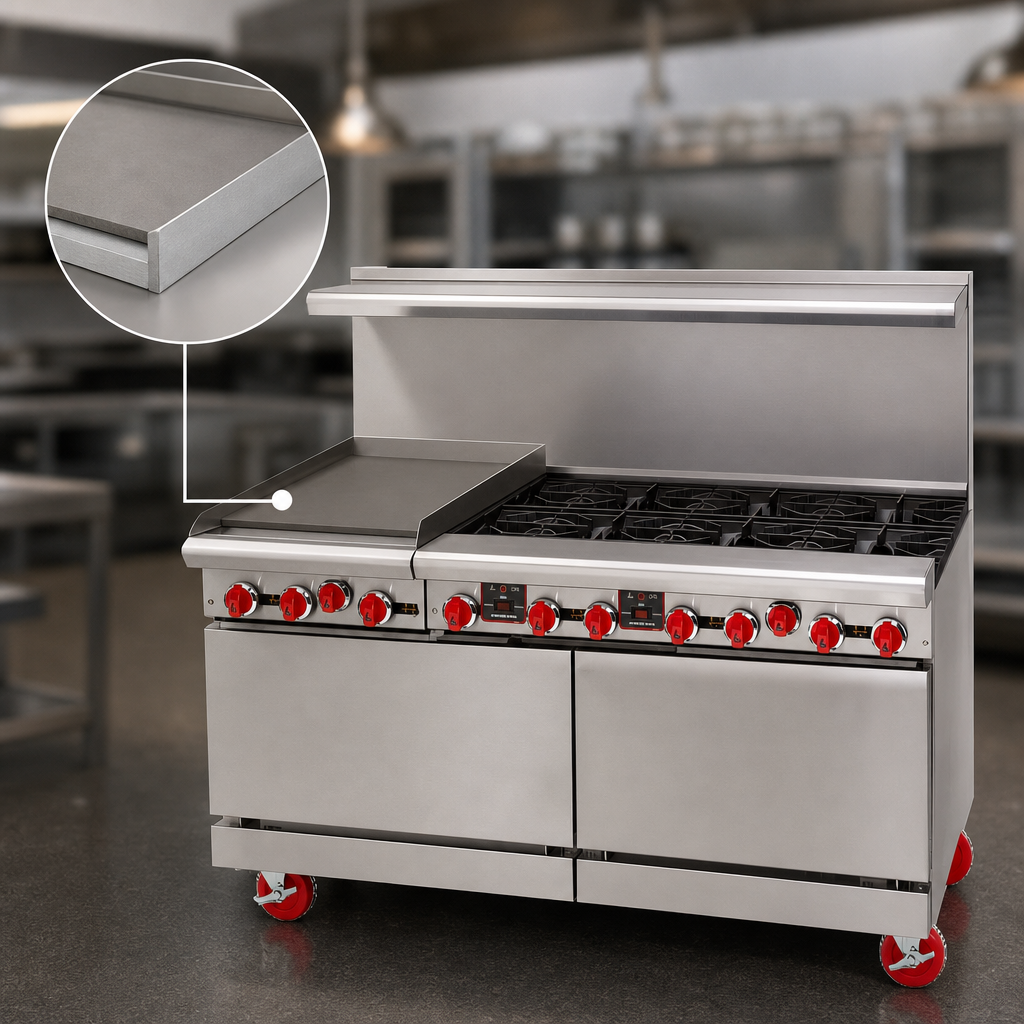

- 24" manual griddle on the left – 1" thick plate with two 20,000 BTU burners & 3" wide grease trough
- (2) 26-1/2" convection ovens, 30,000 BTU each, 5 rack positions & 2 chrome racks per cavity
- Precision thermostat in each oven adjusts from 250 °F to 500 °F (121 °C – 260 °C)
- Stainless steel front, sides, landing ledge & kick plate for easy wipe-down
- Full-width, removable drip pan under open burners simplifies daily clean-up
- Choice of backguard: 6" stub, 20" riser, or high shelf with riser (no up-charge)
- 6" adjustable chrome-plated legs; optional swivel casters available
- 100 % safety gas shut-off, rear gas connection & factory pressure regulator
- cETLus & ETL Sanitation listed; two-year limited parts & labor warranty
| Overall width | 60" (1524 mm) |
|---|---|
| Overall depth | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) to top of grates |
| Overall height (with high shelf) | 56" (1422 mm) |
| Total BTU input | 292,000 BTU/hr (86.0 kW) |
| Open burners | (6) x 32,000 BTU lift-off heads |
| Griddle section | 24" W, 1" thick steel plate, 40,000 BTU (2 burners) |
| Oven cavities | (2) convection, 26-1/2" W x 22-1/2" D x 13-1/2" H each |
| Oven BTU / cavity | 30,000 BTU |
| Thermostat range | 250 °F – 500 °F (121 °C – 260 °C) |
| Gas connection | 3/4" NPT rear manifold; 5.0" W.C. Nat or 10.0" W.C. LP |
| Shipping weight | ≈720 lb (327 kg) |
| Construction | Welded stainless front & sides, porcelain oven interior |
| Origin | Designed & built in the USA |
- cETLus – Gas & electrical safety (US & Canada)
- ETL Sanitation to NSF standards
- Two-year limited parts & labor coverage (90 days on replacement parts) – registration within 90 days of shipment recommended
Need a different base configuration or optional casters? Contact us before ordering—American Range can customize this series with standard ovens, storage bases or thermostatic griddles to fit your exact workflow.
