American Range AR-24G-6B-126L-SBR Gas Ranges
American Range AR-24G-6B-126L-SBR Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-24G-6B-126L-SBR Gas Ranges
Description

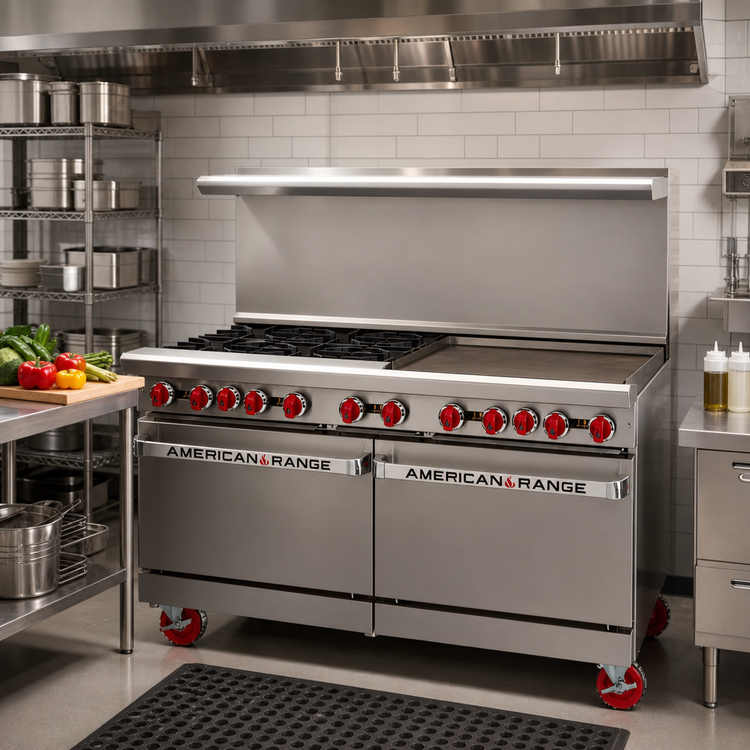

60" Gas Restaurant Range w/ 24" Griddle & 6 Open Burners
American Range Model AR-24G-6B-DSB — Made in the USAOutfit your kitchen with a true chef’s workhorse. Built on American Range’s proven 60" platform, this range combines a silky-smooth 24" manual griddle, six powerful open burners, a full-size standard oven and a handy storage base—everything you need for an all-day cook-line in one heavy-duty appliance.
Why You’ll Love It

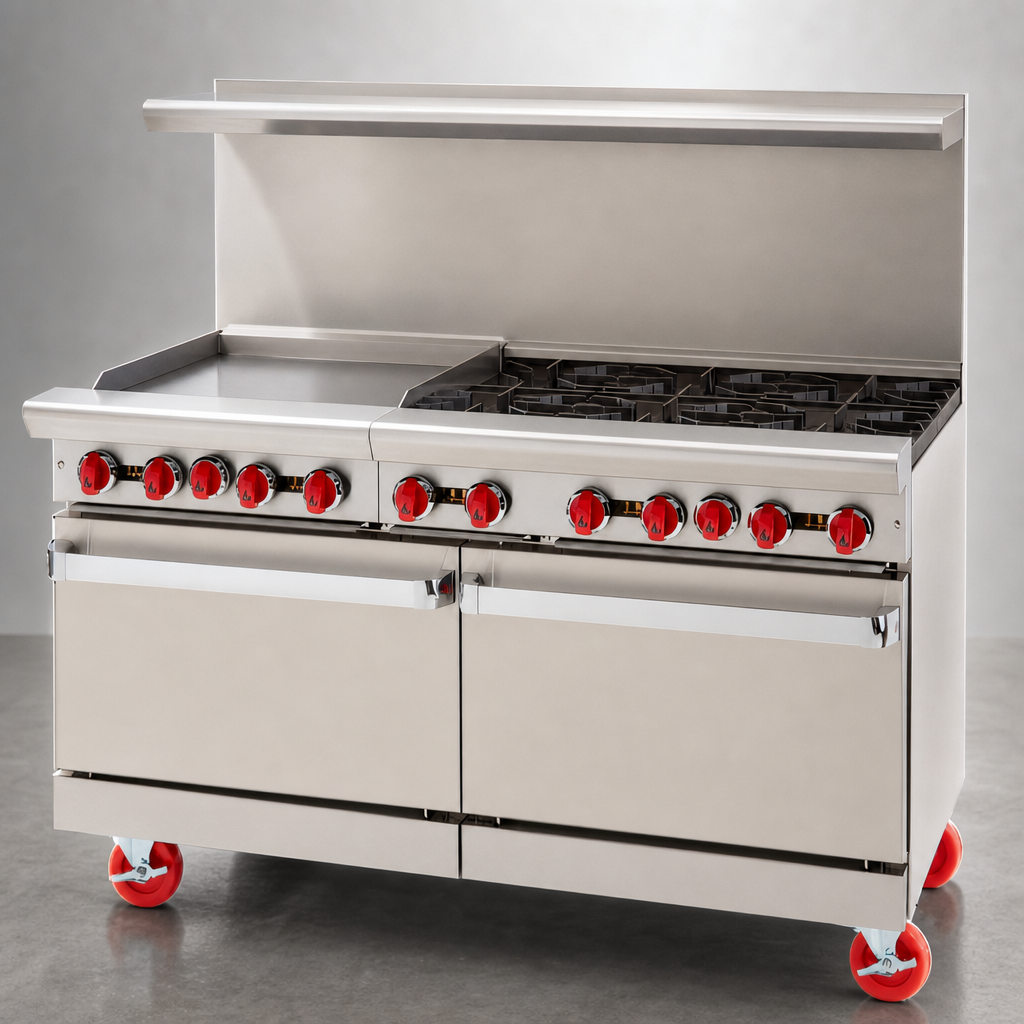

- 24" Griddle, Left-Side. 1" thick steel plate retains heat and delivers even browning; 3" wide grease trough for fast clean-up.
- Six 32,000 BTU Open Burners. Heavy-duty lift-off heads & 12" × 12" cast-iron top grates handle the heaviest stock pots.
- Full-Size Standard Oven. 35,000 BTU steel tube burner, porcelain interior, and two chrome racks (3 positions) bake from 250-500 °F.
- 26 ½" Storage Base. Keep sheet pans, hotel pans or smallwares within arm’s reach on the right-hand side.
- Built to Last. Stainless steel front, sides, landing ledge and removable drip pan; 6" adjustable chrome-plated legs.
- Configure Your Back. Order with a high-shelf & riser, 20" back riser or 6" stub back at no extra charge.
- Certified & Warrantied. cETLus & ETL-Sanitation listed with a two-year parts & labor warranty.
Technical Specifications
| Overall width | 60" / 1524 mm |
|---|---|
| Overall depth | 32 ½" / 826 mm (front rail to back) |
| Cooking height | 36" / 914 mm w/ 6" legs |
| Griddle size & plate | 24" W × 24" D, 1" thick steel |
| Open burners | (6) 32,000 BTU cast-iron burners (192,000 BTU total) |
| Standard oven | 26 ½" wide, 35,000 BTU; 250-500 °F range |
| Oven racks (included) | 2 chrome racks, 3 positions |
| Storage base | 26 ½" wide enclosed cabinet |
| Total input | 267,000 BTU / 79.0 kW |
| Gas connection | ¾" NPT rear manifold (Natural or LP) |
| Compliance | cETLus, ETL-Sanitation |
| Origin | Designed & Built in USA |
What’s Included
- American Range 60" restaurant range (assembled)
- (2) Chrome oven racks
- (4) 6" adjustable chrome-plated legs
- Removable full-width drip pan
- User & installation manual
Warranty
Two-year limited parts & labor warranty. 90-day warranty on replacement parts & select broiler components. Full details and registration instructions ship with the unit.
