American Range AR-24G-4B Gas Ranges
Description

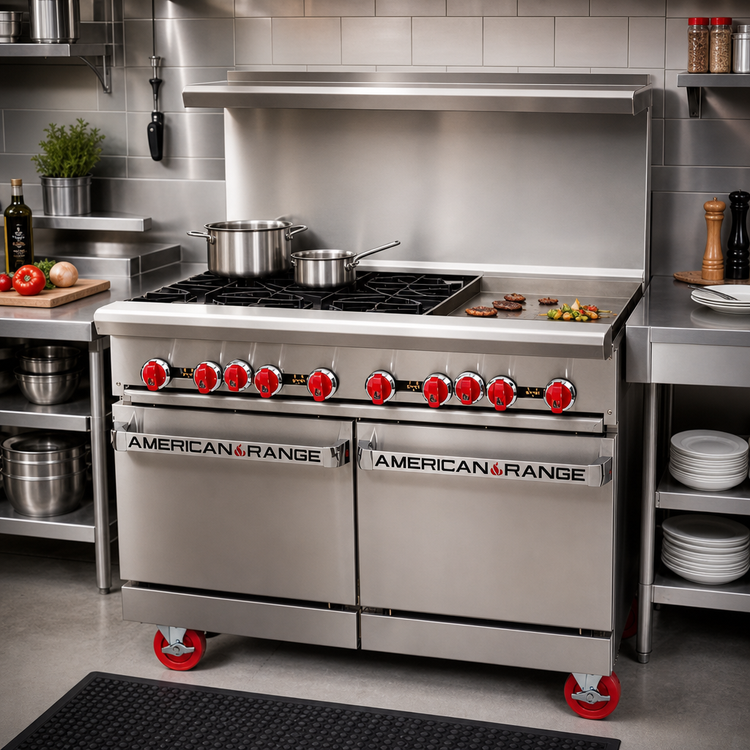

American Range AR-24G-4B 48" Gas Restaurant Range with 24" Griddle & 4 Open Burners
222,000 BTU • Dual 20" Space-Saver Ovens • Made in USABring powerhouse versatility to the line without sacrificing floor space. The AR-24G-4B combines high-output open burners, a thick-plate griddle and two space-saving ovens in one 48-inch, all-stainless platform—engineered and built in the USA for demanding commercial kitchens.
Key Features
- 4 lift-off open burners, 32,000 BTU each, with 12" × 12" cast-iron top grates & removable full-width drip pan.

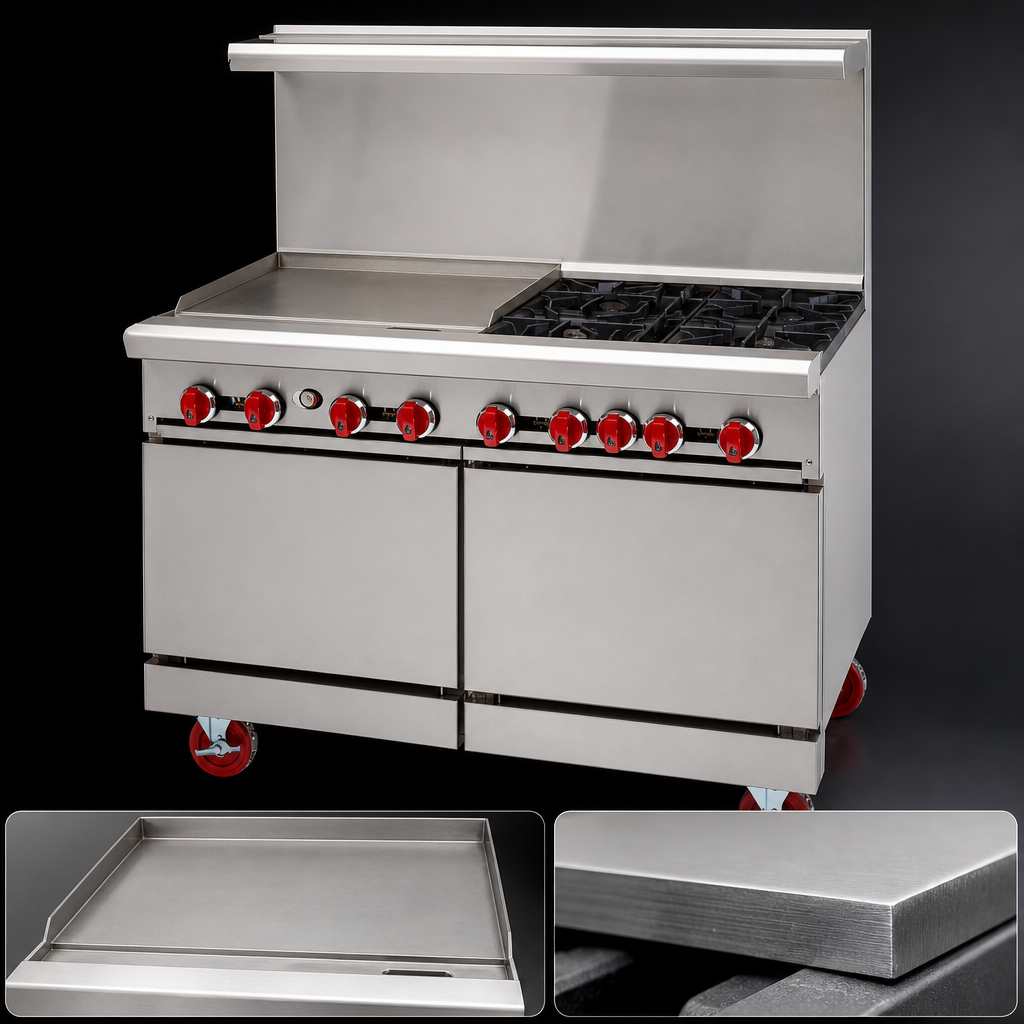

- 24" manual-control griddle, 1" steel plate with 3" grease trough; 2 burners @ 20,000 BTU (40,000 BTU total).
- Two 20" space-saver ovens, 27,000 BTU each, porcelain enamel interiors, 250 °F–500 °F thermostats, spring-assisted doors & two chrome racks per cavity.
- Stainless steel front, sides, 6" deep landing ledge & choice of 6" stub back, 20" riser or full high shelf (no up-charge).
- 6" adjustable chrome-plated legs standard; optional swivel casters available.
- Factory-installed 3/4" pressure regulator & manual gas shut-off.
- Certified cETLus & ETL-Sanitation for safety and hygiene compliance.
- Designed & built in North Las Vegas and Pacoima, California.
At-a-Glance Specs
| Model | AR-24G-4B |
|---|---|
| Total Input | 222,000 BTU/h (65.0 kW) |
| Open Burners | 4 × 32,000 BTU |
| Griddle | 24" W × 27" D, 1" plate, 40,000 BTU |
| Ovens | 2 × 20" space saver, 27,000 BTU each; 250 °F–500 °F |
| Oven Interior (each) | 20" W × 26-1/2" D × 13-1/2" H |
| Cooking Height | 36" |
| Overall Dimensions | 48" W × 32-1/2" D × 56" H (with 20" riser) |
| Gas Connection | 3/4" NPT rear; 5.0" W.C. natural / 10.0" W.C. LP |
| Shipping Weight | Approx. 630 lb (286 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor (see details below) |
| Origin | USA |
What’s Included
- (4) chrome oven racks – two per cavity
- Removable full-width drip pan under burners
- Factory-installed 3/4" gas pressure regulator
- Your choice of 6" stub back, 20" riser or high shelf
Backed by American Range’s limited two-year parts & labor warranty (certain components 90 days). Register within 90 days of shipment to activate extended coverage. Full terms at americanrange.com/terms-of-sale.
