American Range AR-24G-4B-126L-SBR Gas Ranges
Description
American Range 48" Gas Restaurant Range – 24" Griddle / 4 Burners / Standard Oven & Storage Base
Model AR-24G-4B-126L-SBR | 203,000 BTU (60 kW) Total OutputBuilt in the USA for demanding commercial kitchens, this 48" American Range combines a heavy-duty manual griddle, four lift-off open burners, a full 26-1/2" standard oven, and a convenient storage base—all in one space-saving footprint.

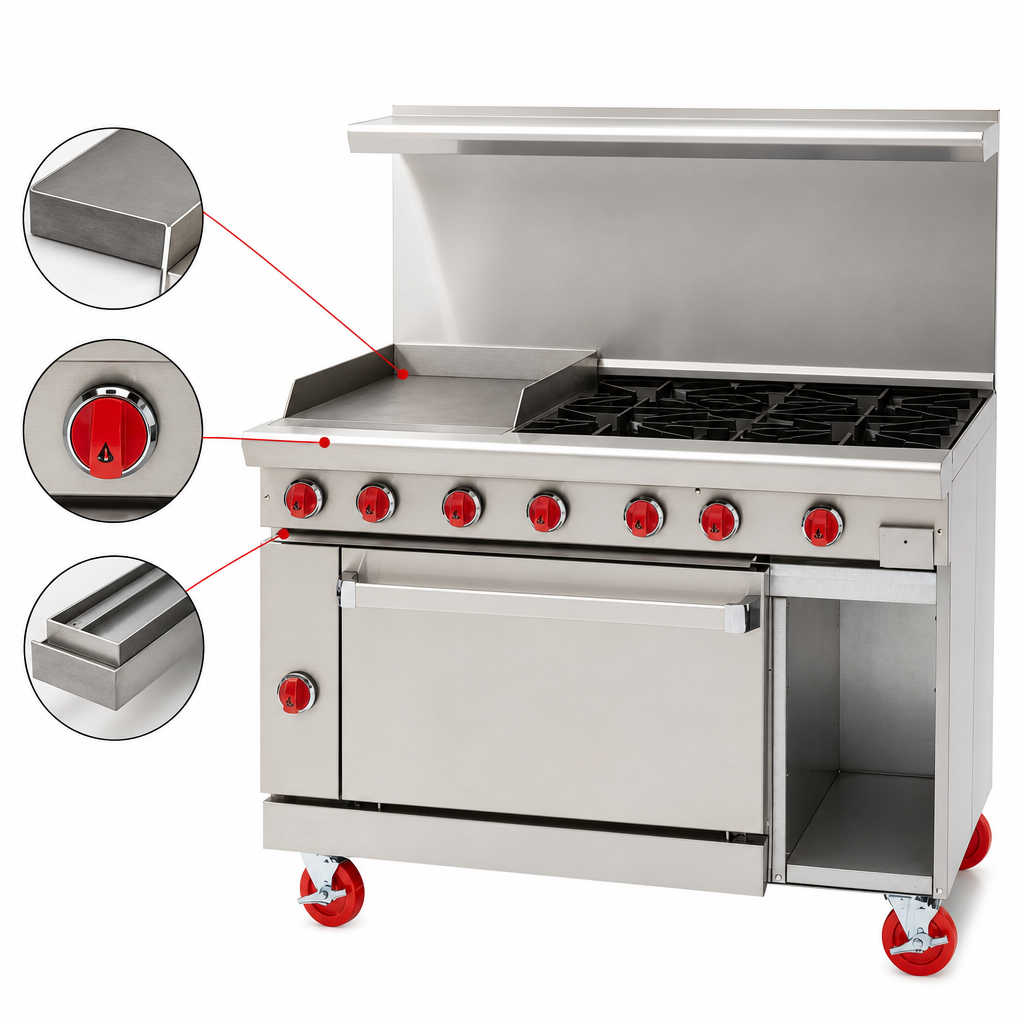

Key Features- 24" (610 mm) griddle section on the left, 1" thick steel plate for even heat retention
- Manual controls with one 20,000 BTU burner every 12" under the griddle

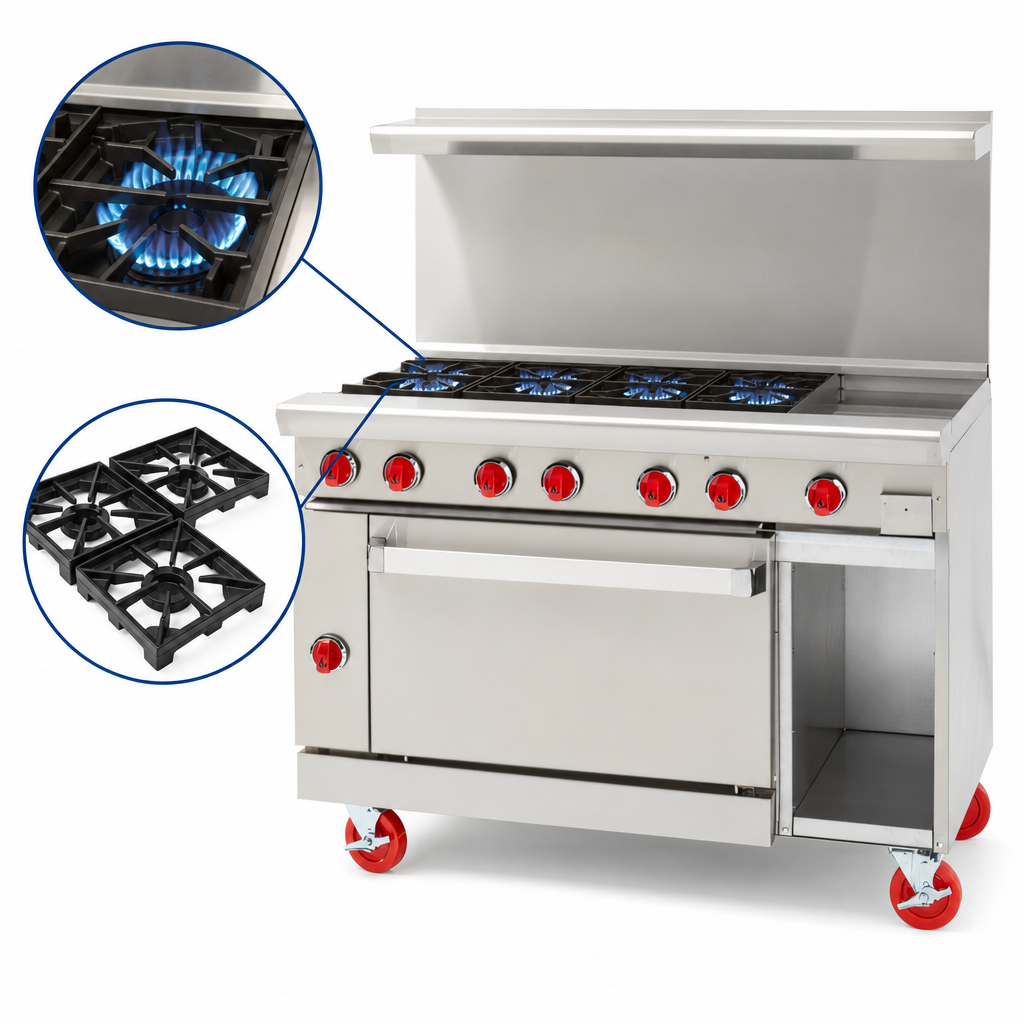

- Four 32,000 BTU open burners with 12" × 12" cast-iron grates
- Removable full-width drip pan and lift-off burner heads for fast cleanup
- 26-1/2" standard oven (35,000 BTU) with porcelain interior • 2 chrome racks, 2 positions
- Right-side storage base keeps pans, sheet trays, or smallwares within reach
- Stainless steel front, sides, landing ledge, and 6" adjustable chrome-plated legs
- Choice of backsplash: 6" stub back, 20" riser, or high riser with shelf (no up-charge)
- Zero-clearance to non-combustible walls; cETLus & ETL-Sanitation listed
- Two-year limited parts & labor warranty
| Overall width / depth / height | 48" W × 32-1/2" D × 36" H (cooking surface) |
|---|---|
| Griddle surface | 24" W × 24" D, 1" thick steel, manual |
| Open burners | 4 × 32,000 BTU lift-off burners, cast-iron grates |
| Oven type / capacity | Standard gas oven, 35,000 BTU Cavity: 20" W × 26-1/2" D × 13-1/2" H (fits full-size sheet pans front-to-back) |
| Storage base (right) | 11-1/4" W × 18" D × 22-1/2" H interior |
| Total gas input | 203,000 BTU/hr (60.0 kW) |
| Gas connection | 3/4" NPT rear manifold; 5.0" W.C. Natural / 10.0" W.C. LP |
| Shipping weight | ≈ 590 lb (268 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | Made in USA |
- High riser shelf for extra plating or small equipment
- Swivel casters (two locking) for mobile installations
- Additional chrome oven racks
- Low-profile flanged feet for curb-mounted installs
American Range backs this unit with a 2-year limited parts & labor warranty when installed and operated according to factory guidelines. Register your equipment within 90 days of shipment to activate full coverage.
