American Range AR-24G-2B-SB Gas Ranges

American Range 36" Gas Restaurant Range with 24" Griddle & 2 Open Burners – Storage Base

Built in the USA for serious commercial kitchens, the American Range AR-24G-2B-SB combines a high-capacity griddle, two powerful open burners and a full-size storage base in one rugged 36-inch platform—delivering maximum versatility while saving precious line space.

Key Features

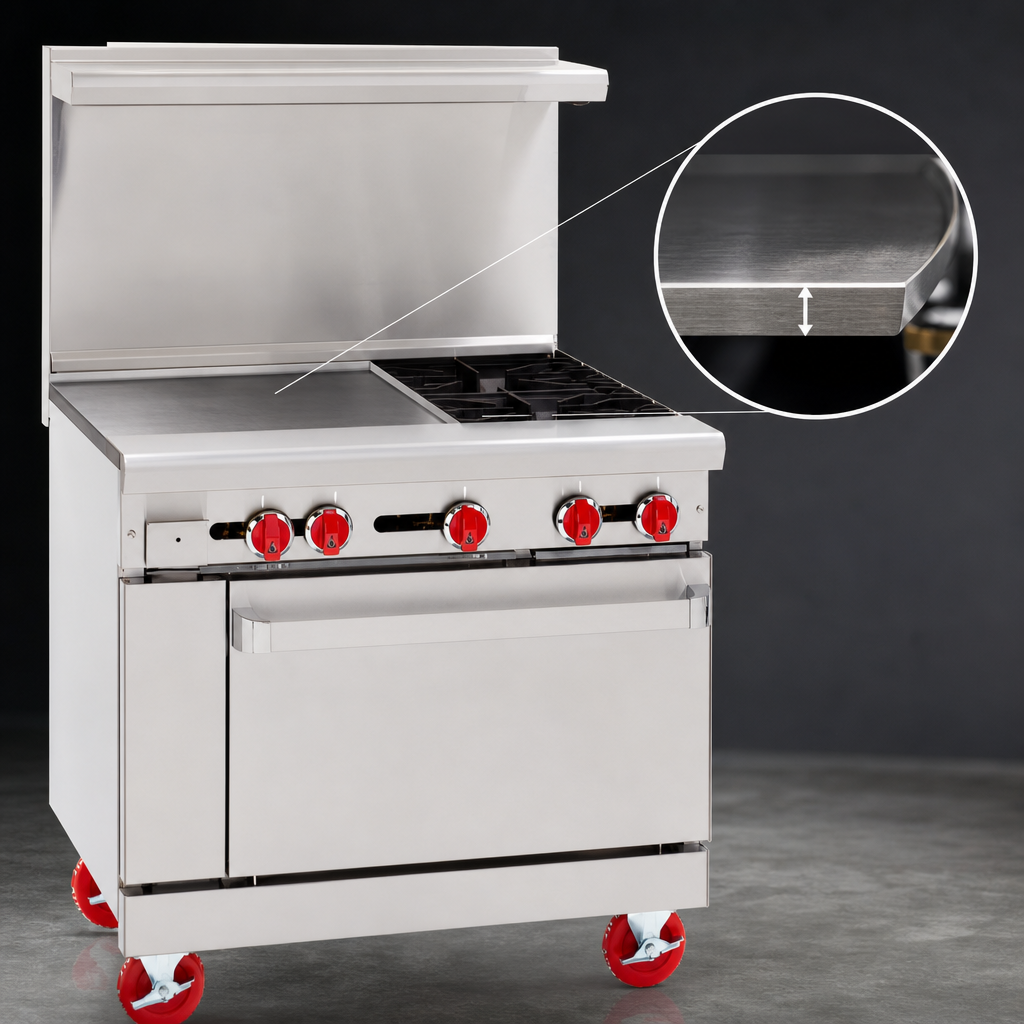

• 24" manual griddle (left) – 1" thick polished steel plate for superb heat retention; 3" wide grease trough and large-capacity drawer for fast clean-up.

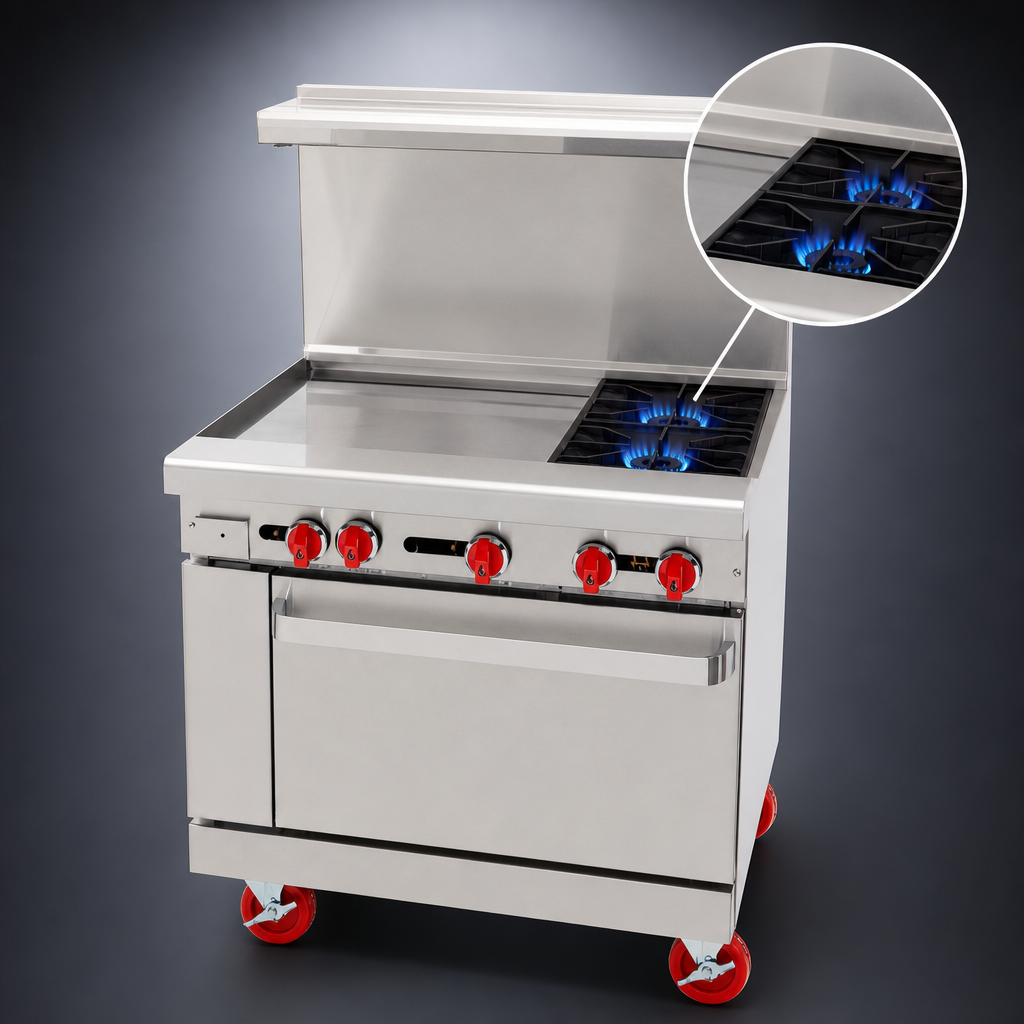

• 2 open burners (right) – 32,000 BTU lift-off heads with anti-clog design; heavy-duty 12" × 12" cast-iron top grates.
• 26 ½" storage base – Unheated cabinet keeps pans, smallwares and cleaning tools at arm’s reach; spring-assisted door.
• All-stainless front, sides & 6" landing ledge for long-lasting durability and easy wipe-down.
• 6" adjustable chrome-plated legs; optional swivel casters available.
• Removable full-width drip pan beneath the cooking surface collects runoff from burners and griddle.
• Backguard options included – Choose 6" stub back, 20" low riser, or 20" high riser with shelf at no extra charge.
• Total output: 104,000 BTU / 31.0 kW.

Performance & Utility

• Independent manual gas valves for precise flame and griddle control.
• Factory-configured for Natural Gas; LP conversion kit included.
• ¾" NPT rear gas connection with pressure regulator supplied.
• 0" clearance to non-combustible sides & rear allows flexible installation.

Certifications

• cETLus listed for gas safety (US & Canada)
• ETL Sanitation listed
• Designed & built in the USA

Specifications

Warranty

Protected by American Range’s 2-year limited parts & labor warranty (90-day warranty on replacement parts). Refer to the full warranty statement for complete terms.
