American Range AR-12G-8B Gas Ranges
Description

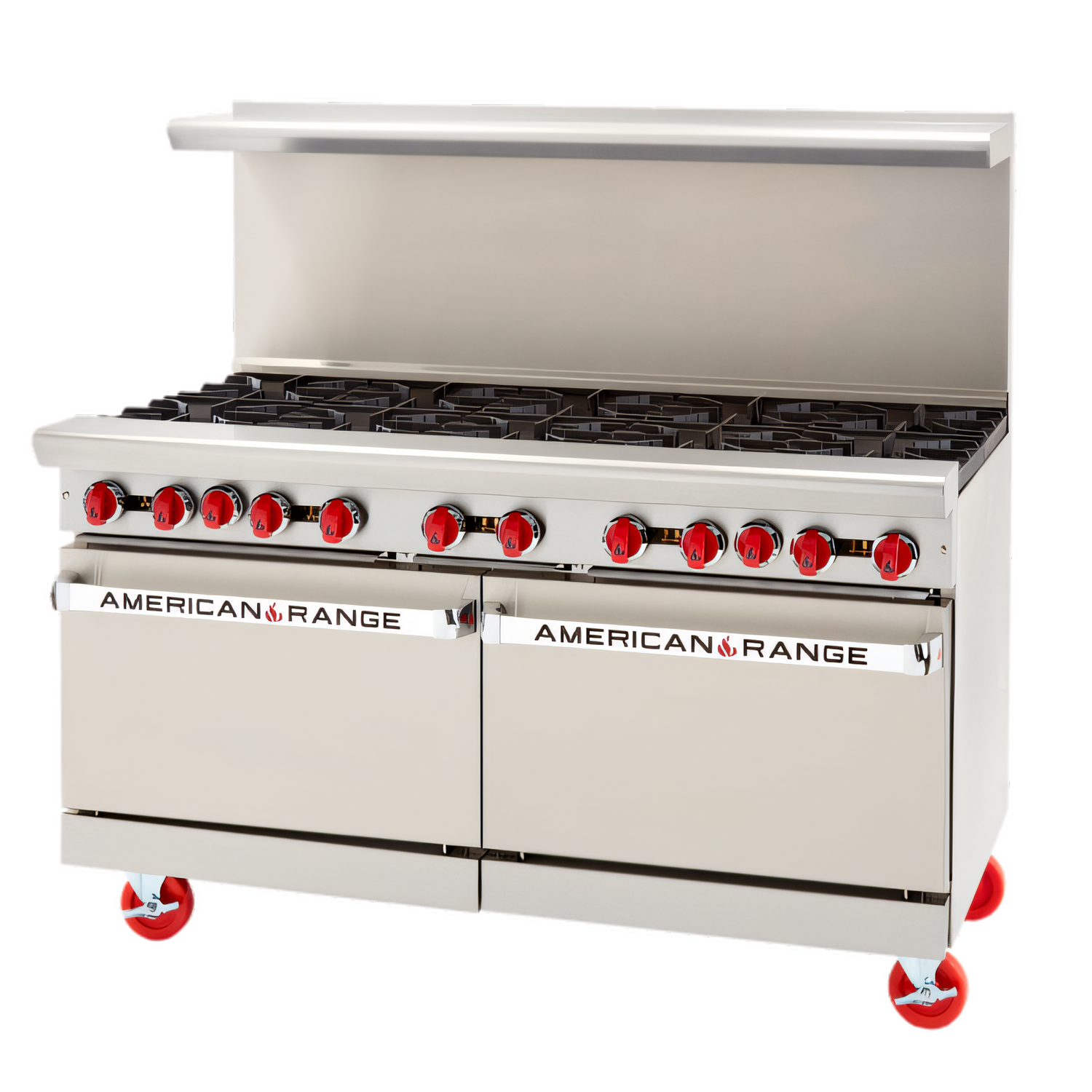

American Range AR-12G-8B 60" Gas Restaurant Range
8 Open Burners • 12" Manual Griddle • Twin Standard OvensBuilt and engineered in the USA, the AR-12G-8B delivers 346,000 BTU of uncompromising cooking power in a single, rock-solid platform. From breakfast rush to late-night service, this 60-inch workhorse keeps production moving with the durability, precision and cleanability that high-volume kitchens demand.
Why chefs choose the AR-12G-8B

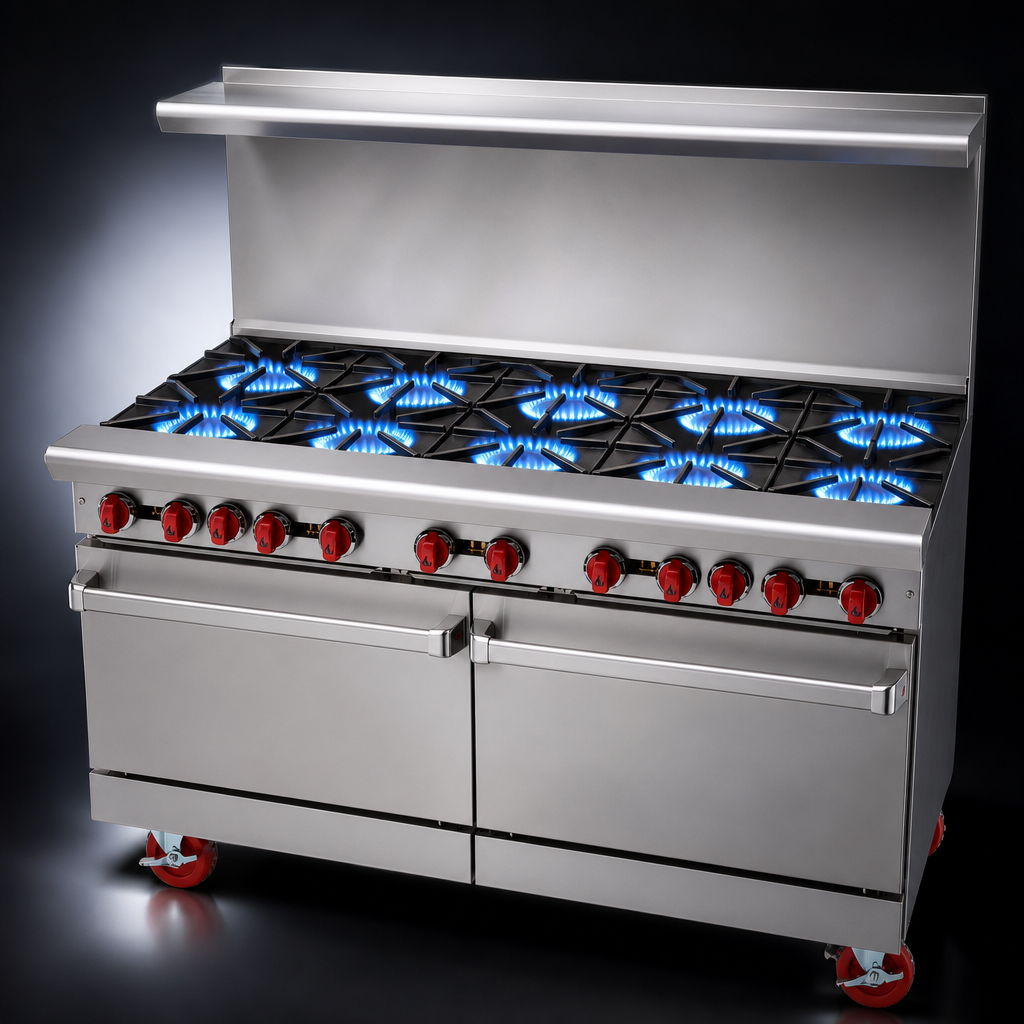

- Eight 32,000 BTU lift-off open burners with 12" × 12" heavy-duty cast-iron grates

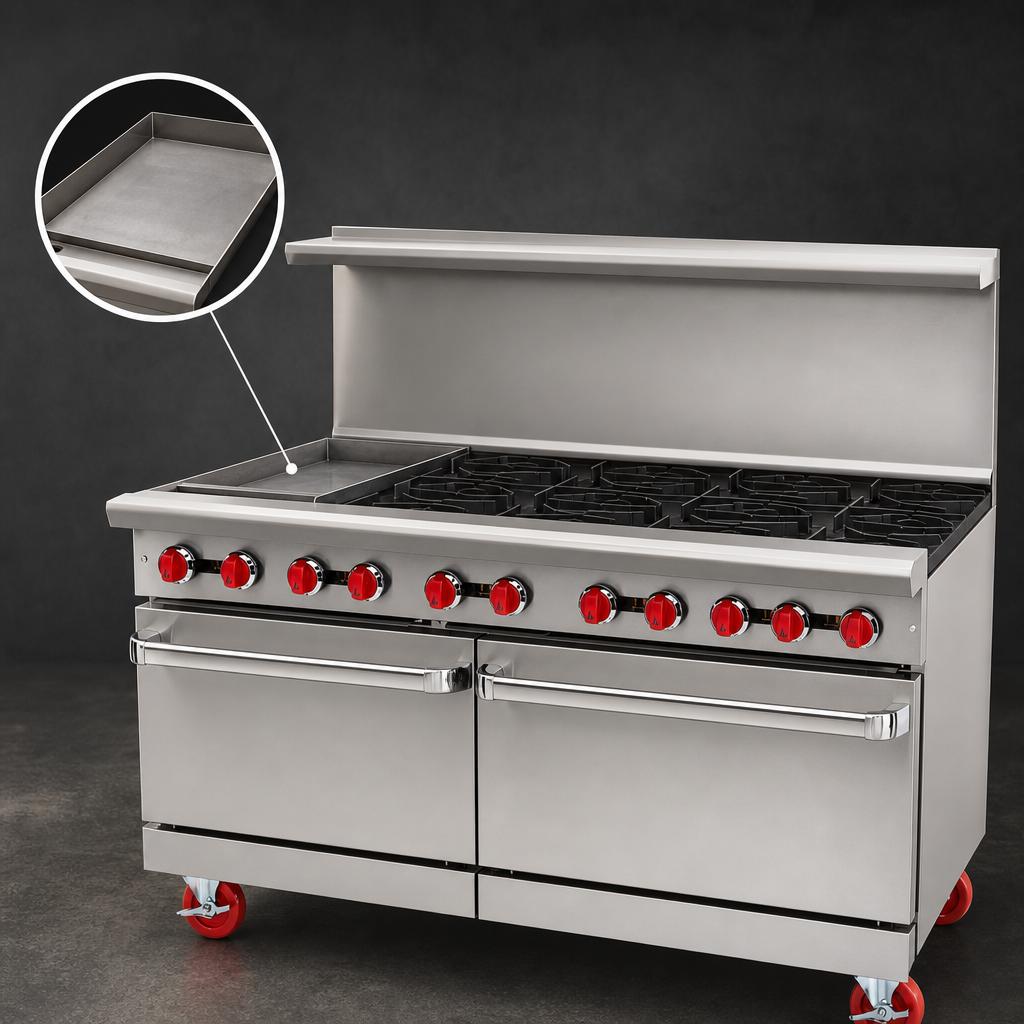

- Left-side 12" griddle section
- 1" thick steel plate for even heat retention
- 20,000 BTU manual burner
- 3" wide grease trough & large capacity drawer
- Two 26-1/2" standard ovens (35,000 BTU each)
- Porcelain enamel interior for easy cleanup
- Thermostat adjustable from 250 °F – 500 °F
- Five rack positions & two chrome racks per oven
- Stainless-steel front, sides, landing ledge & removable full-width drip pan
- Choice of 6" stub back, 20" high riser, or high riser with shelf (included at no extra charge)
- 6" chrome-plated adjustable legs (caster-ready)
- 100 % safety gas shut-off & cool-to-the-touch burner knobs
- cETLus & ETL-Sanitation listed — meets ANSI/NSF requirements
- Backed by a 2-year limited parts & labor warranty
- Proudly Made in the USA
Technical specifications
| Model | AR-12G-8B |
|---|---|
| Overall width | 60" (1524 mm) |
| Depth | 32-1/2" (826 mm) |
| Cooking height | 36" (914 mm) on 6" legs |
| Total BTU input | 346,000 BTU/h (101 kW) |
| Open burners | 8 × 32,000 BTU |
| Griddle | 12" W × 24" D, 1" plate, 20,000 BTU (manual) |
| Ovens | 2 × 35,000 BTU; cavities 26-1/2" W × 22-1/2" D × 13-1/2" H |
| Oven racks supplied | 2 per oven (chrome-plated) |
| Gas connection | 3/4" NPT rear; 5.0" W.C. NG / 10.0" W.C. LP |
| Clearances – combustible | Sides 6" | Rear 2" |
| Shipping weight | Approx. 720 lb (327 kg) |
Looking for a thermostatic griddle or convection oven base? Talk to our equipment specialists about factory-configured options.
