American Range AR-12G-8B-DSB Gas Ranges
Description

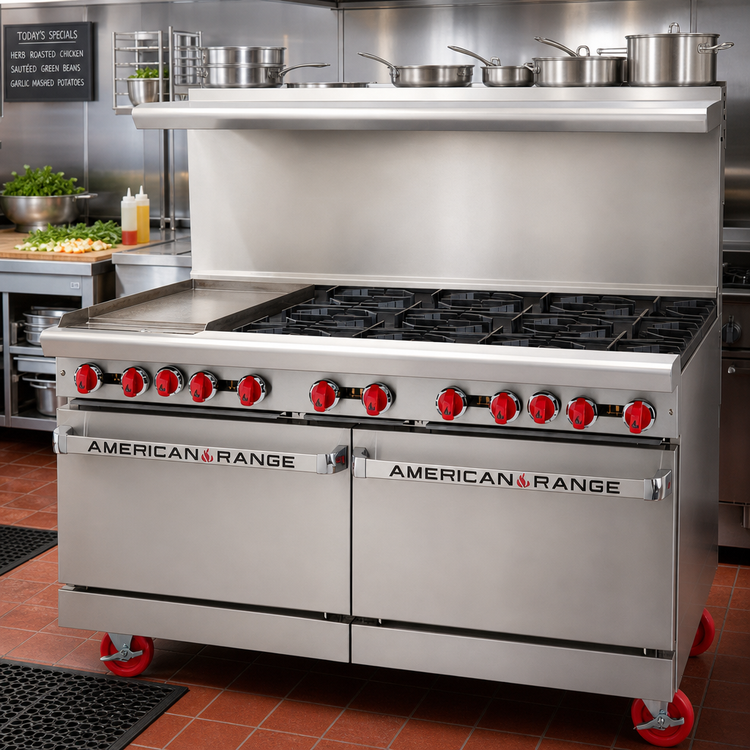

American Range 60" Gas Restaurant Range with 12" Griddle & 8 Open Burners
Model AR-12G-8B-DSB • 276,000 BTUBring powerhouse production and smart storage to the line with this Made-in-USA 60" restaurant range. A 12" manual griddle, eight high-performance burners and dual 26-1/2" storage bases deliver the versatility you need when ovens aren’t required.
Key Features
- 60" wide commercial cooktop, 32-1/2" deep with a 36" working height

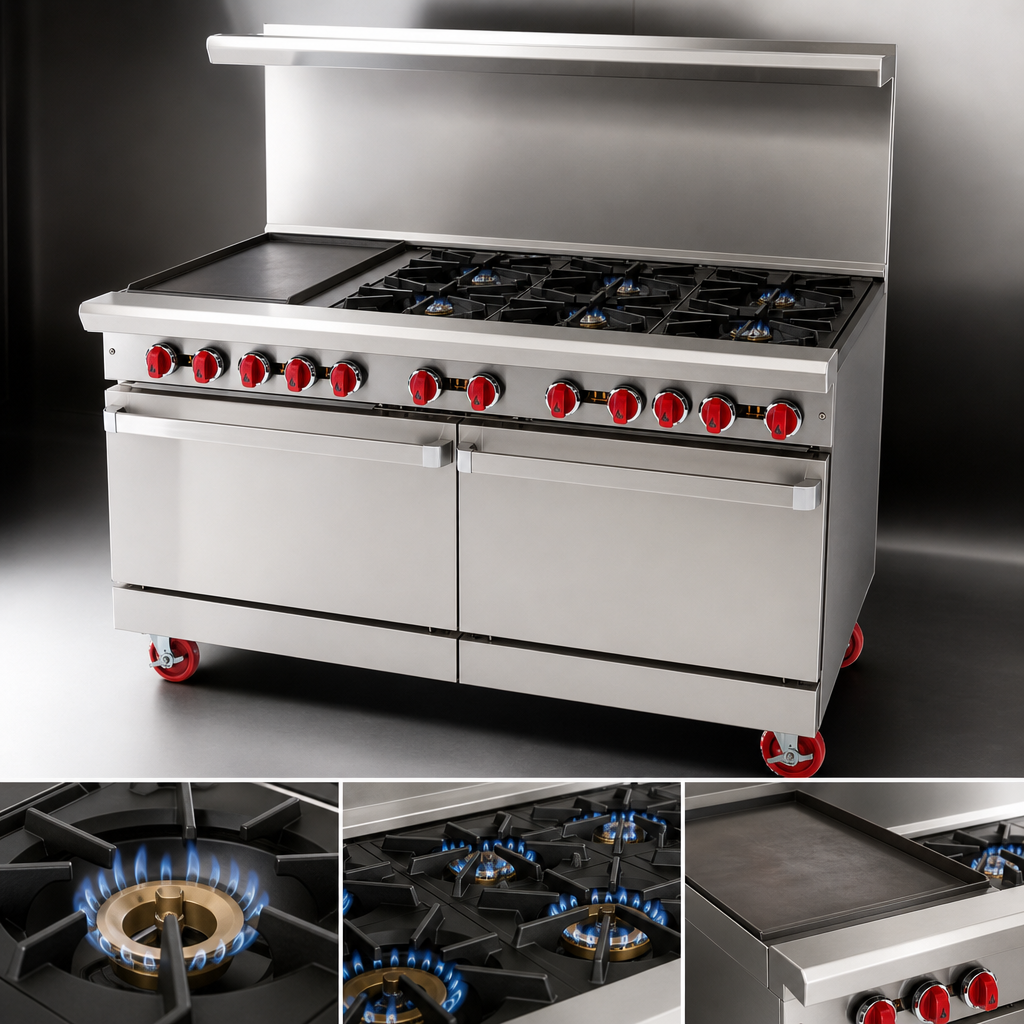

- (8) 32,000 BTU/hr open burners with 12" × 12" lift-off cast-iron grates

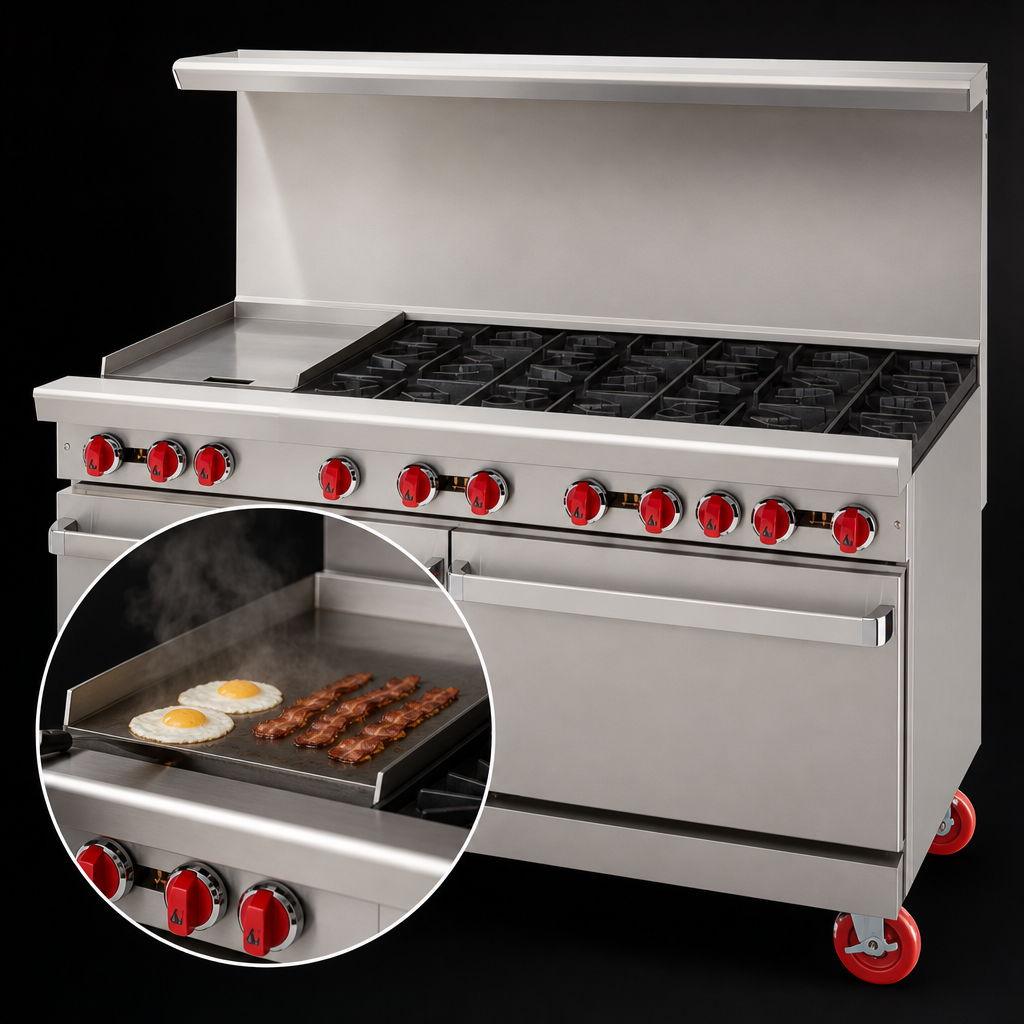

- 12" wide, 1" thick polished steel griddle plate (left-side) with manual gas valve
- Full-width removable drip pan simplifies end-of-shift clean-up
- (2) 26-1/2" storage bases keep sheet pans, smallwares or dry goods close at hand
- Stainless steel front, sides, landing ledge and kick plate for lasting durability
- Choose your backsplash: 6" chrome-plated stub back, 20" flue riser, or high shelf with riser
- 6" adjustable chrome-plated legs (optional swivel casters available)
- Rear ¾" NPT gas connection with factory pressure regulator
- cETLus & ETL-Sanitation listed • 2-year limited parts & labor warranty
- Designed & built in the USA
Performance & Specifications
| Total Input | 276,000 BTU/hr (81 kW) |
|---|---|
| Open Burners | 8 × 32,000 BTU/hr open burners |
| Griddle | 12" W × 27" D (305 mm × 686 mm), 1" thick plate, manual control |
| Base Configuration | (2) 26-1/2" storage cabinets with spring-assisted doors |
| Overall Dimensions* | 60" W × 32-1/2" D × 56" H (with optional 24" high shelf) |
| Shipping Weight* | ≈ 580 lb (263 kg) |
| Gas Connection | ¾" NPT (Natural or LP – specify at order) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor • 90-day on replacement parts |
*Dimensions and weight are approximate and include standard legs. High shelf or riser height will change overall height.
Perfect For
- Full-service restaurants that need extra dry storage instead of ovens
- Hotel, resort and banquet kitchens with diverse menus
- Ghost kitchens and food halls where footprint efficiency matters
Looking for convection ovens or a larger griddle? Explore other American Range 60" series models or contact us for custom configurations.
