American Range AR-12G-8B-CL-126R Gas Ranges
Description
60" Gas Restaurant Range with 8 Open Burners, 12" Griddle & Dual 26 ½" Ovens
American Range – Built in the USA, cETLus & ETL-Sanitation ListedDesigned for busy commercial kitchens that refuse to compromise, this American Range 60" restaurant range unites intense burner power, a high-performance griddle, and both convection and standard ovens in a single, heavy-duty chassis. From breakfast service to dinner rush, it delivers the versatility, capacity, and rugged reliability chefs depend on every day.
Highlights
- (8) cast-iron open burners, each rated 32,000 BTU for quick boils & rapid recovery

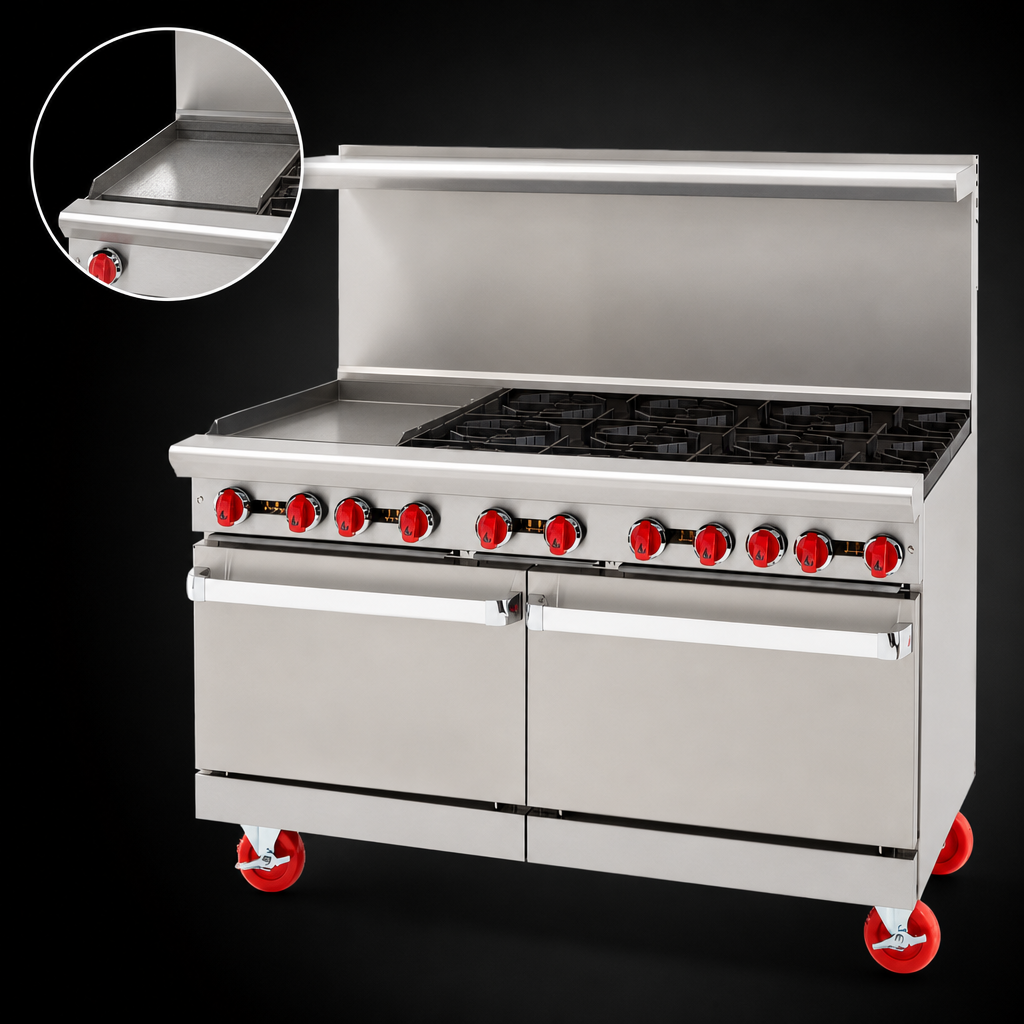

- 12" manual griddle on the left with a 1" thick steel plate for even heat retention
- 26 ½" convection oven (left) with 2 chrome racks and 5 rack positions
- 26 ½" standard oven (right) with 2 chrome racks and 3 rack positions
- Oven thermostats adjust from 250 °F – 500 °F for precise baking & roasting
- 6" removable landing ledge plus full-width drip tray for fast cleanup
- Stainless steel front, sides & kick plate resist corrosion and splashes
- Choose your backguard: 6" stub back, 20" riser, or high shelf with riser – all at no extra charge
- 6" chrome-plated legs adjust for a level, code-compliant installation
- Factory-rated total input: 154,000 BTU / 45 kW
Technical Specs
| Overall width | 60" (1524 mm) |
|---|---|
| Overall depth | 32 ½" (826 mm) to front of landing ledge |
| Cooking height | 36" (914 mm) on 6" adjustable legs |
| Open burners | (8) × 32,000 BTU lift-off heads, 12" × 12" cast-iron grates |
| Griddle section | 12" W × 24" D, 1" thick plate, manual control |
| Left oven | Convection, 26 ½" W × 22 ½" D × 13 ½" H cavity 30,000 BTU burner, porcelain interior |
| Right oven | Standard, 26 ½" W × 22 ½" D × 13 ½" H cavity 35,000 BTU burner, porcelain interior |
| Total gas input | 154,000 BTU / 45.0 kW (natural gas or LP, field convertible) |
| Gas connection | ¾" NPT rear manifold; regulator supplied |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & built in the USA |
Backed by American Range’s 2-year limited parts & labor warranty. Register your unit within 90 days for maximum coverage.
