American Range AR-12G-8B-126L-SBR Gas Ranges
Description
American Range 60" Gas Restaurant Range
8 Open Burners • 12" Manual Griddle • Standard Oven & Storage BaseBuilt in the USA for demanding commercial kitchens, this 60-inch American Range gas restaurant range combines powerful open-top cooking, a precision 12" griddle, a full-size standard oven and a convenient storage base—all wrapped in durable stainless steel.
Performance & Construction Highlights
- (8) 32,000 BTU open burners with 12" x 12" heavy-duty cast-iron grates

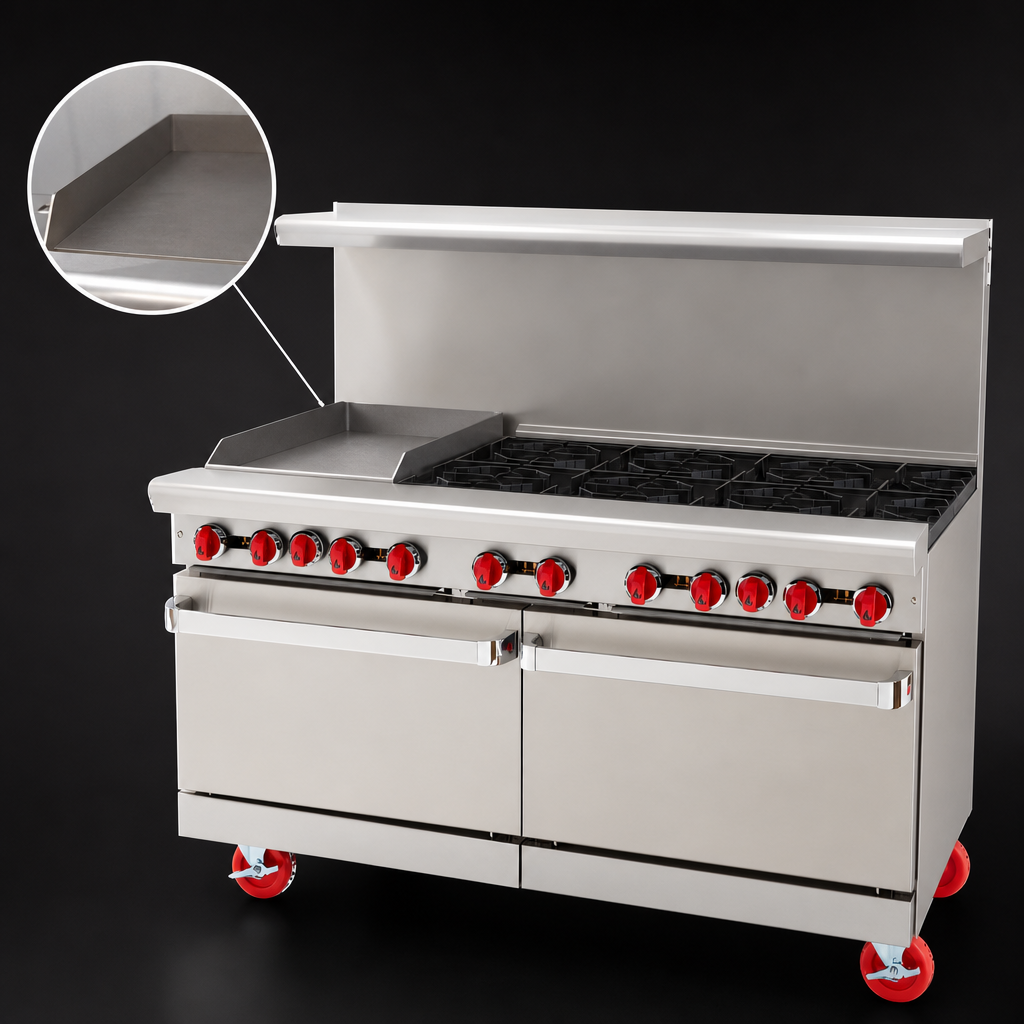

- (1) 12" wide griddle on the left
- 1" thick polished steel plate for even heat retention
- 20,000 BTU burner, manual controls & 3" grease trough
- (1) 26-1/2" standard oven on the left
- 35,000 BTU steel burner, 250 °F – 500 °F thermostat
- Porcelain-enamel interior for easy cleaning
- Spring-assisted, counter-weighted door
- (2) chrome racks with 3 positions
- (1) 26-1/2" stainless storage base on the right—ideal for sheet pans, pots & smallwares
- Removable full-width drip pan under the burner section
- Stainless steel front, sides and landing ledge
- Choice of backguard: 6" stub back, 20" riser, or high shelf with riser (select at checkout)
- 6" adjustable chrome-plated legs for a level, stable cook line
- Total input: 311,000 BTU /hr (91.0 kW)
- cETLus & ETL-Sanitation listed for gas safety and NSF sanitation
- Designed & built in the USA
Specifications
| Overall width | 60" (1524 mm) |
|---|---|
| Overall depth | 32 1/2" (826 mm) |
| Cook surface height | 36" (914 mm) with legs adjusted to midpoint |
| Open burners | 8 × 32,000 BTU lift-off heads, removable pan |
| Griddle section | 12" W, 1" thick plate, 20,000 BTU |
| Oven interior (W×D×H) | 26 1/2" × 22 1/2" × 13 1/2" |
| Oven burner | 35,000 BTU steel tube |
| Temperature range | 250 °F – 500 °F (121 °C – 260 °C) |
| Total input | 311,000 BTU /hr (91.0 kW) |
| Gas connection | 3/4" NPT rear manifold, 5.0" W.C. NG / 10.0" W.C. LP |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |
Peace-of-Mind Coverage
American Range backs this unit with a 2-year limited warranty on parts & labor when registered within 90 days of shipment. See full warranty terms for details.
