American Range | SKU:
AR-12G-6B
American Range AR-12G-6B Gas Ranges
$7,782.40
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range AR-12G-6B Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-12G-6B Gas Ranges
$7,782.40
Unit price
/
Unavailable
Description
American Range AR-12G-6B 48" Gas Restaurant Range
12" Manual Griddle • 6 High-Performance Open Burners • Dual 20" Space Saver OvensBring powerhouse versatility to the cook line without giving up floor space. The American-made AR-12G-6B packs a 1" thick steel griddle, six 32,000 BTU open burners, and two independent space-saver ovens into a rugged, all-stainless chassis that is built to thrive in the toughest commercial kitchens.
Why You’ll Love It
- 266,000 BTU total output (78 kW) for rapid recovery during peak service.
- 6 open burners with 12" × 12" cast-iron grates—lift-off design for fast cleaning.

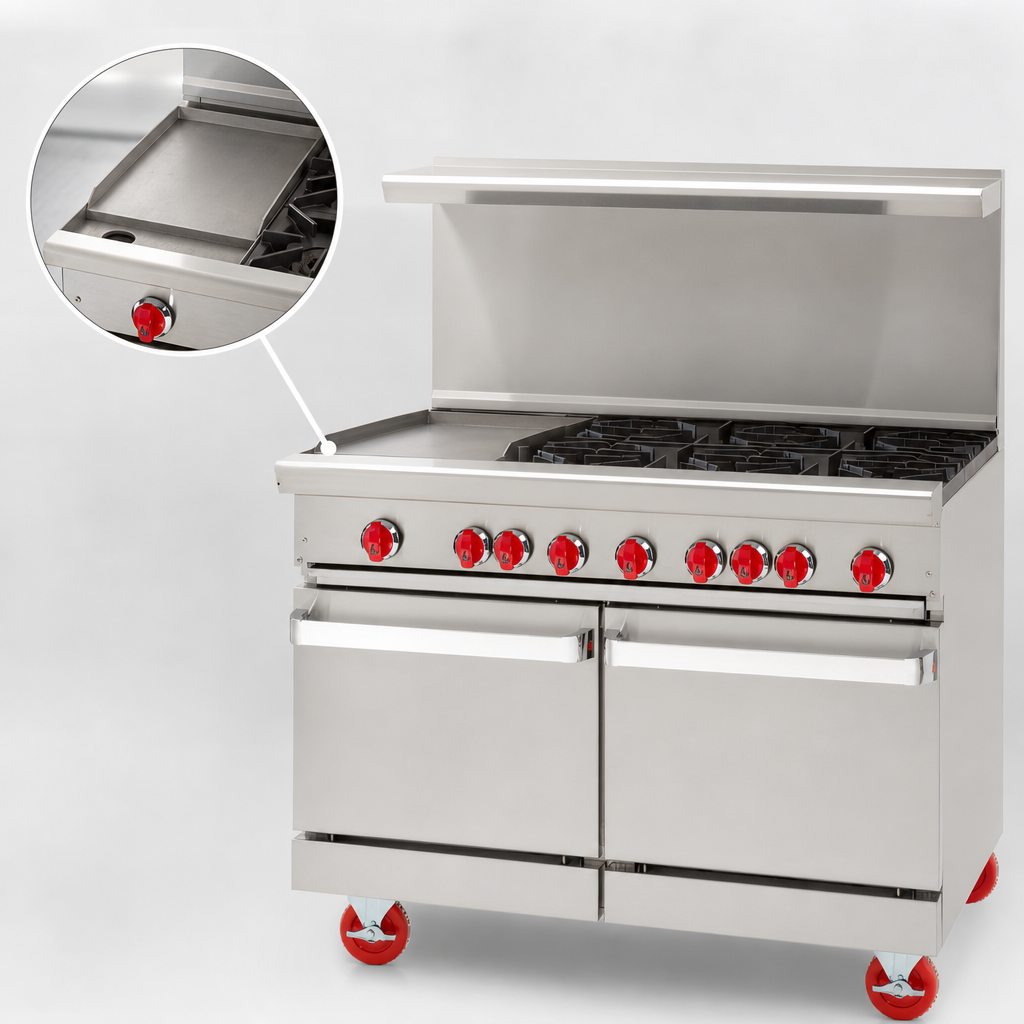

- 1" thick, 12" wide steel griddle on the left side with manual controls and 20,000 BTU burner.
- Two 20" space-saver ovens (27,000 BTU each) with spring-assisted doors and porcelain interiors.
- Stainless steel front, sides, 6" deep landing ledge, and removable full-width drip pan.
- Choice of 20" high riser with shelf or 6" stainless stub back—no up-charge.
- 6" adjustable chrome-plated legs; optional locking swivel casters available.
- cETLus & ETL Sanitation listed; designed & built in the USA.
Performance by Section

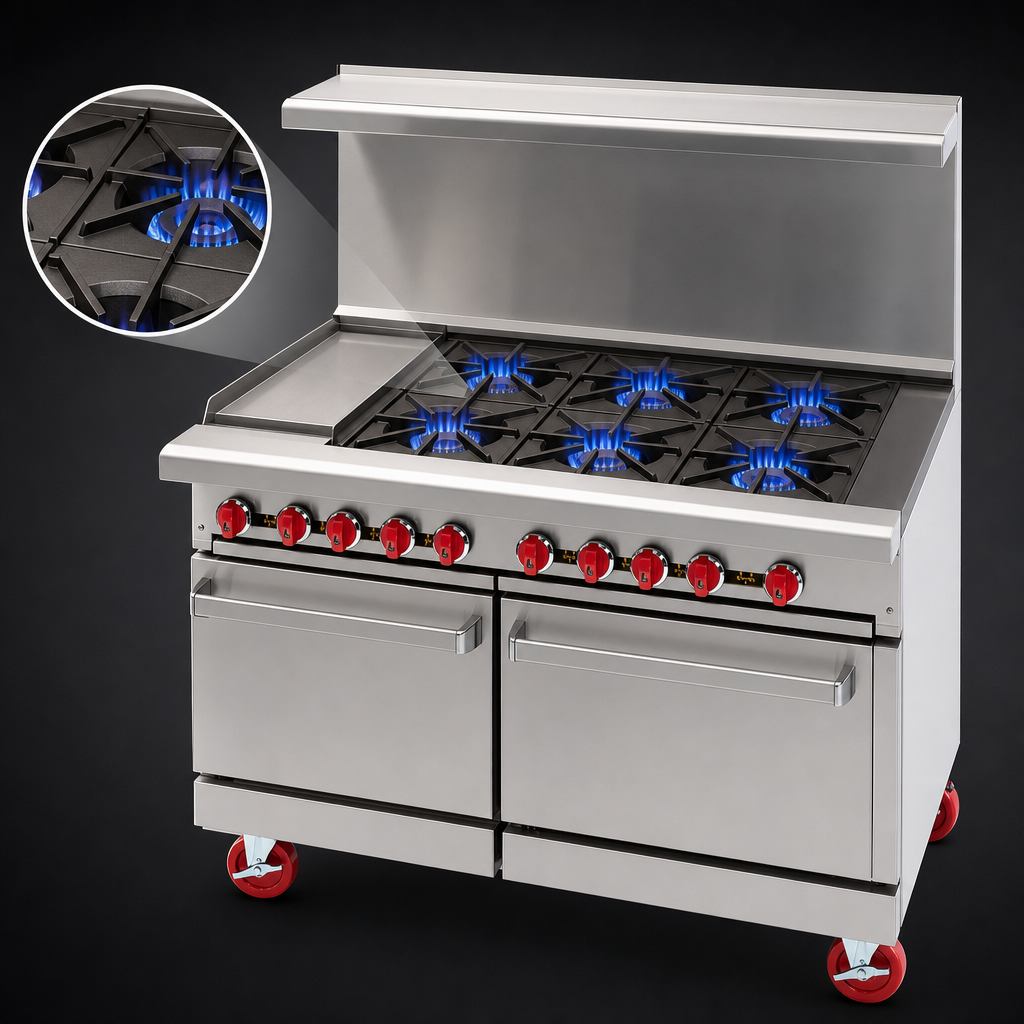

Open Burners- (6) 32,000 BTU lift-off burners with 100% safety gas shut-off.
- 12" × 12" heavy-duty cast-iron top grates handle large stock pots with ease.
- 1" thick polished steel plate retains heat for consistent searing.
- 3" wide integrated grease trough speeds clean-up.
- Manual valve—perfect for menus that demand chef-controlled temperatures.
- (2) 27,000 BTU steel burners; thermostat adjustable from 250 °F–500 °F (121 °C–260 °C).
- Interior dimensions: 20"W × 26-1/2"D × 13-1/2"H each—room for full-size sheet pans front-to-back.
- Includes two chrome racks per cavity with two fixed positions.
- Porcelain enamel interiors for easy wipe-down.
Specifications
| Model | AR-12G-6B |
|---|---|
| Overall Width | 48" (1219 mm) |
| Overall Depth | 32-1/2" (826 mm) |
| Cooking Height | 36" (914 mm) to cook surface |
| Total BTU / kW | 266,000 BTU / 78 kW |
| Open Burners | (6) × 32,000 BTU lift-off heads |
| Griddle | 12" (305 mm) manual, 1" thick plate, 20,000 BTU |
| Ovens | (2) space-saver, 27,000 BTU each; 250 °F–500 °F thermostat |
| Gas Inlet | 3/4" NPT (rear), 5.0" W.C. Natural or 10.0" W.C. Propane |
| Shipping Weight | Approx. 615 lb (279 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor (USA & Canada) |
Register your range within 90 days of shipment to unlock extended coverage—see warranty card for details.
Gas notice: Specify Natural or LP gas at the time of order and confirm available manifold pressure.
Follow all local codes and clearance requirements during installation.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
56.0in
Width
48.0in
Depth
32.25in
Shipping Weight
615.0lbs
Top
(6) open burners, (1) 12" griddle
Base
(2) standard / space saver ovens
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Vent
backriser with hi-shelf
Specifications
Restaurant Range, gas, 48", (1) 12" griddle on left, 1" thick plate, manual controls, (6) 32,000 BTU open burners, (2) 20" space saver ovens, (2) racks per oven, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 78.0kW, 266,000 BTU, cETLus, ETL-Sanitation, Made in USA
