American Range AR-12G-6B-DSB Gas Ranges
Description

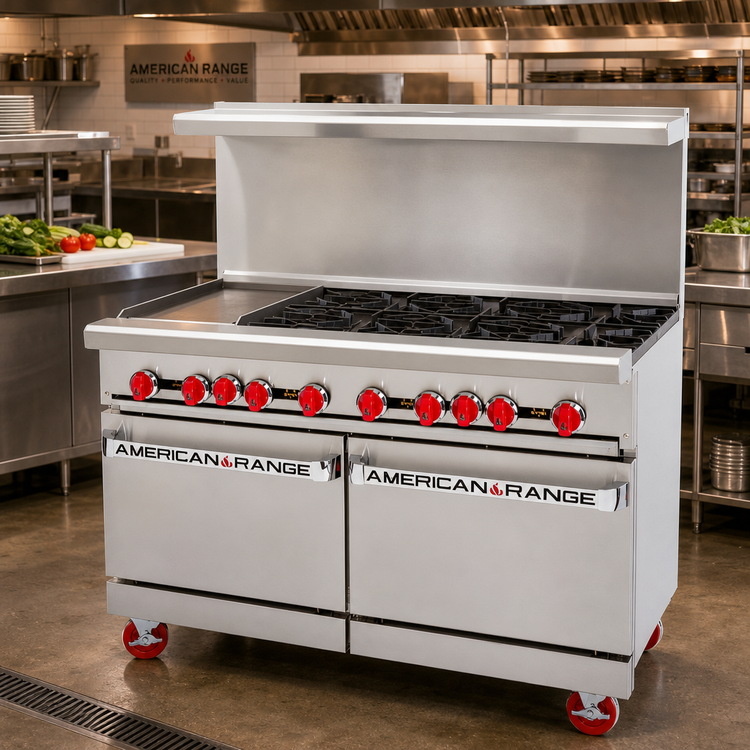

48" Gas Restaurant Range w/ 6 Burners & 12" Manual Griddle – Double Storage Base
American Range Model AR-12G-6B-DSB | 212,000 BTUEngineered and built in the USA, this 48-inch American Range workhorse delivers blistering heat, versatile cooking zones and generous dry storage in one rock-solid footprint. Six high-performance open burners sit alongside a 1" thick steel griddle, while twin 20" storage cabinets keep cookware right where you need it—on the line.
Key Features
- (6) 32,000 BTU lift-off open burners with 12" × 12" cast-iron grates

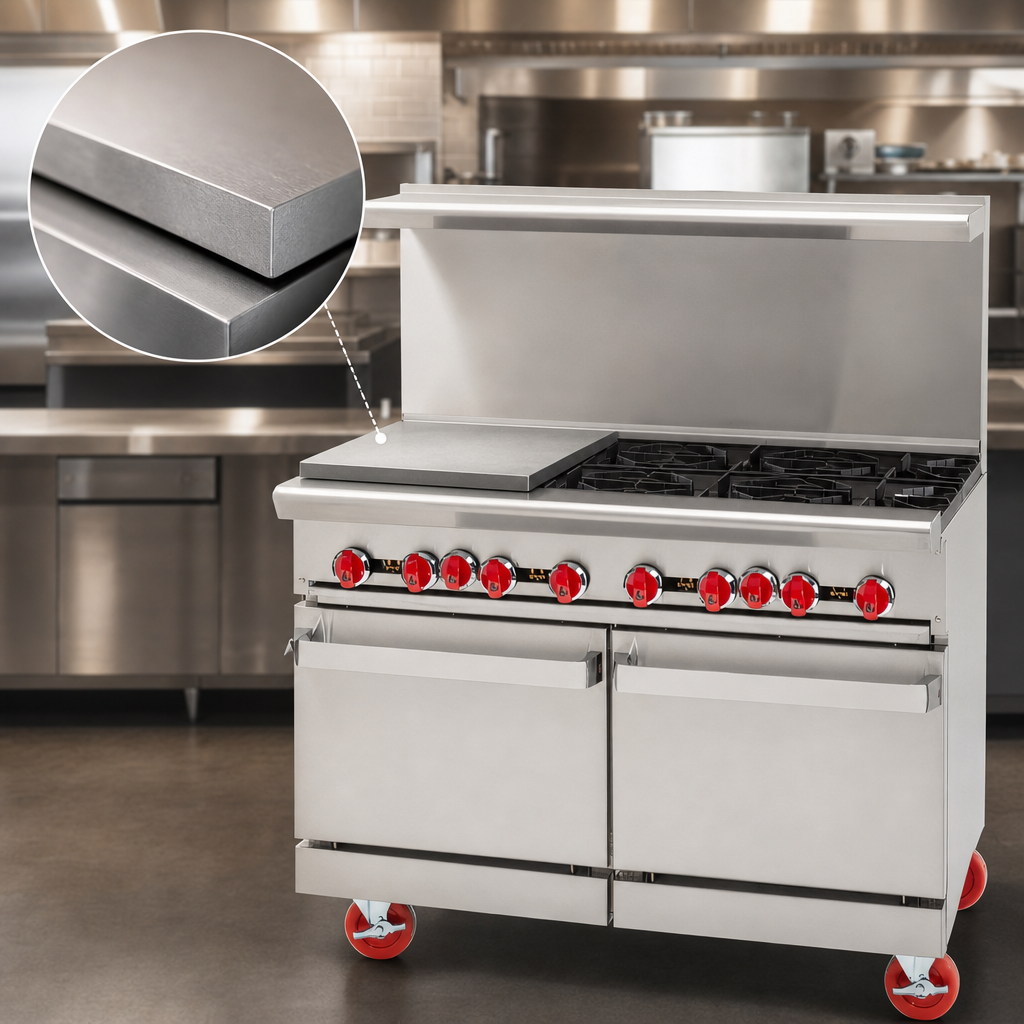

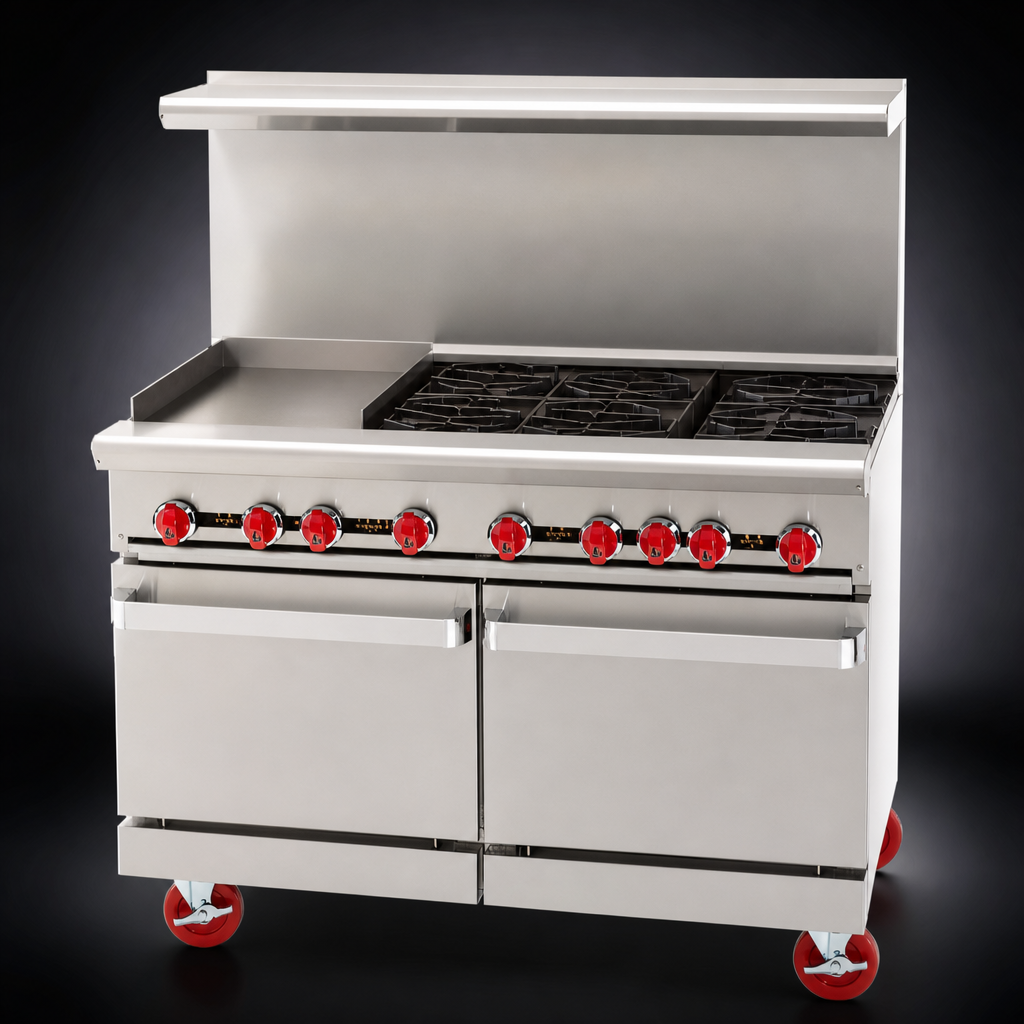

- Left-side 12" griddle – 1" polished steel plate, manual controls, 20,000 BTU burner & 3" grease trough
- Total input: 212,000 BTU/hr (62.0 kW)
- (2) 20" wide, full-depth dry storage bases for sheet pans, stock pots & smallwares
- Stainless steel front, sides, 6" deep landing ledge & choice of:
- 6" stub back (standard)
- 20" backsplash riser
- High riser with stainless steel shelf
- 6" adjustable chrome-plated legs simplify leveling on uneven floors
- Removable full-width drip pan beneath burners for quick clean-up
- cETLus & ETL-Sanitation listed for gas safety and foodservice hygiene
- Backed by a 2-year parts & labor limited warranty
- Proudly made in the USA
Popular Factory-Installed Options
- Swivel caster set (2 locking front casters)
- Thermostatic griddle with modulating thermostat
Technical Specifications
| Exterior width | 48" (1219 mm) |
|---|---|
| Exterior depth | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) |
| Total input | 212,000 BTU/hr (62.0 kW) |
| Open burners | (6) × 32,000 BTU |
| Griddle burner | (1) × 20,000 BTU |
| Griddle plate | 12" W × 24" D × 1" thick polished steel |
| Base configuration | Two 20" dry storage cabinets |
| Gas connection | 3/4" NPT, rear |
| Manifold pressure | Natural 5.0" WC | LP 10.0" WC |
| Certifications | cETLus, ETL-Sanitation |
| Shipping weight | ≈ 475 lb (215 kg) |
Specifications and options are subject to change without notice. Images may show optional accessories. Need a custom configuration? Contact our team for expert assistance.
