American Range 48-Inch Gas Restaurant Range with 12-Inch Griddle, 6 Open Burners, 26-1/2-Inch Convection Oven, and Storage Base
American Range 48-Inch Gas Restaurant Range with 12-Inch Griddle, 6 Open Burners, 26-1/2-Inch Convection Oven, and Storage Base
Left-Side Griddle Layout, Right Storage Base, 20-Inch Back Riser and Shelf
Built for high-volume kitchens, this 48-inch gas range combines six open burners, a manual griddle, a convection oven, and a storage base in one durable stainless steel unit.
- 48-inch floor model with six 32,000 BTU open burners, a 12-inch griddle, a convection oven, and a storage base.
- 1-inch thick manual griddle plate with a 3-inch grease collector and individual burner control valves.
- 26-1/2-inch convection oven with fan-assisted heat transfer, two chrome racks, and a 250°F to 500°F thermostat.
- Stainless steel front, sides, back riser, and shelf with 6-inch adjustable chrome-plated legs.
- Rear 3/4-inch NPT gas connection with pressure regulator for installation flexibility.
- Made in the USA and covered by a 2-year limited warranty.
Overall Dimensions:
48.0"W x 32.25"D x 56.0"HProduct Weight:

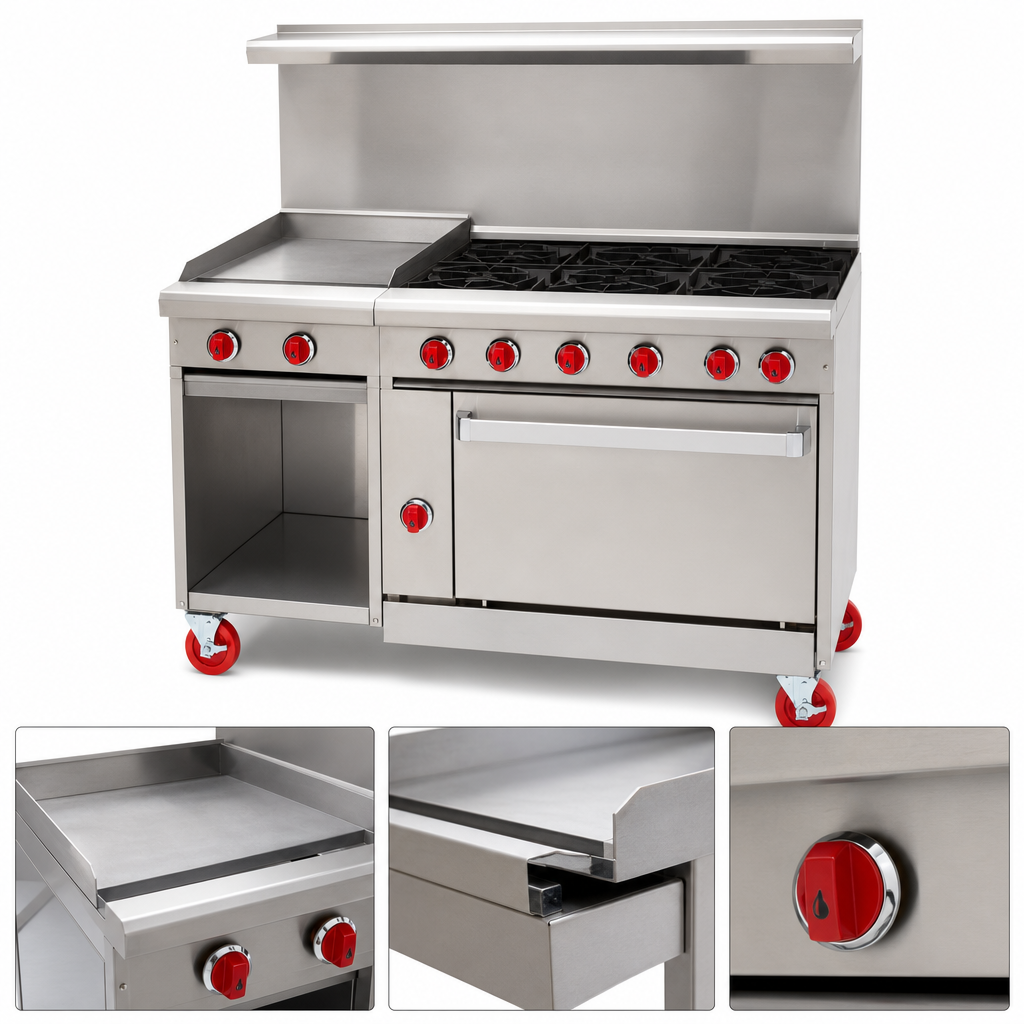

585.0 lb12-Inch Manual Griddle Top
Left-side griddle section with a 1-inch thick steel plate, 3-inch grease collector, and manual control valve for each burner.

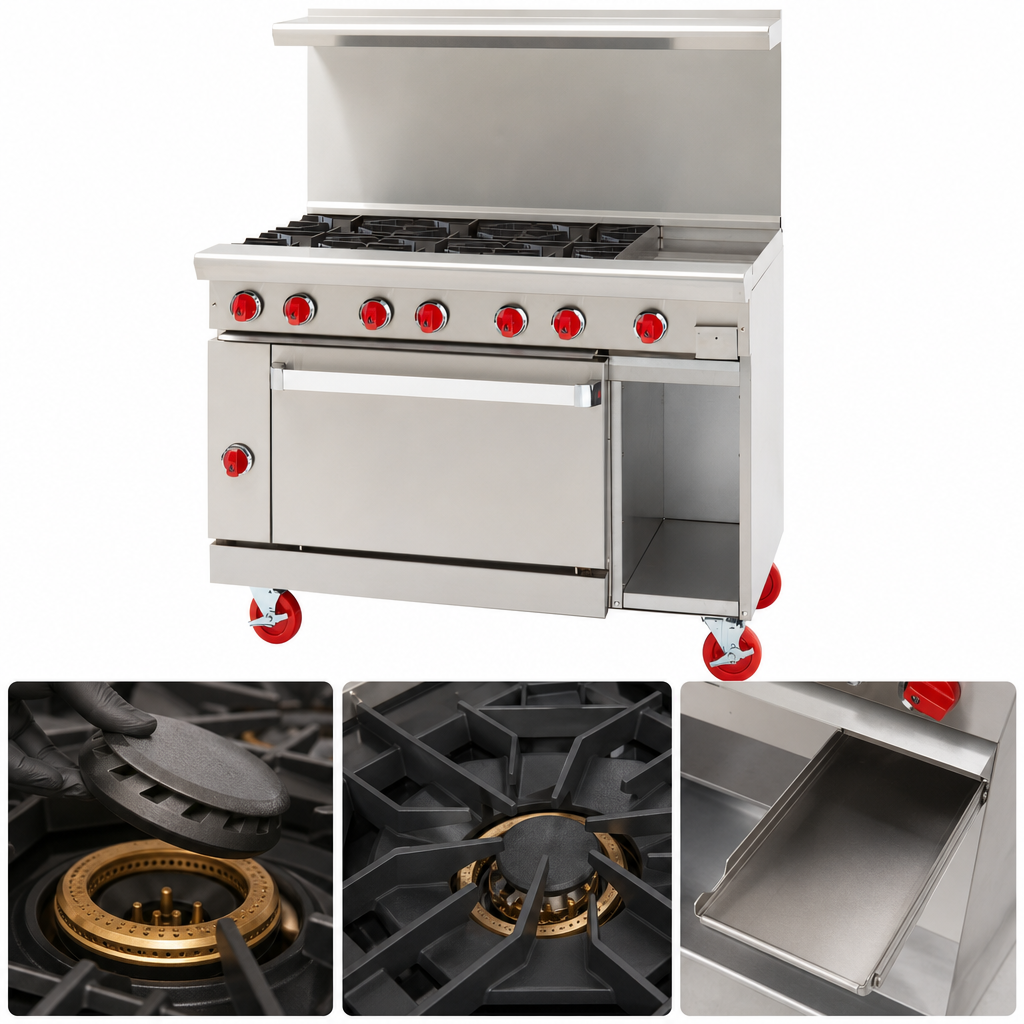

Six 32,000 BTU Open Burners
Lift-off burner heads, 12-inch by 12-inch cast-iron top grates, and a removable full-width drip pan under the burners.
26-1/2-Inch Convection Oven
Fan-assisted convection oven with a 30,000 BTU burner, porcelain interior, two chrome-plated racks, and five tray positions.
Right-Side Storage Base
Integrated storage base on the right side provides convenient under-range storage.
Stainless Steel Construction
Stainless steel front, sides, 20-inch back riser, and shelf with 6-inch adjustable chrome-plated legs.
120V Convection Oven Electrical Requirements
Requires 120 volts, single-phase power at 4 amps; a 15-amp three-prong cord is provided.
Two-Year Limited Warranty
Factory limited warranty includes parts and labor coverage.
Warranty & Protection
2-year limited warranty, parts and labor.
