American Range AR-12G-4B-C Gas Ranges
Description
American Range 36" Restaurant Range w/ 12" Manual Griddle & Convection Oven
Model AR-12G-4B-C | 178,000 BTU (52 kW)Purpose-built for the busiest commercial kitchens, this U.S-made 36-inch American Range brings together four high-performance open burners, a 12-inch manual griddle, and a full 26-1/2" convection oven—delivering maximum versatility without sacrificing valuable line space.
Key Features

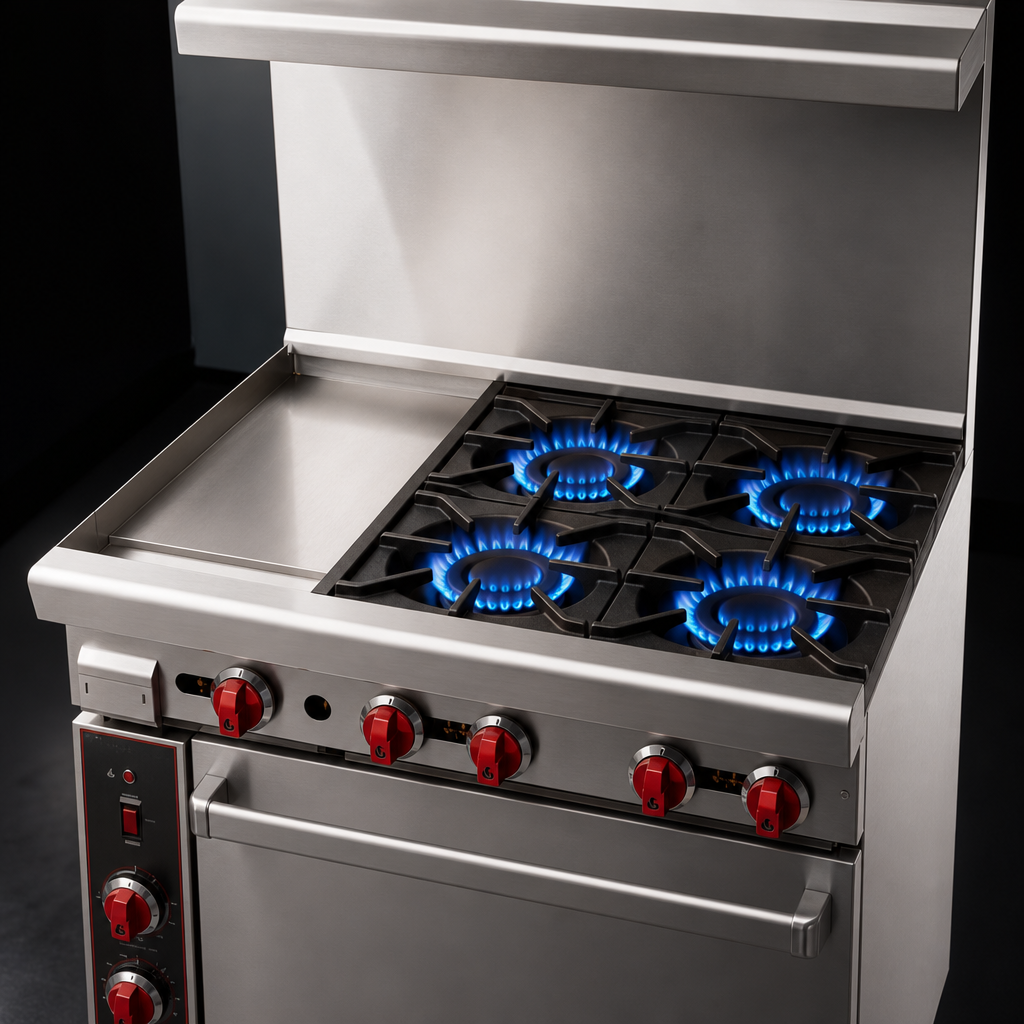

- (4) 32,000 BTU lift-off open burners with 12" × 12" cast-iron grates

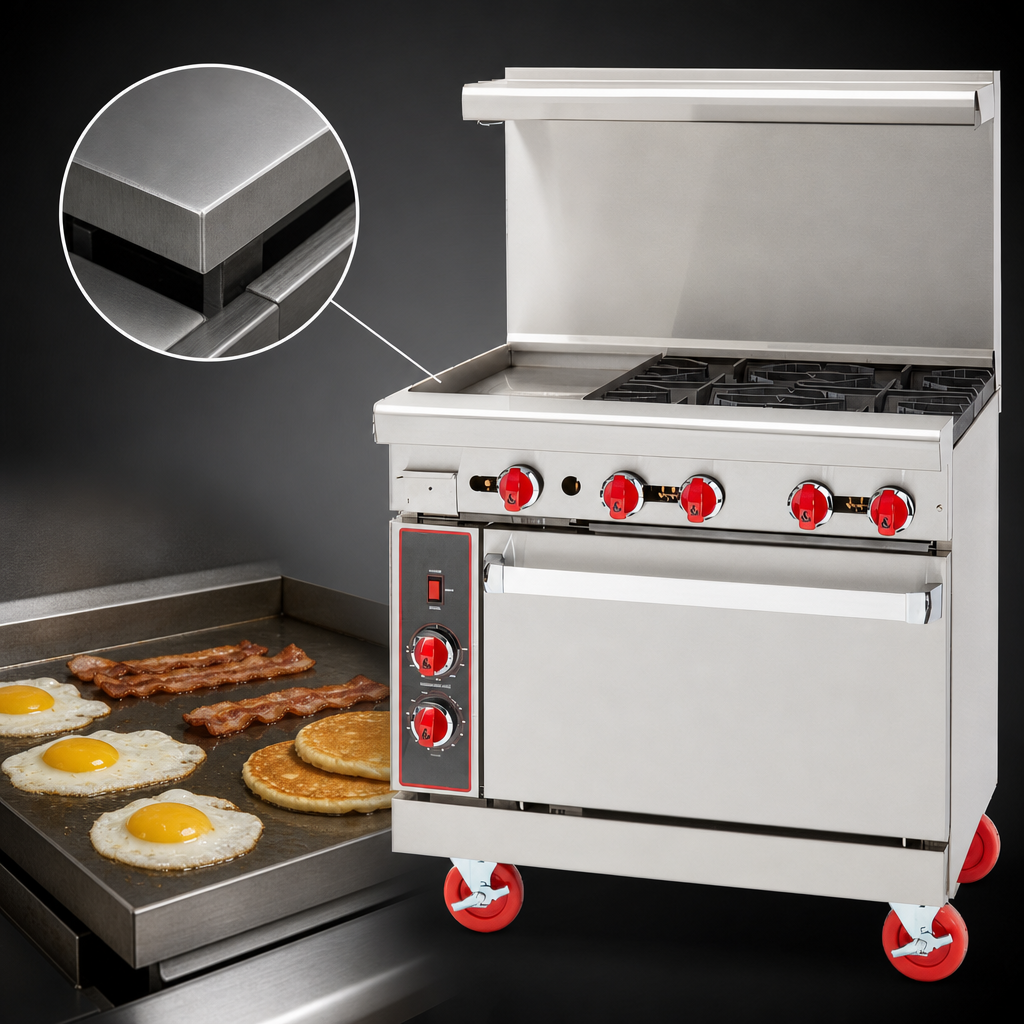

- 1" thick, 12" steel griddle plate (left-hand) with manual valve & 3" grease trough
- 26-1/2" convection oven, porcelain-lined, includes (2) chrome racks & 5 position guides
- 30,000 BTU oven burner; thermostat 250 °F – 500 °F (121 °C – 260 °C)
- Stainless steel front, sides, back & 6" deep landing ledge for heavy-duty durability
- Full-width removable drip pan simplifies daily cleanup
- Choice of 6" stub back, 20" riser, or 20" riser with shelf at no extra cost
- 6" adjustable chrome-plated legs (field-upgradeable to optional casters)
- Two-year limited parts & labor warranty
- cETLus & ETL-Sanitation listed | Designed & built in the USA
Performance Specifications
| Width | 36" (914 mm) |
|---|---|
| Depth | 32-1/2" (826 mm) |
| Cooktop | (4) open burners + 12" manual griddle (left) |
| Total Input | 178,000 BTU/hr | 52.0 kW |
| Griddle Burner | 20,000 BTU/hr |
| Oven Interior (W × D × H) | 26-1/2" × 22-1/2" × 13-1/2" (673 × 572 × 343 mm) |
| Oven Temp Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Electrical (fan) | 120 V / 1 ph / 4 A — 15 A cord & plug included |
| Gas Connection | ¾" NPT rear, Natural 5.0" W.C. or LP 10.0" W.C. |
| Shipping Weight | Approx. 505 lb (229 kg) |
Ideal Applications
- Full-service & independent restaurants
- Ghost kitchens and commissaries
- Institutional operations—schools, healthcare, military
- Food trucks or concession trailers needing a compact, all-in-one range
Specify gas type (Natural or LP) and preferred backguard option when ordering. Clearances from non-combustible walls: 0" sides, 4" rear. Must be installed under an approved ventilation hood.
Images may depict optional accessories such as casters.
