Key specifications

BTU
454,000 BTU
Dimensions
72.0"W × 32.25"D × 56.0"H
Type
Range
Installation Type
Floor Model
Material
Stainless Steel
Country of Origin
USA
Spec sheet
American Range SKU: AR-12

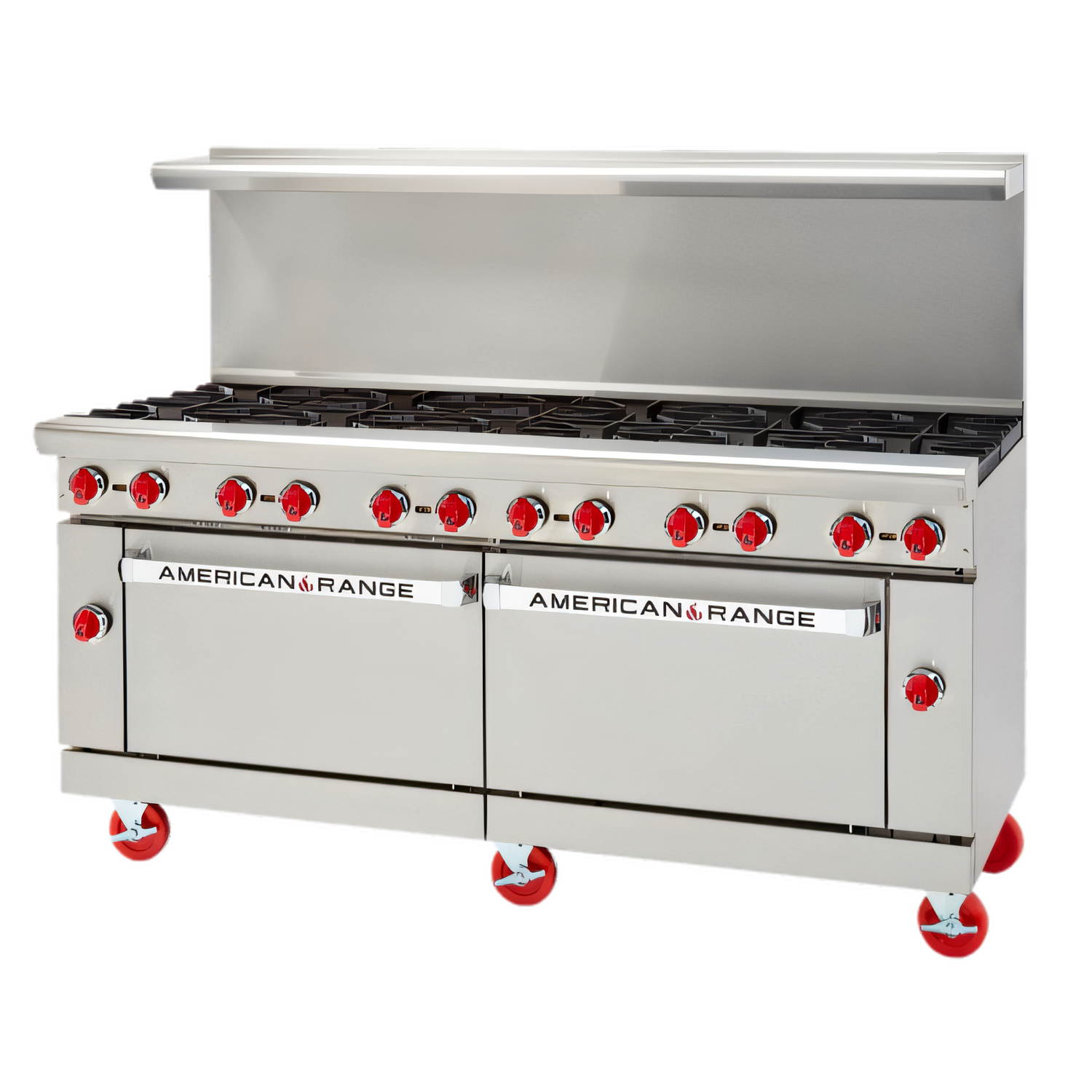

American Range AR-12 72-Inch 12-Burner Gas Range, 2 Ovens

$11,029.50
/each
Estimated to ship in 11–14 business days Free Shipping
Gas typeRequired
Left base
Right base
Back
Gas Connector

Need something else? Contact us.

Included: American Range warranty Two-year limited warranty covering parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,020/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Finish Stainless Steel
Size 72 Inches
Burner Count 12
Burner Type Open
Burner Output 32,000 BTU/hr.
BTU 454,000 BTU
Oven Count 2
Oven Type Standard
Oven Rack Count 2 per oven
Oven Cavity Dimensions 26.5 W x 22.5 D x 13.5 H Inches
Temperature Range 250°F to 500°F
Interior Finish Porcelain Enamel
Grate Material Cast Iron
Grate Size 12 x 12 Inches
Back Riser and Shelf 20 Inches
Cooking Height 36 Inches
Leg Height 6 Inches
Input Power 133 kW

Description

The American Range AR-12 is a 72-inch restaurant gas range with 12 open burners and two standard ovens. It has stainless steel front and sides, a standard 20-inch back riser and shelf, and 6-inch adjustable chrome-plated legs.

Each standard oven includes two chrome-plated racks, a porcelain enamel interior, and a thermostat range of 250°F to 500°F. The range has a total gas rating of 454,000 BTU and is made in the USA.

  • 12 open burners rated at 32,000 BTU/hr. each
  • Two 26 1/2-inch standard ovens with two racks per oven
  • cETLus and ETL-Sanitation certified

Overall Dimensions:

72.0"W x 32.25"D x 56.0"H

Product Weight:

810.0 lb

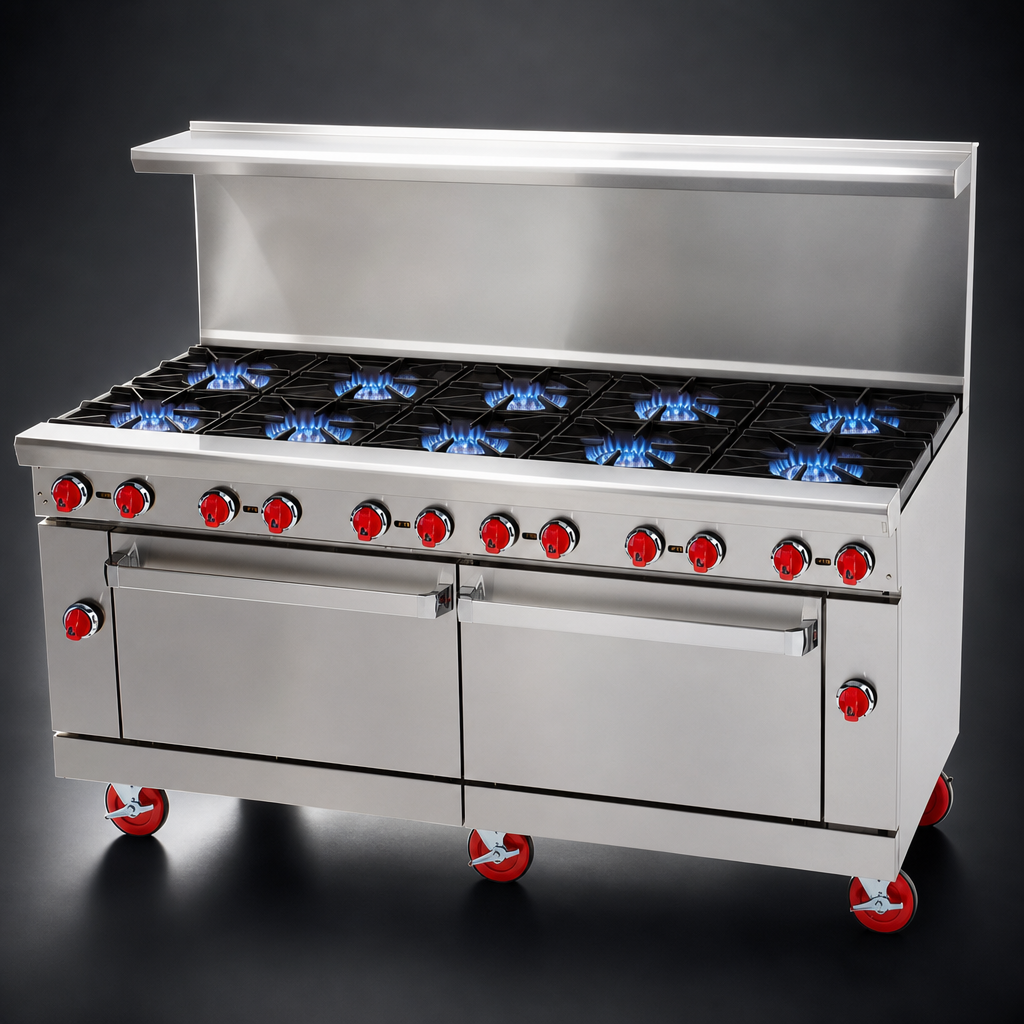

Open Burners

Includes 12 lift-off open burners rated at 32,000 BTU/hr. each, with 12 x 12-inch cast-iron top grates.

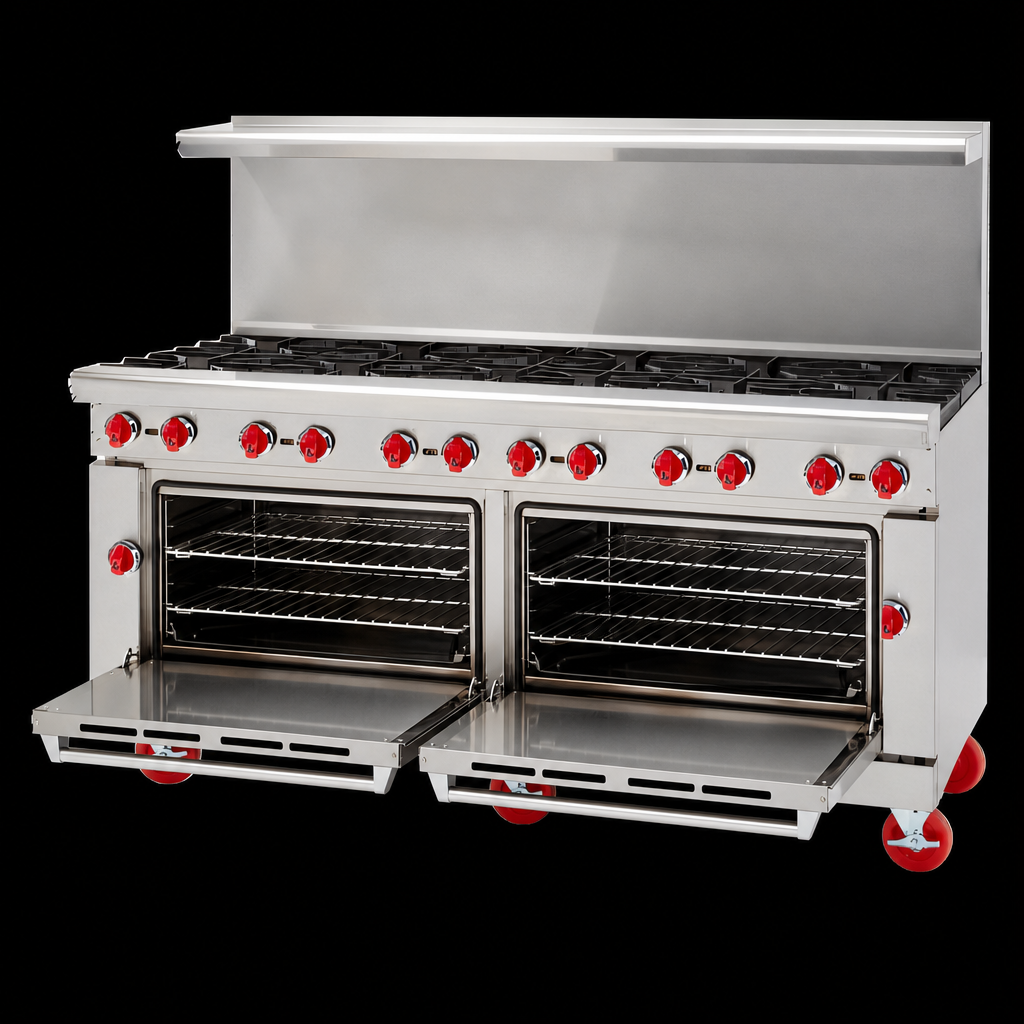

Standard Ovens

Includes two 26 1/2-inch standard ovens, each with two chrome-plated racks.

Oven Temperature Range

The standard oven thermostats range from 250°F to 500°F.

Oven Interior

The standard ovens have porcelain enamel interiors.

Back Riser and Shelf

A 20-inch back riser and shelf are standard.

Stainless Steel Exterior

The front and sides are stainless steel.

Adjustable Legs

Includes 6-inch adjustable chrome-plated legs.

Oven Safety Shutoff

The standard ovens include a 100% safety gas shutoff.

Frequently Asked Questions

The AR-12 has 12 open burners rated at 32,000 BTU/hr. each.
The range includes two 26 1/2-inch standard ovens with two chrome-plated racks in each oven.
The standard oven thermostats range from 250°F to 500°F.
Yes. A 20-inch back riser and shelf are standard.
The cutsheet lists Natural Gas and LP selections and states that the gas type must be specified when ordering.
