American Range AR-12-DSB Gas Ranges
$10,516.50
Unit price
/
Unavailable
Description
72" Gas Restaurant Range – 12-Burner w/ Dual Storage Bases
American Range AR-12-DSBPut unrivaled firepower and everyday practicality on the same cookline. The American Range 72" restaurant range combines twelve 32,000 BTU open burners with two full-size storage bases—giving chefs high-output cooking capacity plus a convenient, built-in pantry for pots, pans and sheet trays.
Key Features
- (12) lift-off open burners, 32,000 BTU each – total 384,000 BTU (113 kW).
- 12" × 12" heavy-duty cast-iron grates let stock pots slide smoothly from burner to burner.
- Removable full-width drip pan for rapid end-of-shift clean-up.

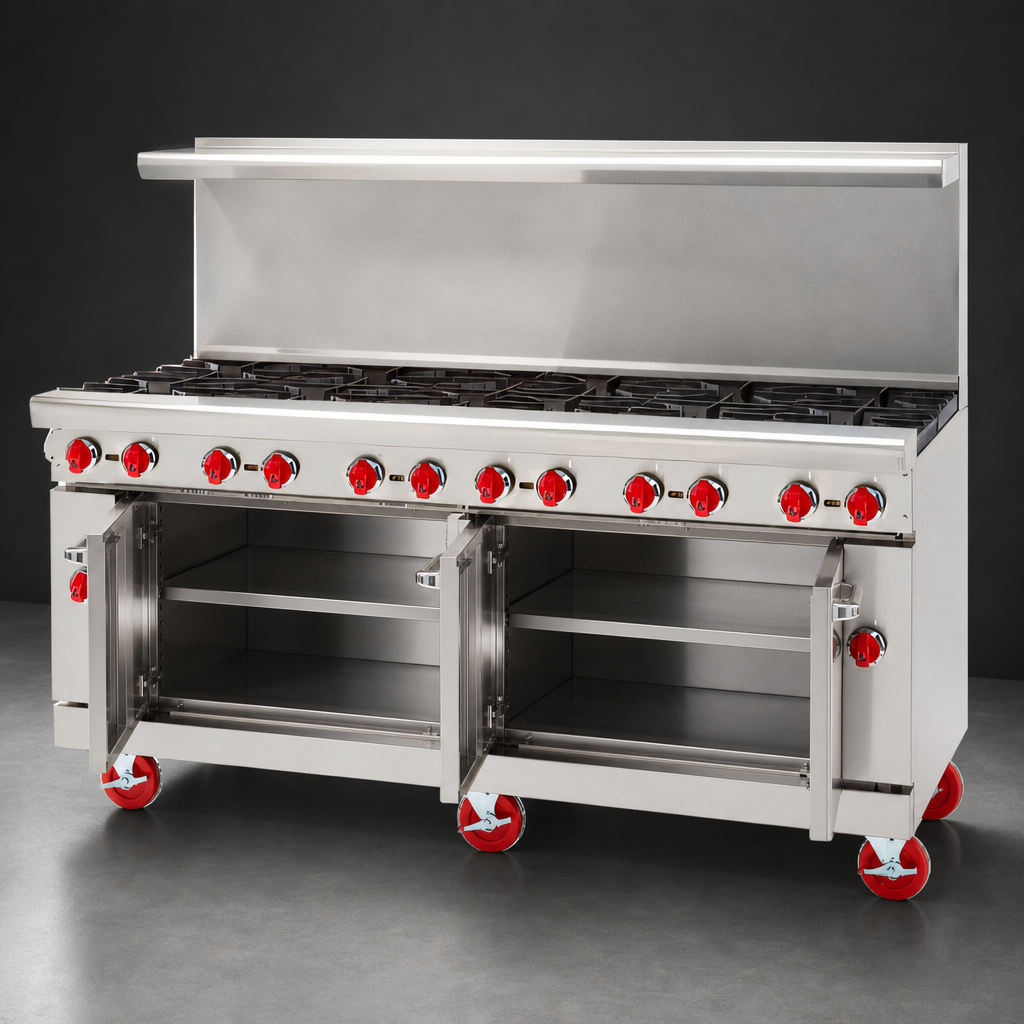

- (2) 26 ½" insulated storage bases replace ovens—ideal for keeping cookware close at hand.
- Stainless-steel front, sides, backguard & 6" deep landing ledge resist daily wear and harsh cleaners.
- Choose your flue: 20" high-shelf & riser, 6" riser, or 6" stub back (no extra charge).
- 6" chrome-plated adjustable legs standard; optional swivel casters available.
- Cool-touch, high-temperature burner knobs with precise manual valves.
- Field-convertible Natural or LP gas (regulator included).
- cETLus & ETL-Sanitation listed; designed & built in the USA.
Built for High-Volume Performance
- One-piece welded frame and gusset-reinforced burner box stand up to punishing, round-the-clock service.
- 100 % safety-valve gas shut-off on every burner for added peace of mind.
- 36" cooking height matches standard work tables for easy pan transfers.
- Commercial-grade components are fully serviceable from the front to minimize downtime.
Specifications
| Model | AR-12-DSB |
|---|---|
| Width | 72" (1829 mm) |
| Depth | 32 ½" (826 mm) |
| Cooking Height | 36" (914 mm) |
| Burners | 12 open burners, 32,000 BTU each |
| Total Input | 384,000 BTU/hr • 113 kW |
| Base Configuration | (2) 26 ½" storage cabinets |
| Gas Connection | ¾" NPT rear manifold (pressure regulator included) |
| Manifold Pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Made in USA |
| Warranty | 2-year parts & labor (register within 90 days of shipment) |
What’s Included
- 6" adjustable chrome-plated legs
- Full-width removable drip pan
- ¾" gas pressure regulator
- Installation & operation manual
Popular Accessories (sold separately)
- Swivel caster kit (three casters with front brakes)
- Quick-disconnect gas hose & restraining device
- 24" or 36" stainless-steel high shelf
- Flue diverter for low-ceiling installations
Important: This appliance must be installed in accordance with all local codes and under an
adequate ventilation system. Clearances from combustible surfaces must be observed.
Product image may show optional accessories.
Need help configuring gas type or accessories? Chat with our equipment specialists before ordering.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
56.0in
Width
72.0in
Depth
32.25in
Shipping Weight
640.0lbs
Top
(12) open burners
Base
(2) cabinets
Exterior Finish
stainless steel front & sides
Specifications
Restaurant Range, gas, 72", (12) 32,000 BTU open burners, (2) 26-1/2" storage bases, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 113.0kW, 384,000 BTU, cETLus, ETL-Sanitation, Made in USA
