American Range AR-12-CL-SBR Gas Ranges
Description

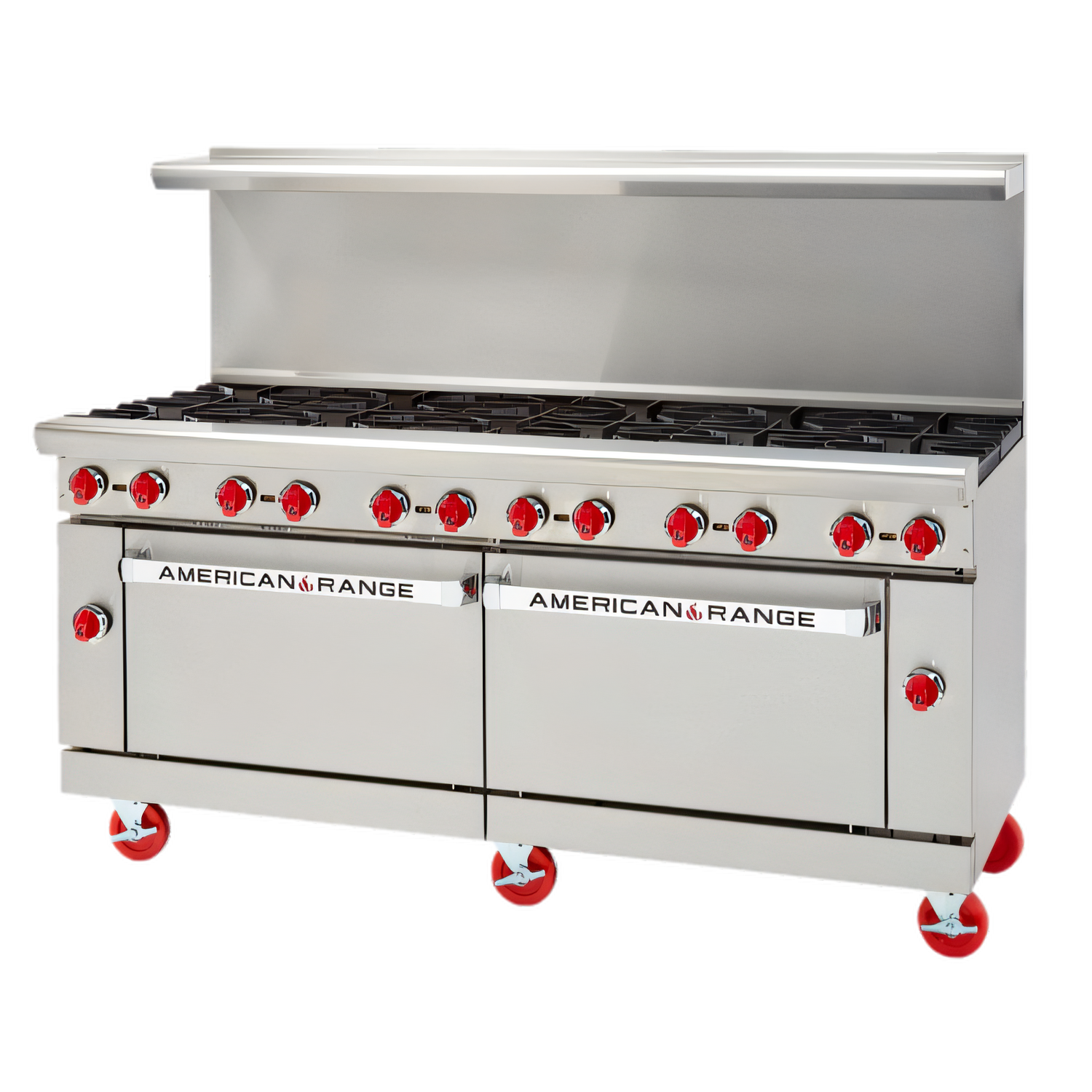

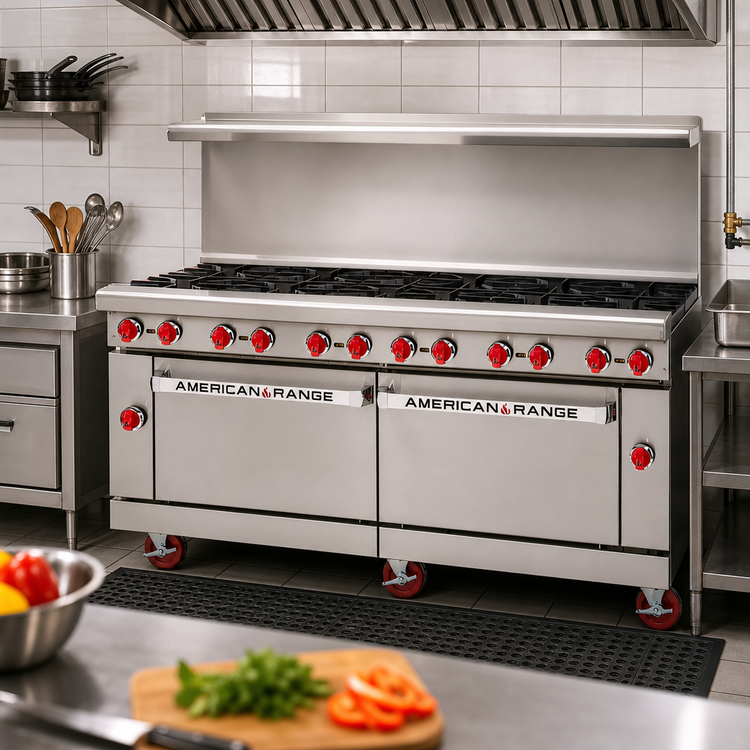

72" Gas Restaurant Range — 12 Open Burners, Left Convection Oven, Right Storage Base
American Range • Made in the USA • 414,000 BTU (122 kW)Engineered for high-volume kitchens, this American Range 72" restaurant range delivers uncompromising power, consistency, and flexibility in a single footprint. Twelve 32,000 BTU open burners handle your sauté, stock, and sear work while a full-size 26 1/2" convection oven on the left speeds roasting and baking. A matching storage base on the right keeps sheet pans, smallwares, or spare grates right where you need them.
Why You’ll Love It

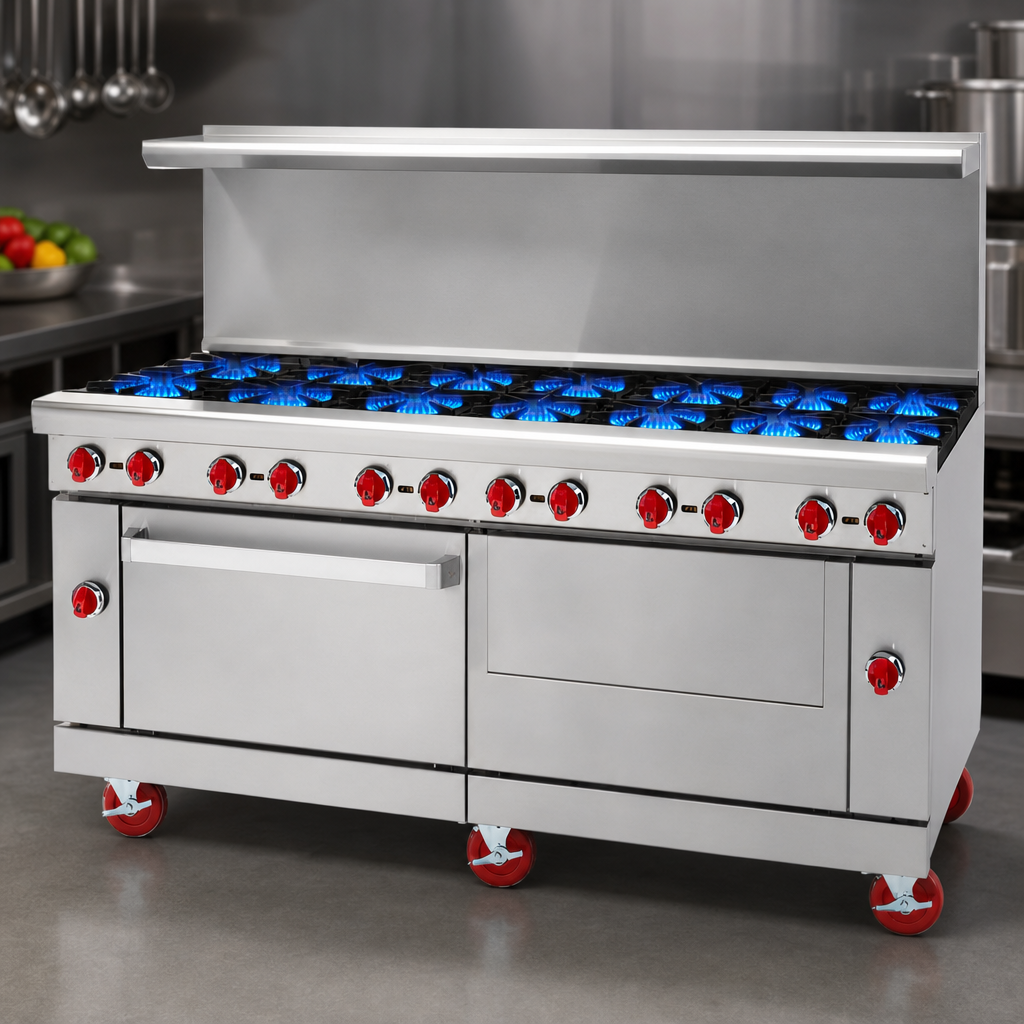

- Serious top-end heat — 12 lift-off open burners (32k BTU each) with 12" × 12" cast-iron grates.

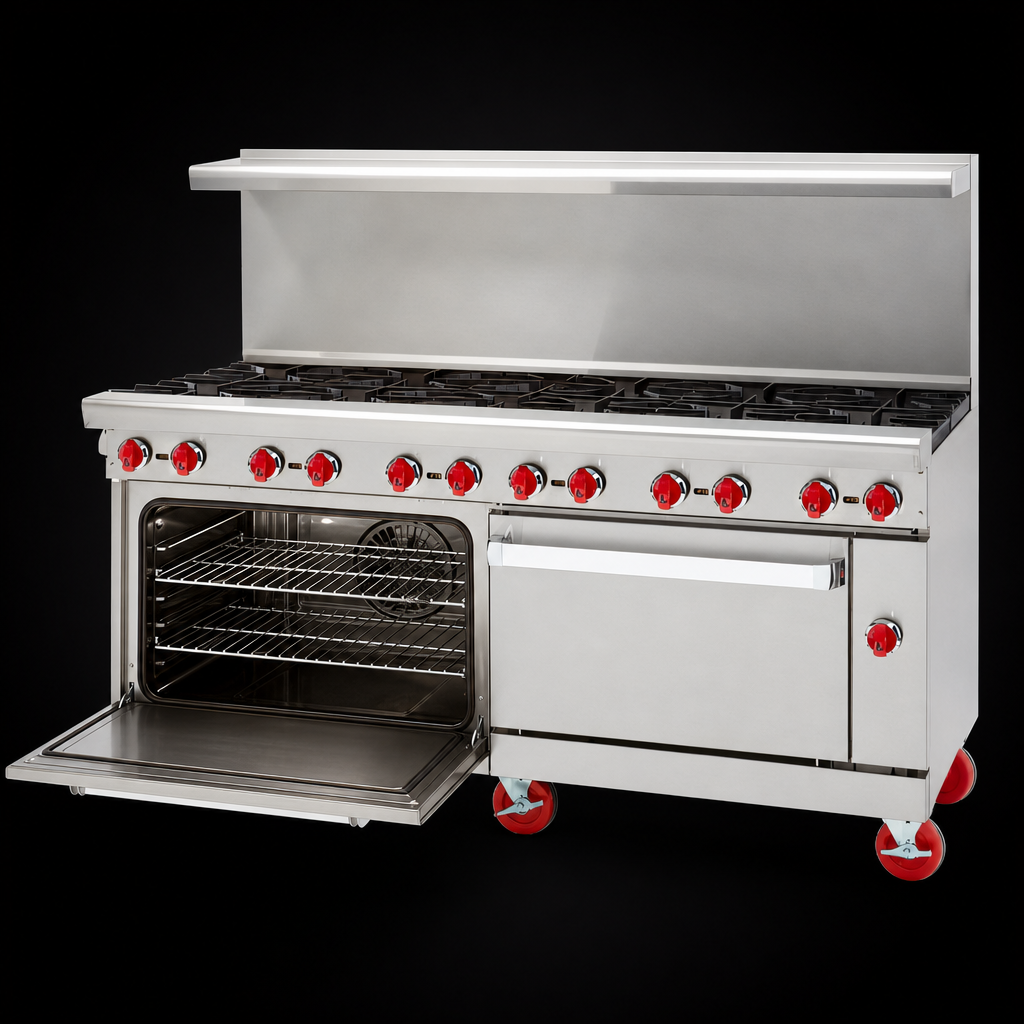

- True convection baking — 30k BTU burner, fan-assisted airflow, and a 250-500 °F thermostat for faster, even results.
- Five-position rack system with 2 chrome racks included.
- Durable stainless steel front, sides, landing-ledge, and 6" stub-back, 20" riser, or high-shelf riser (factory choice at no extra charge).
- Easy cleanup — full-width drip pan below the burners and porcelain-enamel oven interior.
- 6" adjustable chrome-plated legs for perfect leveling on any kitchen floor.
- 100 % safety gas shut-off and cETLus / ETL-Sanitation listed for peace of mind and code compliance.
- Built and serviced in the USA with a two-year parts & labor warranty.
Technical Specs
| Overall width ⁄ depth ⁄ height | 72" W × 32 1⁄2" D × 36" H (cooking surface) |
|---|---|
| Open burners | 12 | 32,000 BTU each | lift-off heads with removable drip pan |
| Oven type / size | Convection | 26 1⁄2" W × 22 1⁄2" D × 13 1⁄2" H interior |
| Oven burner | 30,000 BTU tubular steel | 250-500 °F thermostat |
| Storage base (right) | 26 1⁄2" wide cabinet, non-heated, for full-size sheet pans |
| Total input | 414,000 BTU / 122 kW |
| Gas connection | 3⁄4" NPT rear manifold | 5" WC Natural / 10" WC LP |
| Electrical (convection fan) | 120 V, 1-phase, 4 A | 6' cord & plug included |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor (USA) | 90-day broiler components & replacement parts |
Shipping weight varies by options (approx. 600-800 lb). Specify gas type (Natural or LP) when ordering. Professional installation and adequate ventilation required.
