American Range  |  SKU: AR-12-CL-126R

American Range AR-12-CL-126R Gas Ranges

$12,568.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

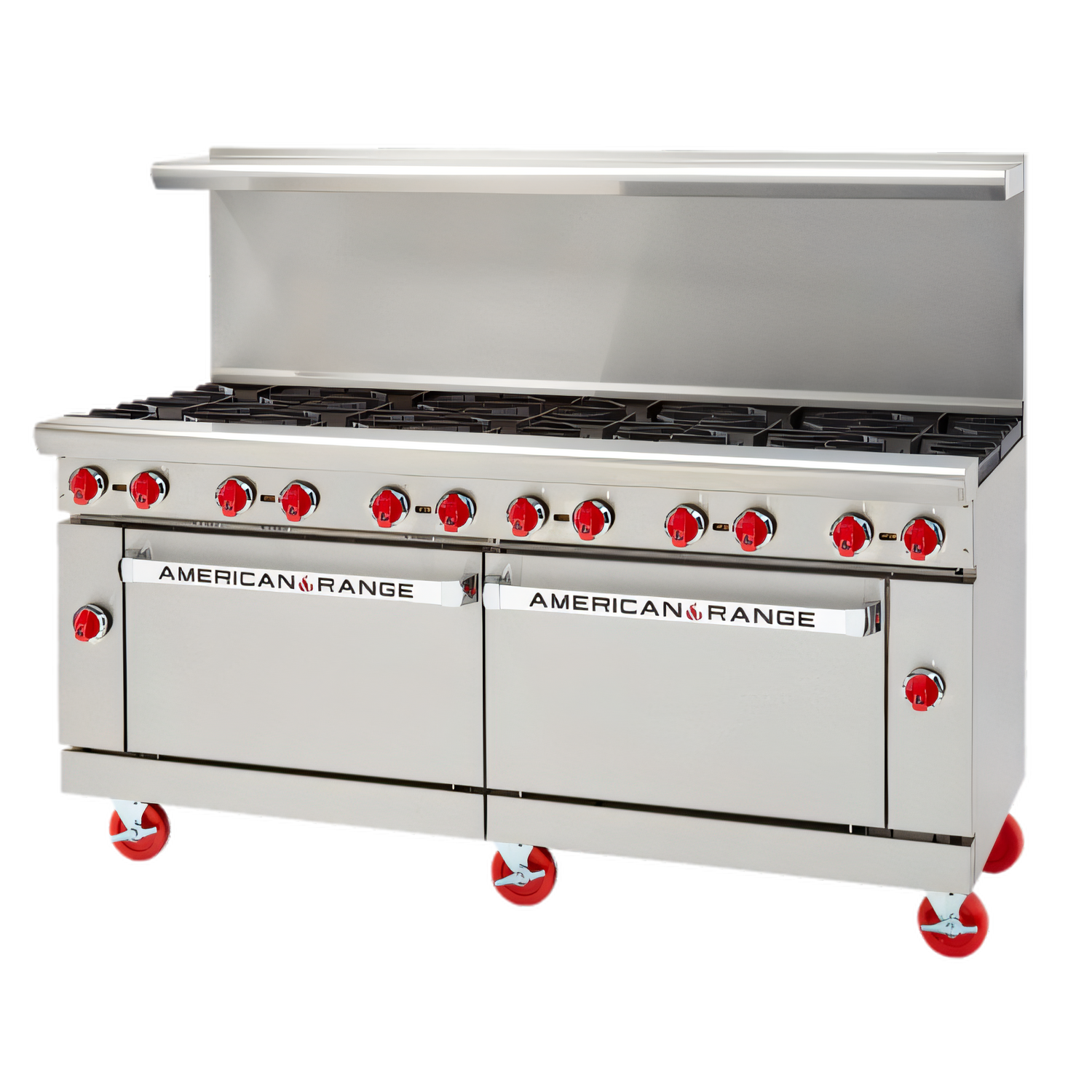

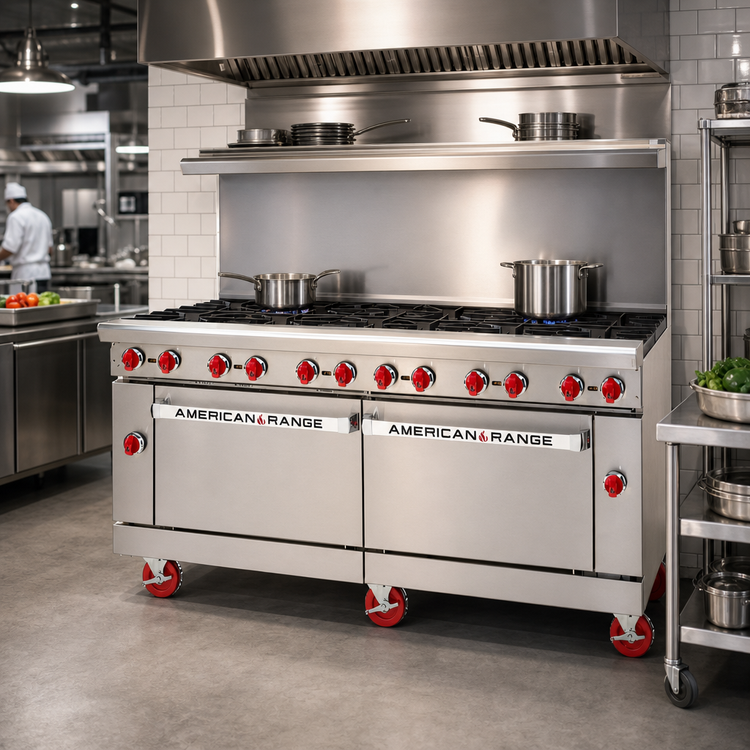

American Range 72" Gas Restaurant Range – 12 Open Burners with Convection & Standard Ovens

Model AR-12C | 449,000 BTU | Made in USA

Built for the busiest commercial kitchens, the American Range AR-12C combines unbeatable power with rock-solid durability. Twelve 32,000 BTU open burners give you a blazing 384,000 BTU on the cooktop, while a 30,000 BTU convection oven (left) and 35,000 BTU standard oven (right) handle high-volume baking and roasting—all inside a 72-inch footprint.

Key Performance Features

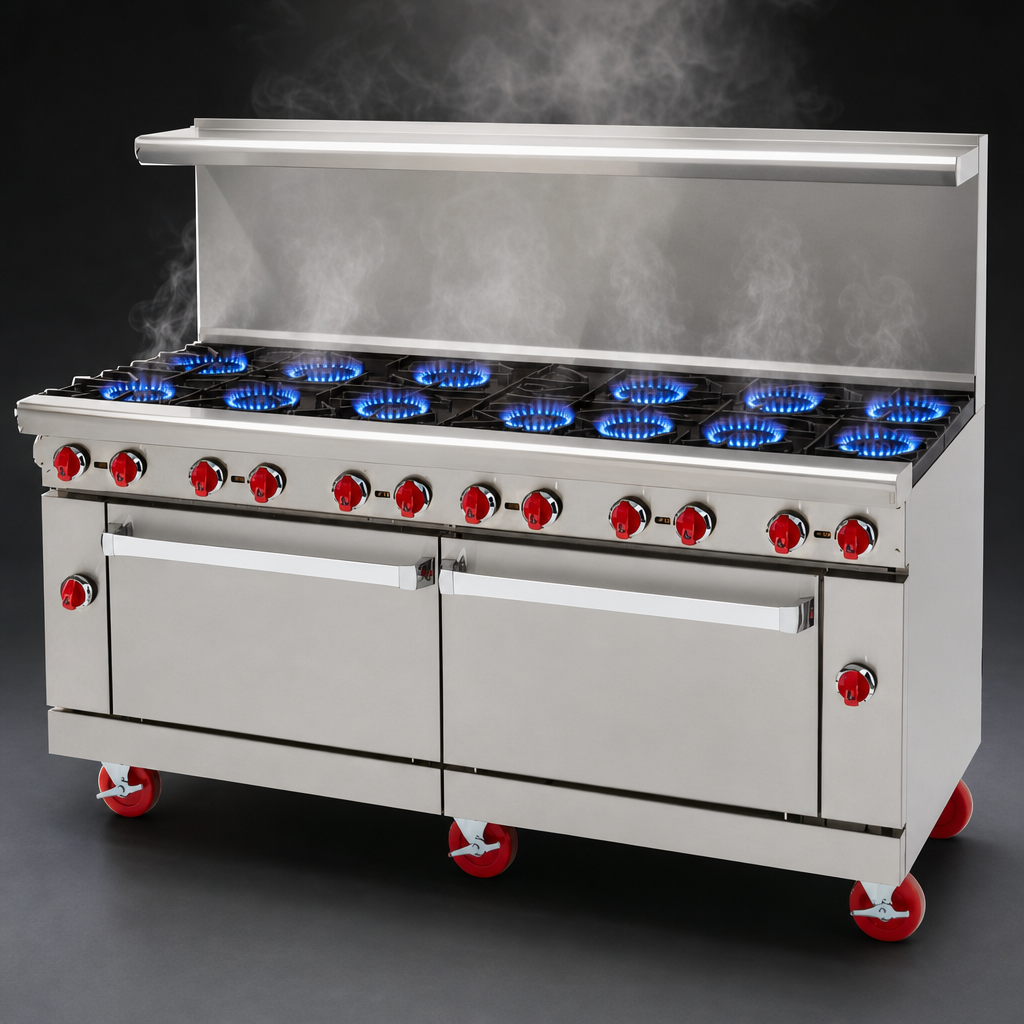

  • Twelve (12) lift-off open burners rated at 32,000 BTU each
  • 12" × 12" cast-iron top grates—ideal for pans, stock pots & Dutch ovens
  • Full-width, removable drip pan for quick clean-ups

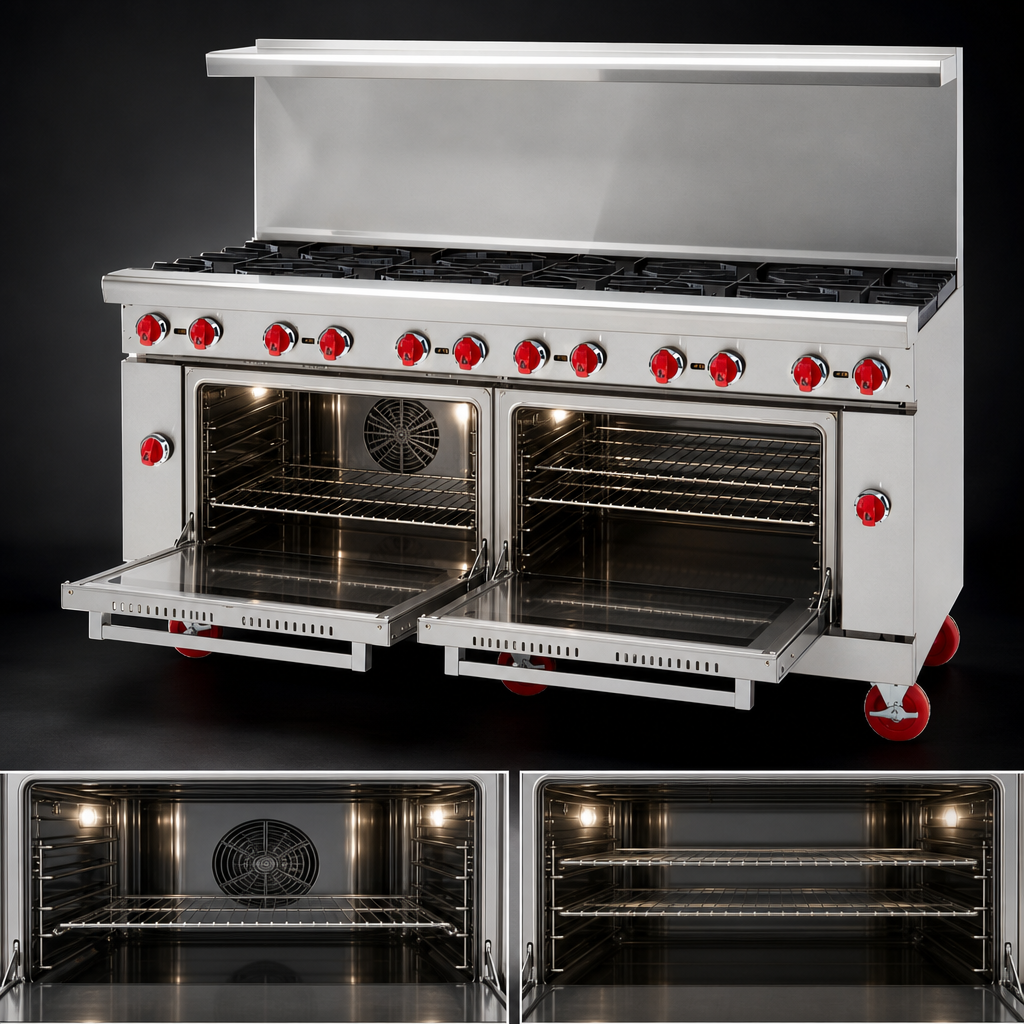

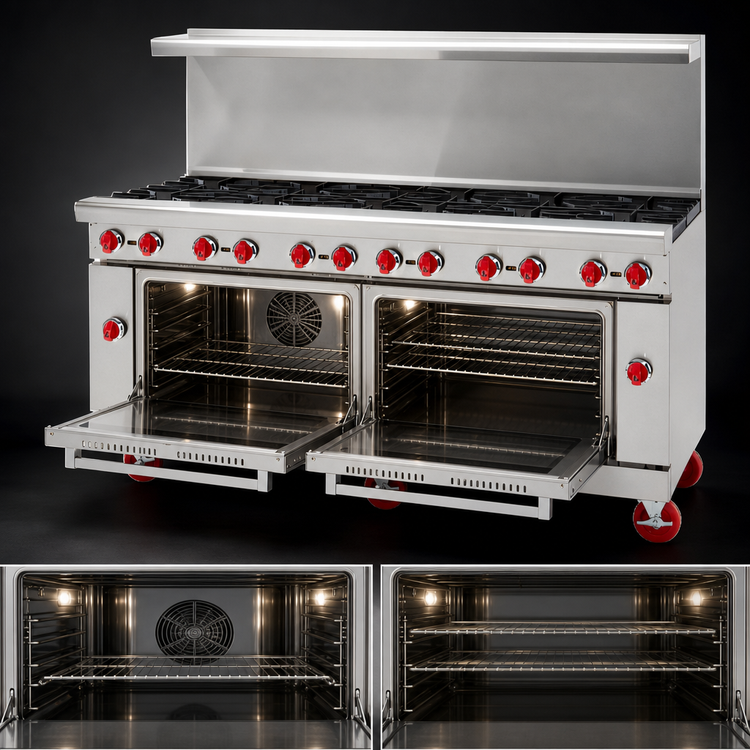

  • 26-1/2" convection oven (left) – fan-assisted 30,000 BTU burner for faster, even cooking
  • 26-1/2" standard oven (right) – 35,000 BTU burner for traditional baking
  • Oven thermostat adjustable from 250 °F to 500 °F (121 – 260 °C)
  • Two chrome racks included in each oven; five rack positions in the convection cavity
  • Spring-assisted, counter-weighted doors stay cool to the touch
  • Stainless steel front, sides & 6" deep landing ledge for long service life
  • 6" adjustable chrome-plated legs level the unit on uneven floors
  • Choose your backguard: 6" stub back, 20" riser, or high-shelf riser (no extra charge)
  • Rear 3/4" NPT gas connection with pressure regulator included
Specifications
Overall width 72 in / 1,829 mm
Overall depth 32 1/2 in / 826 mm
Cooking height 36 in / 914 mm
Open burners 12 × 32,000 BTU (lift-off)
Oven configuration Left: 30,000 BTU convection
Right: 35,000 BTU standard
Oven interior (each) 26 1/2" W × 22 1/2" D × 13 1/2" H, porcelain enamel
Thermostat range 250 °F – 500 °F (121 – 260 °C)
Total input 449,000 BTU/hr (132.0 kW)
Gas type (specify) Natural Gas or LP
Manifold pressure NG 5.0" W.C. | LP 10.0" W.C.
Gas inlet size 3/4" NPT (rear)
Electrical (convection fan) 120 V / 1 ph / 4 A – 6 ft cord & plug included
Certifications cETLus  |  ETL Sanitation
Shipping weight ≈ 956 lb / 434 kg*
Country of origin Designed & built in the USA
Why Choose American Range?
  • Manufactured in North Las Vegas, NV & Pacoima, CA
  • Factory-tested for performance and safety
  • Backed by a 2-year limited parts & labor warranty
  • Nationwide network of authorized service agencies
Installation Note: This appliance must be installed under a properly sized commercial exhaust hood and in accordance with NFPA-96 and all local codes. Specify gas type and backguard style when ordering. Optional swivel casters, extra oven racks, and other accessories are available.

*Shipping weight includes packaging and is approximate.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

56.0in

Width

72.0in

Depth

32.25in

Shipping Weight

850.0lbs

Base

(1) standard oven, (1) convection oven

Top

(12) open burners

Exterior Finish

stainless steel front & sides

Specifications

Restaurant Range, gas, 72", (12) 32,000 BTU open burners, (1) 26-1/2" convection oven on left, (1) 26-1/2" standard oven on right, (2) racks each oven, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 132.0kW, 449,000 BTU, cETLus, ETL-Sanitation, Made in USA
