American Range AR-12-CC Gas Ranges
Description

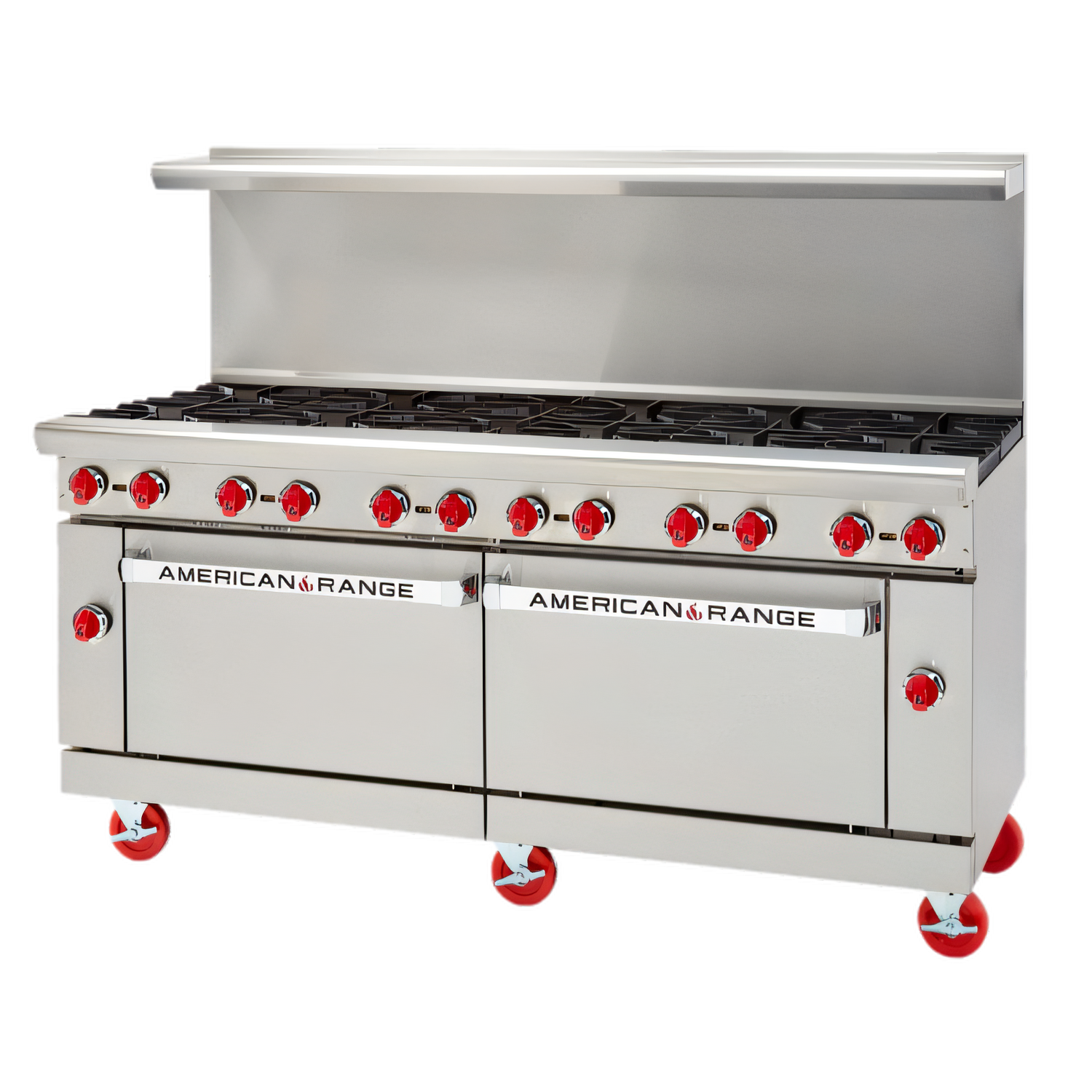

72" Gas Restaurant Range – 12 Burner with Dual Convection Ovens
American Range • Model AR-12-CC • Made in USABring powerhouse performance to the cook-line with American Range’s flagship 72 inch restaurant range. Twelve 32,000 BTU lift-off open burners and two full-size convection ovens deliver a combined 444,000 BTU of reliable, high-volume cooking capacity for busy kitchens that demand speed, consistency and durability.
Top reasons chefs love it

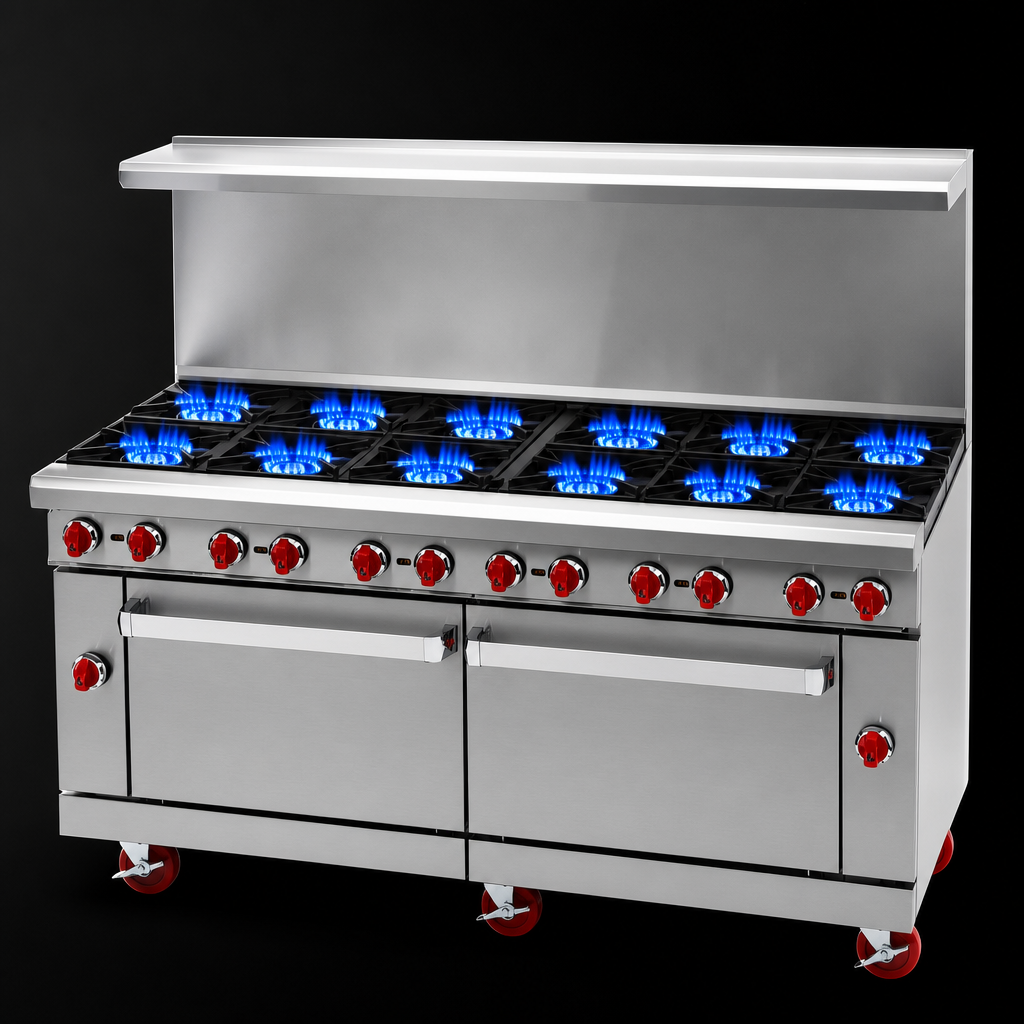

- (12) 32,000 BTU/hr open burners with no-drip, lift-off heads for fast cleaning
- 12" × 12" heavy-duty cast-iron top grates hold the biggest stock pots

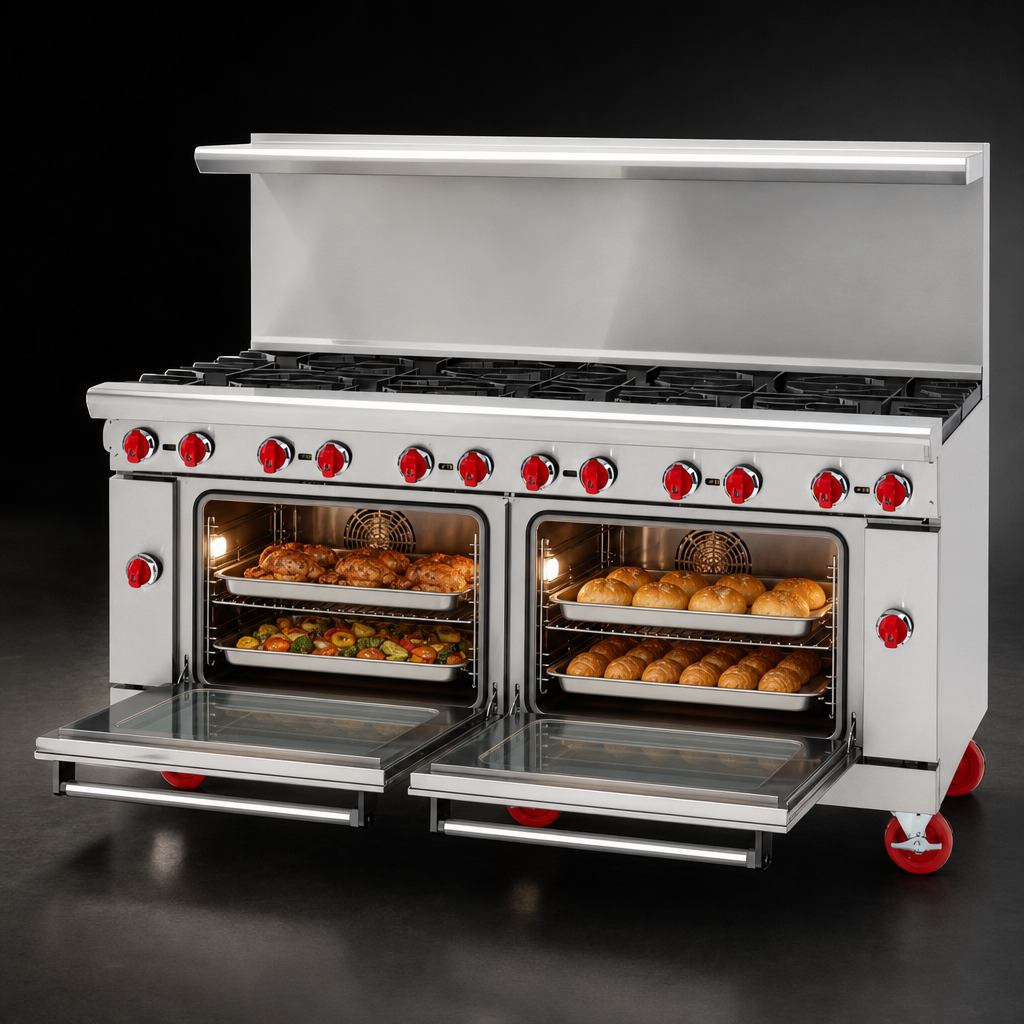

- Dual 26-1/2" convection ovens (30,000 BTU each) speed up baking & roasting
- Oven thermostats adjust 250 °F – 500 °F (121 °C – 260 °C) with 100 % safety gas shut-off
- Five rack positions & two chrome racks supplied per oven
- Slide-out full-width drip pan keeps the range top spotless
- Rugged stainless steel front, sides & 6" landing ledge withstand daily abuse
- 6" adjustable chrome-plated legs level easily on uneven floors
- Select your backsplash: 6" stub back, 20" low riser, or high-shelf riser (no up-charge)
- cETLus & ETL-Sanitation listed; built and supported in the USA
Performance & utilities
| Total input | 444,000 BTU/hr • 131 kW |
|---|---|
| Open burners | (12) × 32,000 BTU cast-iron burners |
| Ovens | Two 26-1/2" convection ovens, 30,000 BTU each |
| Thermostat range | 250 °F – 500 °F (121 °C – 260 °C) |
| Rack capacity | 5 positions / 2 chrome racks per oven |
| Cook-top height | 36" |
| Gas connection | 3/4" NPT rear; specify Natural or LP |
| Manifold pressure | Nat 5.0" W.C. / LP 10.0" W.C. |
| Electrical (ovens) | 120 V, 1 ph, 4 A (convection blower) |
| Exterior size (W × D) | 72" × 32-1/2" |
| Limited warranty | 2-year parts & labor (USA) • 90-day oven burners & racks |
Built the American Range way
- Precision-machined components for long-term reliability
- Nationwide network of authorized service agents & stocked parts
- Backed by 70+ years of American manufacturing expertise
Questions about lead-times or accessories? Contact our food-service team — we’re here to help.
