American Range AR-10 Gas Ranges
American Range AR-10 Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-10 Gas Ranges
Description

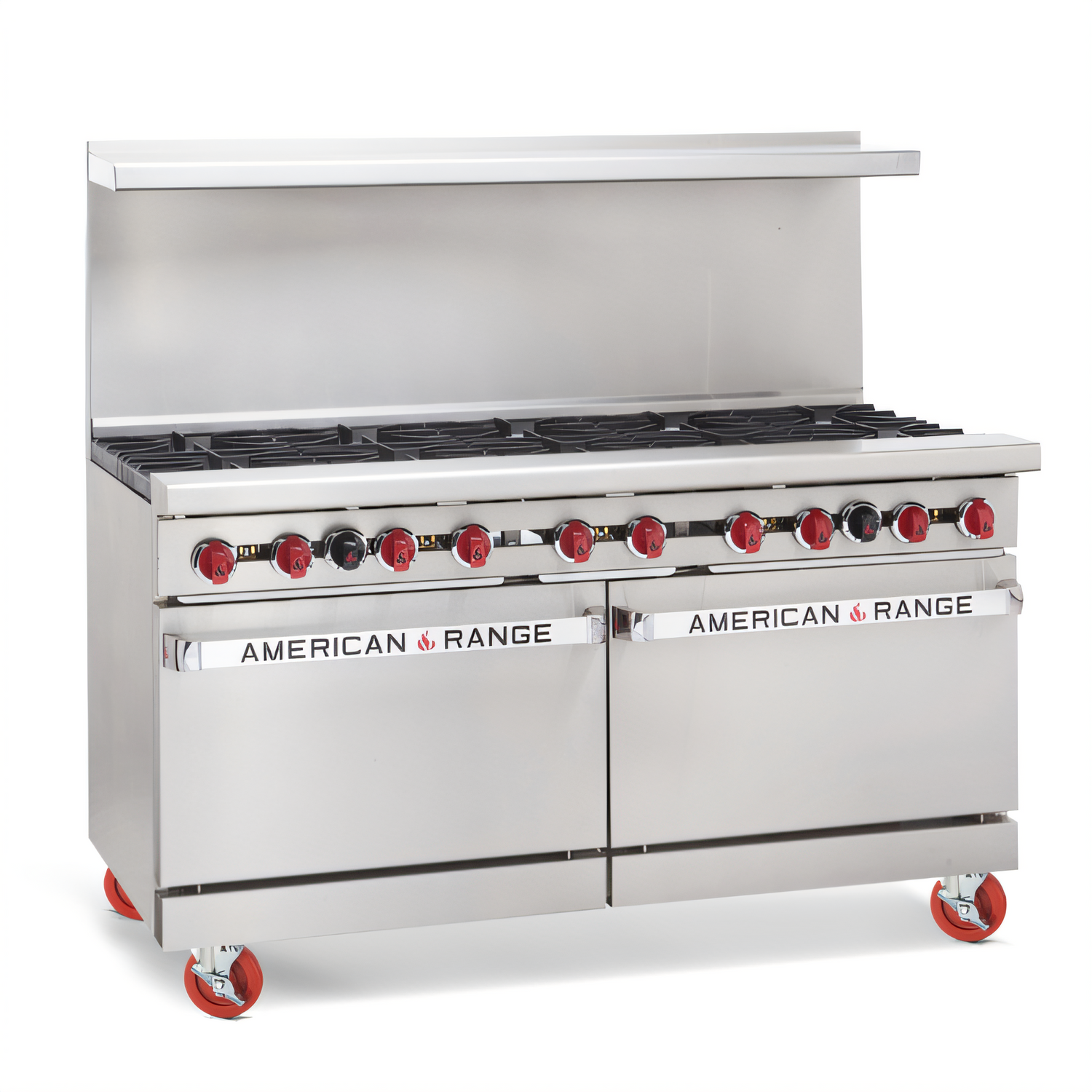

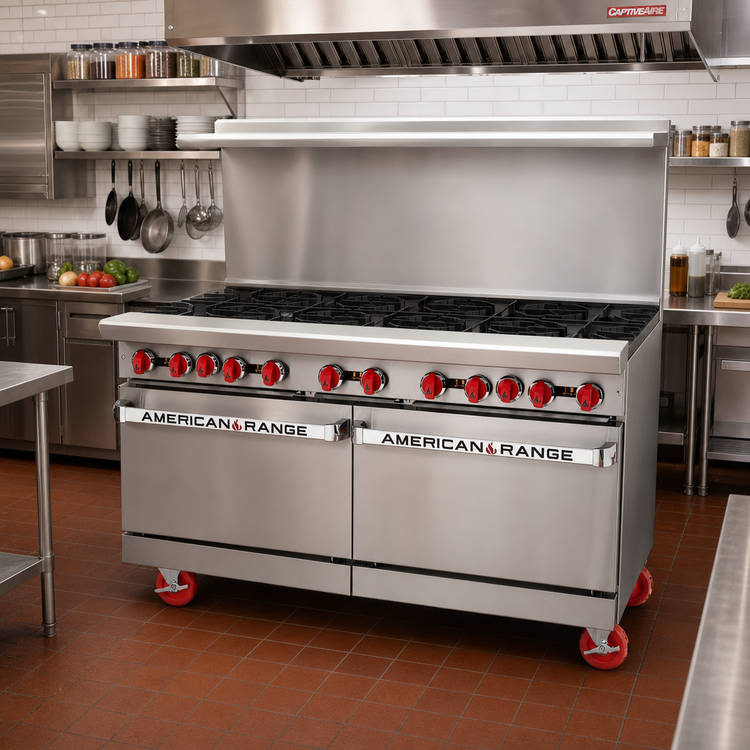

American Range AR-10 60" Restaurant Range
10 Open Burners • 2 Standard Ovens • 390,000 BTUBuilt for high-volume kitchens that refuse to compromise, the American Range AR-10 delivers the searing power of ten 32,000 BTU open burners plus the baking versatility of two full-size ovens—all in a rugged 60-inch footprint that’s designed, engineered, and manufactured in the USA.
Key Features

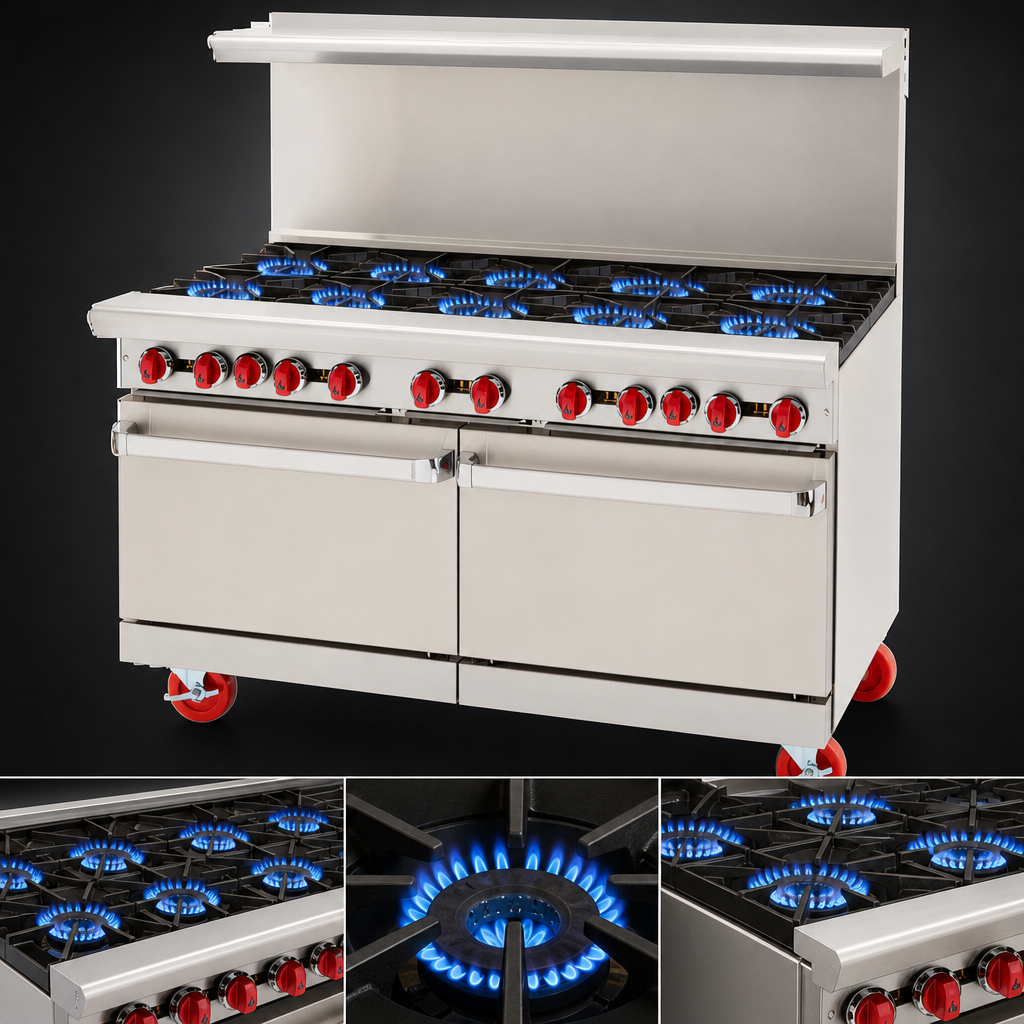

- Ten lift-off open burners (32,000 BTU each) with heavy-duty 12" × 12" cast-iron top grates

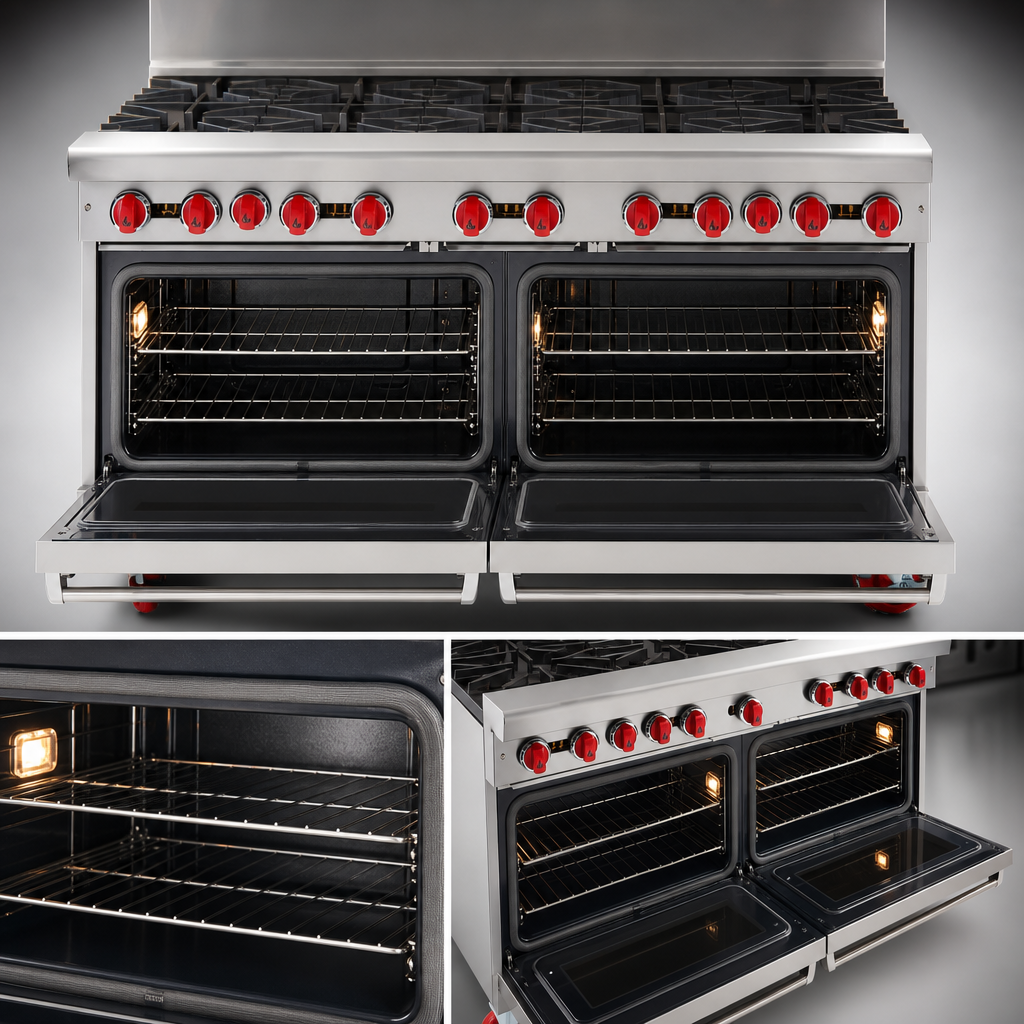

- Two steel-burner standard ovens (35,000 BTU each) with porcelain enamel interiors for fast cleanup
- Oven thermostat adjusts from 250°F – 500°F; three rack positions & two chrome racks supplied per oven
- Stainless steel front, sides, landing ledge (6" deep), and drip tray—built to survive the rush
- Choose your back guard at no extra charge: 6" stub back, 20" riser, or 24" high shelf & riser
- 6" chrome-plated adjustable legs (casters optional)
- 100 % safety gas shut-off valve for each oven
- cETLus & ETL Sanitation listed for restaurant use
- Backed by a 2-year limited parts & labor warranty
Technical Specifications
| Model | AR-10 |
|---|---|
| Total Input | 390,000 BTU/hr (114 kW) |
| Open Burners | 10 × 32,000 BTU lift-off heads |
| Ovens | 2 standard ovens, 35,000 BTU each |
| Oven Interior (each) | 26 1/2"W × 22 1/2"D × 13 1/2"H |
| Temperature Range | 250°F – 500°F (121°C – 260°C) |
| Overall Dimensions | 60"W × 32 1/2"D × 36"H (cook surface) |
| Riser Options | 6" stub back, 20" riser, or 24" high shelf/riser |
| Gas Connection | 3/4" NPT rear manifold Natural Gas – 5.0" W.C. LP Gas – 10.0" W.C. |
| Electrical | None required (standard ovens) |
| Certifications | cETLus, ETL Sanitation |
| Shipping Weight | ≈ 705 lb (320 kg) |
| Country of Origin | Made in USA |
Why Choose American Range?
- Designed & fabricated in state-of-the-art U.S. facilities
- Field-proven components minimize downtime and service calls
- Backed by responsive nationwide parts & service network
Need convection ovens, storage bases, or built-in griddles? Explore additional AR series models or chat with us for a custom configuration.
