American Range AR-10-CL-SBR Gas Ranges
Description

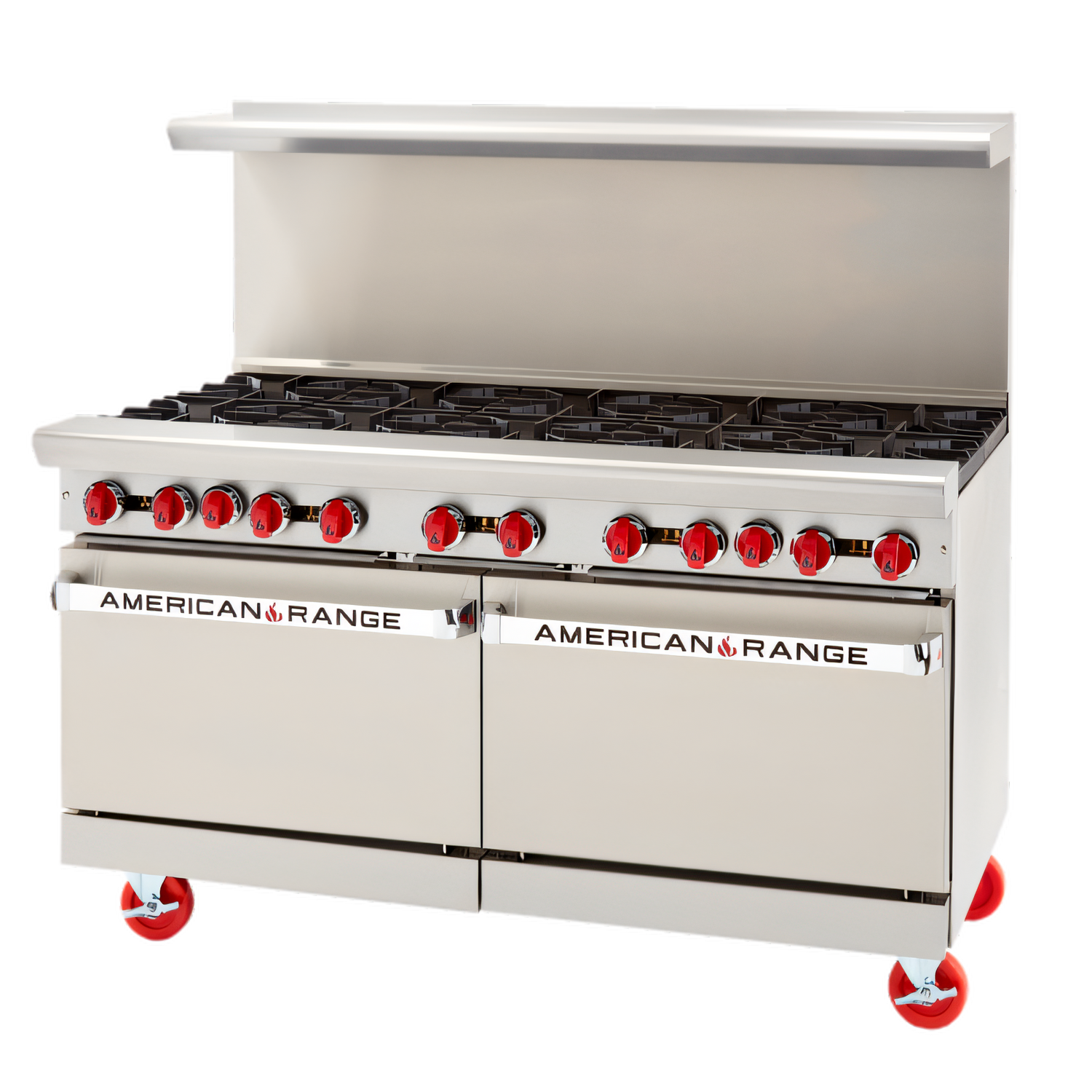

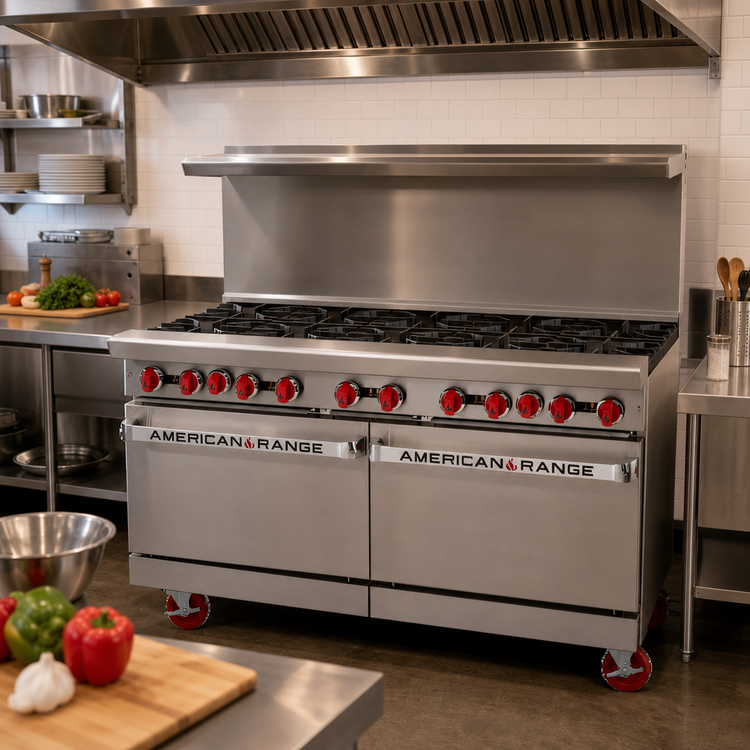

60" Gas Restaurant Range – 10 Open Burners, Left-Side Convection Oven & Right-Side Storage Base
American Range • Model AR-10-C-SB • Natural or PropaneDeliver record-breaking ticket times with the American Range 60" restaurant range. Ten ultra-powerful open burners, a full-size convection oven, and a roomy storage base give chefs everything they need in one heavy-duty, USA-built workstation.
Key Features

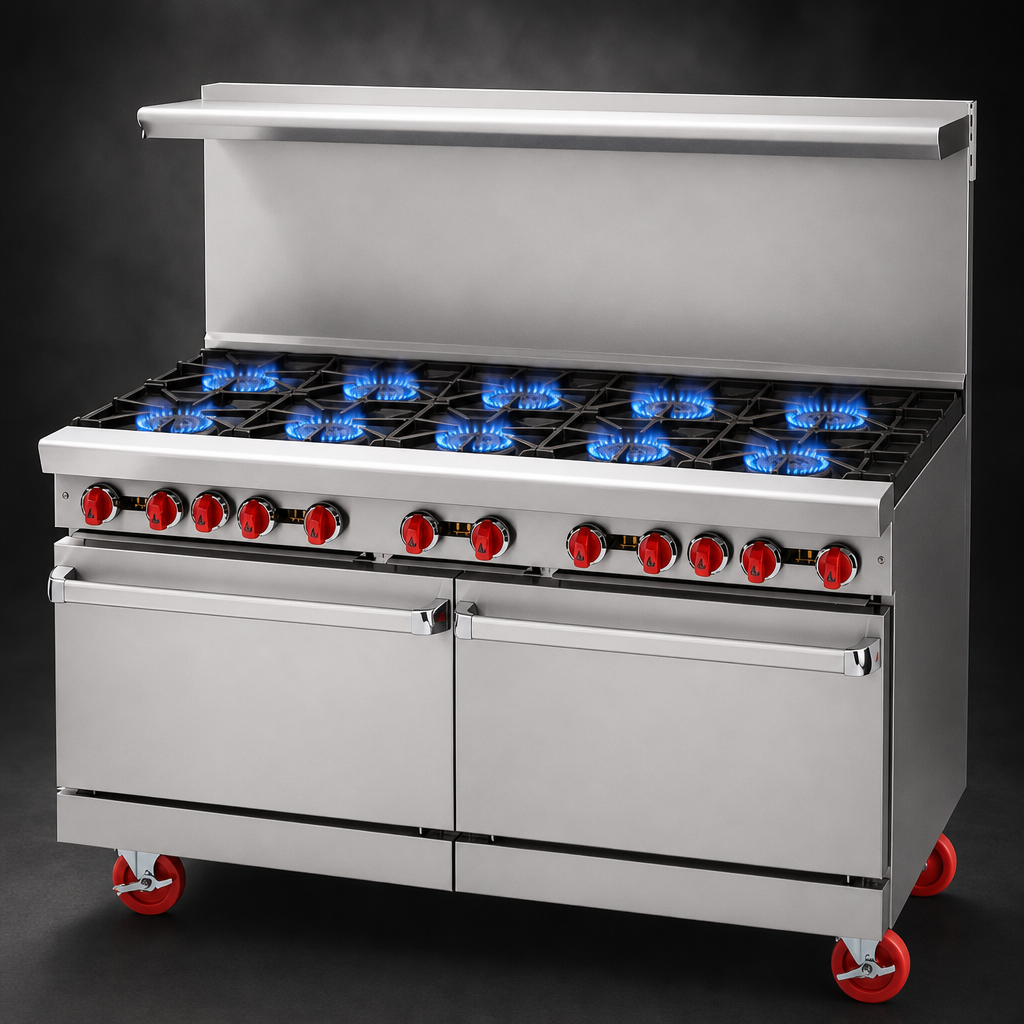

- 10 lift-off open burners, each at 32,000 BTU/hr (320,000 BTU total cook-top power).
- Heavy-duty 12" × 12" cast-iron grates keep large stock pots stable and distribute heat evenly.
- Left-hand 26-1/2" convection oven rated at 30,000 BTU/hr for fast, uniform baking & roasting.
- Porcelain-enameled oven cavity with five rack positions; includes two chrome racks.
- Right-hand 26-1/2" storage base keeps sheet pans, lids, and utensils within arm’s reach.
- Thermostat adjustable from 250 °F – 500 °F (121 °C – 260 °C).
- Removable full-width drip pan simplifies end-of-shift clean-up.
- Select your backguard at no extra charge: 6" stub back, 20" riser, or high riser with shelf.
- 6" adjustable chrome-plated legs (optional swivel casters available).
- 3/4" NPT rear gas connection; factory-supplied regulator included.
- cETLus & ETL-Sanitation listed; two-year limited parts & labor warranty.
Specifications
| Width | 60" / 1524 mm |
|---|---|
| Depth | 32-1/2" / 826 mm (front to back) |
| Cooking Height | 36" / 914 mm on 6" legs |
| Total Input | 385,000 BTU/hr • 113 kW |
| Open Burners | 10 × 32,000 BTU/hr |
| Oven Burner | 30,000 BTU/hr (convection) |
| Oven Interior (W×D×H) | 26-1/2" × 22-1/2" × 13-1/2" (673 × 572 × 343 mm) |
| Electrical (Fan) | 120 V, 1 Φ, 4 A, NEMA 5-15P plug |
| Gas Pressure | 5" W.C. Natural • 10" W.C. Propane |
| Gas Connection | 3/4" NPT (19 mm) rear |
| Certifications | cETLus, ETL-Sanitation (NSF/ANSI 4) |
| Origin | Designed & Built in the USA |
Shipping weight, clearances, and installation requirements vary by gas type, altitude, and options. Always consult the specification sheet and local codes before ordering or installing.
Why Operators Love American Range
- Industry-leading 32,000 BTU open burners for rapid heat recovery.
- 100% safety gas shut-off for peace of mind.
- All major components are field-serviceable, reducing downtime.
- Backed by a nationwide network of authorized service agencies.
Need a custom configuration or optional casters? Contact us for expert assistance—we’ll build the perfect range for your kitchen.
