American Range AR-10-CL-126R Gas Ranges
Description

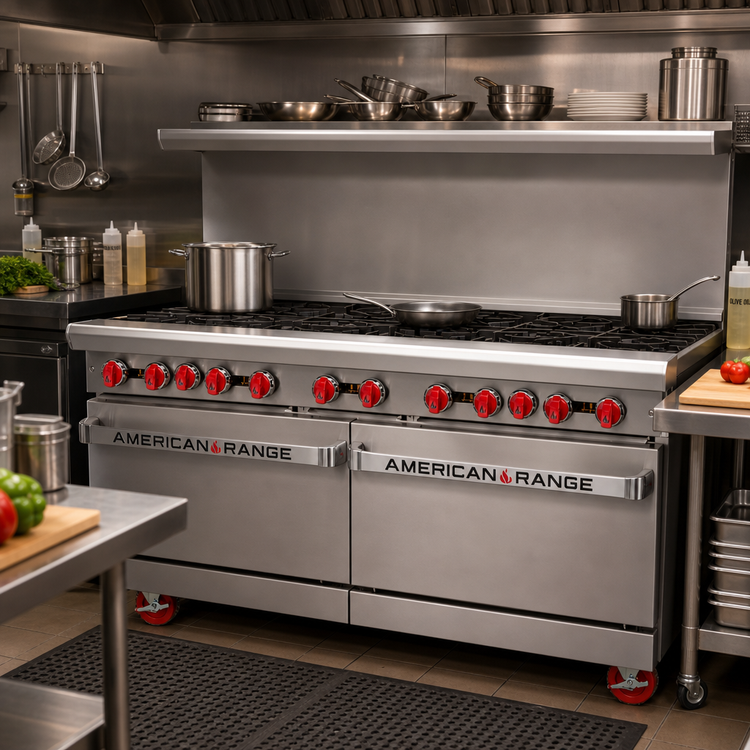

American Range 60" Gas Restaurant Range – 10 Open Burners with Convection & Standard Ovens
Model AR-10 (C/S) • 380,000 BTU • Natural / LPBuilt for the busiest commercial kitchens, this 60-inch American Range packs ten blistering 32,000 BTU burners up top and two full-size ovens below—convection on the left for fast, even baking and standard on the right for everyday roasting and holding. Heavy-gauge stainless steel construction, USA craftsmanship, and a rock-solid 2-year warranty make it a long-term partner on the cook line.
Key Performance Features

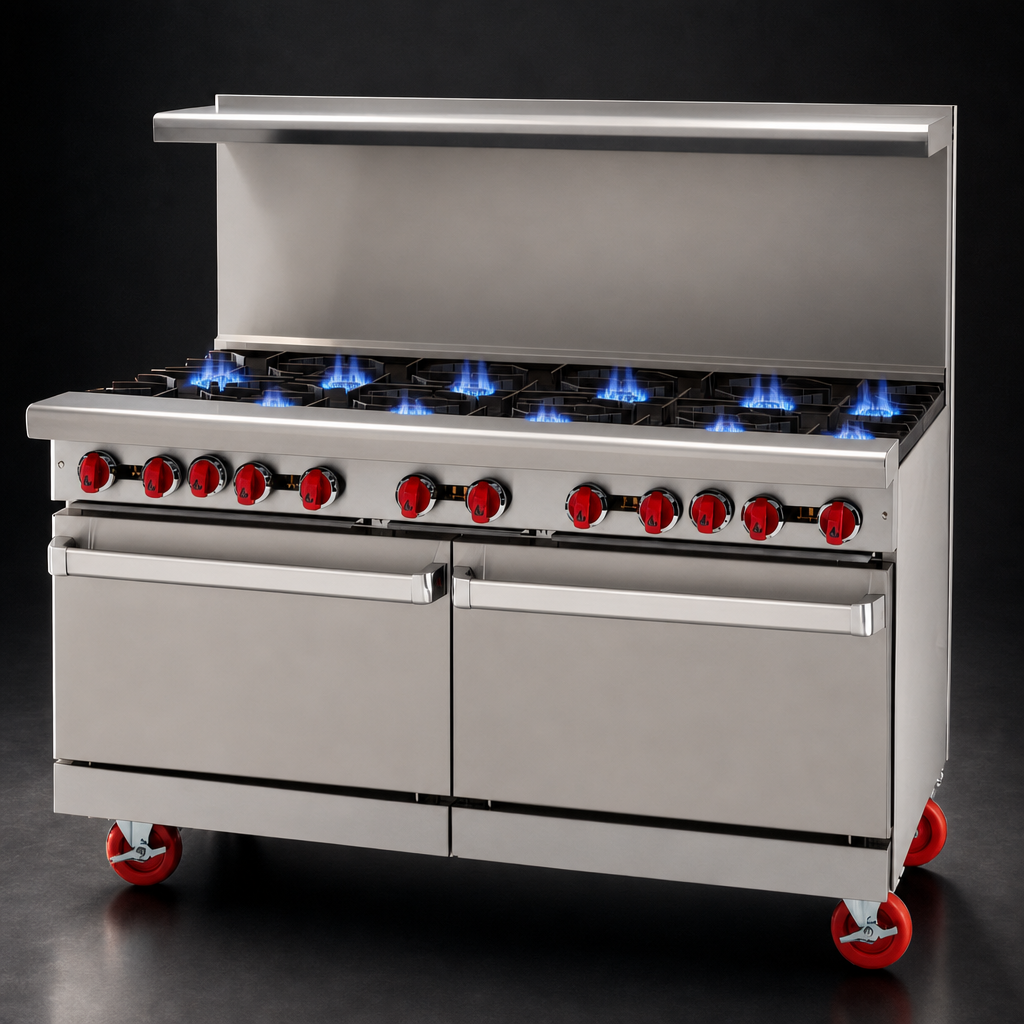

- Ten 32,000 BTU lift-off open burners (320,000 BTU total) with 12" × 12" cast-iron grates.
- Left 26 ½" convection oven – 30,000 BTU burner plus fan for rapid, even heat.
- Right 26 ½" standard oven – 35,000 BTU burner for traditional baking & roasting.
- Thermostats on both ovens adjust from 250 °F – 500 °F (121 °C – 260 °C).
- Full-width removable drip pans under every burner speed end-of-shift clean-ups.
- Choose your backsplash at no charge: 6" stub, 20" riser, or high shelf & riser.
- 6" chrome-plated adjustable legs (optional locking casters available).
- 100 % safety gas shut-off protection on all burners and ovens.
- cETLus & ETL-Sanitation listed; designed & built in the USA.

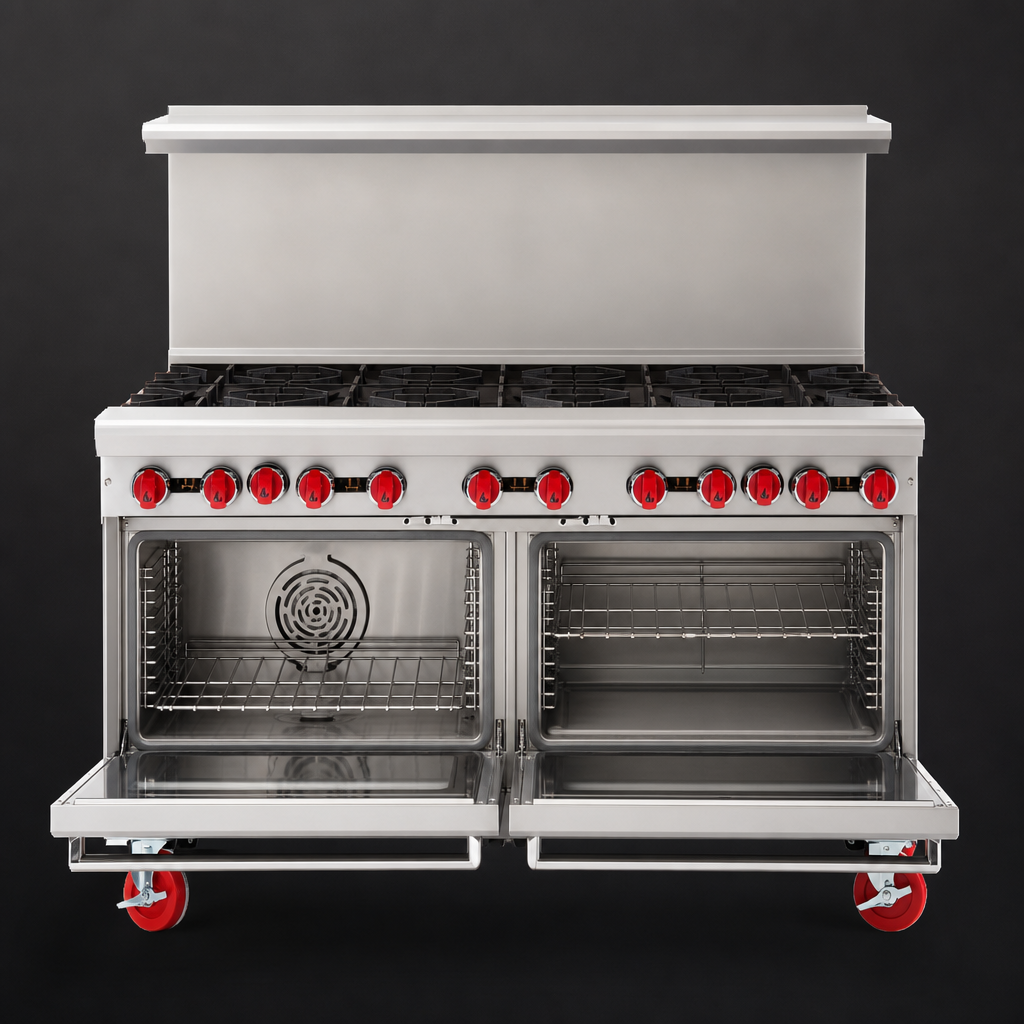

Oven Highlights
- Porcelain-enameled interiors wipe clean with ease.
- Spring-assisted, counter-balanced doors prevent slamming.
- Two chrome racks included with each oven (5 positions in convection, 3 in standard).
Specifications
| Width | 60" / 1524 mm |
|---|---|
| Depth (to front ledge) | 32 ½" / 826 mm |
| Cooking surface height | 36" / 914 mm |
| Open burners | 10 × 32,000 BTU (12" × 12" cast-iron grates) |
| Left oven | Convection • 30,000 BTU • 26 ½"W × 22 ½"D × 13 ½"H cavity |
| Right oven | Standard • 35,000 BTU • 26 ½"W × 22 ½"D × 13 ½"H cavity |
| Total input | 380,000 BTU / 112 kW |
| Gas connection | ¾" NPT rear manifold – Nat 5" W.C. / LP 10" W.C. |
| Electrical (convection fan) | 120 V, 1 Φ, 4 A – 15 amp cord & plug included |
| Legs | 6" adjustable, chrome-plated |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | Made in USA |
Approx. shipping weight: 705 lb (320 kg) with legs. Install under an appropriate ventilation hood and follow local codes and manufacturer’s instructions.
American Range Advantage
- Over 40 years of commercial cooking innovation.
- Rugged components tested for continuous high-demand service.
- Factory-authorized service network across North America.
- 2-year limited parts & labor warranty for peace of mind.
