American Range AR-10-CC Gas Ranges
Description

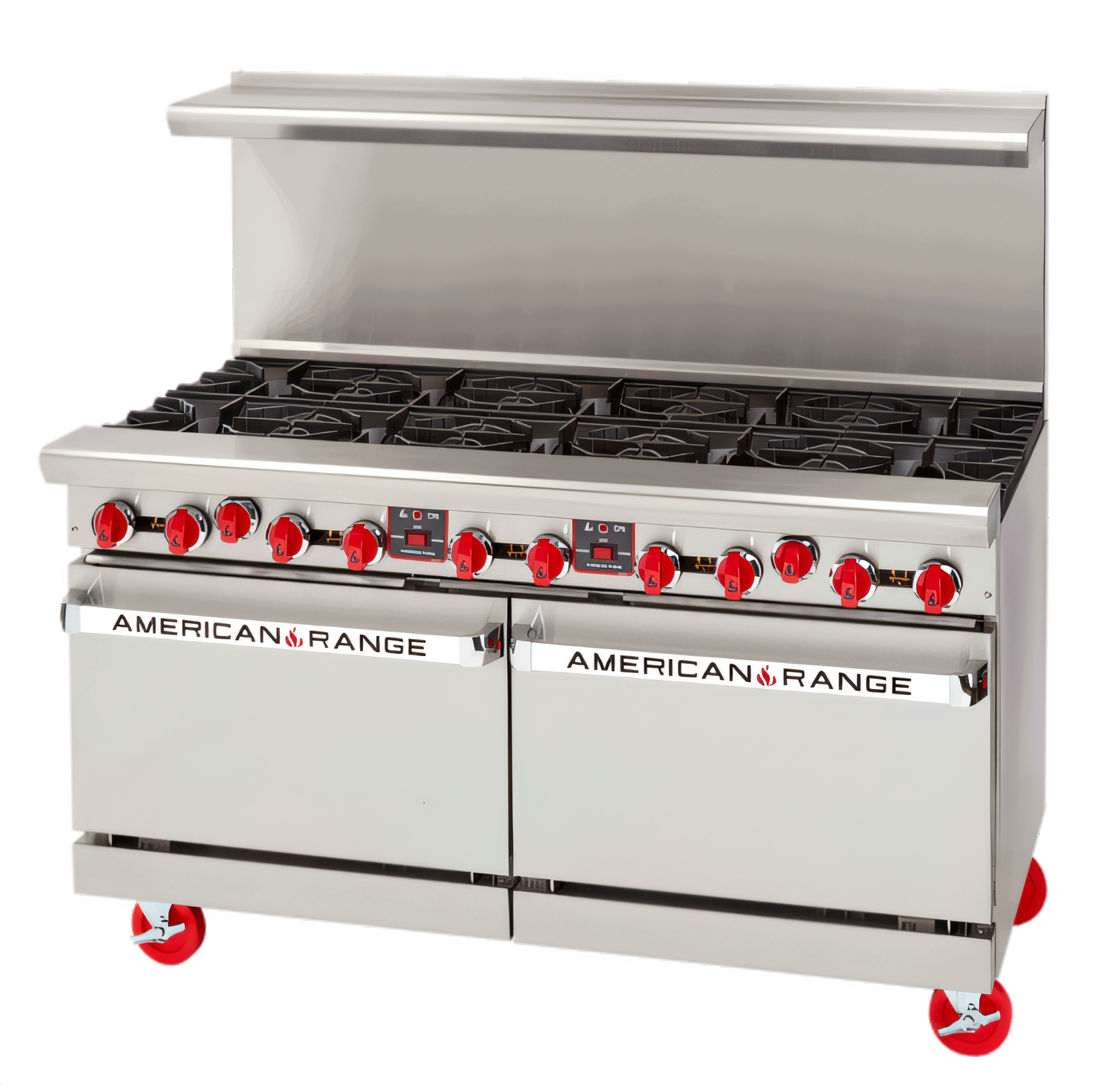

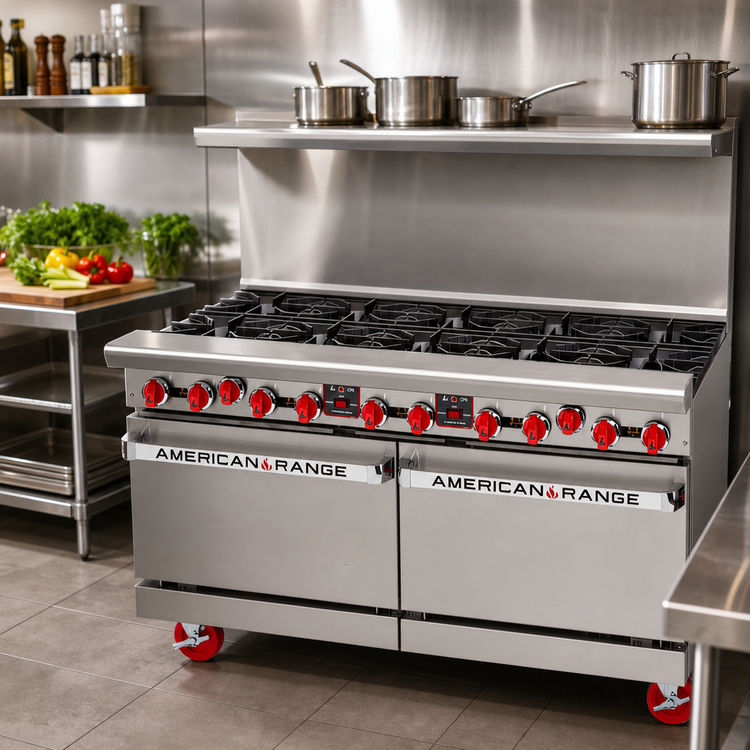

American Range 60" Gas Restaurant Range – 10 Burners / 2 Convection Ovens
Model AR-10-CC | 355,000 BTU | Made in USABuilt for the busiest commercial kitchens, the American Range AR-10-CC brings unmatched power, cooking capacity, and durable American craftsmanship to your line. Ten high-performance open burners team with a pair of full-size convection ovens, giving chefs the flexibility to sear, sauté, roast, and bake from a single, space-saving footprint.
Key Features

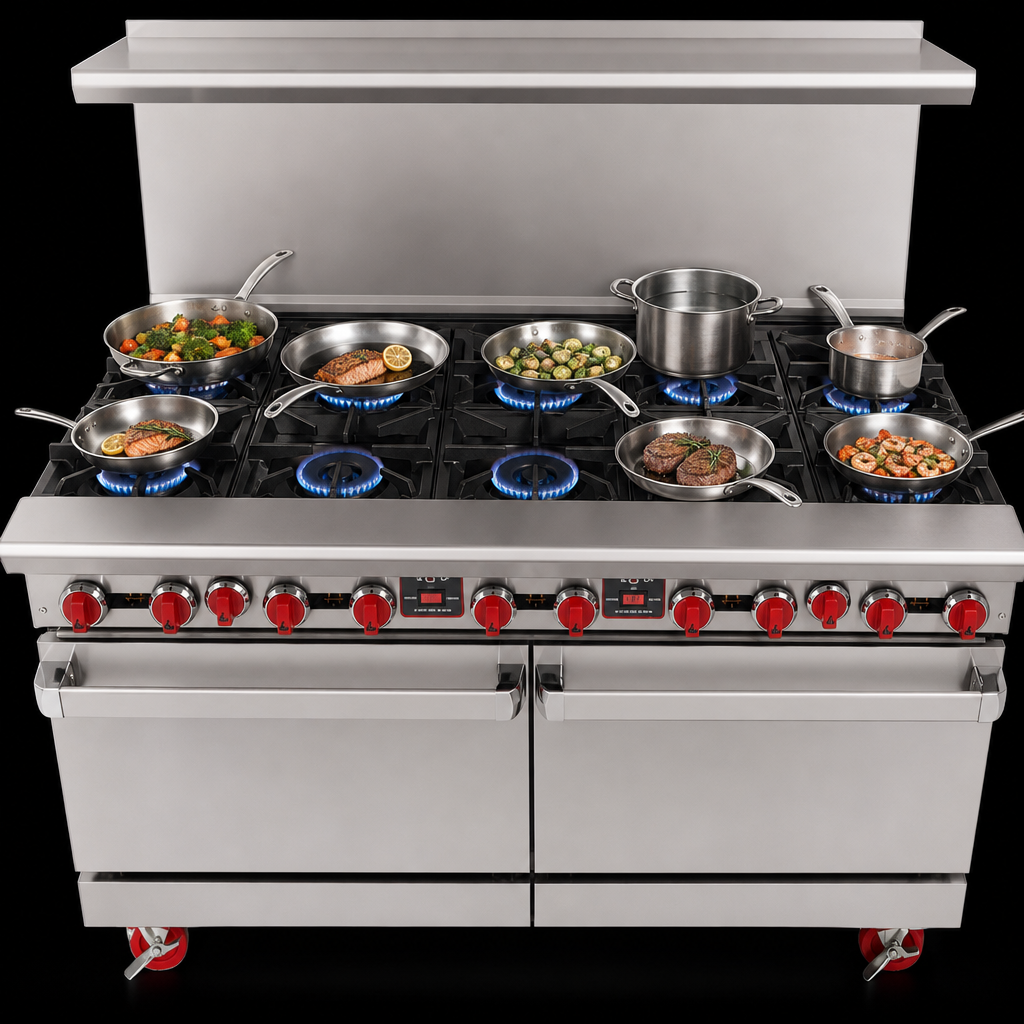

- Ten 32,000 BTU lift-off open burners (total 320,000 BTU)

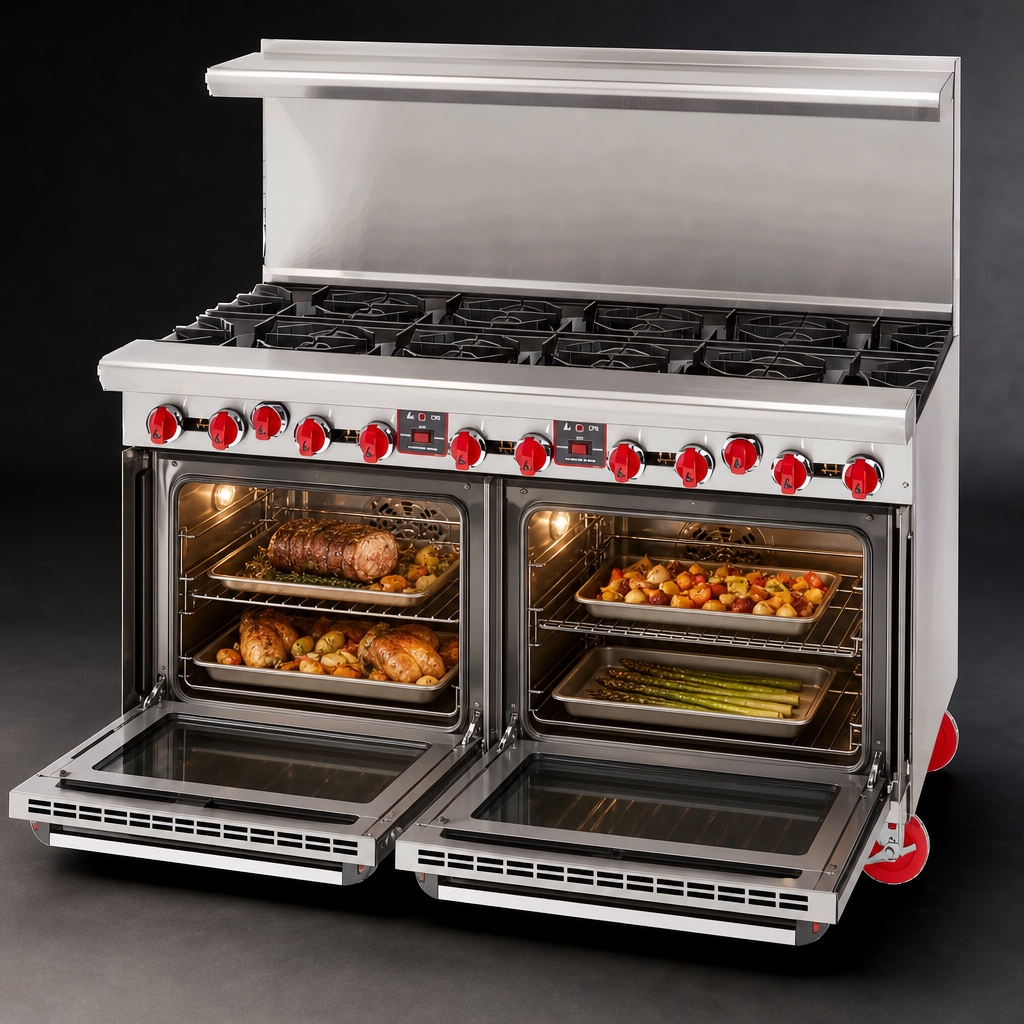

- (2) 26 ½" convection ovens, 2 chrome racks each, 5 rack positions
- Thermostats adjust from 250 °F – 500 °F for precise baking & roasting
- Heavy-duty 12" × 12" cast iron top grates—easy to remove & clean
- Full-width drip pan under the burner box for quick crumb & grease removal
- Stainless steel front, sides, landing ledge, and drip tray
- Choice of back riser: 20" high shelf or 6" stub back (no up-charge)
- 6" adjustable chrome-plated legs; optional casters available
- Rear 3/4" NPT gas connection with pressure regulator included
- cETLus & ETL-Sanitation listed for use in commercial kitchens
At-a-Glance Specifications
| Overall width | 60" (1524 mm) |
|---|---|
| Depth (to front of landing ledge) | 32 ½" (826 mm) |
| Cooking height | 36" (914 mm) on 6" legs |
| Total gas input | 355,000 BTU/hr (104.0 kW) |
| Open burners | 10 × 32,000 BTU lift-off heads |
| Oven burners | Steel tube, 26 ½" cavities, convection blowers |
| Electrical (convection fans) | 120 V, 1 ph, 4 A, 6' cord & plug |
| Gas manifold pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Gas inlet size | 3/4" NPT (19 mm) rear |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2 year parts & labor; 90-day broiler & grate coverage* |
*See full warranty terms and required product registration at americanrange.com/terms-of-sale.
What’s In The Box
- American Range 60" restaurant range – configured for Natural Gas (field convertible to LP)
- (4) Chrome oven racks (2 per oven)
- 3/4" NPT pressure regulator (factory installed)
- 6" adjustable chrome legs (set of four)
- Installation & operation manual
Power, versatility, and American-made reliability—upgrade your cookline with the AR-10-CC and keep every ticket moving.
