American Range AMSQ-30 Wood/Charcoal Grills
Description

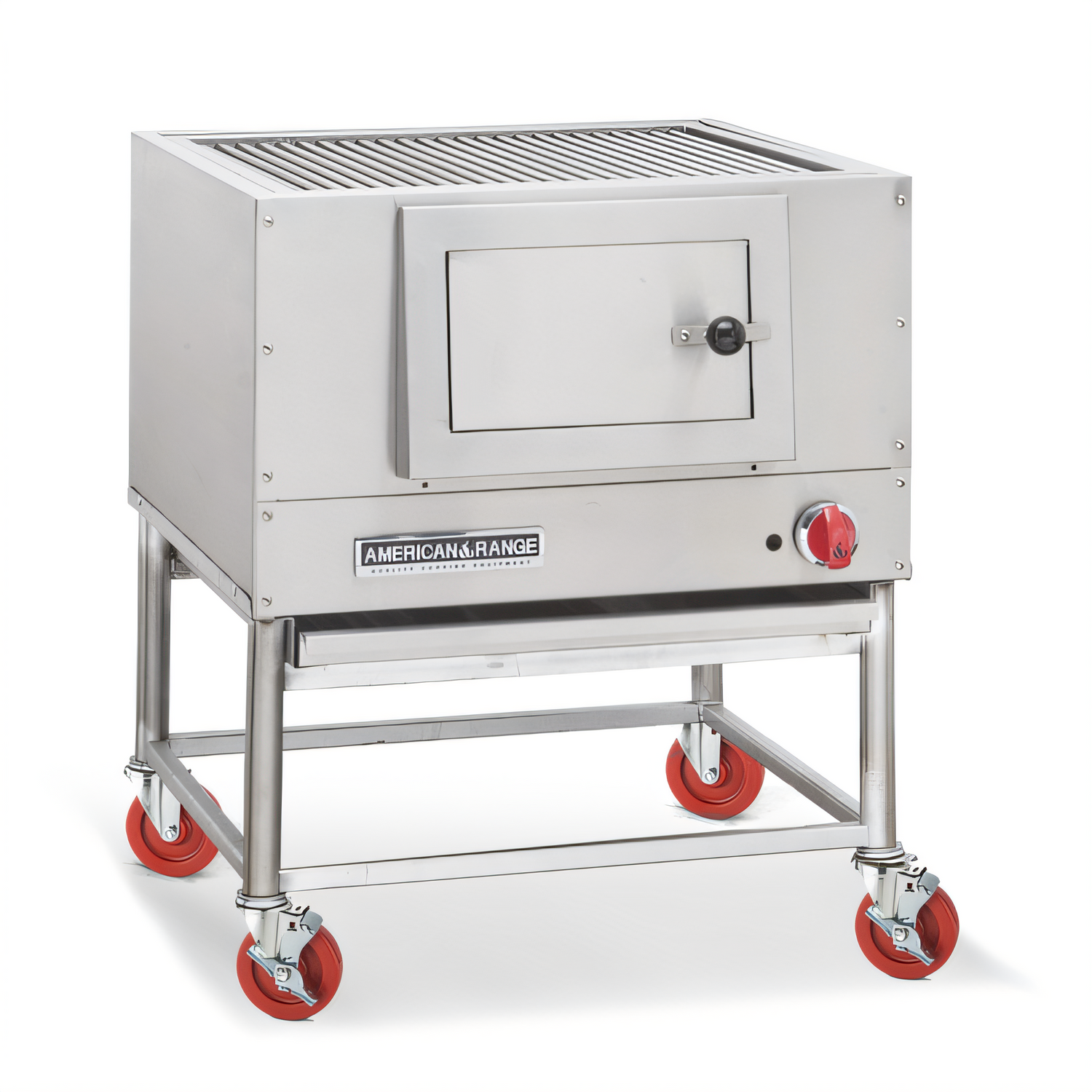

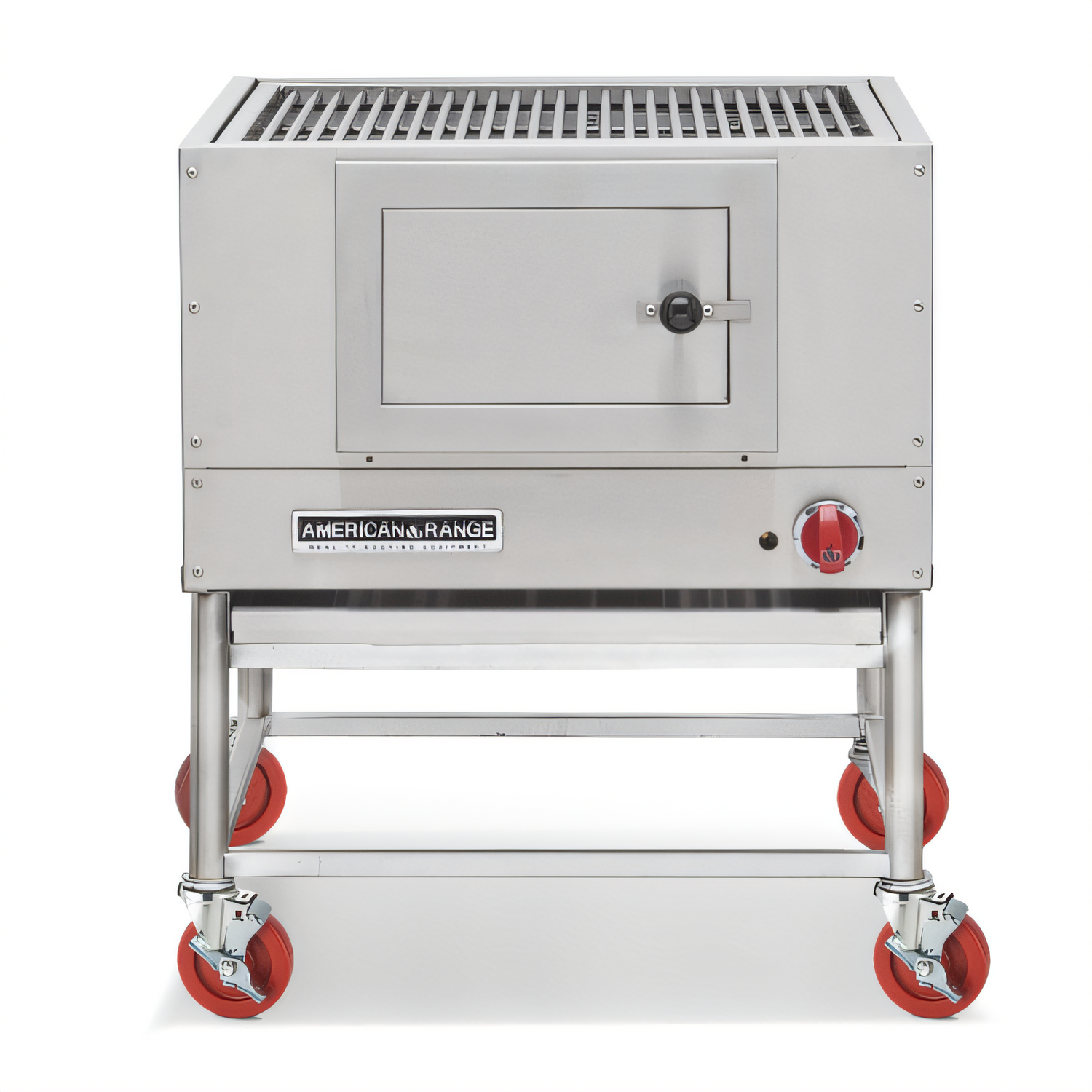

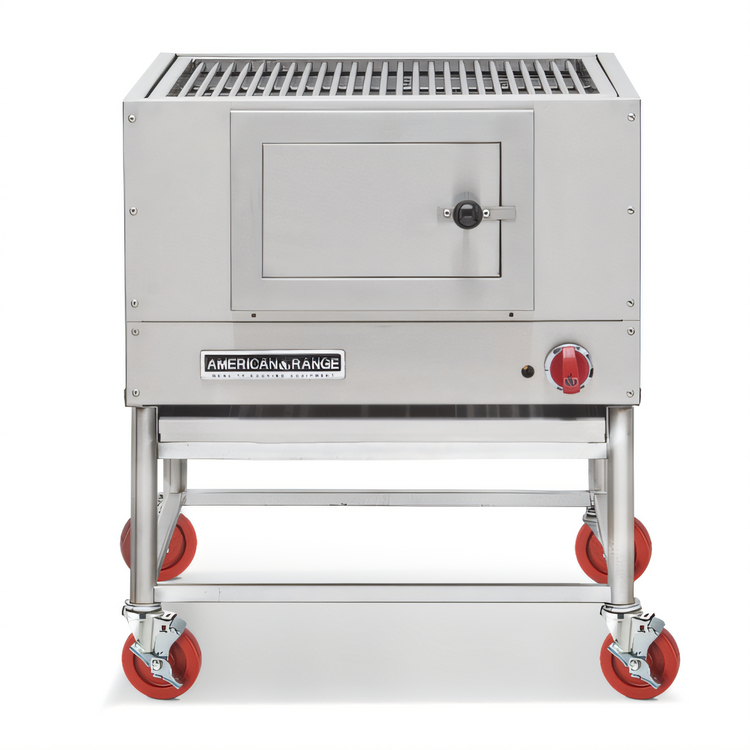

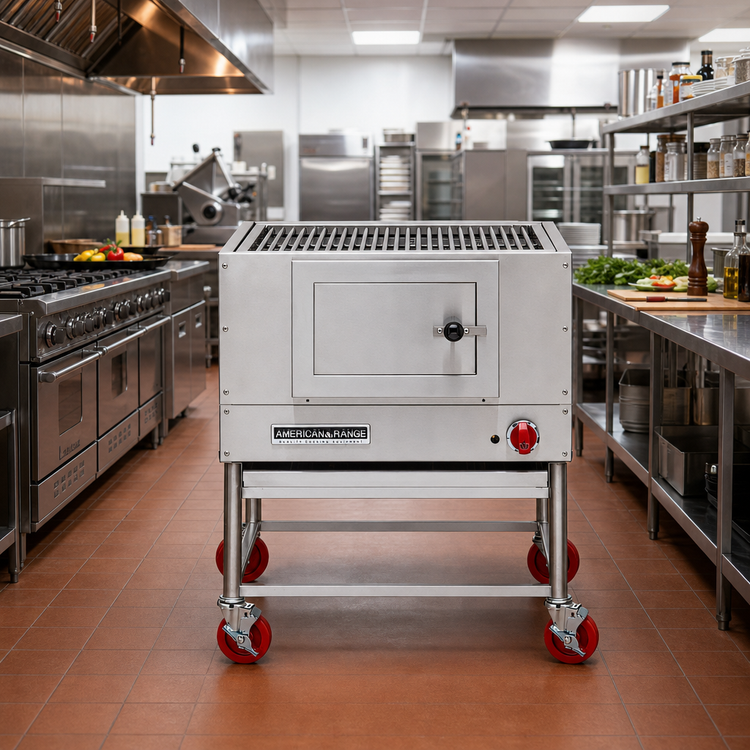

American Range AMSQ-30 30" Wood-Fired Char-Broiler
Floor model • Stainless steel body • Built-in gas log lighterCapture true wood-fired flavor in a compact, heavy-duty broiler built for demanding commercial kitchens. The AMSQ-30 lets you fire with any wood or charcoal and ignite instantly with a 30,000 BTU gas log lighter—no messy lighter fluid or electric starters required.
Key features
- 30" (762 mm) wide cooking cavity in a space-saving 27" deep chassis.
- Built-in 30,000 BTU gas log lighter with adjustable valve + standing pilot for instant ignition.
- Heavy-duty cast iron round-rod grates deliver bold, restaurant-quality grill marks.
- Open bottom grate design promotes continuous updraft for hotter, cleaner fires and lower wood/charcoal costs.
- Fire box lined with refractory bricks protects the interior from burn-out and extends service life.
- Large front-mounted stainless steel loading door with ergonomic handle for quick fueling and ash access.
- All-stainless exterior resists corrosion and wipes clean fast.

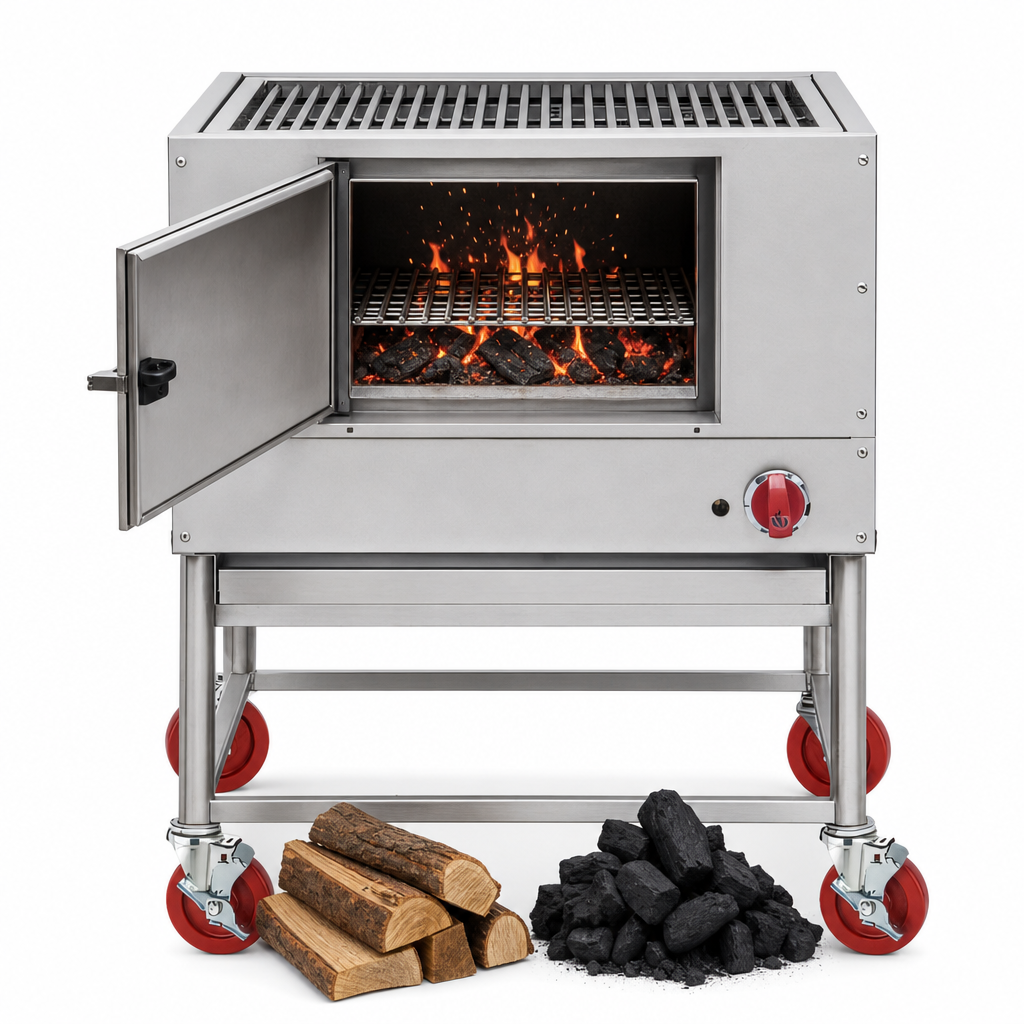

- Operates on wood or charcoal; gas (natural or LP) is used only for the ignition burner.
- ETL Listed for gas & sanitation; designed and built in the USA.
Specifications
| Model | AMSQ-30 |
|---|---|
| Overall width | 30" / 762 mm |
| Overall depth | 27 1/8" / 689 mm |
| Overall height | 18" / 457 mm (without stand) |
| Btu/hr (gas log lighter) | 30,000 BTU (9.0 kW) |

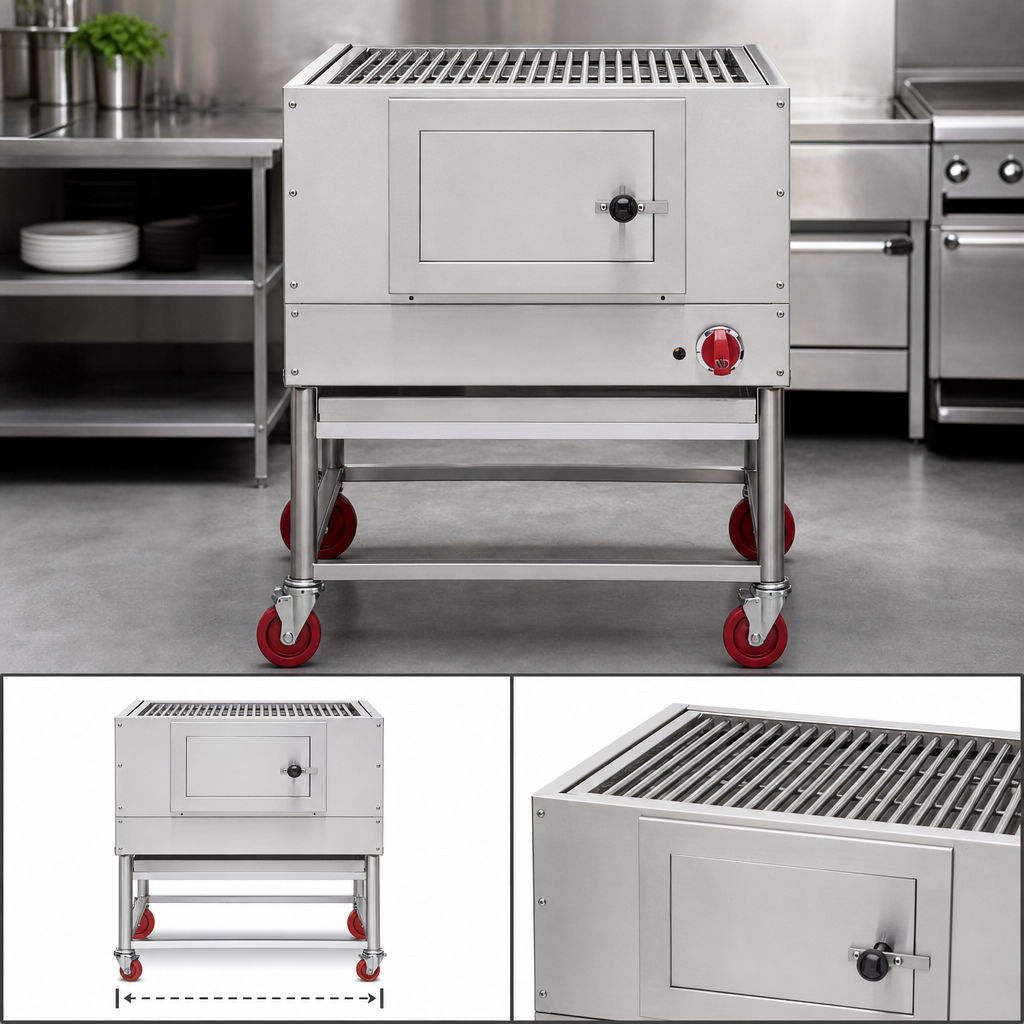

| Burners | 1 gas log lighter |
| Primary fuel | Wood or charcoal |
| Ignition fuel | Natural gas or propane (field convertible) |
| Top grate | Cast iron, 1" round-rod sections |
| Fire box lining | Refractory brick |
| Gas connection | 3/4" NPT | 5" W.C. NG / 10" W.C. LP |
| Shipping weight | 300 lb / 137 kg (approx.) |
| Certifications | ETL (US & Canada), NSF/ANSI 4 |
| Warranty | 1-year parts & labor; burners & grates 90 days |
Legs, equipment stand, casters, and quick-disconnect gas hose are sold separately. Contact us for a configured package that meets your line-up requirements.
