American Range AHS-6027 Gas Charbroilers
Description

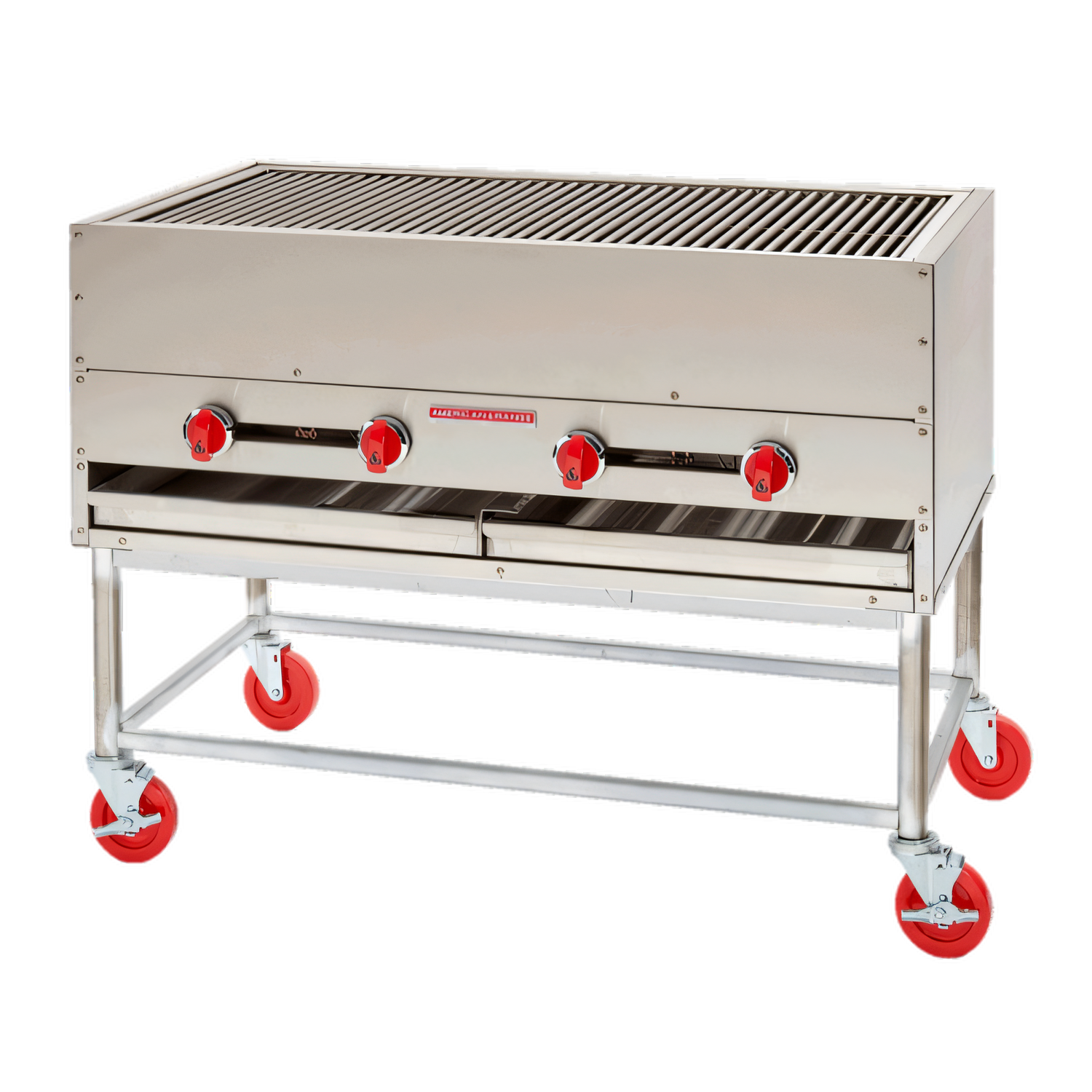

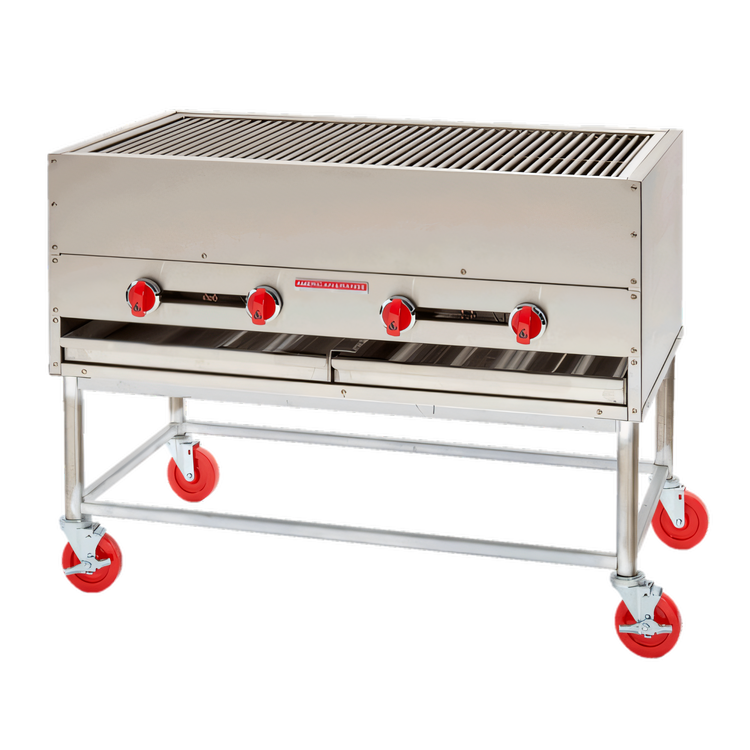

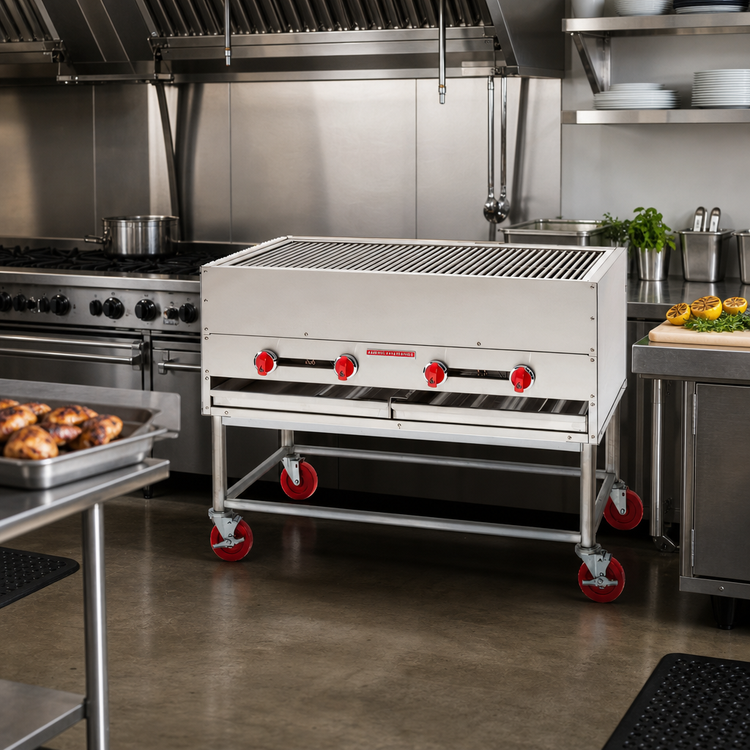

AHS-6027 Horizontal Chicken Broiler – 60" Gas Countertop

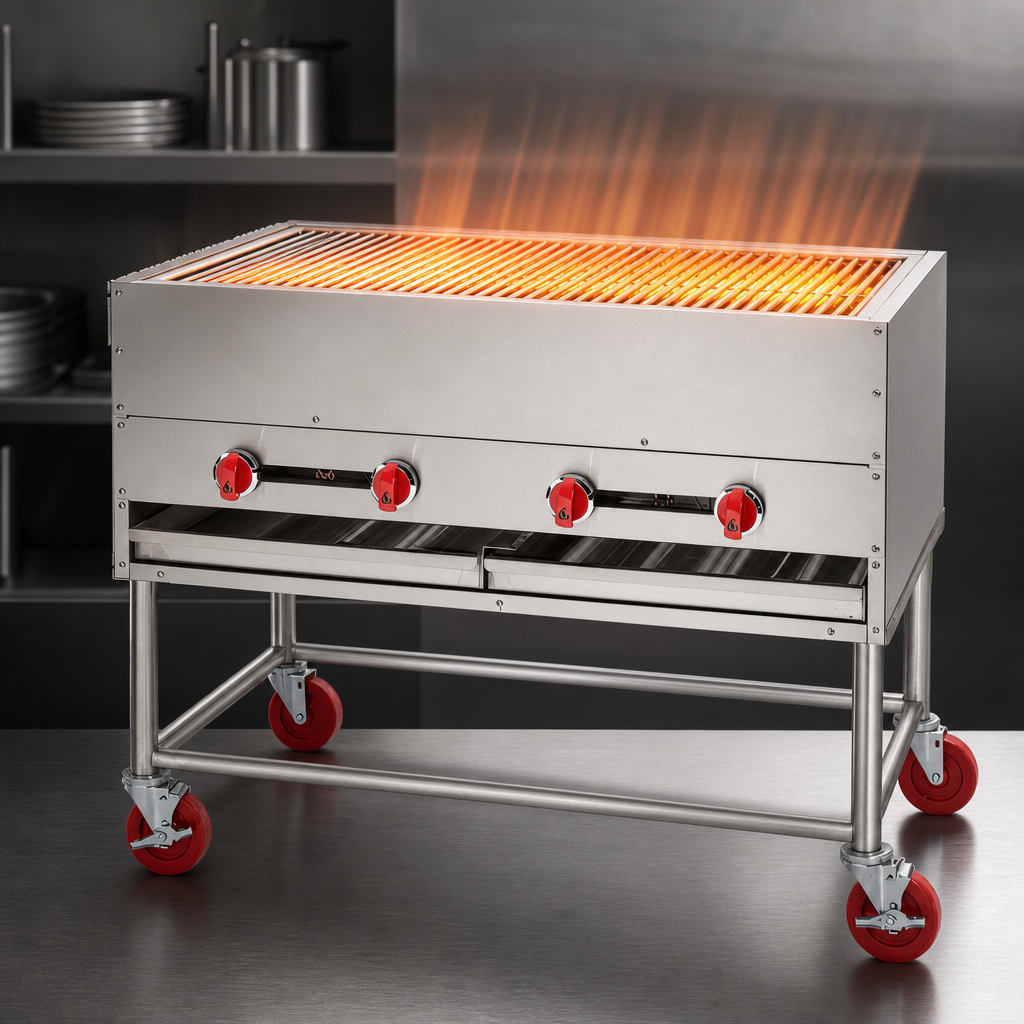

200,000 BTU | 5 Burners | Stainless Steel | Made in USABuilt for high-volume kitchens that won’t compromise on flavor or speed, the American Range AHS-6027 delivers searing, even heat across an expansive 60-inch grate—perfect for spatchcock, rotisserie-style, or split birds ready to fly off the menu.
Key Features

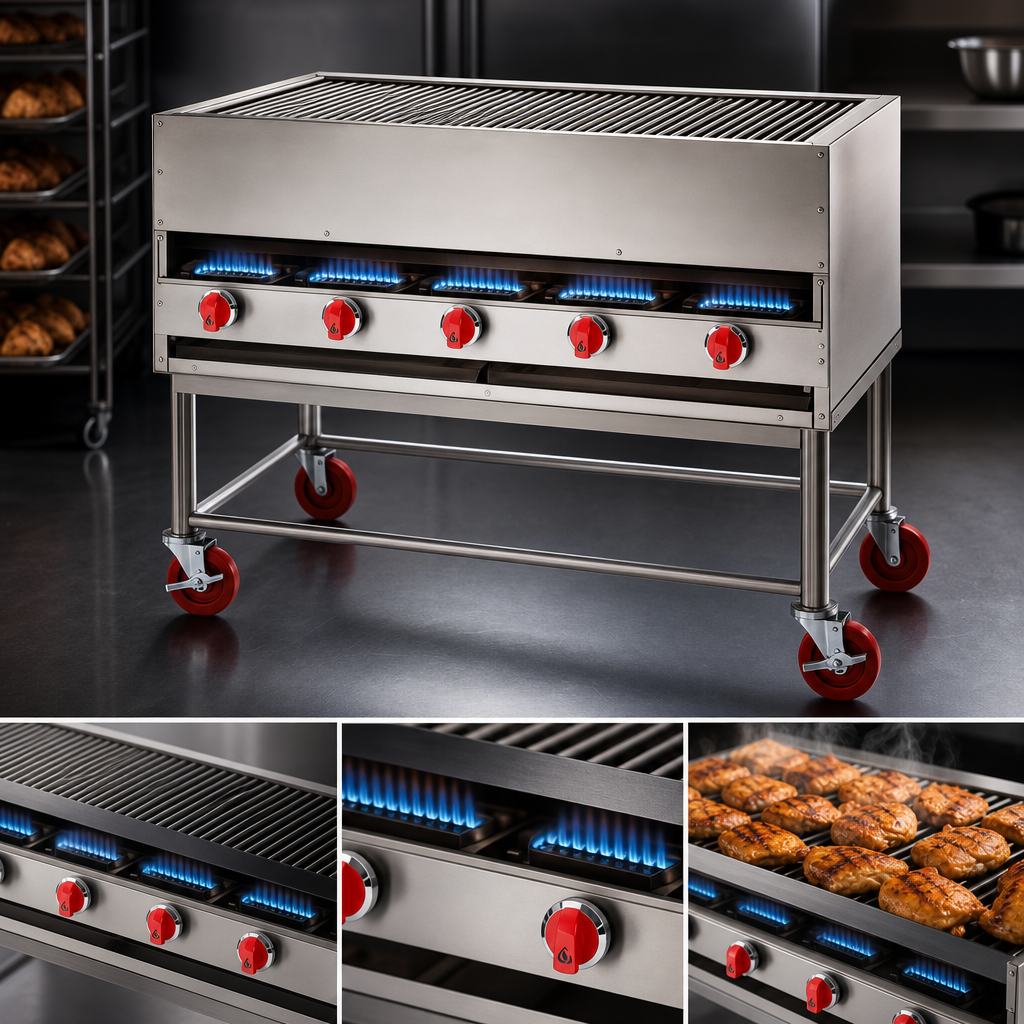

- Five 40,000 BTU/hr aluminized burners – a total of 200,000 BTU (59 kW).
- Round-rod, non-stick top grates cradle whole or spatchcock chickens for uniform browning.
- Open bottom grate design encourages continuous updraft for complete, efficient combustion.
- Heavy-duty stainless steel exterior and liner stand up to daily commercial abuse.
- Ships as a countertop broiler; optional equipment stand and field-installed casters available.
- Field-convertible for Natural or LP gas—specify fuel type when ordering.
- ETL-Sanitation & cETLus certified for food-service safety and hygiene.
- Proudly designed & built in the USA and backed by a robust 2-year limited parts & labor warranty.
Technical Specifications
| Model | AHS-6027 |
|---|---|
| Configuration | Countertop horizontal broiler (broiler section only) |
| Cooking Surface (W × D) | 60" × 27" (1524 × 686 mm) |
| Overall Height | 18" (457 mm) |
| Number of Burners | 5 |
| Total Input | 200,000 BTU/hr (59.0 kW) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Shipping Weight | 370 lb (167 kg) (includes packaging) |
| Listings | ETL-Sanitation, cETLus |
| Origin | Made in USA |
Installation & Clearance
For non-combustible floors only. When curb-mounted, maintain minimum clearances of 12" (305 mm) from sides and 4" (102 mm) from rear of combustible walls. Adequate ventilation in accordance with NFPA 96 is required.
Warranty
Two-year limited warranty on parts & labor. Broiler burners, upper/lower grates and radiants are covered for 90 days. Complete details available at americanrange.com.
