Key specifications

BTU
210,000 BTU
Gas Type
Natural Gas / Propane
Dimensions
72.0"W × 24.0"D × 13.25"H
Type
Charbroiler
Style
Lava-Rock
Installation Type
Countertop
Spec sheet
American Range SKU: AECB-64

American Range AECB-64 72-Inch Countertop Lava-Rock Charbroiler

$5,564.63
/each
Estimated to ship in 11–14 business days Free Shipping
Width
Gas typeRequired
Gas Connector
Included: American Range warranty Two-year limited warranty for parts and labor, with 90-day warranty duration for broiler burners, lower and upper grates, radiants, and replacement parts

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $515/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Style Lava-Rock
Installation Type Countertop
Material Stainless Steel
Country of Origin USA
Heating Source Lava Rocks
Controls Manual
Gas Type Natural Gas / Propane
Size 72 in
Burner Count 6
Burner Type H-Shaped
Burner Material Cast Iron
Grate Material Cast Iron
Grate Type Reversible
Leg Height 4 in
BTU 210,000 BTU

Description

The American Range AECB-64 is a 72-inch countertop charbroiler with six individually controlled cast-iron H-shaped burners and natural volcanic lava rock.

Manual gas valves and standing pilots provide burner-by-burner control and ignition. Sectioned, individually removable cast-iron grates can be positioned flat or sloped, while full-length grease channels drain runoff into a removable pan.

The unit has stainless steel front and sides, 4-inch legs, and 210,000 BTU/hr input. It is available for natural gas or propane; specify the gas type when ordering.

Overall Dimensions:

72.0"W x 24.0"D x 13.25"H

Product Weight:

740.0 lb

Natural Volcanic Lava Rock

The lava-rock heating surface receives drippings during broiling.

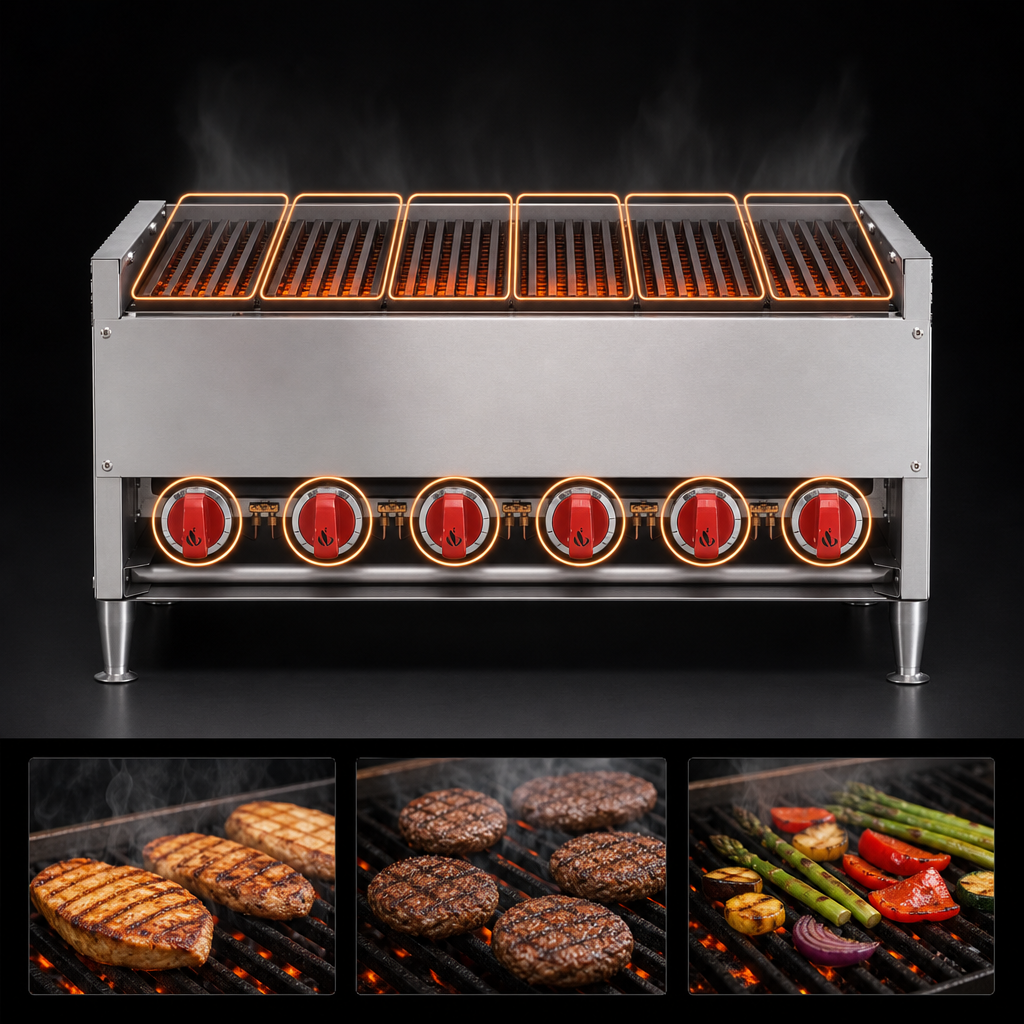

Six Individually Controlled Burners

Six cast-iron H-shaped burners are individually controlled.

Manual Gas Controls

Each burner has a manual gas control valve.

Standing Pilots

Standing pilots provide ignition for each burner.

Reversible Sectioned Grates

Individually removable cast-iron top grates can be positioned flat or sloped.

Grease Channels

Full-length channels drain runoff into a removable pan.

Stainless Steel Front and Sides

The front and sides are stainless steel.

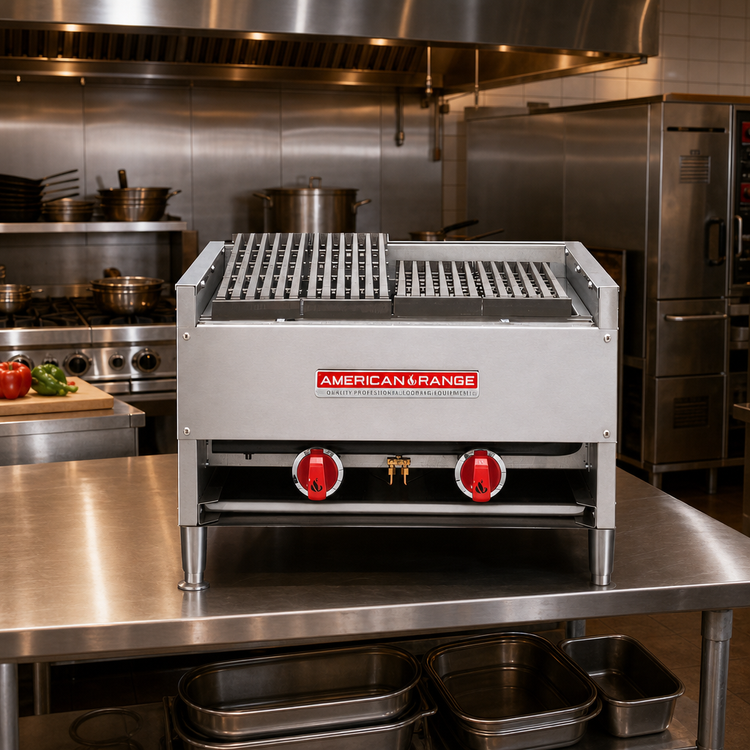

Countertop Design

The charbroiler is designed for countertop installation.

Frequently Asked Questions

The AECB-64 is designed for countertop installation.
The charbroiler can be specified for natural gas or propane; the gas type must be specified when ordering.
Yes. The sectioned, individually removable cast-iron grates can be positioned flat or sloped.
The product is 72.0 inches wide, 24.0 inches deep, and 13.25 inches high, with a listed weight of 740 pounds.
The product has a two-year limited warranty for parts and labor. Broiler burners, lower and upper grates, radiants, and replacement parts have a 90-day warranty duration.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
