Key specifications

BTU
140,000 BTU
Dimensions
48.0"W × 24.0"D × 13.25"H
Type
Charbroiler
Style
Lava-Rock
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
American Range SKU: AECB-44

American Range AECB-44 48-Inch Countertop Charbroiler

$3,541.13
/each
Estimated to ship in 11–14 business days Free Shipping
Width
Gas typeRequired
Gas Connector
Included: American Range warranty Two-year limited warranty for parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $328/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Style Lava-Rock
Installation Type Countertop
Material Stainless Steel
Country of Origin USA
Heating Source Lava Rocks
Controls Manual Controls
Burner Count 4
Burner Type H-Shaped
BTU 140,000 BTU
Grate Material Cast Iron
Grate Configuration Reversible
Leg Height 4 in
Width 48 in

Description

The American Range AECB-44 is a 48-inch countertop lava-rock charbroiler with four individually controlled H-shaped burners and manual gas controls.

  • Uses natural volcanic lava rock as the heating source.
  • Includes heavy-duty reversible cast-iron grates with grease runners.
  • Features stainless steel front and sides with 4-inch legs.
  • Provides a total gas input of 140,000 BTU.

Overall Dimensions:

48.0"W x 24.0"D x 13.25"H

Product Weight:

465.0 lb

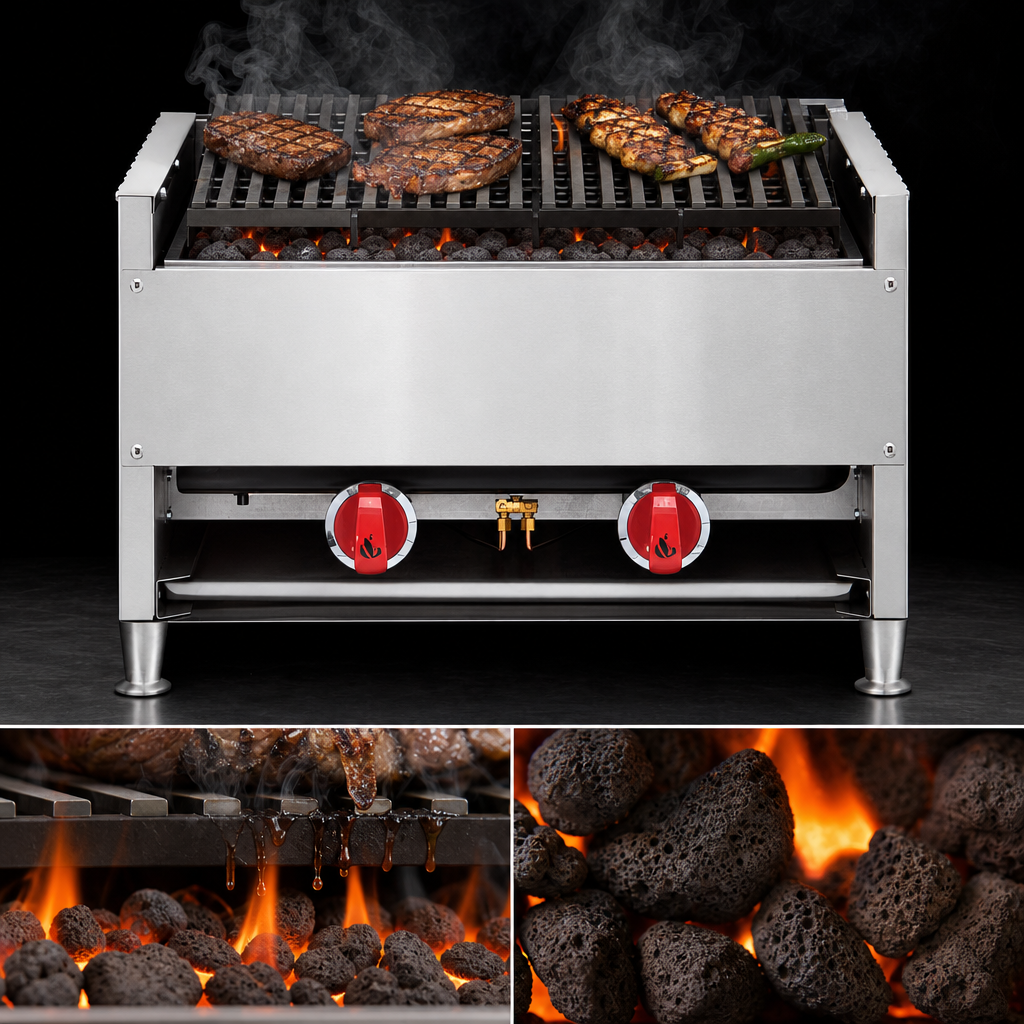

Lava-Rock Heating

Uses natural volcanic lava rock as the heating source.

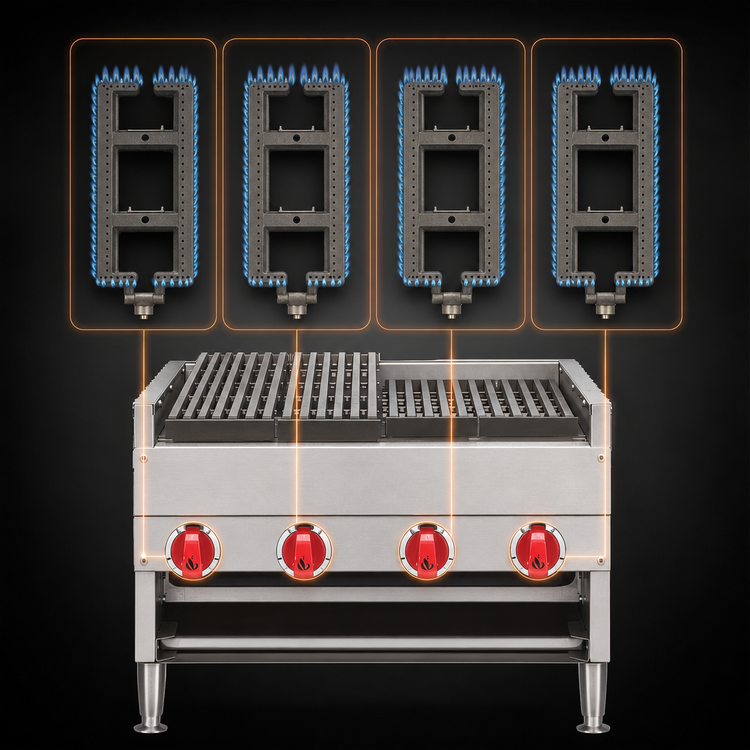

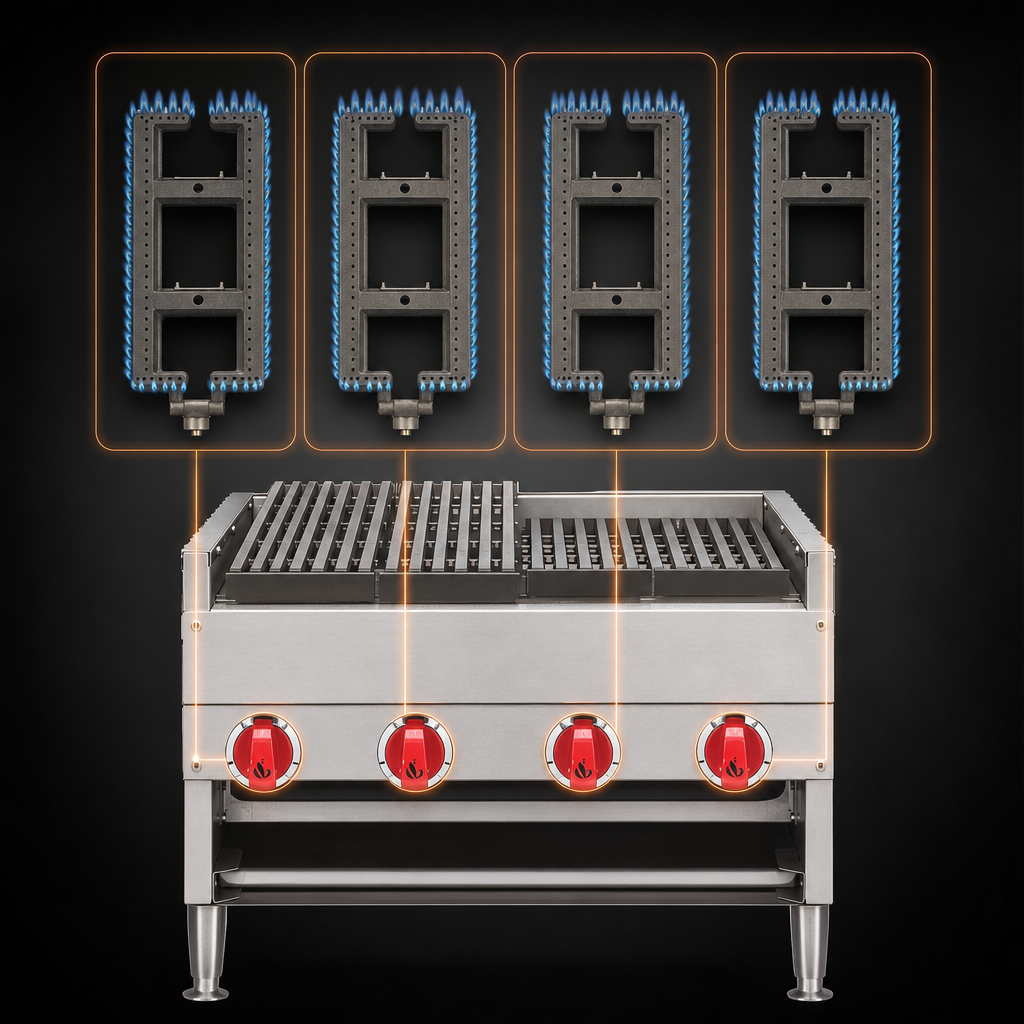

Four H-Shaped Burners

Four individually controlled cast-iron H-shaped burners are rated at 35,000 BTU/hr. each.

Manual Controls

A manual gas control valve is provided for each burner.

Reversible Grates

Heavy-duty cast-iron top grates are reversible and include grease runners.

Grease Management

Full-length grease channels direct runoff into a removable pan.

Stainless Steel Exterior

The front and sides are made of stainless steel.

Standing Pilots

Standing pilots provide ignition for each burner.

Frequently Asked Questions

The unit is 48 in wide, 24 in deep, and 13.25 in high.
It has four individually controlled cast-iron H-shaped burners.
It uses manual gas controls, with a manual gas control valve for each burner.
The rated gas input is 140,000 BTU.
The documentation lists natural gas and propane options and states that the gas type must be specified when ordering.
Yes. Natural volcanic lava rock is specified as the heating source.
A two-year limited warranty for parts and labor is stated, with specific 90-day warranty durations for broiler burners, lower and upper grates, radiants, and replacement parts.
