American Range

American Range AECB-34 Countertop Gas Lava-Rock Char-Broiler, 36-Inch Wide, 3-Burner

SKU: AECB-34
$3,035.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

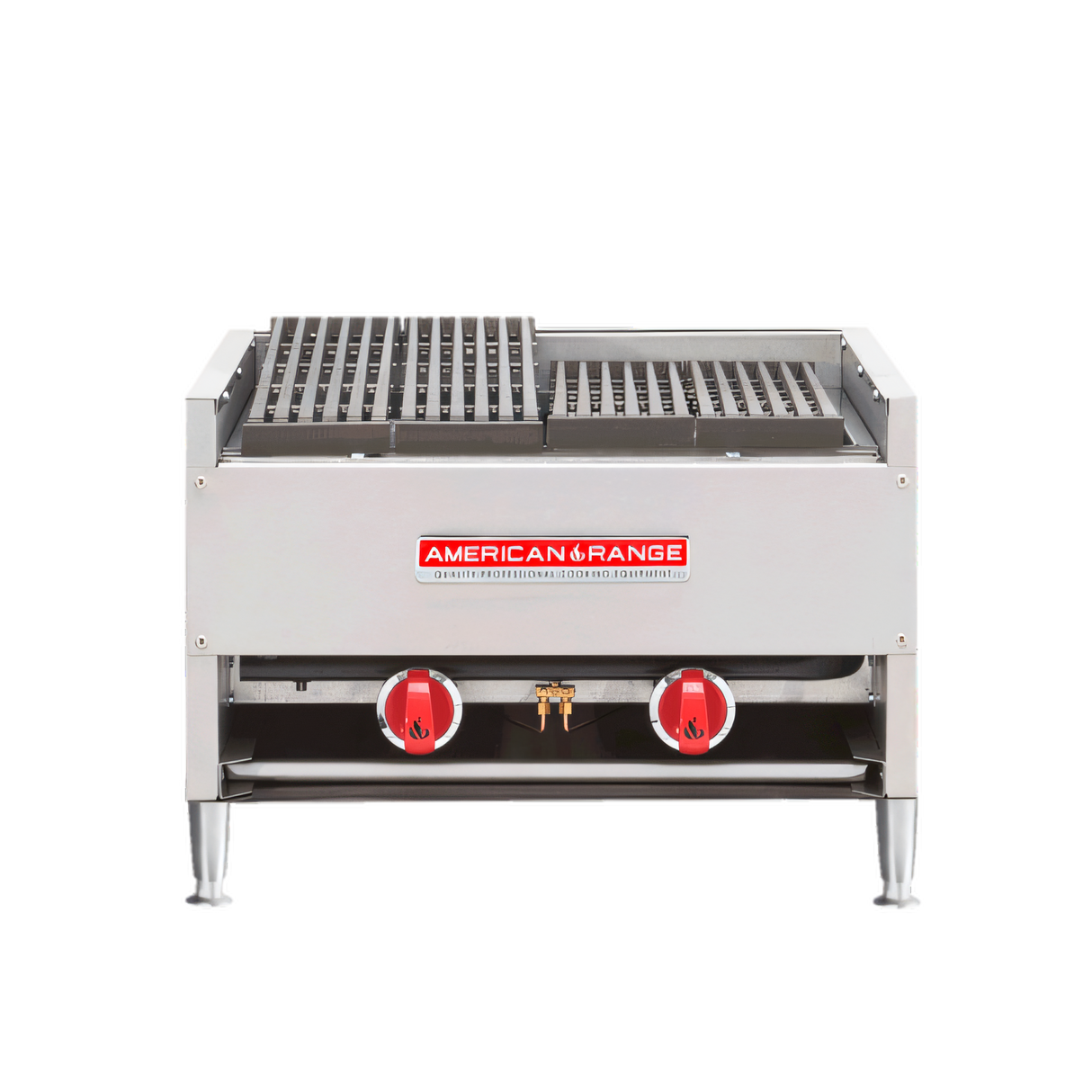

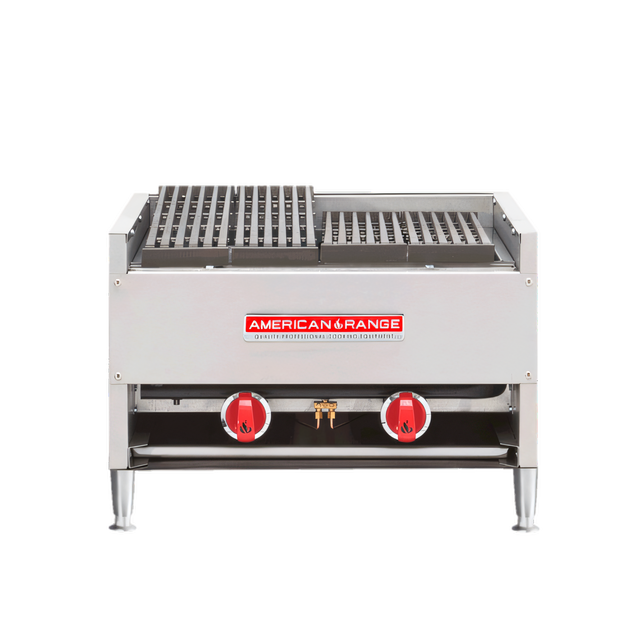

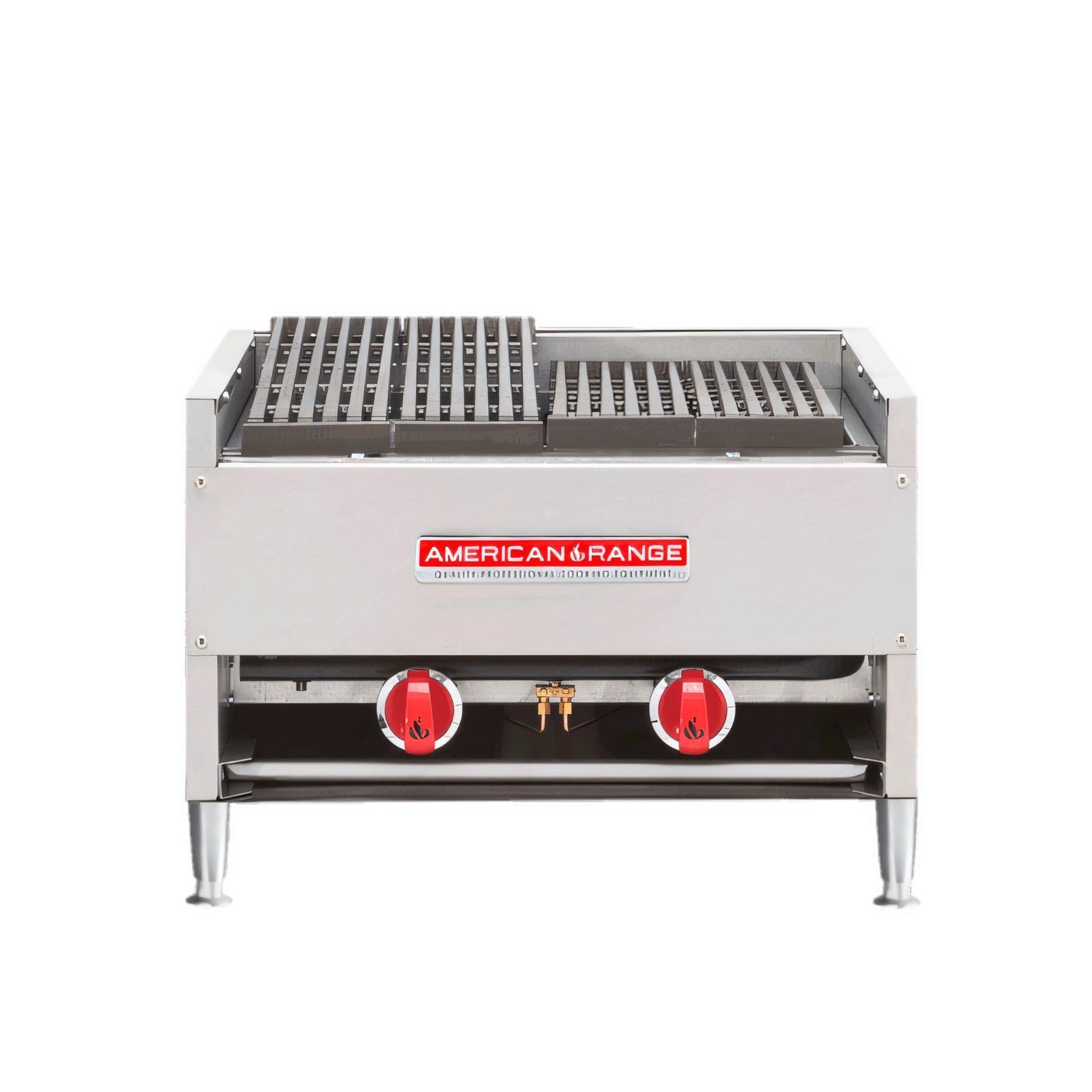

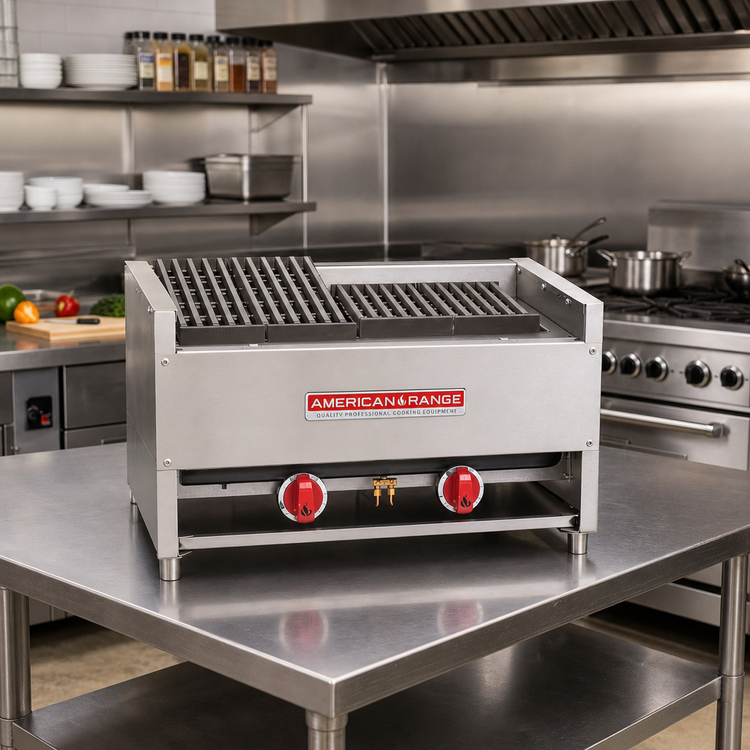

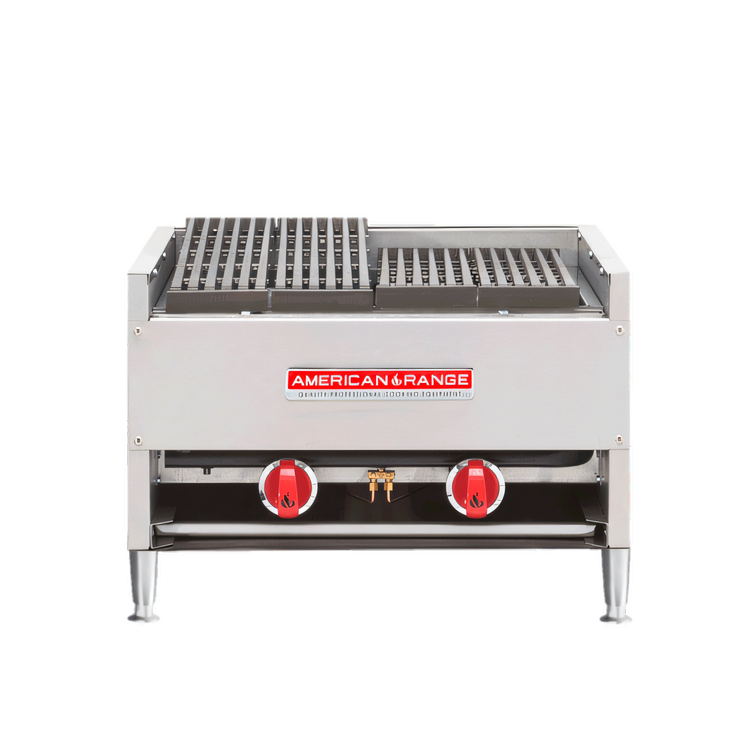

American Range AECB-34 Countertop Gas Lava-Rock Char-Broiler, 36-Inch Wide, 3-Burner

Manual Controls, Stainless Steel Front and Sides

Built for authentic char-broiled flavor, this 36-inch countertop broiler pairs lava rocks with three independent H-burners for strong, even heat.

  • 36-inch wide countertop gas char-broiler with three H-shaped burners and 105,000 BTU total output.
  • Natural volcanic lava rocks help create searing heat and smoky, char-broiled flavor.
  • Manual controls and standing pilots give straightforward burner-by-burner operation.
  • Heavy-duty cast-iron grates are removable and can be positioned flat or sloped for cooking flexibility.
  • Stainless steel front and sides, plus a fully insulated steel chassis, support durability and easier cleanup.
  • Full-length grease channels drain into a removable pan; 4-inch legs are included for countertop placement.

Overall Dimensions:

36.0"W x 24.0"D x 13.25"H

Product Weight:

327.0 lb

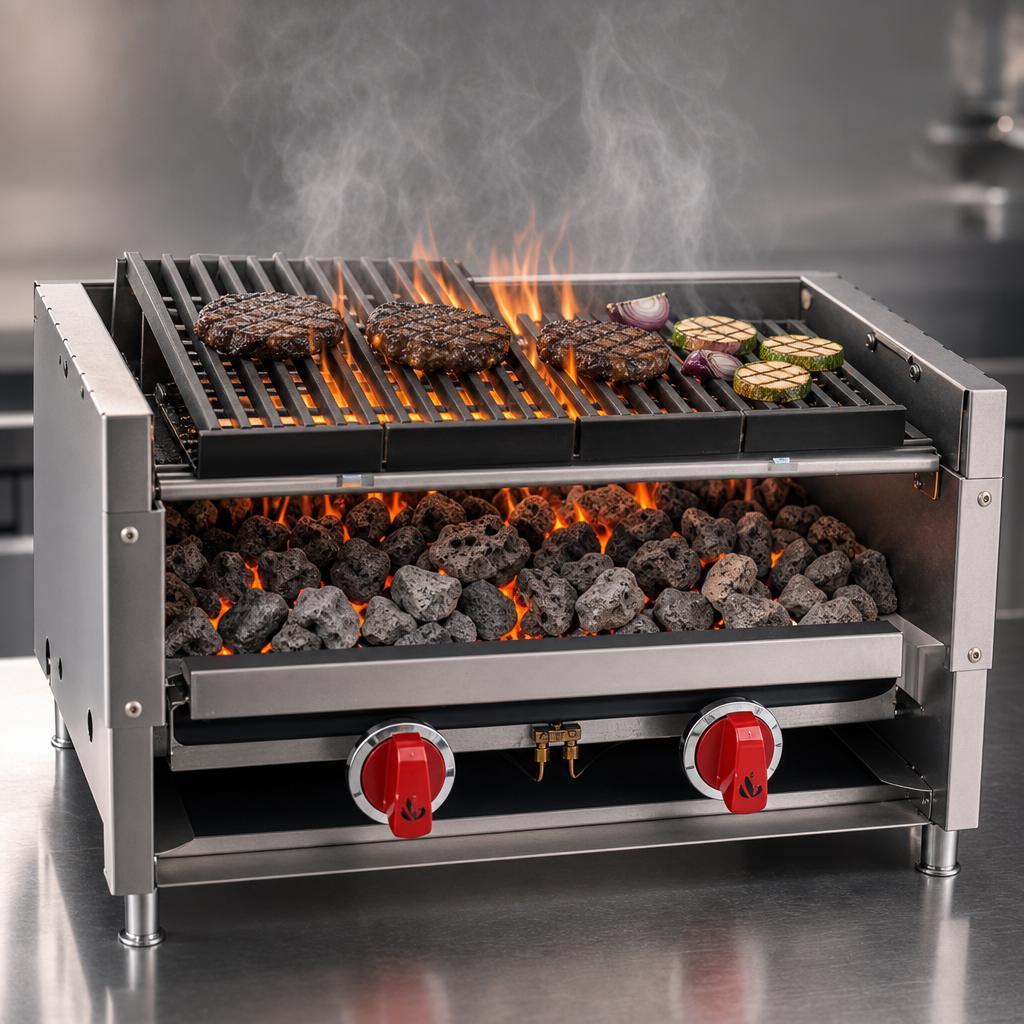

Natural Volcanic Lava Rocks

Lava rocks help produce searing flames and smoky flavor as juices drip onto the cooking surface.

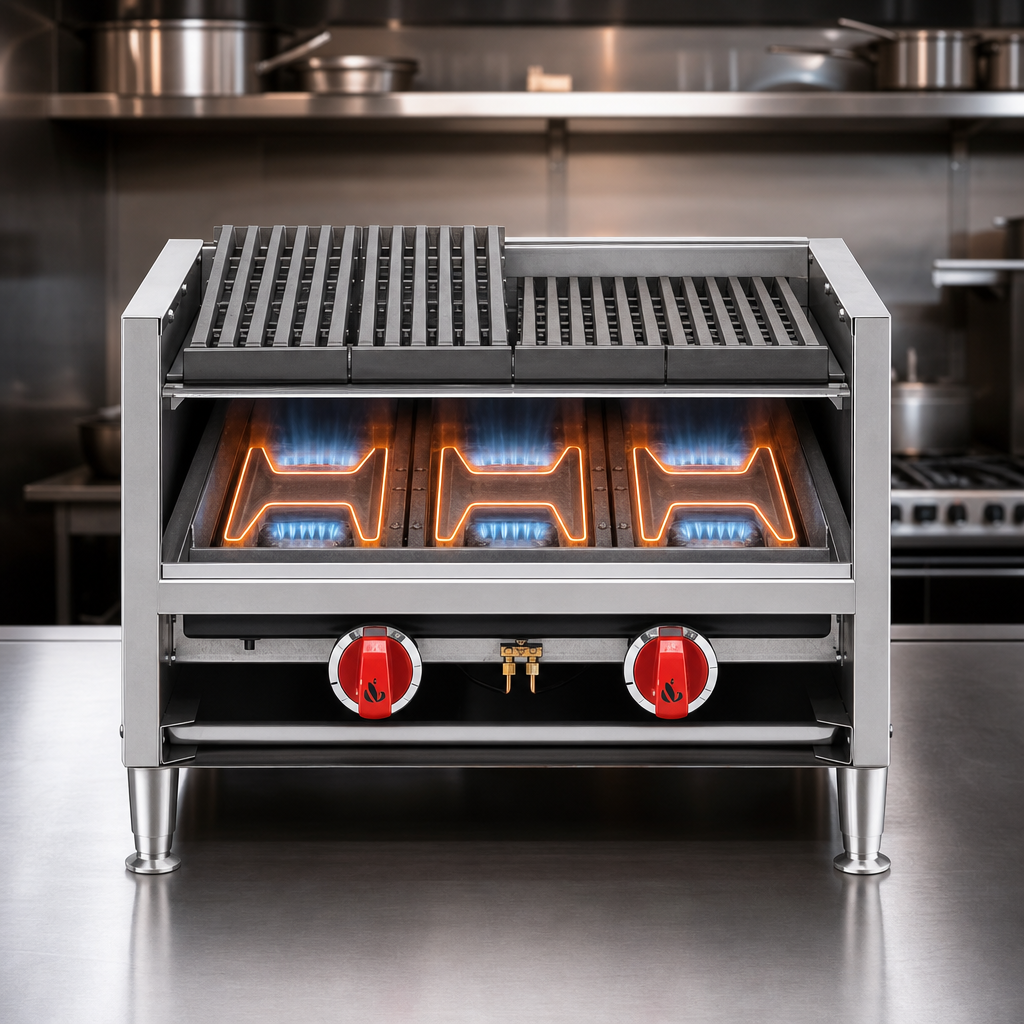

Three 35,000 BTU H-Burners

Three individually controlled cast-iron H-burners deliver even heat and maximum output.

Manual Gas Control Valves

Separate manual controls for each burner allow precise heat adjustment.

Standing Pilot Ignition

Standing pilots provide instant ignition for each burner.

Reversible Sectioned Cast-Iron Grates

Individual grate sections remove for cleaning and can be positioned flat or sloped.

Stainless Steel Exterior and Insulated Chassis

Stainless steel front and sides with a fully insulated double-layer steel chassis add durability and simplify cleaning.

Full-Length Grease Management

Grease channels direct runoff into a removable pan for easier cleanup.

4-Inch Legs

Low-profile legs support the specified countertop installation height.

Type Lava-Rock Char-Broiler
Installation Type Countertop
Controls Manual
BTU 105,000 BTU/hr.
Gas Connection Size 3/4 Inch
Material Stainless Steel
Country of Origin USA
Shipping Width 41 Inches
Shipping Depth 30 Inches
Shipping Height 20 Inches
Shipping Weight 327 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year limited parts and labor warranty.

Frequently Asked Questions

It is a gas countertop broiler. Specify natural gas or propane when ordering.
It has three individually controlled cast-iron H-burners.
Natural gas uses 5.0 inches W.C. manifold pressure, and propane uses 10.0 inches W.C.
Yes. The sectioned top grates are individually removable and can be positioned flat or sloped.
The unit is for non-combustible floors only. When placed near combustible walls, keep at least 12 inches on the sides and 4 inches at the rear.
The manufacturer lists a 2-year limited warranty covering parts and labor.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
