American Range  |  SKU: ADJF-36

American Range ADJF-36 Gas Charbroilers

$7,841.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

American Range ADJF-36 36" Adjustable Radiant Gas Charbroiler – Floor Model

6 Burners | 120,000 BTU/hr | Made in USA

Engineered for high-volume kitchens that demand precision and durability, the American Range ADJF-36 delivers a full 120,000 BTU/hr of searing power across a spacious 36 inch cooking surface. Independent burner controls, three grate height settings, and a rugged stainless-steel cabinet base combine to give chefs the flexibility and performance they need shift after shift.

Key Features

  • Adjustable radiant broiler top with three cooking heights for searing, finishing, or holding.
  • Six 20,000 BTU/hr burners (120,000 BTU total) deliver fast recovery and even heat.

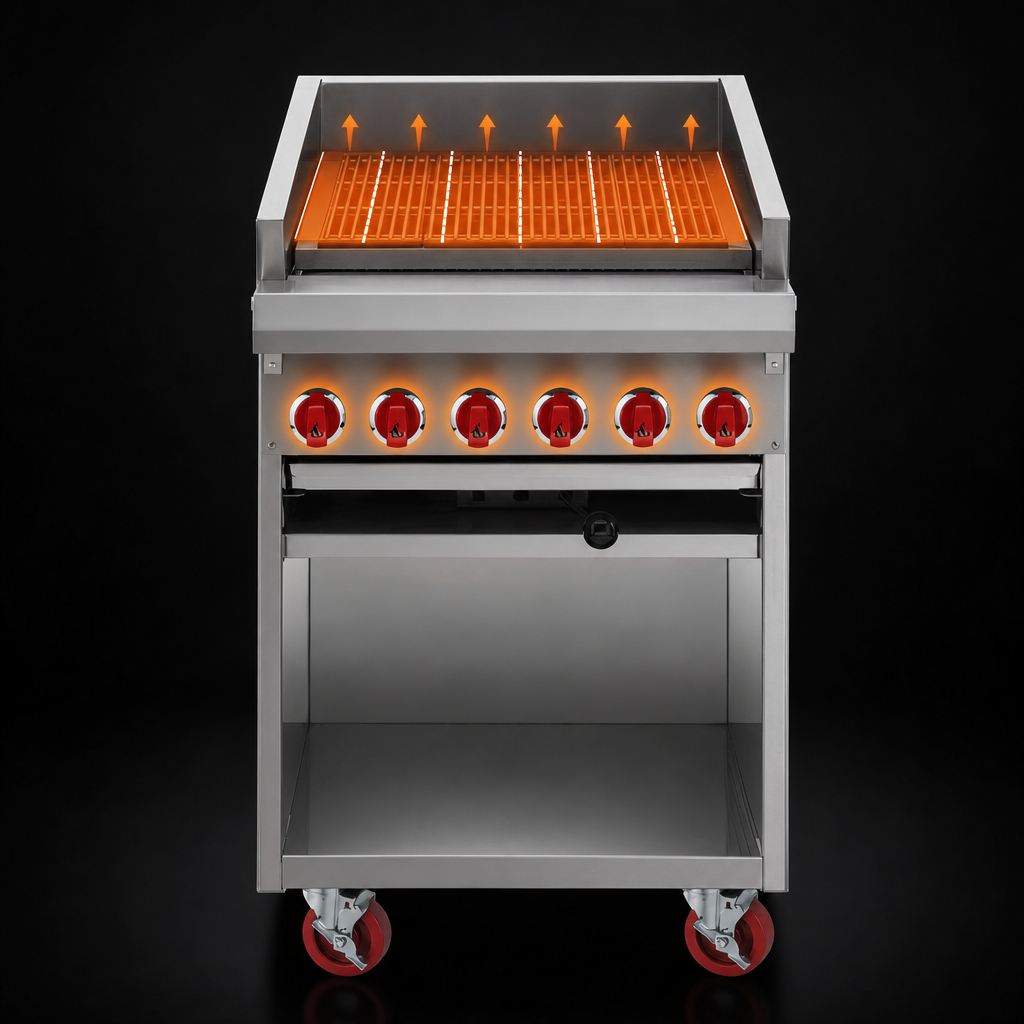

  • Each burner has its own control valve and standing pilot for instant, zone-by-zone temperature management.
  • Heavy-duty cast-iron grates maximize heat retention and create bold grill marks.
  • Includes one removable, adjustable rack for finishing steaks, melting cheese, or warming plates.
  • 4" double-wall rear splash guard and tapered 4"→2" side splashes keep grease where it belongs.
  • Full-width pull-out grease tray simplifies end-of-shift clean-up.
  • All-stainless-steel front, sides, and cabinet base resist corrosion and stand up to daily abuse.
  • 6" adjustable legs for required floor clearance and easy leveling.
  • ETL listed for gas & sanitation; designed and built in the USA.

Specifications

Model ADJF-36
Type Adjustable under-fired radiant charbroiler (floor model)
Width 36 in / 914 mm
Depth 32 3⁄8 in / 822 mm
Height to grate 39 1⁄2 in / 1,003 mm
Overall height (with splash) 45 1⁄2 in / 1,157 mm
Burners 6 individually controlled (standing pilots)
Total input 120,000 BTU/hr • 35.0 kW
Gas connection ¾" NPT rear manifold
Manifold pressure 5.0" W.C. Natural | 10.0" W.C. LP
Grate Cast iron, 3-position adjustable
Finishing rack 1 adjustable, removable
Construction Stainless steel front, sides & cabinet base
Legs 6" stainless steel, adjustable
Certifications ETL (gas & sanitation)
Origin Made in USA

Limited Warranty

American Range provides a 2-year limited parts & labor warranty on this unit. Broiler burners, grates, and radiants carry a 90-day warranty.

Important: Specify Natural Gas or LP when ordering. Unit must be installed under an approved ventilation system and on a non-combustible floor with legs or casters. Maintain 12" side and 4" rear clearance from combustible walls and follow NFPA 96 and local codes.

Features & Specs

Manufacturer

American Range

Certifications

ETL, Made in USA

Height

36.0in

Width

36.0in

Depth

28.5in

Shipping Weight

425.0lbs

Depth (front - back)

29"

Heat

steel radiants

Base

open cabinet base

Exterior Finish

all stainless steel exterior

Grid

adjustable tilt cast iron

Width (side - side) OA

25 - 36"

Specifications

Charbroiler, gas, floor model, adjustable top, radiant type, 36" wide, (6) burners, cast iron grates, 3-position, (1) adjustable rack, individually controlled burners with pilots, stainless steel construction, 6" legs, 35.0kW, 120,000 BTU, ETL, Made in USA
