American Range ADJ-72 Adjustable Radiant Gas Charbroiler – 72" Countertop

Built for the busiest steakhouses, resorts, and production kitchens, the ADJ-72 combines colossal fire power with the precision of a three-position grate system—all in a space-saving countertop footprint.

Highlights

• 12 independently controlled 20,000 BTU/hr burners (240,000 BTU total / 70 kW)

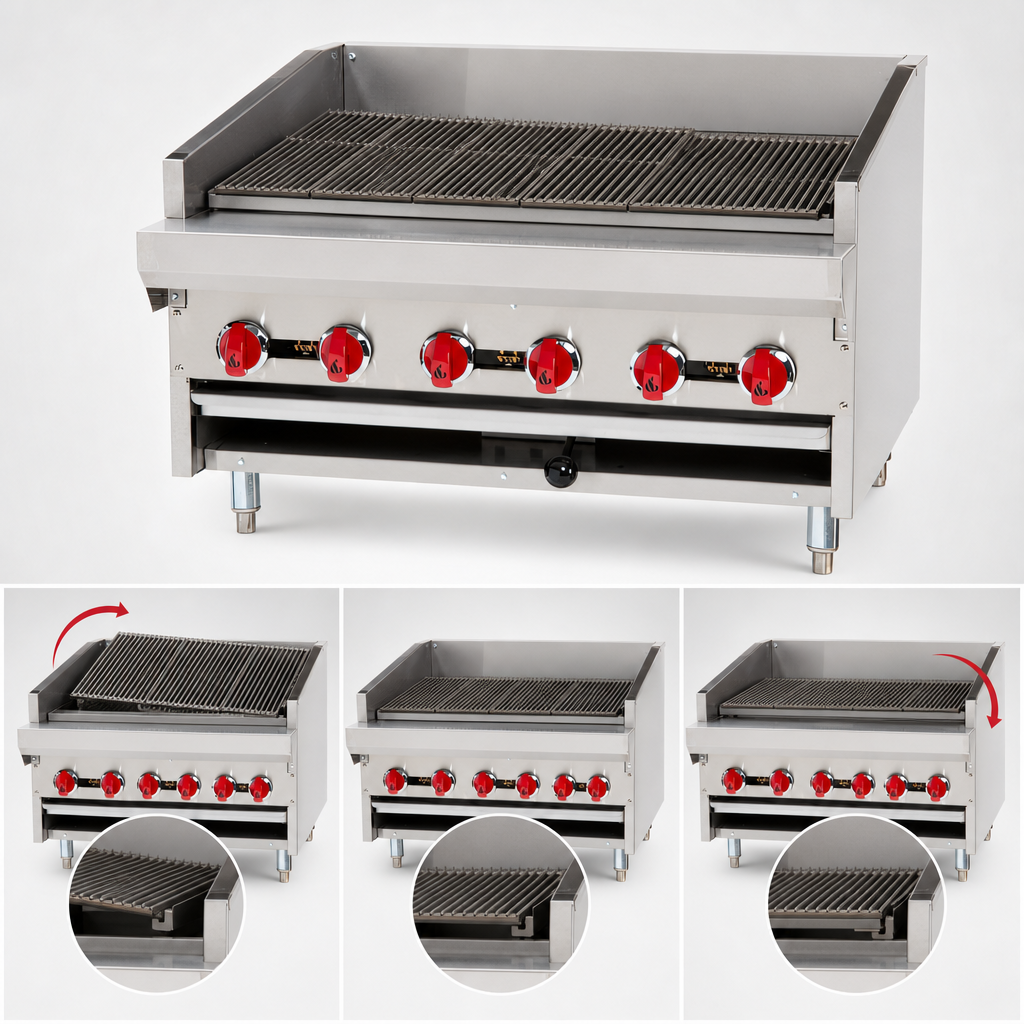

• Cast-iron radiant grates tilt to 3 positions for perfect sear marks or gentle holding

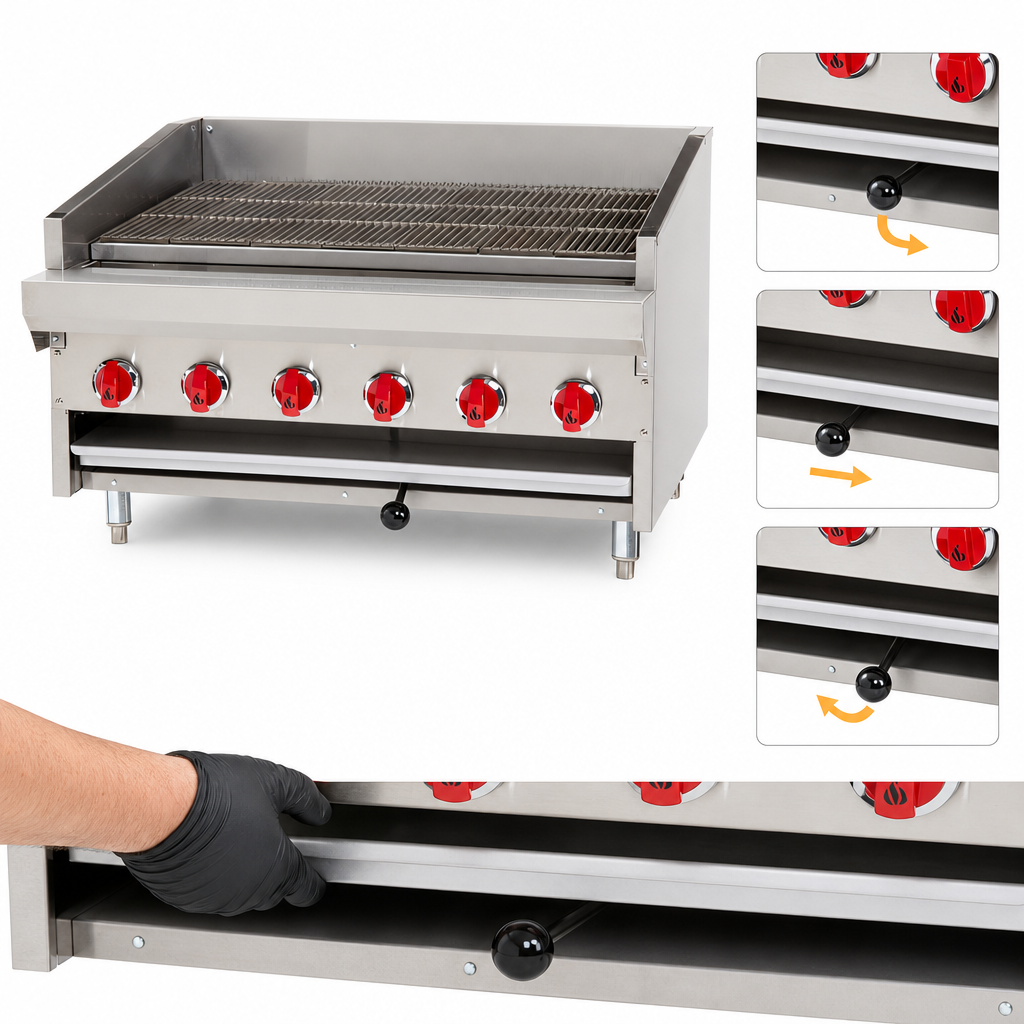

• Easy-lift handle lets staff adjust the grate height safely—even under a full load
• Rugged stainless steel chassis with welded frame for years of heavy commercial use
• 4" rear splash and 4"–2" tapered side splashes help contain heat and grease
• Two independent adjustable cooking racks maximize multi-zone production
• Full-length drip, crumb, and grease trays pull out for lightning-fast cleanup
• 4" adjustable stainless legs level the unit on any countertop
• Field convertible for Natural Gas or LP; 3/4" NPT rear manifold
• ETL Listed (gas & sanitation) and proudly designed & built in the USA
• Backed by a 2-year limited parts & labor warranty

Technical Specs

Installation & Clearance

• For use on non-combustible counters only; 4" legs supplied (2" overhang needed for curb mounting)
• Clearance to non-combustible walls: 0"
• Clearance to combustible walls: 12" (sides)  |  4" (rear)
• NFPA-96 compliant ventilation required
• Specify gas type and altitude (>2,000 ft) when ordering

Looking for a different size? American Range ADJ charbroilers are also available in 24", 36", 48" & 60" widths.
