American Range ADJ-48 Gas Charbroilers
Description
American Range ADJ-48 Adjustable Countertop Radiant Charbroiler
48" Wide | 8 Burners | 160,000 BTUBring steak-house power to your line with the ADJ-48. This USA-built, 48" countertop charbroiler packs eight independent 20,000 BTU burners, heavy-duty cast-iron grates and a three-position adjustable cooking surface—giving chefs total control over heat, speed and flavor.
Key Features
- 160,000 BTU (47 kW) total output from eight individually controlled 20,000 BTU burners
- Radiant cooking system with rugged cast-iron grates for even heat & signature sear marks

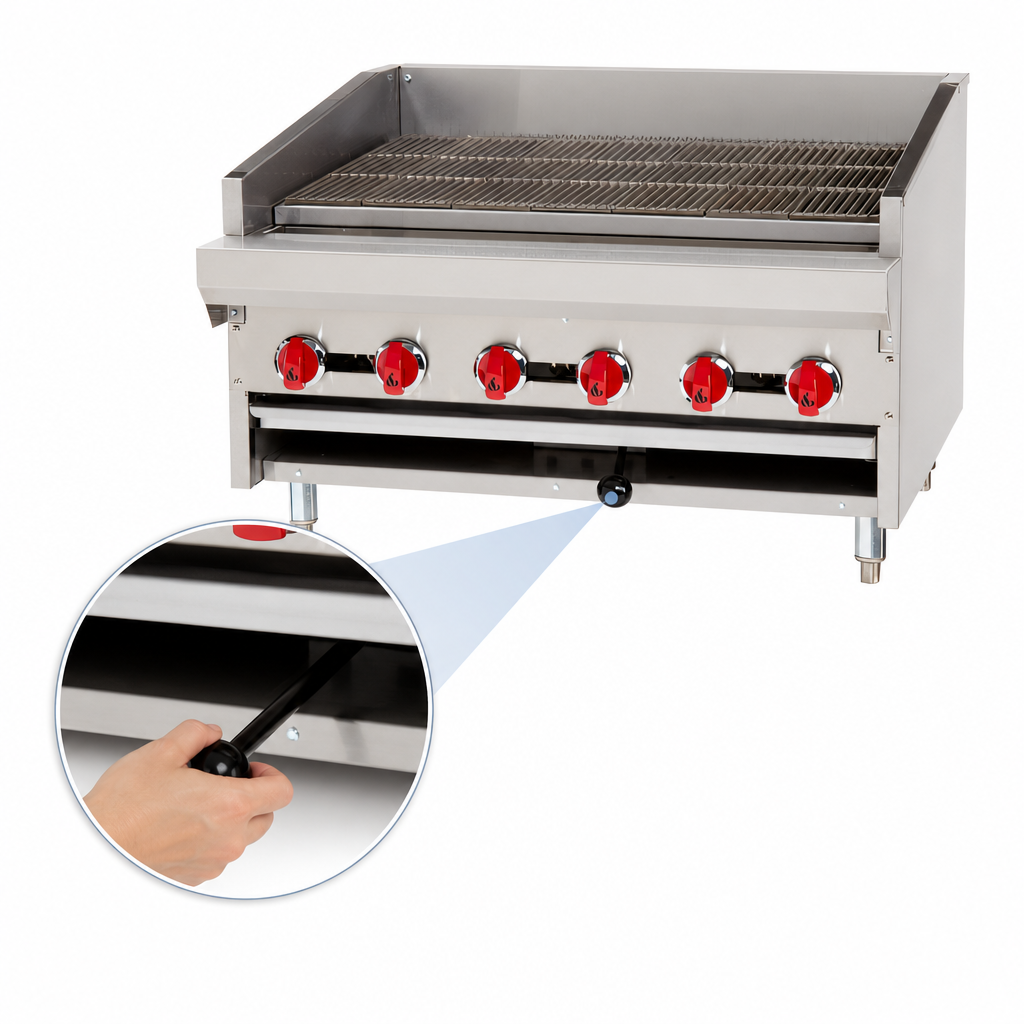

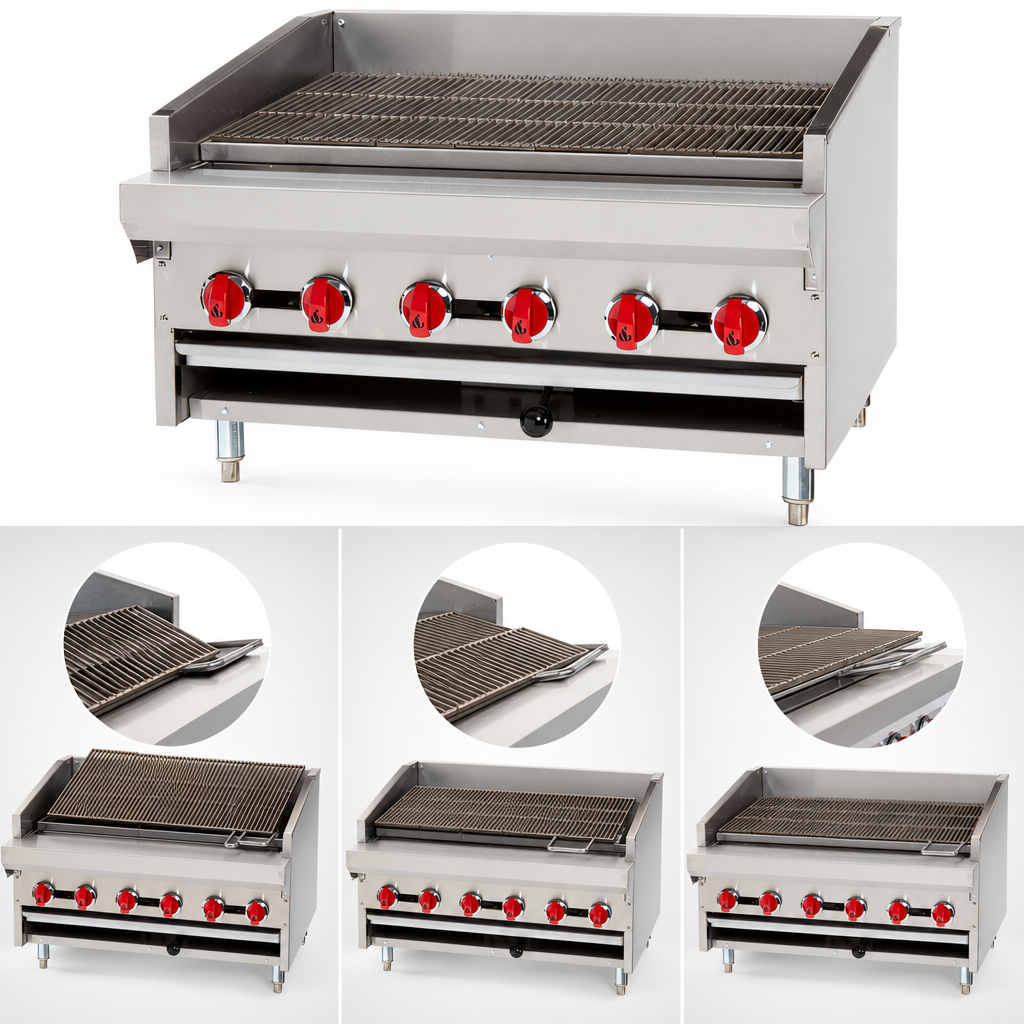

- Three-position grate with stay-cool lift handle—adjust height without removing product
- Stainless-steel exterior and fully welded frame stand up to demanding, high-volume kitchens
- 4" rear splash and tapered side splashes help contain heat & grease
- Full-width drip, crumb & grease trays slide out for quick cleaning
- 4" adjustable legs for leveling; optional caster kit available (sold separately)
- Field convertible for Natural or Propane gas (specify at order)
- ETL Listed for safety & sanitation
- Backed by a two-year limited parts & labor warranty
Performance & Control
- Create multiple temperature zones across the expansive 48" surface
- Cast-iron radiants shield burners while distributing heat evenly
- Grate sections lift out for effortless cleaning and service
Specifications
| Model | ADJ-48 |
|---|---|
| Gas Type | Natural or Propane |
| Total BTU | 160,000 BTU/h |
| Total kW | 47 kW |
| Burners | 8 × 20,000 BTU |
| Cooking Surface Width | 48" (1219 mm) |
| Overall Dimensions (W × D × H) | 48" × 32 3/8" × 20 1/4" (1219 × 822 × 514 mm) |
| Gas Inlet | 3/4" NPT |
| Manifold Pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Adjustable Grate Positions | 3 |
| Construction | Stainless-steel body, cast-iron grates & radiants |
| Leg Height | 4" adjustable |
| Shipping Weight | 440 lb (200 kg) |
| Certifications | ETL (US & Canada), ETL Sanitation |
| Origin | Designed & Built in USA |
Installation Notes
- For use on non-combustible counters only. Legs or casters must be installed, or provide 2" (51 mm) overhang when curb-mounted.
- Maintain 12" (305 mm) clearance from combustible sides and 4" (102 mm) from rear.
- Commercial ventilation per NFPA-96 is required.
Warranty: Two-year limited parts & labor; burners, grates & radiants covered for 90 days. See full American Range warranty for details.
