American Range ADJ-36 Gas Charbroilers
Description
American Range ADJ-36 Adjustable Radiant Charbroiler – 36" Wide, 120,000 BTU
Countertop gas char-broiler | Made in USA | ETL ListedTurn out perfectly seared steaks, burgers and veggies shift after shift. The American Range ADJ-36 packs six high-output burners, a 3-position tilting grate and heavy-duty stainless construction into a compact 36" footprint that drops right onto your cook line.
Key Performance Features
- 120,000 BTU (35 kW) total output from six 20,000 BTU burners for rapid recovery and even heat.
- Cast-iron radiants & top grates lock in heat and deliver signature char marks.

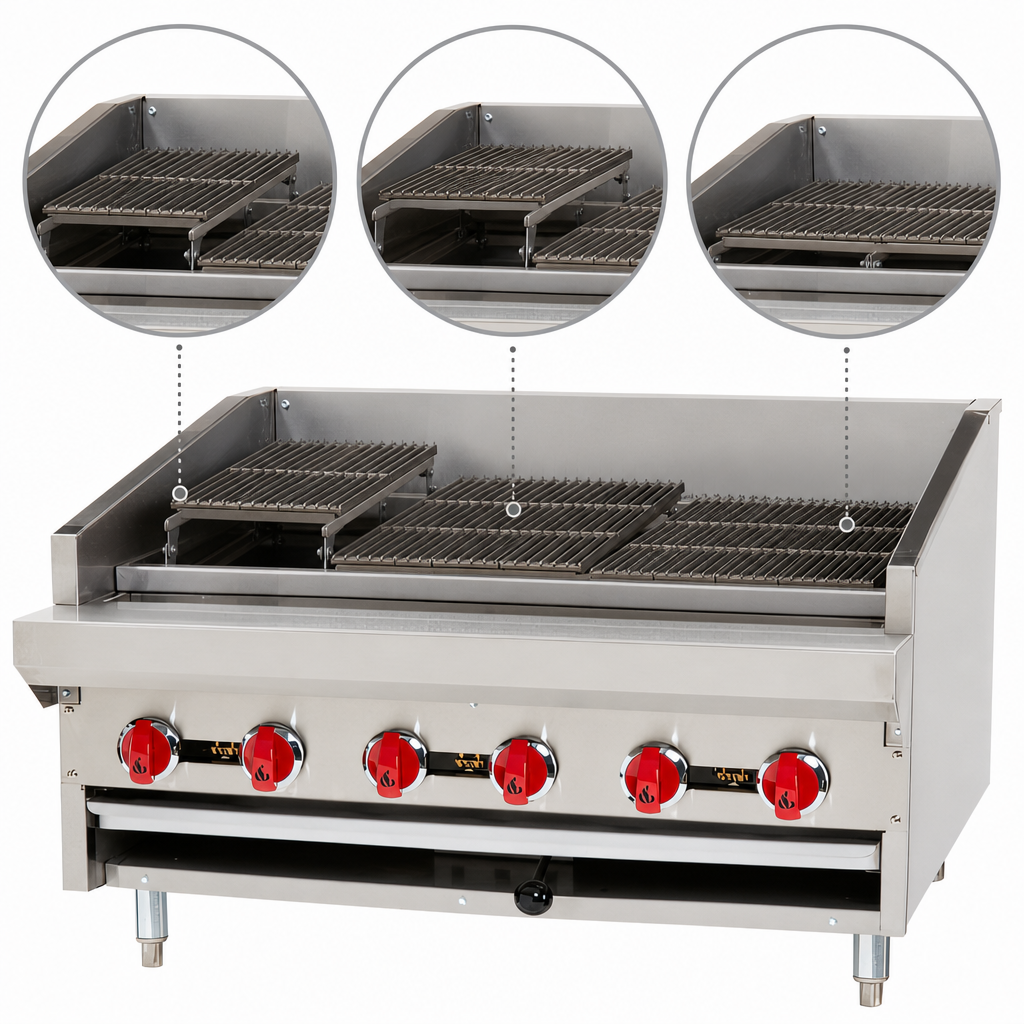

- 3-position grate tilts closer or farther from the flame for precise temperature control.

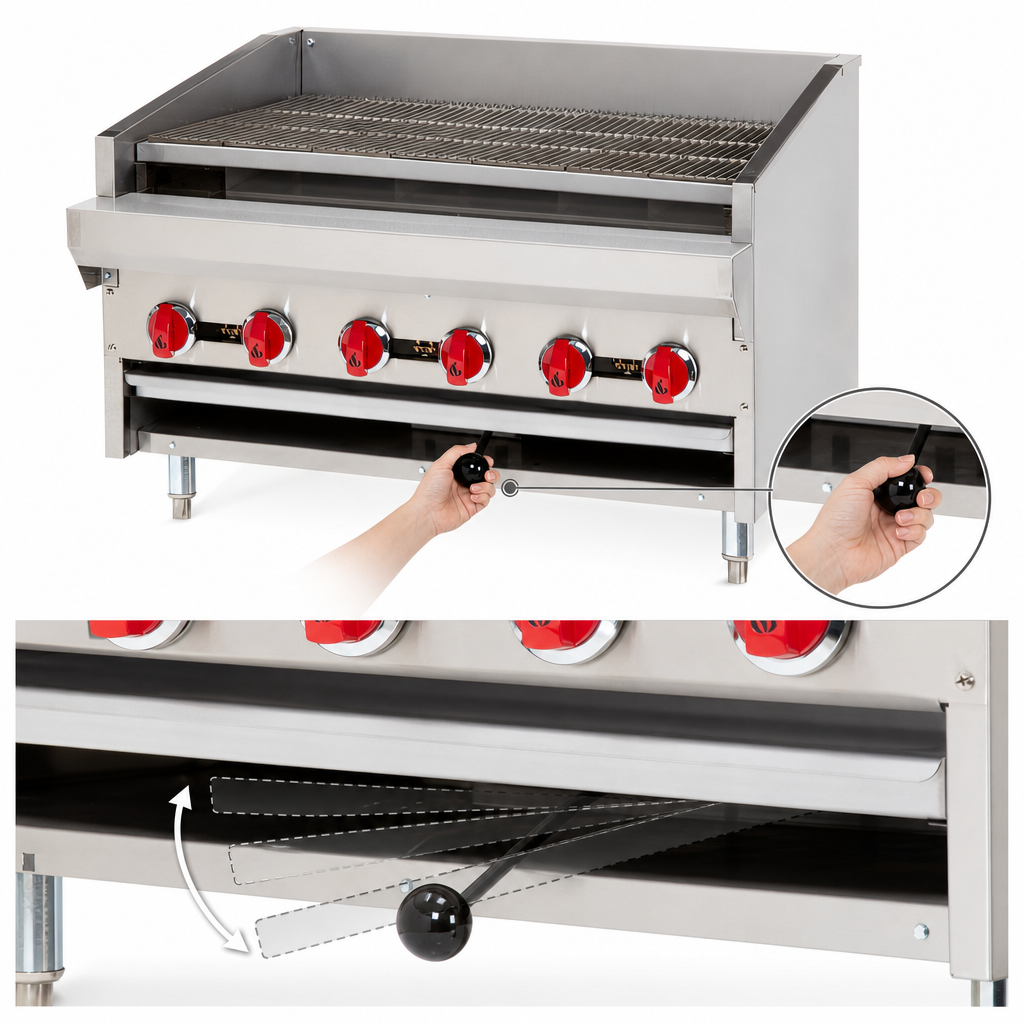

- Counter-balanced easy-lift handle adjusts grate height smoothly, even under a full load.
- Double-wall 4" rear splash & tapered side splashes keep grease and heat where they belong.
- Full-width drip, crumb and grease trays slide out for fast, mess-free clean-up.
- 4" adjustable stainless legs level the unit on any countertop.
Built to Last
- All-stainless steel exterior resists corrosion and wipes down easily.
- Heavy-duty welded chassis prevents warping under continuous high heat.
- Backed by a two-year parts & labor warranty for worry-free ownership.
Technical Specifications
| Model | ADJ-36 |
|---|---|
| Type | Countertop gas radiant char-broiler, adjustable grate |
| Cooking Surface Width | 36" (914 mm) |
| Depth | 32 3⁄8" (822 mm) |
| Height (with legs) | 20 1⁄4" (514 mm) |
| Burners | 6 × 20,000 BTU |
| Total Output | 120,000 BTU/hr (35 kW) |
| Gas Inlet | 3/4" NPT (rear connection) |
| Manifold Pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Shipping Weight* | 350 lb (159 kg) |
| Certifications | ETL (U.S. & Canada) |
| Origin | Designed & built in the USA |
*Shipping weight includes packaging and is approximate.
Installation & Clearance
- For non-combustible countertops only.
- When adjacent to combustible walls: maintain 12" (sides) & 4" (rear) clearance.
- Legs or casters are required; allow 2" (51 mm) overhang if curb mounted.
- Provide an adequate ventilation system per NFPA 96 standards.
- Specify gas type (Natural or LP) and altitude above 2,000 ft when ordering.
Warranty
Two-year limited parts & labor warranty. Burners, upper/lower grates and radiants carry a 90-day warranty. Full terms available at americanrange.com.
