American Range  |  SKU: ADJ-24

American Range ADJ-24 Gas Charbroilers

$4,552.88
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

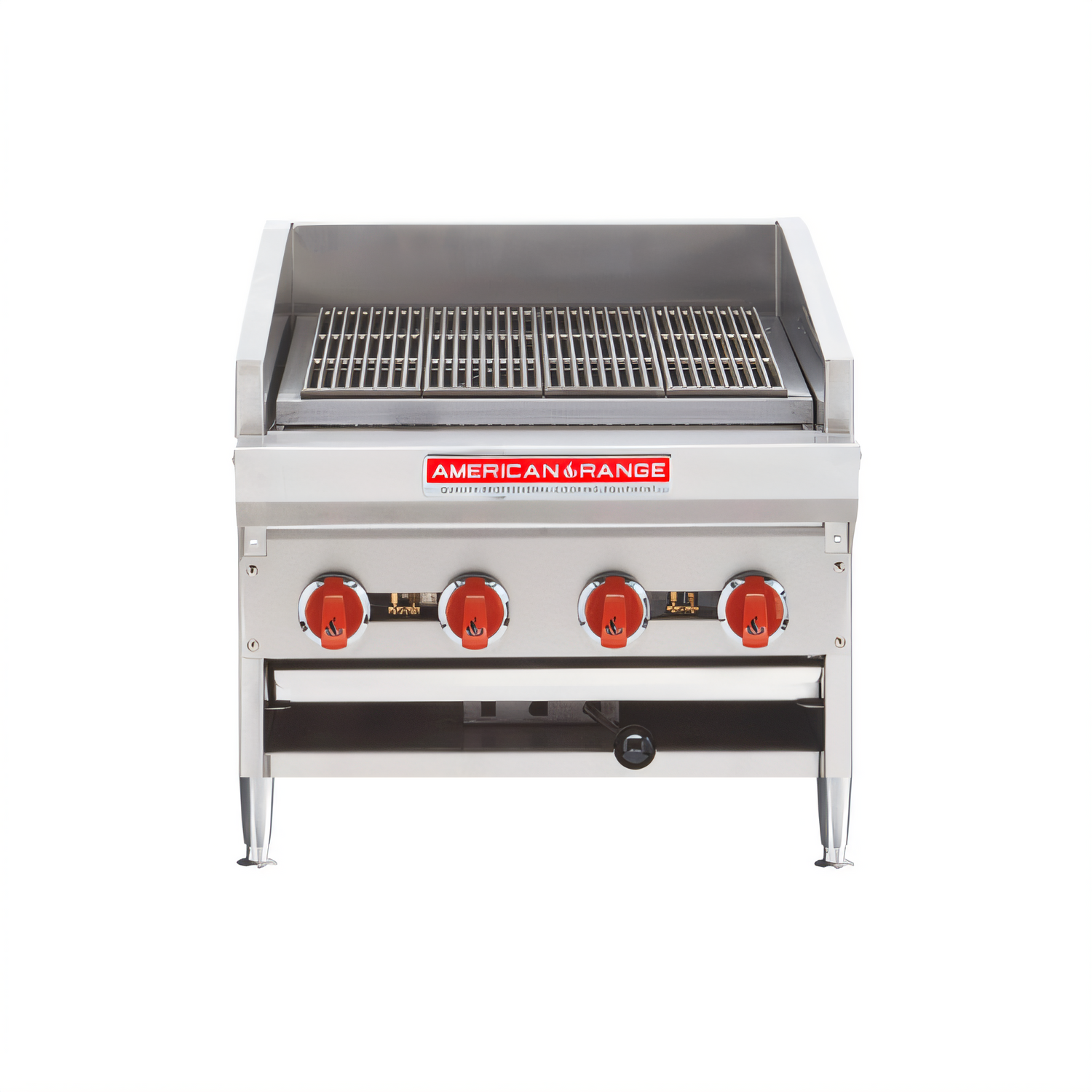

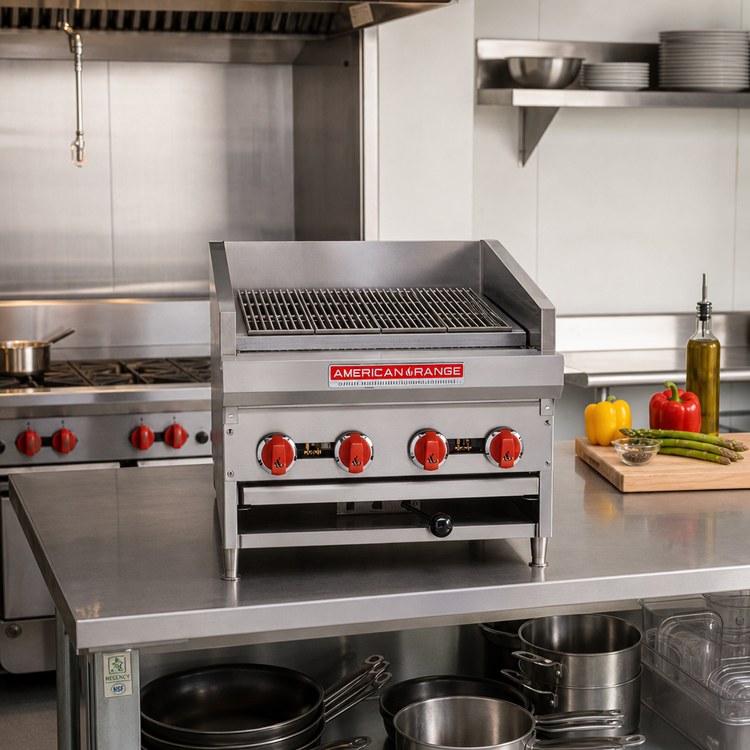

American Range ADJ-24 Adjustable Radiant Gas Charbroiler – 24" Countertop

80,000 BTU | 4 Burners | ETL Listed | Made in USA

Serve steakhouse-quality char marks in a compact footprint. The American Range ADJ-24 packs 80,000 BTU of even, controllable heat into a rugged, stainless-steel countertop design that’s built—and backed—by professionals who know foodservice.

Key Features

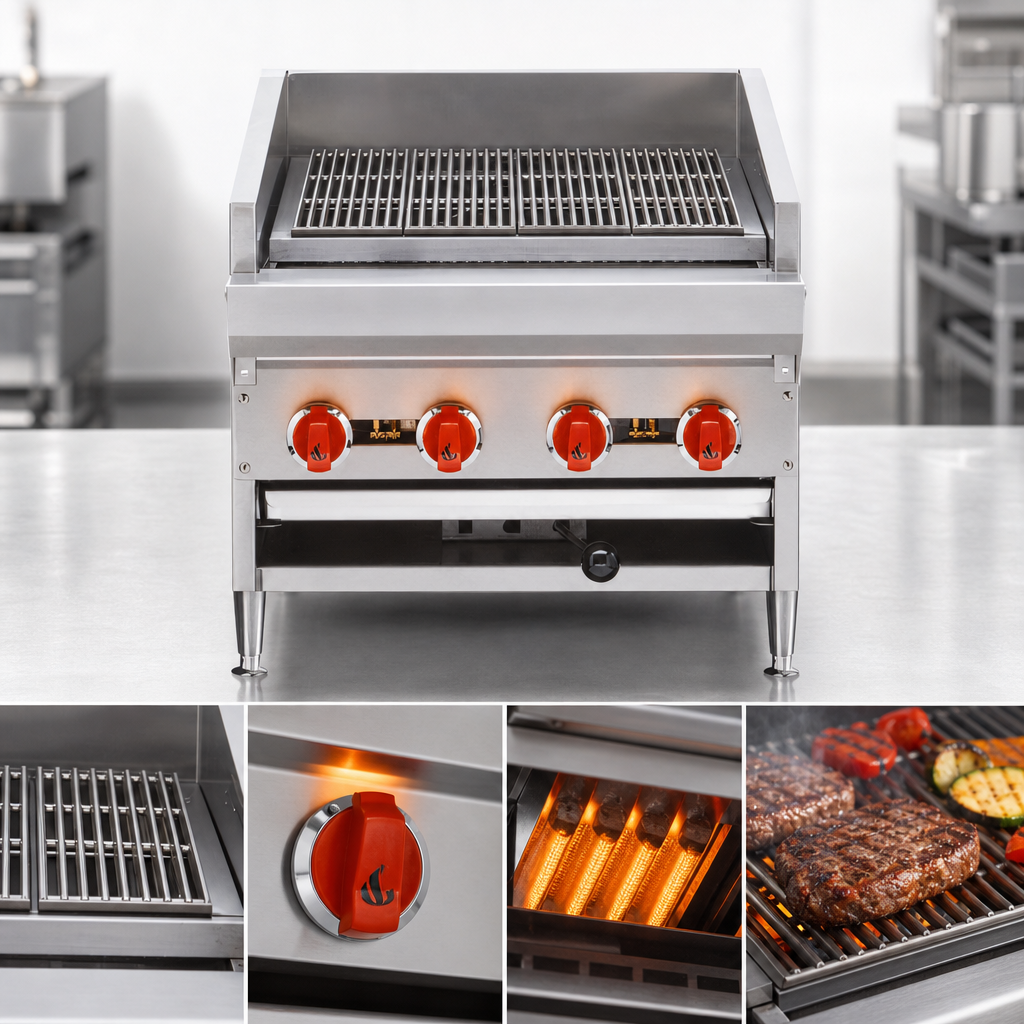

  • Four 20,000 BTU/hr burners deliver powerful, edge-to-edge heat.
  • Heavy-duty cast-iron radiants & top grates retain heat and create signature grill marks.

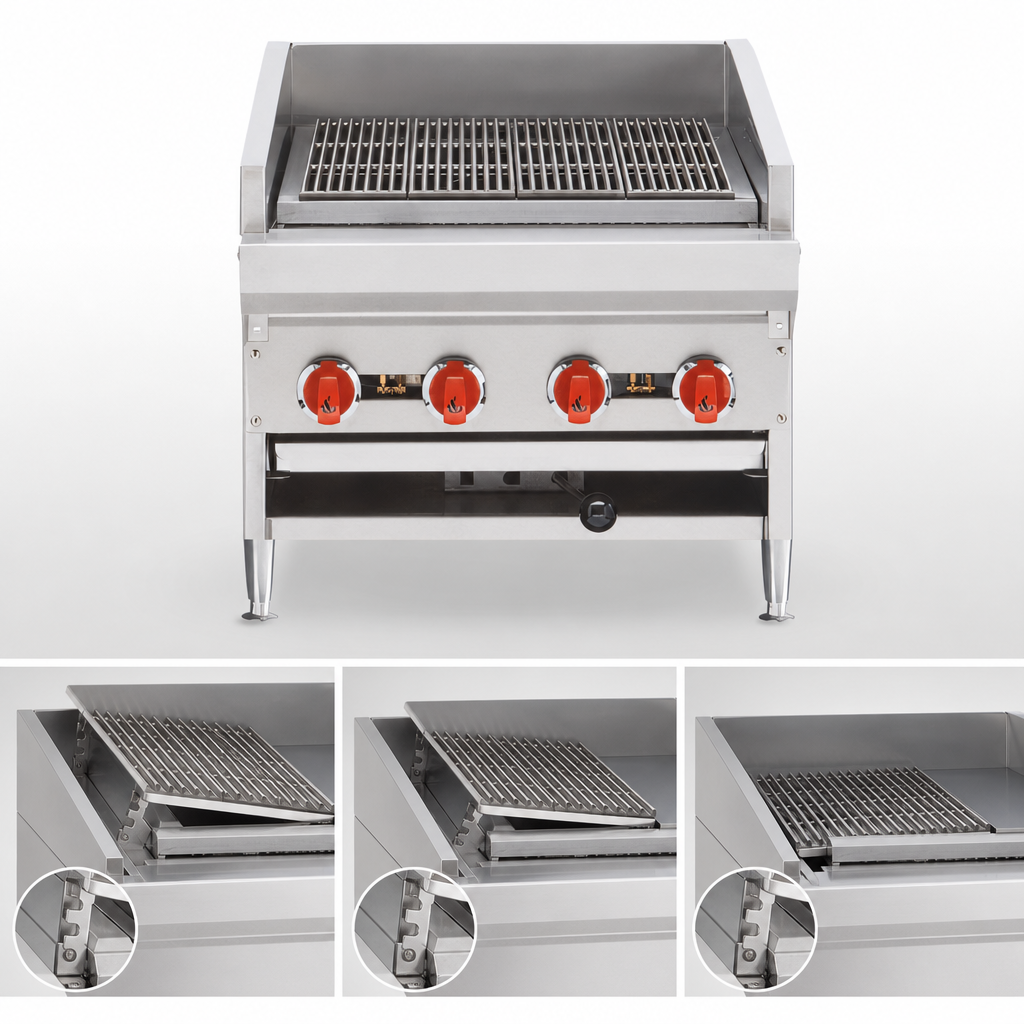

  • 3-position adjustable grate with easy-lift handle lets you sear, finish, or hold without tools.
  • 4" welded rear splash and tapered side splashes contain heat and grease.
  • Full-width drip, crumb, and grease trays slide out for fast cleanup.
  • Adjustable 4" legs for leveling on any countertop.
  • Field convertible to Natural or LP gas with ¾" rear manifold connection.
  • ETL Sanitation & ETL Gas certifications for peace of mind.
  • Designed & built in the USA; backed by a 2-year limited parts & labor warranty.

Specifications

Model ADJ-24
Cooking width 24" / 610 mm
Total output 80,000 BTU/hr   (23 kW)
Burners 4 × 20,000 BTU/hr
Grate style Cast iron, 3-position adjustable
Radiant type Cast iron
Overall dimensions (W × D × H) 24" × 32 3/8" × 20 1/4"   (610 × 822 × 514 mm)
Gas inlet ¾" NPT (rear)
Manifold pressure Natural: 5.0" W.C.   |   Propane: 10.0" W.C.
Shipping weight* 260 lb / 118 kg
Warranty 2-year limited parts & labor

*Shipping weight includes packaging and is approximate.

Performance Benefits

  • Versatility: Tilt the grate closer for an intense sear or away for gentle finishing heat.
  • Consistency: Even burner spacing minimizes hot & cold spots across the cooking surface.
  • Efficiency: High-output burners reach temperature fast, reducing wait times between turns.
  • Serviceability: Modular components and front service access keep downtime to a minimum.
Installation Note: Unit must be placed on non-combustible surfaces only. Allow 12" (305 mm) side clearance and 4" (102 mm) rear clearance from combustible materials. Adequate ventilation in accordance with NFPA-96 is required.

Looking for more cooking power? 36", 48", 60", and 72" widths are available in the American Range ADJ series.

Features & Specs

Manufacturer

American Range

Certifications

ETL, Made in USA

Height

17.0in

Width

24.0in

Depth

28.5in

Shipping Weight

260.0lbs

Heating Source

radiant

Width (side - side) OA

19 - 24"

Specifications

Charbroiler, gas, countertop, adjustable top, radiant type, 24" wide, (4) burners, cast iron grates, 3-position, adjustable lift handle, 4" legs, drip tray, crumb tray & grease tray, stainless steel construction, 23.0kW, 80,000 BTU, ETL, Made in USA
