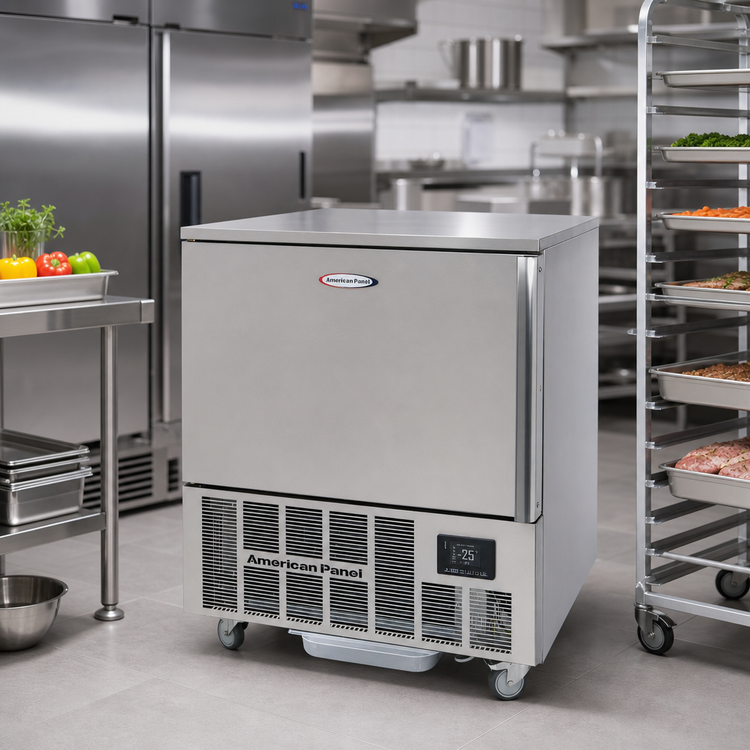

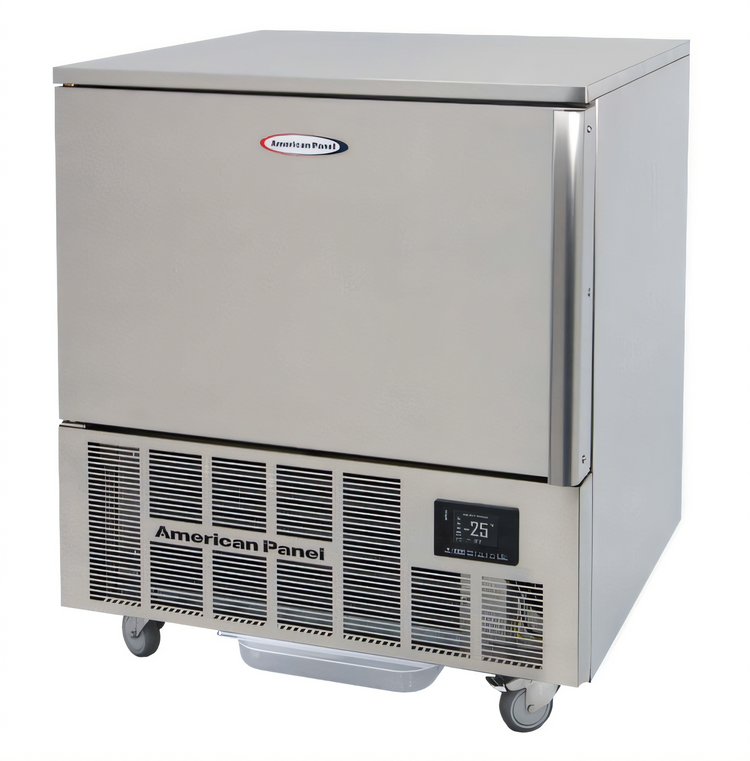

HURRiCHiLL AP5BCF45-2-P Reach-In Self-Contained Blast Chiller/Shock Freezer, 5-Pan, 208V

50 lb blast chill / 30 lb shock freeze capacity, 304 stainless steel, single-phase

Fast, self-contained chilling and freezing with probe-based control, five-pan capacity, and durable stainless steel construction.

  • Self-contained reach-in blast chiller/shock freezer for commercial kitchens.
  • Holds 5 full-size 12" x 20" x 2.5" pans on slide rails.
  • Blast chills 50 lb from 160°F to 38°F in 105 minutes and shock freezes 30 lb from 160°F to 0°F in 240 minutes.
  • Solid-state electronic controls with VFD display, alarms, and multiple cycle options.
  • Polished 304 stainless steel cabinet with R290 natural refrigerant.
  • Includes one core temperature probe and air defrost for automated, dependable operation.

Overall Dimensions:

29.5"W x 28.5"D x 37.8"H

Product Weight:

370.0 lb

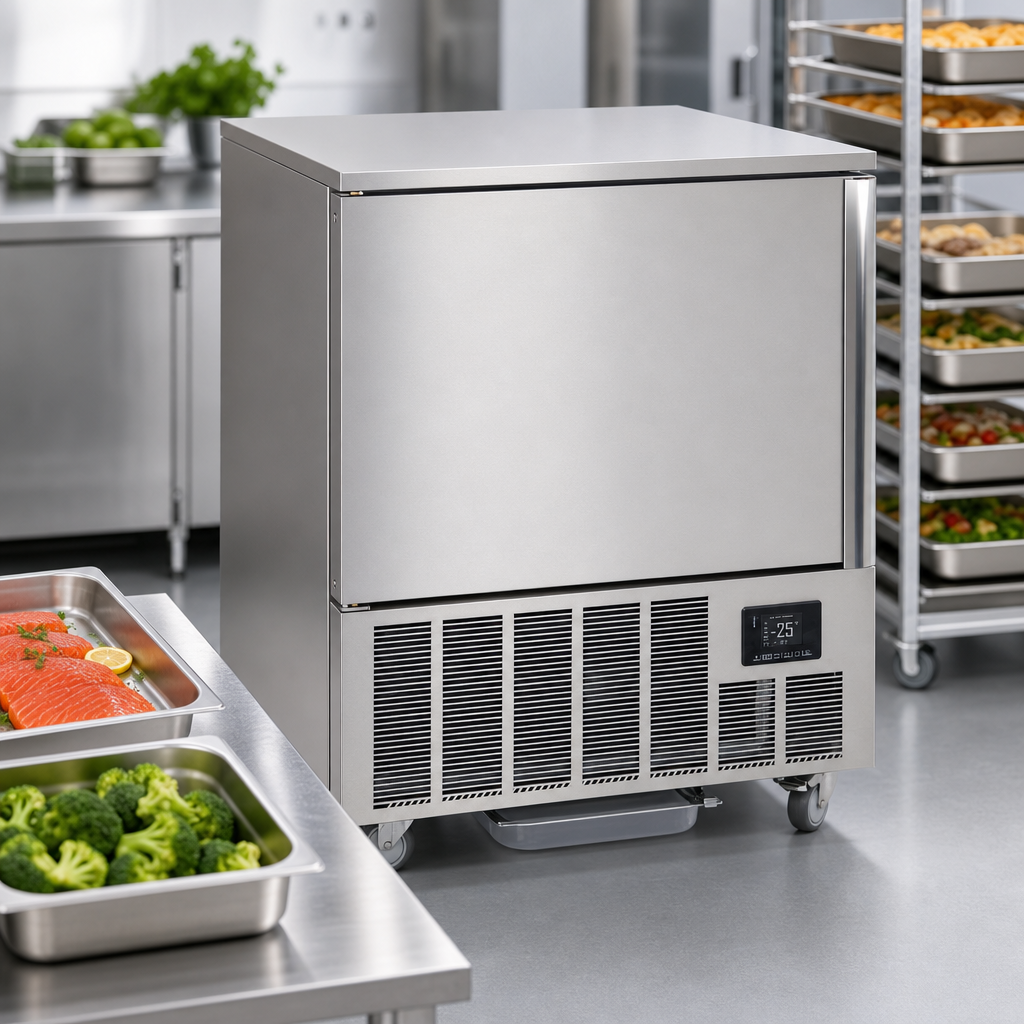

Rapid Chill and Freeze Performance

Blast chills up to 50 lb from 160°F to 38°F in 105 minutes and shock freezes up to 30 lb from 160°F to 0°F in 240 minutes.

Rapid Chill and Freeze Performance

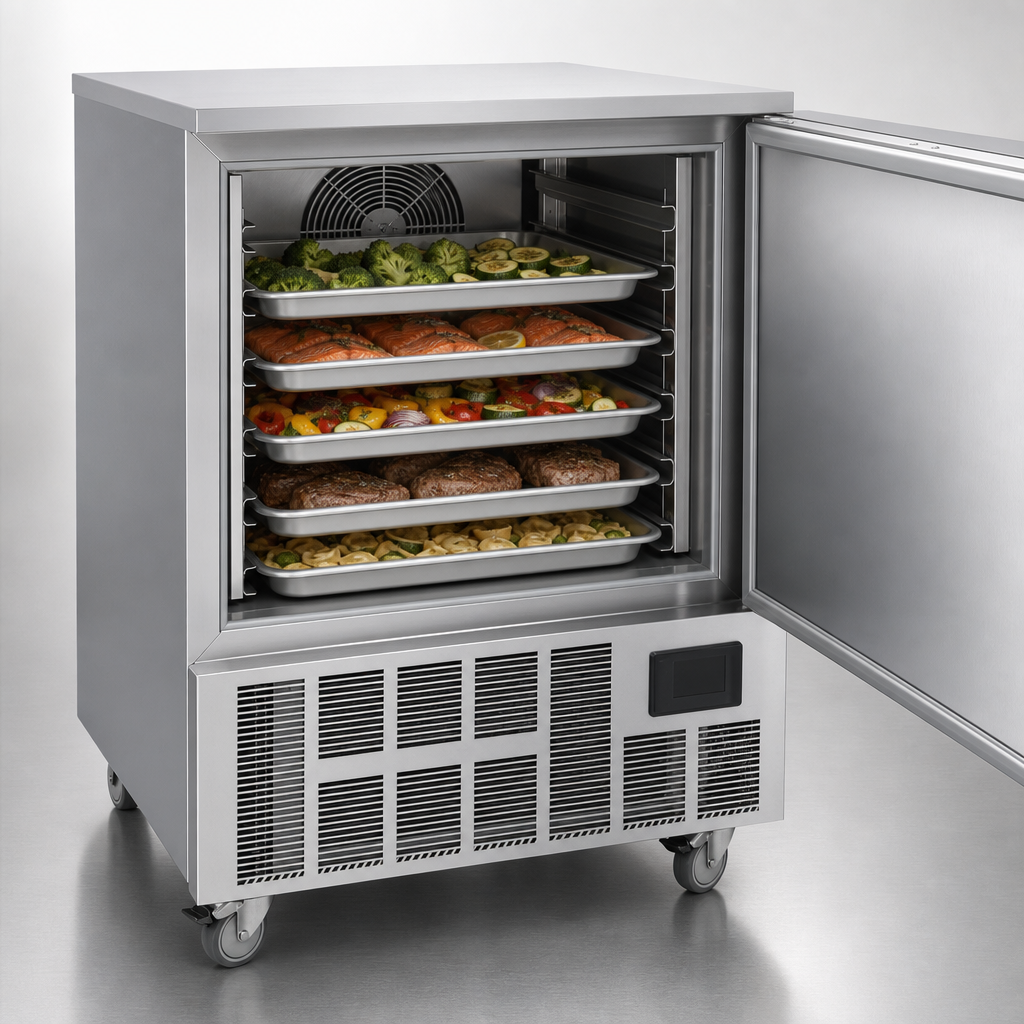

Five Pan Slide Capacity

Accommodates five 12" x 20" x 2.5" pans for batch chilling and freezing.

Five Pan Slide Capacity

Digital Microprocessor Controls

Solid-state electronic control panel with VFD display, alarms, and selectable cycles including Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Gelato Hardening, and Holding.

Probe-Based Automatic Operation

One core temperature probe is provided so the unit can end cycles automatically when the product reaches the target temperature.

Self-Contained R290 Refrigeration

Built-in refrigeration system is ready for plug-and-play installation and uses R290 natural refrigerant.

304 Stainless Steel Cabinet

Polished type 304 stainless steel exterior with a mirror-finish interior, rounded bottom, and removable magnetic door gasket.

Left-Hinged Door and Air Defrost

Door is hinged on the operator's left and the cabinet includes an air defrost feature.

Type Blast Chiller/Shock Freezer
Style Reach-In
Installation Type Floor Model
Refrigeration Type Self-Contained
Capacity 50 Pounds Blast Chill / 30 Pounds Shock Freeze
Pan Capacity 5
Pan Size 12 x 20 x 2.5 Inches
Controls Digital
Material 304 Stainless Steel
Finish Polished
Voltage 208 Volts
Amps 5.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
BTU 6,111 BTU/HR
Refrigerant Type R290
Cord Length 6 Feet
Breaker Size 15 Amps
Shipping Width 30 Inches
Shipping Depth 29 Inches
Shipping Height 38 Inches
Shipping Weight 370 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor; compressor parts only for an additional 2 years.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operators manual PDF Download

Frequently Asked Questions

It has 5 pan slides, and each slide holds one 12" x 20" x 2.5" pan.
It blast chills 50 lb from 160°F to 38°F in 105 minutes and shock freezes 30 lb from 160°F to 0°F in 240 minutes.
The unit requires 208 Volts, 60 Hz, single-phase power with a NEMA 6-15P plug.
It uses R290 natural refrigerant.
The standard warranty is 3 years parts and labor. The compressor is covered for an additional 2 years for parts only, and food probes are excluded.
Available cycles include Soft Chill, Hard Chill, Hard Freeze, Soft Freeze, Gelato Hardening, and Holding.
