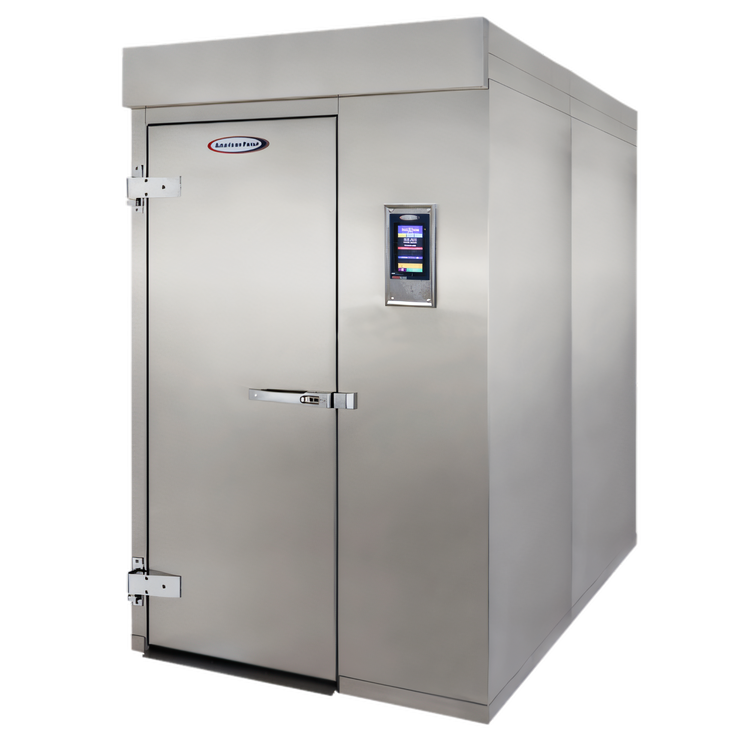

HURRiCHiLL AP46BCF-2T Modular Roll-In Blast Chiller/Shock Freezer

Remote Refrigeration, Up to Two 35" W x 39" D x 73.5" H Trolleys

Built for high-volume kitchens, this modular roll-in blast chiller/shock freezer delivers rapid chilling and freezing for up to two trolleys with remote refrigeration and intuitive touchscreen control.

  • Accepts up to two 35" W x 39" D x 73.5" H trolleys for roll-in loading.
  • Blast chills up to 920 lbs. from 160°F to 38°F in 90 minutes.
  • Shock freezes up to 552 lbs. from 160°F to 0°F in 240 minutes.
  • 7" touchscreen controller offers Quick Start, programmable operation, and A La Carte functionality.
  • Modular cam-lock panel construction simplifies on-site assembly and installation.
  • Stainless steel interior and exterior with heavy insulation supports durability and thermal efficiency.

Overall Dimensions:

64.0"W x 96.0"D x 88.0"H

Product Weight:

2561.0 lb

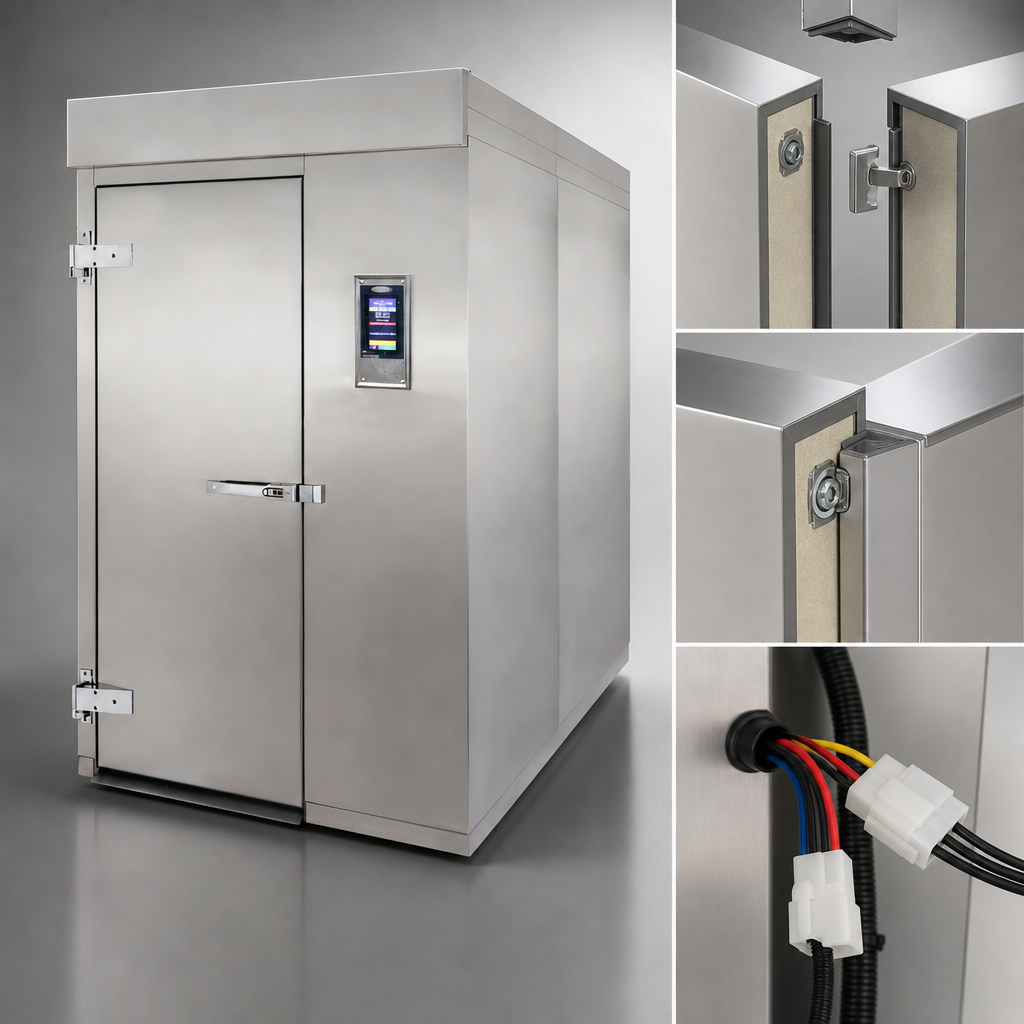

Modular Cam-Lock Construction

Insulated cam-lock panels and quick-connect wiring are designed for straightforward field assembly and easier installation.

Modular Cam-Lock Construction

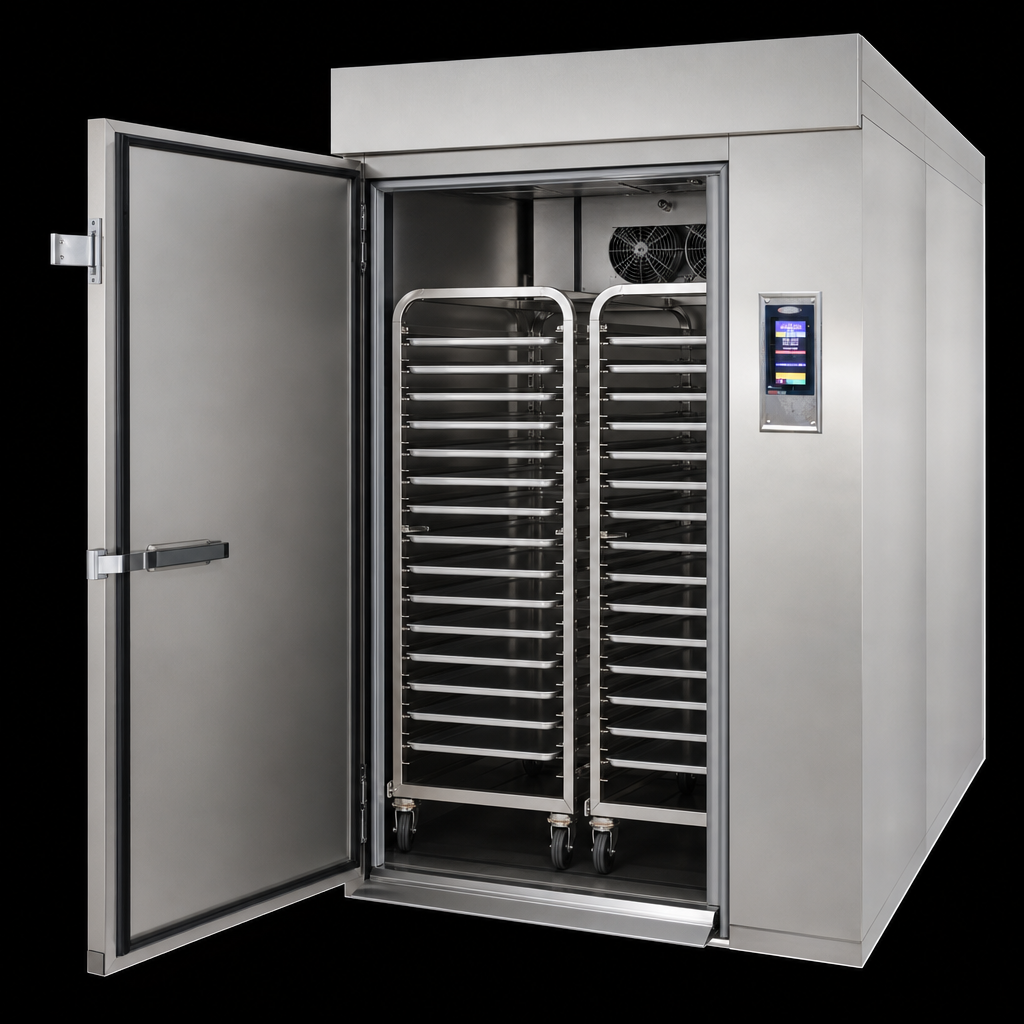

Roll-In Trolley Capacity

Accepts up to two mobile trolleys with maximum dimensions of 35" W x 39" D x 73.5" H.

Roll-In Trolley Capacity

Blast Chill Performance

Chills food from 160°F to 38°F in as little as 90 minutes, with a 920 lb. chilling capacity listed for that cycle time.

Shock Freeze Performance

Freezes food from 160°F to 0°F in 240 minutes, with a 552 lb. freeze capacity listed.

7-Inch Touchscreen Controller

Glove-safe capacitive touchscreen provides Quick Start, A La Carte, Soft Chill, Hard Chill, and Shock Freeze functions.

Programmable Operation

Supports automatic or manual operation, holding mode after a cycle, and a heated defrost cycle.

Stainless Steel Cabinet Construction

Constructed with polished stainless steel interior and exterior surfaces, rounded corners, removable door gasket, and thick polyurethane insulation.

Remote Refrigeration System

Designed for remote refrigeration with indirect high-velocity airflow, an e-coated evaporator, wash-down fans, and swing-out vent access for cleaning.

Type Modular Blast Chiller/Shock Freezer
Style Roll-In
Installation Type Floor Model
Refrigeration Type Remote
Capacity 2 Trolleys
Material Stainless Steel
Interior Finish 304 Stainless Steel
Controls Programmable Digital Touchscreen
Voltage 208 Volts
Amps 15.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Direct
Breaker Size 20 Amps
Refrigerant Type R404A
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Frequently Asked Questions

No. This model is designed for remote refrigeration and requires a separate condensing unit.
It accepts up to two trolleys, each measuring up to 35" W x 39" D x 73.5" H.
The unit is rated to chill 920 lbs. from 160°F to 38°F in 90 minutes and freeze 552 lbs. from 160°F to 0°F in 240 minutes.
The touchscreen controller includes Quick Start, Soft Chill, Hard Chill, Shock Freeze, holding mode, and defrost.
The standard warranty is 3 years parts and labor. The warranty excludes food probes, and the compressor is covered for an additional 2 years as parts only with no labor.
Yes. It uses cam-lock insulated panels and quick-connect electrical connectors to simplify field assembly.
