American Panel Corporation

HURRiCHiLL Reach-In Undercounter Blast Chiller/Shock Freezer, 3-Pan, Self-Contained, 120V

SKU: AP3BCF30-1-P
$16,768.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Panel Corporation Best Sellers Blast Chillers Blast Chillers & Freezers Commercial Refrigeration Commercial Refrigerators New Arrivals Restaurant Equipment Walk-In Coolers & Freezers

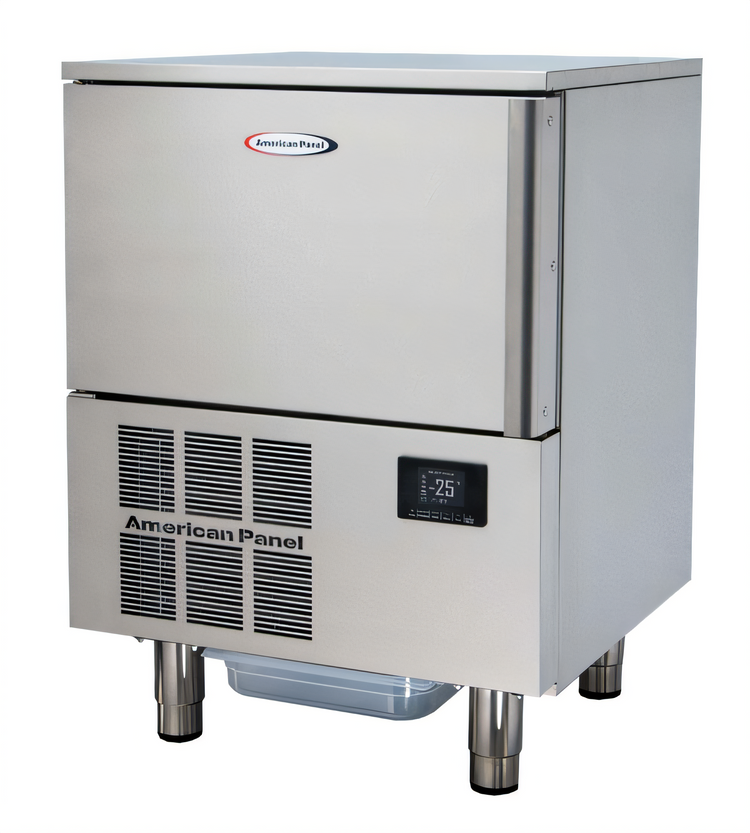

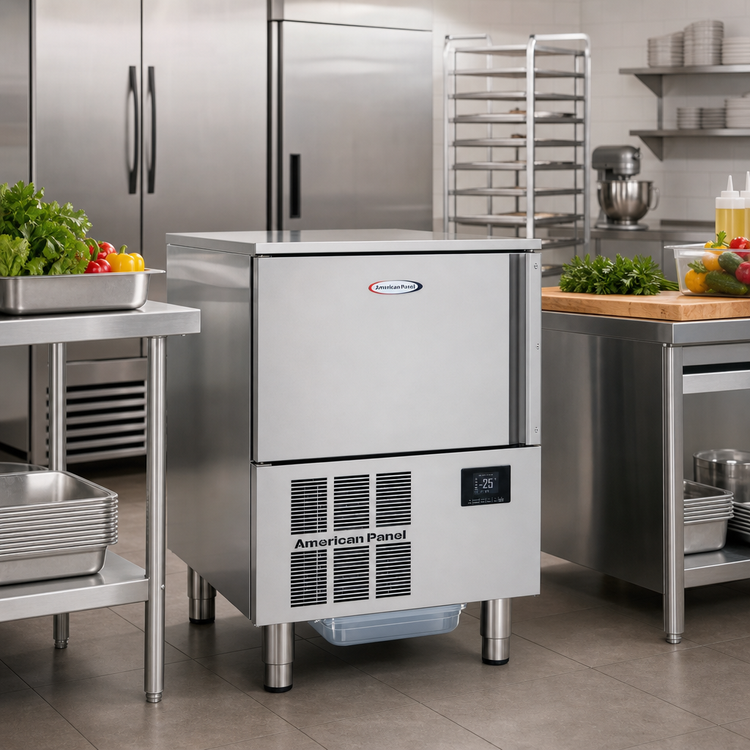

HURRiCHiLL Reach-In Undercounter Blast Chiller/Shock Freezer, 3-Pan, Self-Contained, 120V

Model AP3BCF30-1-P; 30 lb chill capacity, 18 lb freeze capacity, stainless steel construction

A compact, self-contained blast chiller/shock freezer that brings rapid chilling, freezing, and holding performance to an undercounter footprint.

  • Compact undercounter, reach-in design with self-contained refrigeration for plug-and-play installation.
  • Holds 3 pans of 12" x 20" x 2.5" product for efficient batch chilling or freezing.
  • Chills 30 lb from 160°F to 38°F in 105 minutes and freezes 18 lb from 160°F to 0°F in 240 minutes.
  • Solid-state electronic controls with VFD display, alarms, and probe-based automatic cycle ending.
  • Polished 304 stainless steel cabinet with mirror-finish interior, 2" insulation, and a removable magnetic door gasket.
  • 120V, single-phase operation with a NEMA 5-15P plug and R290 refrigerant.

Overall Dimensions:

25.5"W x 25.88"D x 36.0"H

Product Weight:

276.0 lb

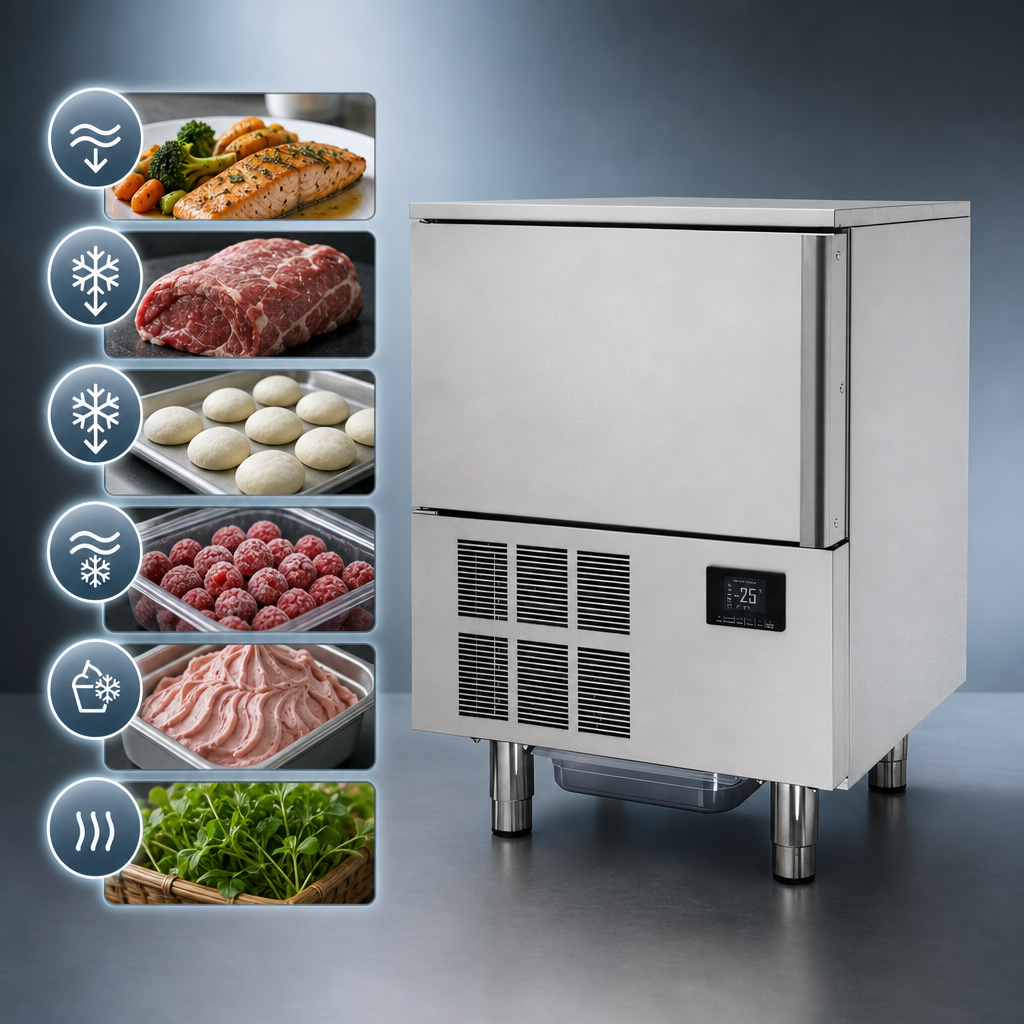

Multiple Cycle Modes

Supports Soft Chill, Hard Chill, Hard Freeze, Soft Freeze, Gelato Hardening, and Holding cycles for flexible production.

Multiple Cycle Modes

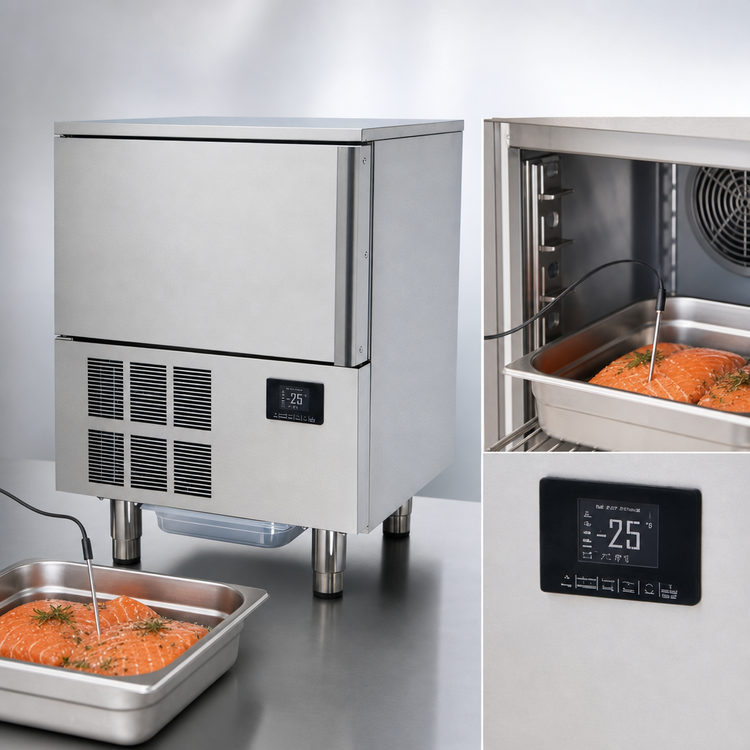

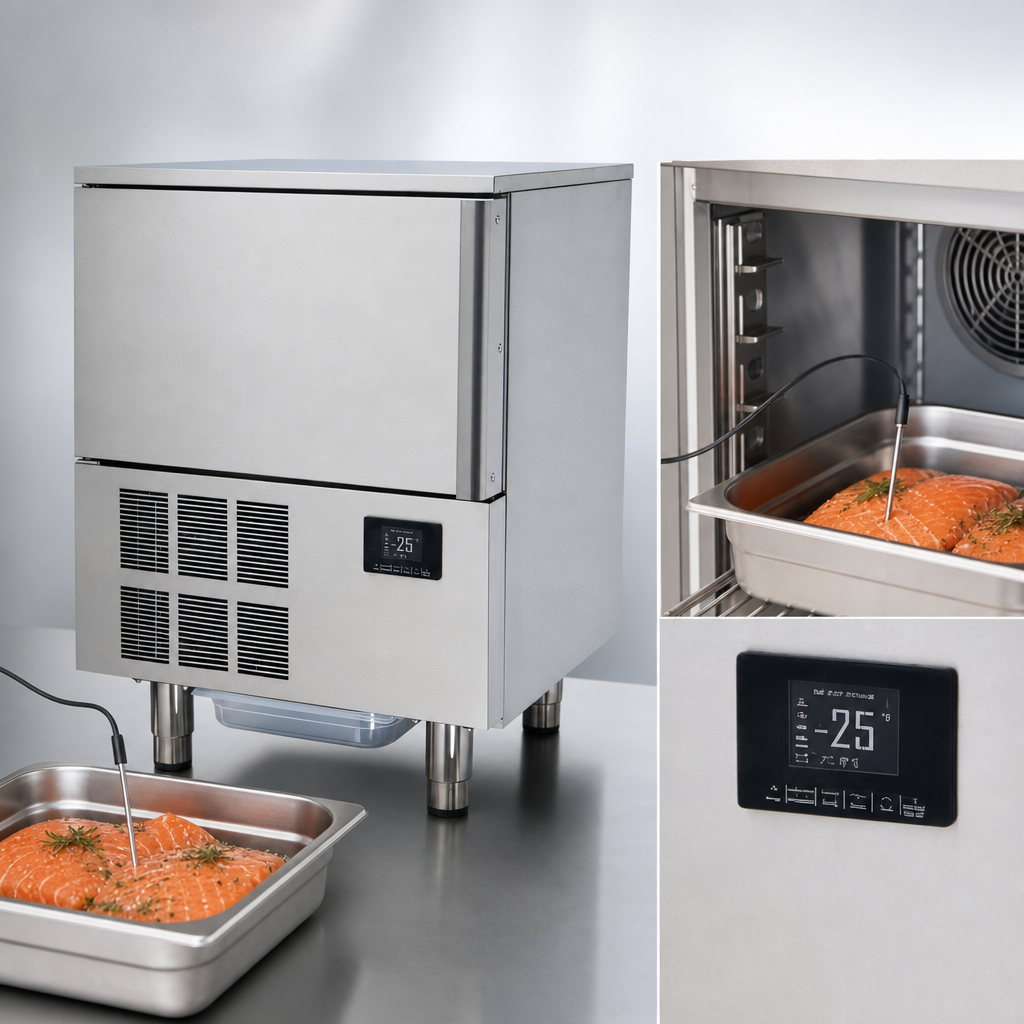

Automatic Probe Control

One food probe is included to monitor core temperature and end the cycle automatically at the target temperature.

Automatic Probe Control

Self-Contained Refrigeration

All refrigeration components are built into the cabinet for a smaller footprint and easier installation.

Rapid Chilling Performance

Handles up to 30 lb from 160°F to 38°F in 105 minutes.

Shock Freezing Performance

Handles up to 18 lb from 160°F to 0°F in 240 minutes.

Even Cooling Airflow

High-velocity, indirect airflow is designed to cool all levels at identical rates.

Stainless Steel Cabinet Construction

Constructed of polished type 304 stainless steel with a mirror-finish interior and fully rounded bottom.

Insulated, Easy-Seal Door

Features 2" high-density polyurethane insulation, a removable magnetic door gasket, and a left-hinged door.

Plug-In Electrical Setup

Includes a 6' cord with a NEMA 5-15P plug and 6" adjustable stainless steel legs.

Air Defrost Feature

Built-in air defrost helps simplify routine maintenance.

Type Blast Chiller/Shock Freezer
Style Reach-In
Installation Type Undercounter
Refrigeration Type Self-Contained
Pan Capacity 3
Pan Size 12 Inches x 20 Inches x 2.5 Inches
Capacity 30 Pounds
Controls Electronic
Voltage 120 Volts
Amps 9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Breaker Size 15 Amps
Horsepower 1/2 HP
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Polished
Refrigerant Type R290
BTU 3,500 BTU/HR
Shipping Width 26 Inches
Shipping Depth 26 Inches
Shipping Height 36 Inches
Shipping Weight 276 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor; compressor covered an additional 2 years parts only.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operators manual PDF Download

Frequently Asked Questions

It has 3 pan slides, each designed to hold one 12" x 20" x 2.5" pan.
It chills 30 lb from 160°F to 38°F in 105 minutes and freezes 18 lb from 160°F to 0°F in 240 minutes.
The unit operates on 120 Volts, 60 Hz, single-phase power and comes with a NEMA 5-15P plug.
Yes. It uses a self-contained refrigeration system for plug-and-play installation.
It includes a 3-year parts and labor warranty; the compressor is covered for an additional 2 years as parts only, and food probes are excluded.
Yes. Gelato hardening is one of the available cycle options.
