HURRiCHiLL Modular Roll-In Blast Chiller/Shock Freezer, Remote Refrigeration, 3-Trolley Capacity

Accepts up to (3) 31" W x 38" D x 73.5" H trolleys

A high-capacity modular chiller/freezer that blasts through large trolley loads while assembling on-site to fit tight kitchen access routes.

  • Roll-in modular blast chiller/shock freezer designed for on-site assembly in tight installation spaces.
  • Accepts up to 3 mobile racks or trolleys sized 31" W x 38" D x 73.5" H.
  • Chills 1,080 lbs from 160°F to 38°F in 90 minutes and freezes 648 lbs from 160°F to 0°F in 240 minutes.
  • 7" glove-safe capacitive touchscreen with Quick Start and programmable automatic/manual operation.
  • 304 stainless steel construction with insulated cam-lock panels for durability and easier installation.
  • Remote refrigeration design lets the cabinet pair with a separate condensing unit.

Overall Dimensions:

60.0"W x 138.0"D x 89.12"H

Product Weight:

3484.0 lb

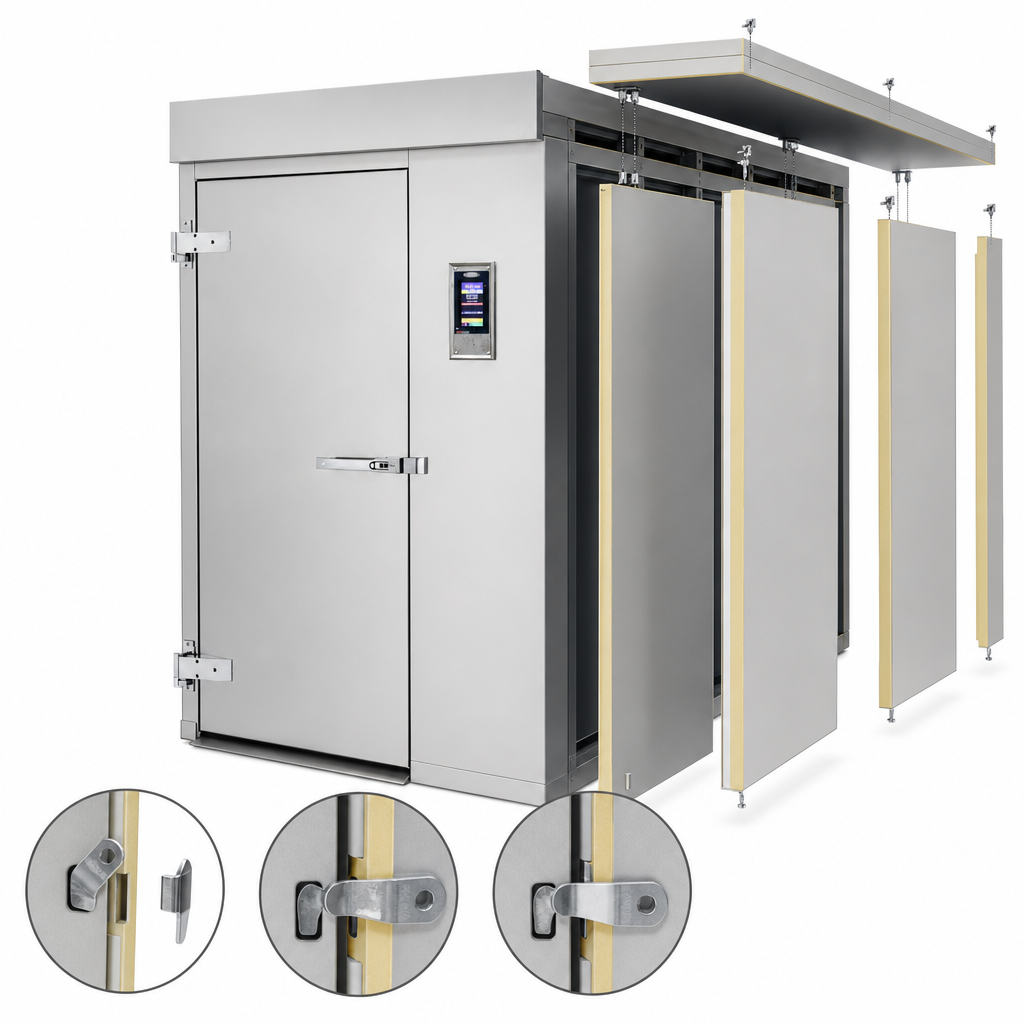

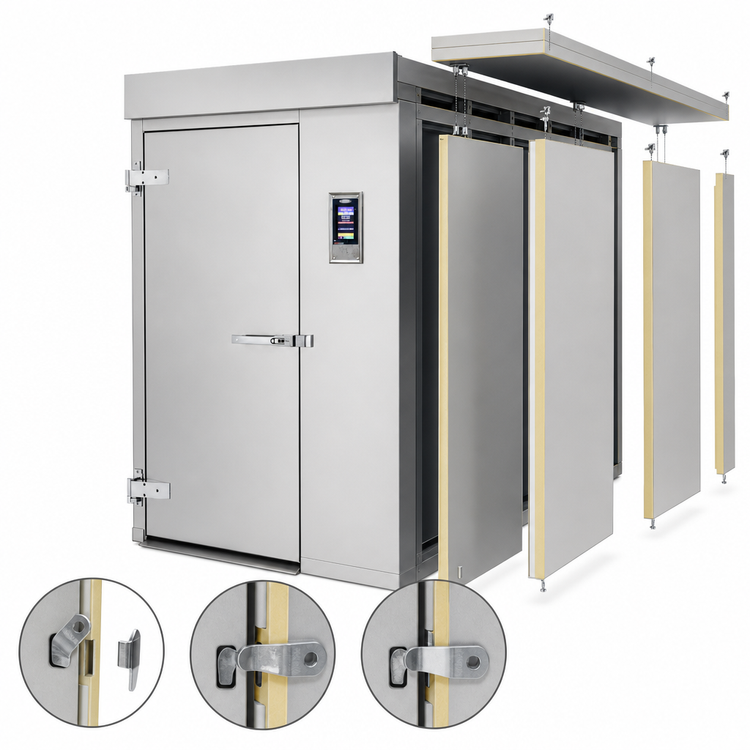

Modular Cam-Lock Construction

Insulated panels are designed for field assembly, helping the unit fit through building access points and simplify installation.

Modular Cam-Lock Construction

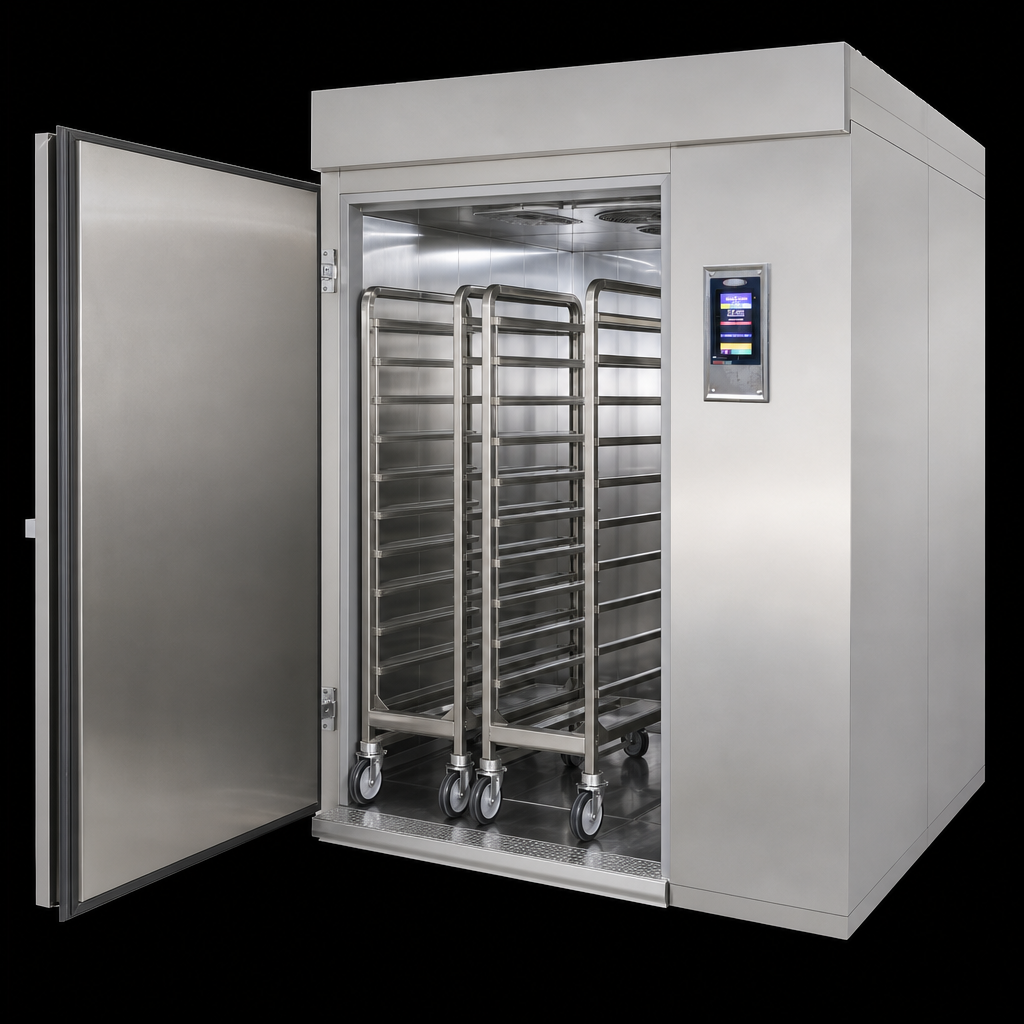

High-Capacity Roll-In Design

Built to accept up to 3 mobile racks or trolleys, making it suited for large batch production and staged cooling.

High-Capacity Roll-In Design

Rapid Chill and Freeze Performance

Blast chills 1,080 lbs from 160°F to 38°F in 90 minutes and shock freezes 648 lbs from 160°F to 0°F in 240 minutes.

Touchscreen Cycle Control

A 7" glove-safe capacitive touchscreen provides quick access to Soft Chill, Hard Chill, Shock Freeze, and Quick Start functions.

Programmable Operation and Logging

Supports automatic or manual operation, programmable cycles, HACCP logging, and data download through optional USB or Wi-Fi connectivity.

Stainless Steel Cabinet Construction

Constructed with polished 304 stainless steel, rounded interior corners, a removable magnetic door gasket, and heavy insulation.

Remote Refrigeration Ready

Configured for remote refrigeration applications so the condensing unit can be selected separately.

Service-Friendly Cooling System

Includes indirect high-velocity airflow, wash-down impeller fans, a swing-out vent panel, and automated defrost/sanitation cycles.

Type Modular Blast Chiller/Shock Freezer
Style Roll-In
Installation Type Floor Model
Refrigeration Type Remote
Refrigerant Type R404A
Capacity Up to 3 Mobile Racks
Material 304 Stainless Steel
Interior Finish Polished 304 Stainless Steel
Controls Programmable Touchscreen
Voltage 208 Volts
Amps 22.7 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 132,000 BTU/HR
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 138 Inches
Shipping Height 90 Inches
Shipping Weight 3,484 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on chiller and doors

Frequently Asked Questions

It accepts up to 3 mobile racks or trolleys with maximum dimensions of 31" W x 38" D x 73.5" H.
It chills 1,080 lbs from 160°F to 38°F in 90 minutes.
It freezes 648 lbs from 160°F to 0°F in 240 minutes.
This model is a remote-refrigeration unit, so the condensing unit is required separately.
It uses a 7" glove-safe capacitive touchscreen with Quick Start, programmable cycles, and automatic/manual operation.
The cabinet is built with polished 304 stainless steel, insulated cam-lock panels, rounded interior corners, and a magnetic door gasket.
