HURRiCHiLL AP26BCF-2T Dual Trolley Modular Roll-In Blast Chiller & Shock Freezer

SKU: AP26BCF-2T
$129,093.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Panel Corporation Best Sellers Blast Chillers Blast Chillers & Freezers Commercial Refrigeration Commercial Refrigerators New Arrivals Restaurant Equipment Walk-In Coolers & Freezers

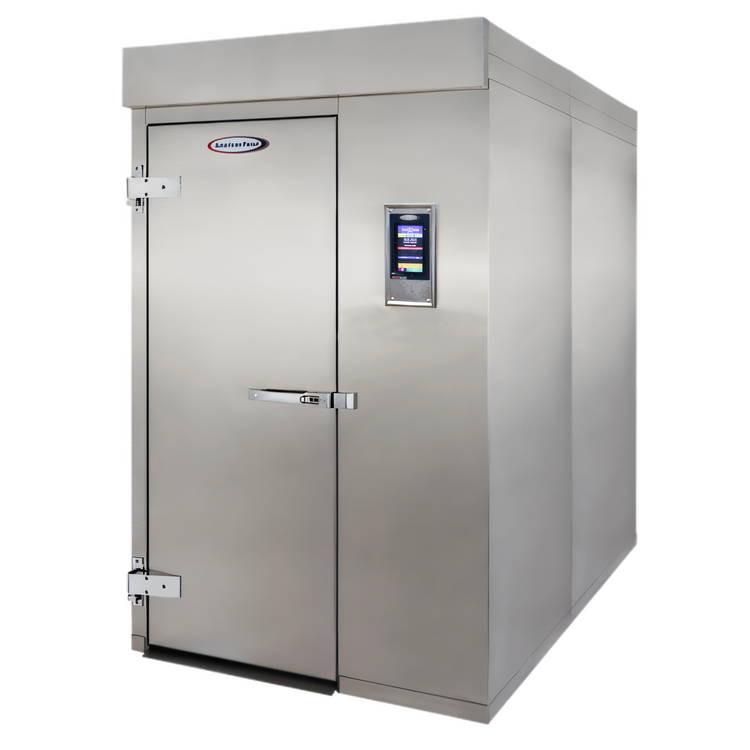

HURRiCHiLL AP26BCF-2T Dual Trolley Modular Roll-In Blast Chiller & Shock Freezer

Accepts (2) 26" W x 36" D x 73.5" H Trolleys, Remote Refrigeration (Condensing Unit Not Included)

Designed for ultimate flexibility and high-volume operations, the HURRiCHiLL AP26BCF-2T modular blast chiller and shock freezer allows for on-site assembly and efficient chilling or freezing of up to 520 lbs. of food.

  • Modular design with cam-lock insulated panels for easy on-site assembly and ingress through standard doorways.
  • Rapidly blast chills 520 lbs. of food from 160°F to 38°F in 90 minutes.
  • Effectively shock freezes 312 lbs. of food from 160°F to 0°F in 4 hours.
  • Equipped with a 7" glove-safe capacitive touchscreen controller for intuitive operation and quick-start functionality.
  • Accommodates up to two mobile racks (26"W x 36"D x 73.5"H, not included) for roll-in convenience.
  • Constructed from durable Type 304 stainless steel interior and exterior with 4 inches of CFC-free insulation.
  • Meets or exceeds all FDA, NSF, and state regulations for time/temperature chilling rates.

Overall Dimensions:

55.0"W x 90.0"D x 88.0"H

Product Weight:

2338.0 lb

High-Performance Chilling & Freezing

Rapidly blast chills 520 lbs. from 160°F to 38°F in 90 minutes and shock freezes 312 lbs. from 160°F to 0°F in 4 hours, ensuring food safety and quality. Features high velocity, indirect airflow for uniform cooling.

High-Performance Chilling & Freezing

Advanced Touchscreen Controls

A 7-inch glove-safe capacitive touchscreen provides user-friendly interface with quick access to Soft Chill, Hard Chill, Shock Freeze, and Quick Start cycles. Includes automated defrost and sanitation capabilities.

Advanced Touchscreen Controls

Modular Cabinet Design

Unit is manufactured using cam-lock insulated panels for easy on-site assembly, allowing installation in locations with restrictive access. Cabinet features a fully rounded interior and removable magnetic door gasket for hygiene.

Durable Stainless Steel Construction

Built with polished Type 304 stainless steel interior and exterior, ensuring durability, corrosion resistance, and ease of cleaning for commercial use.

Efficient Insulation

Features 4 inches of CFC-free, high-density polyurethane insulation to maintain consistent temperatures and energy efficiency.

Remote Refrigeration System Ready

Equipped with all necessary internal refrigeration components including evaporator, TXV, solenoid valves, and blower system, designed for integration with a remote condensing unit (sold separately).

Integral Ramp & Easy Access

The cabinet floor includes an integral 2-inch long ramp, facilitating easy roll-in access for trolleys. Hinged swing-out vent panel allows for simple evaporator cleaning.

HACCP Data Logging

Built-in HACCP logger for recording date, time, cycle identification, recipe name, and product core temperature intervals, with data download via USB port or optional Wi-Fi.

Core Temperature Probes

Comes standard with two core temperature probes to ensure accurate food temperature monitoring throughout chilling and freezing cycles.

Type Modular Blast Chiller/Shock Freezer
Style Roll-In
Installation Type Floor Model (Modular, field assembled)
Compartments 2
Chilling Capacity 520 lbs. (160°F to 38°F in 90 minutes)
Freezing Capacity 312 lbs. (160°F to 0°F in 240 minutes)
Trolley Capacity (2) 26"W x 36"D x 73.5"H Trolleys (not included)
Controls 7" LCD Touchscreen
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Insulation 4 Inches CFC-Free High-Density Polyurethane
Refrigeration Type Remote (Condensing Unit Not Included)
Refrigerant Type R404A
Voltage 208 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 15.5 Amps
Breaker Size 20 Amps
Plug Type Direct Wire
Refrigeration Connections Liquid Line 2 x 1/2 Inches
Refrigeration Connections Suction Line 2 x 1 1/8 Inches
BTU 68,000 BTU/HR
Shipping Width 55 Inches
Shipping Depth 90 Inches
Shipping Height 88 Inches
Shipping Weight 2338 lbs.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Pos sheet PDF Download PDF Installation & operators manual PDF Download

Frequently Asked Questions

The AP26BCF-2T can blast chill up to 520 lbs. of food from 160°F to 38°F in 90 minutes, and shock freeze up to 312 lbs. of food from 160°F to 0°F in 4 hours.
This unit is designed as a roll-in model, accepting up to two mobile racks (not included) with maximum dimensions of 26" W x 36" D x 73.5" H each.
The AP26BCF-2T is designed for remote refrigeration and does not include the condensing unit. It requires a separate medium temperature condensing unit with specific liquid and suction line connections.
The unit comes with a 3-year parts and labor standard warranty. The compressor is covered for an additional two years as a parts-only warranty, excluding labor. Food probes are also excluded from the warranty.
The modular design utilizes cam-lock insulated panels for easy on-site assembly, making it possible to install the unit in spaces with limited access or through standard building doors, eliminating site restriction concerns.
The unit requires a 208 Volt, 60 Hz, 1-Phase electrical connection with 15.5 Amps and a dedicated 20 Amp breaker, and must be direct wired.
