American Panel Corporation HURRiCHiLL AP26BC-2T Roll-In Blast Chiller, Remote Refrigeration, 2-Trolley, 520/600-lb Capacity

SKU: AP26BC-2T
$64,546.80
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

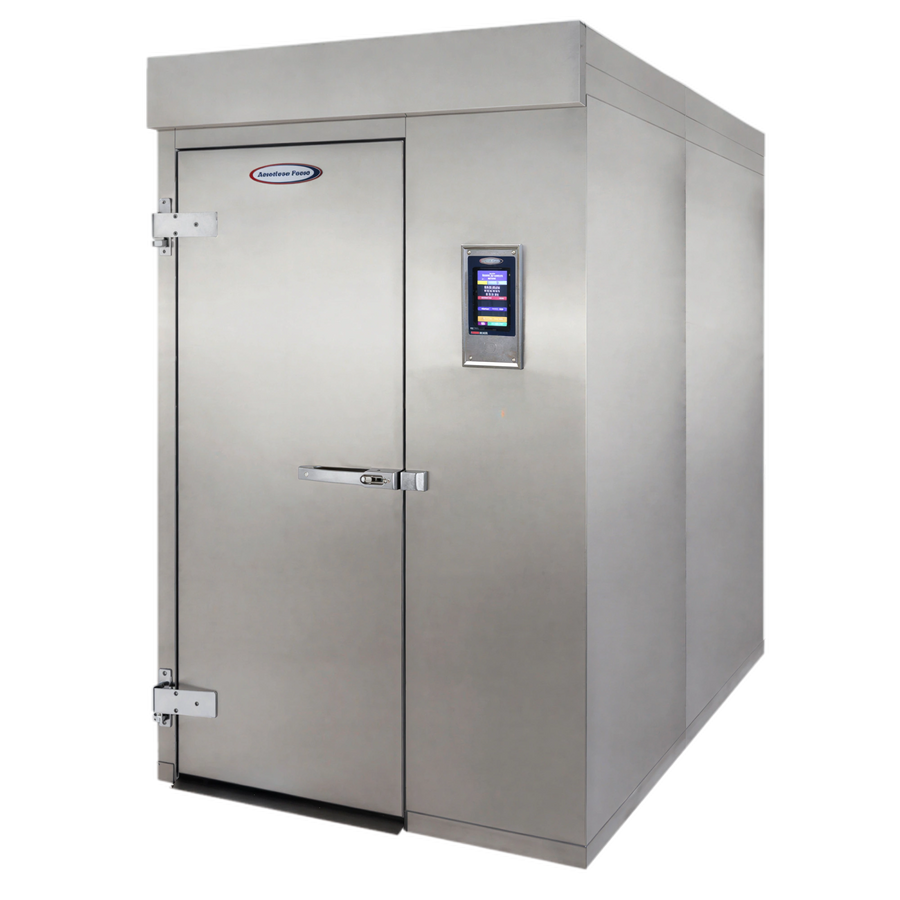

The HURRiCHiLL AP26BC-2T is a modular, roll-in blast chiller with remote refrigeration. It accepts up to two trolleys measuring 26 in. W x 36 in. D x 73.5 in. H.

The unit provides rated chilling capacities of 520 lb from 160°F to 38°F in 90 minutes and 600 lb from 160°F to 38°F in 120 minutes. A 7 in. LCD touch screen provides Quick Start and A La Carte functionality, with automatic or manual programmable operation.

  • Construction: Insulated camlock panels with stainless steel interior and exterior.
  • Monitoring: One core temperature probe is included.
  • Refrigeration: Remote refrigeration; refrigeration is not included.

Overall Dimensions:

55.0"W x 90.0"D x 88.0"H

Product Weight:

2328.0 lb

Blast chilling capacity

Rated to chill 520 lb from 160°F to 38°F in 90 minutes or 600 lb from 160°F to 38°F in 120 minutes.

Trolley accommodation

Accepts up to two trolleys measuring 26 in. W x 36 in. D x 73.5 in. H.

Touchscreen controller

Uses a 7 in. LCD touch screen with Quick Start and A La Carte functionality.

Programmable operation

Supports automatic or manual operation and programmable settings.

Chilling modes

Supports soft and hard chilling.

Modular panel assembly

Uses insulated panels with camlock assembly.

Stainless steel construction

Stainless steel interior and exterior.

Core temperature monitoring

Includes one core temperature probe.

Remote refrigeration

Designed for remote refrigeration; refrigeration is not included.

HACCP logging

The controller supports HACCP logging, with data download through an optional Wi-Fi card or USB port.

Related Searches

American Panel Corporation Best Sellers Blast Chiller Equipment Blast Chillers Blast Chillers & Shock Freezers Blast Chilling & Medical Refrigeration Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration & Ice Restaurant Equipment
Product type Modular blast chiller
Refrigeration Remote; refrigeration not included
Trolley capacity Up to 2 trolleys
Maximum trolley size 26 in. W x 36 in. D x 73.5 in. H
90-minute chilling capacity 520 lb from 160°F to 38°F
120-minute chilling capacity 600 lb from 160°F to 38°F
Controller 7 in. LCD touch screen
Operation Automatic or manual; programmable
Core temperature probe 1 included
Interior and exterior Stainless steel
Panel construction Insulated camlock panels
Voltage 208 V
Frequency 60 Hz
Phase 1 phase
Current draw 15.5 A
Minimum circuit ampacity 20 A
Maximum overcurrent protection 20 A
Electrical connection Hard wired

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operators manual PDF Download PDF Pos sheet PDF Download

Frequently Asked Questions

It uses remote refrigeration, and the refrigeration is not included.
It accepts up to two trolleys, each measuring up to 26 in. W x 36 in. D x 73.5 in. H.
The rated capacities are 520 lb from 160°F to 38°F in 90 minutes and 600 lb from 160°F to 38°F in 120 minutes.
The unit has a 7 in. LCD touch screen controller with Quick Start and A La Carte functionality, plus automatic or manual programmable operation.
Yes. One core temperature probe is included.
No. The product specification identifies the mobile racks or trolleys as not included.
No. The specification states that shock freeze is not available on the AP26BC-2T.
The listed electrical requirements are 208 V, 60 Hz, single phase, and 15.5 A, with a 20 A minimum circuit ampacity and 20 A maximum overcurrent protection.
