American Panel Corporation

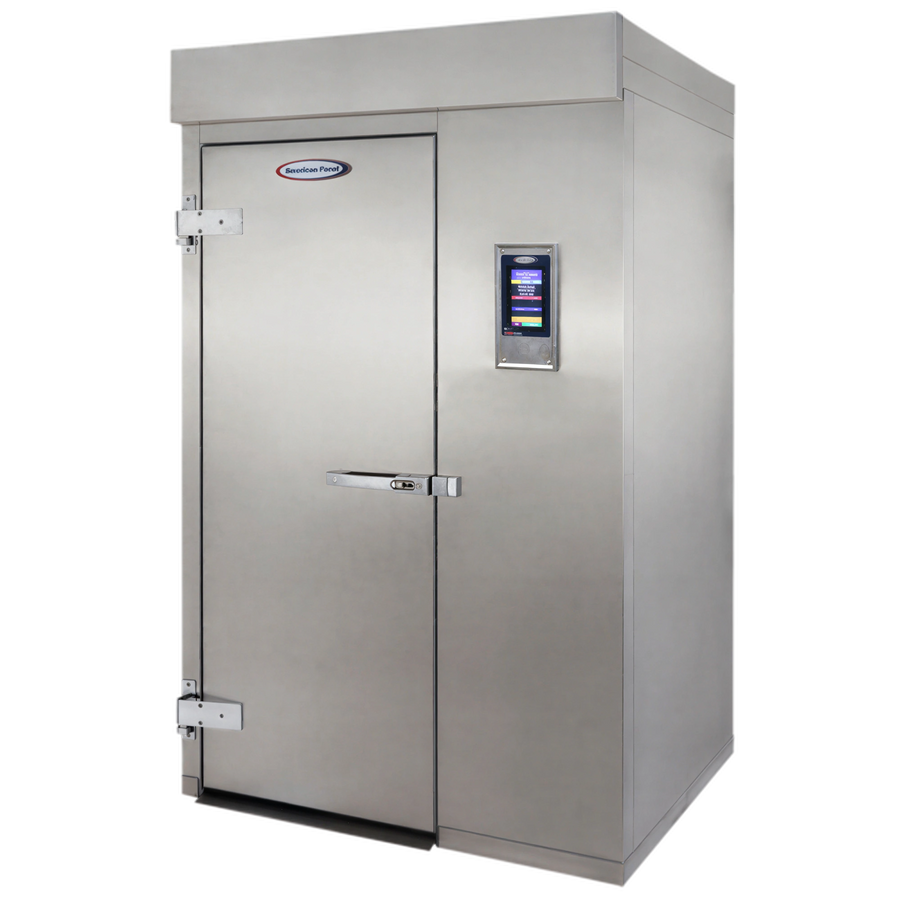

American Panel Corporation HURRiCHiLL AP26BC-1T Modular Roll-In Blast Chiller, Remote Refrigeration, 1-Trolley Capacity, 300-lb Chill Capacity

SKU: AP26BC-1T
$38,808.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The HURRiCHiLL AP26BC-1T is a modular roll-in blast chiller specified for remote refrigeration and one trolley. It chills 260 lb from 160°F to 38°F in 90 minutes or 300 lb from 160°F to 38°F in 120 minutes.

A 7-inch glove-safe capacitive touchscreen supports Soft Chill, Hard Chill, Quick Start, programmable operation, automatic defrost, and holding mode. One core temperature probe is included.

  • Stainless steel interior and exterior with insulated cam-lock panels
  • High-velocity indirect airflow designed to cool all levels at identical rates
  • Remote refrigeration is required and not included
  • Mobile rack or trolley is not included

Actual chilling times vary with food quantity, initial temperature, density, moisture content, specific heat, and container type.

Overall Dimensions:

55.0"W x 48.0"D x 88.0"H

Product Weight:

1675.0 lb

Blast chilling performance

Chills 260 lb from 160°F to 38°F in 90 minutes or 300 lb from 160°F to 38°F in 120 minutes.

Remote refrigeration

The unit is specified for remote refrigeration, and refrigeration is not included.

Touchscreen controller

A 7-inch glove-safe capacitive touchscreen provides access to Soft Chill, Hard Chill, and Quick Start cycles.

Programmable operation

The unit supports automatic or manual operation and programmable controls.

Core temperature monitoring

One core temperature probe is included.

Modular cam-lock assembly

Insulated cam-lock panels are sized for field assembly.

Stainless steel cabinet

The interior and exterior are stainless steel, with fully rounded interior corners.

HACCP logging

The controller includes a HACCP logger; data download is available through an optional Wi-Fi card or USB port.

Related Searches

American Panel Corporation Best Sellers Blast Chiller Equipment Blast Chillers Blast Chillers & Shock Freezers Blast Chilling & Medical Refrigeration Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration & Ice Restaurant Equipment
Product Type Modular blast chiller
Refrigeration Remote; refrigeration not included
Trolley Capacity 1 trolley
Trolley Size 26 in W x 36 in D x 73.5 in H
Chill Capacity, 90 Minutes 260 lb from 160°F to 38°F
Chill Capacity, 120 Minutes 300 lb from 160°F to 38°F
Controller 7-inch glove-safe capacitive touchscreen
Operation Automatic or manual; programmable
Temperature Probe 1 core temperature probe included
Construction Stainless steel interior and exterior
Insulation 4 in CFC-free high-density polyurethane
Electrical 208 V, 60 Hz, 1 phase, 8.2 A
Electrical Connection Hard wired
MCA 15 A
MOPD 15 A
Liquid Line 1/2 in
Suction Line 1 1/8 in

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor standard warranty for the chiller and doors.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operators manual PDF Download PDF Pos sheet PDF Download

Frequently Asked Questions

No. The AP26BC-1T is specified for remote refrigeration, and refrigeration is not included.
It chills 260 lb from 160°F to 38°F in 90 minutes or 300 lb from 160°F to 38°F in 120 minutes.
It is specified to accept one trolley measuring 26 in W x 36 in D x 73.5 in H.
No. The mobile rack or trolley is not included.
The unit has a 7-inch glove-safe capacitive touchscreen with Soft Chill, Hard Chill, Quick Start, programmable operation, automatic defrost, and holding mode.
Yes. One core temperature probe is included.
A 3-year parts and labor standard warranty is specified for the chiller and doors. Food probes are excluded.
