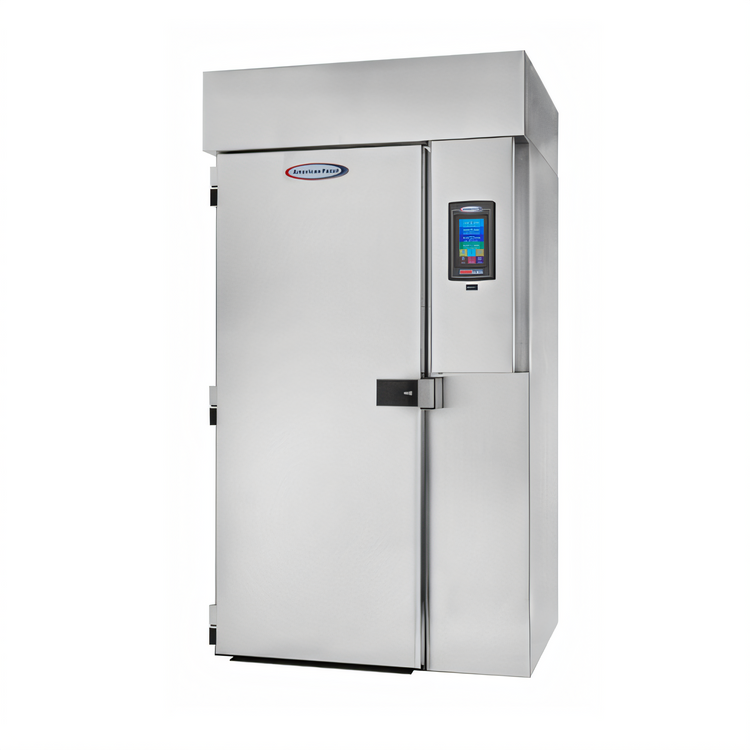

HURRiCHiLL AP24BCF300-3 Roll-In Remote Blast Chiller/Shock Freezer, 300 lb Capacity

Accepts one mobile rack; 7" touchscreen; 208V, 3-phase

This roll-in remote blast chiller/shock freezer rapidly chills or freezes high-volume loads with touchscreen control and stainless steel durability.

  • Roll-in remote blast chiller/shock freezer designed for one mobile rack.
  • Rapidly chills 300 lbs. from 160°F to 38°F in 90 minutes and freezes 180 lbs. from 160°F to 0°F in 240 minutes.
  • 7" capacitive touchscreen with Quick Start, Soft Chill, Hard Chill, Shock Freeze, and HACCP functions.
  • Polished 304 stainless steel construction with high-density insulation and indirect high-velocity airflow.
  • Includes one heated food probe; mobile rack and pans are sold separately.
  • Backed by a 3-year parts and labor warranty on the chiller and doors.

Overall Dimensions:

57.75"W x 46.25"D x 88.5"H

Product Weight:

1240.0 lb

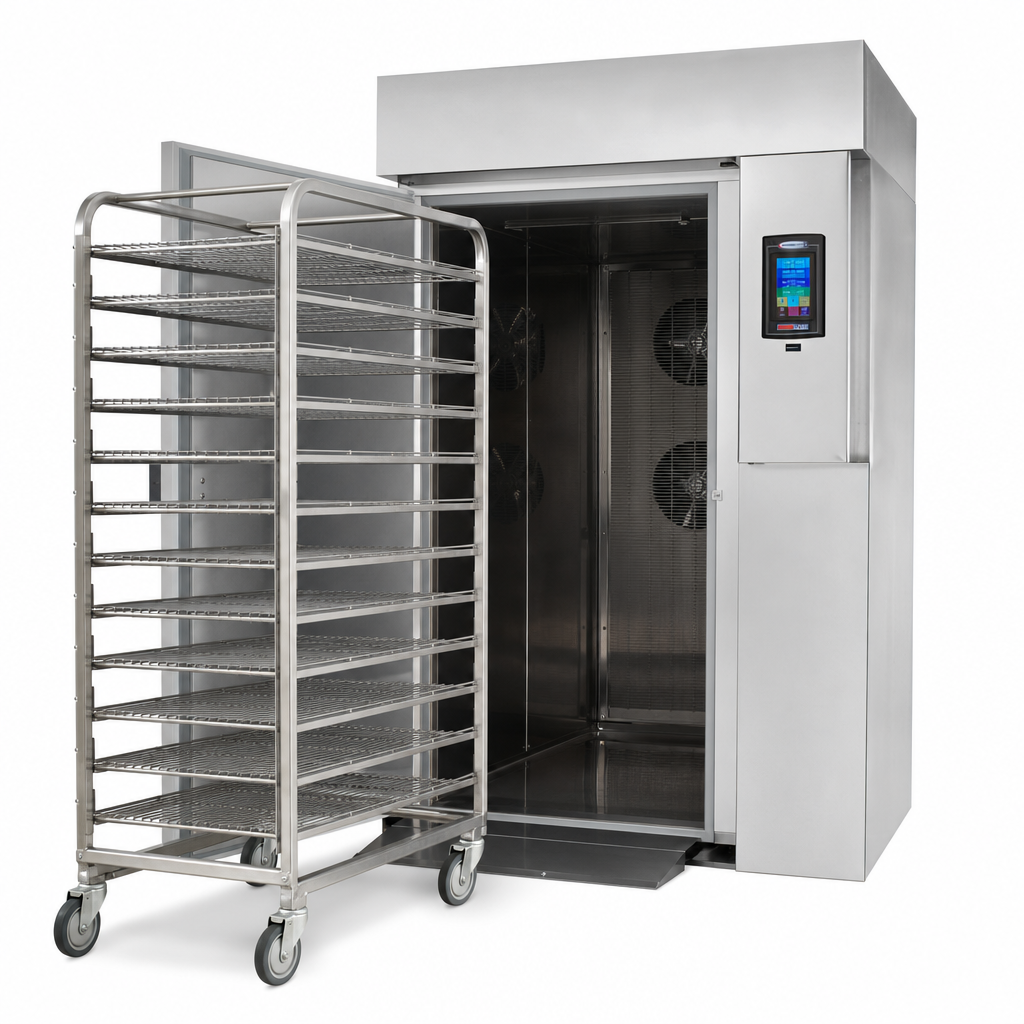

Roll-In Mobile Rack Design

Accepts one mobile rack for easy loading and unloading; maximum rack size is 30"W x 36.25"D x 73.5"H.

Roll-In Mobile Rack Design

Rapid Chill and Freeze Performance

Handles 300 lbs. from 160°F to 38°F in 90 minutes and 180 lbs. from 160°F to 0°F in 240 minutes; a 360 lb. chilling yield in 120 minutes is also listed.

Rapid Chill and Freeze Performance

7-Inch Capacitive Touchscreen

Glove-safe touchscreen controller provides quick access to Soft Chill, Hard Chill, Shock Freeze, and Quick Start operation.

HACCP Data Management

Built-in HACCP logger supports data download via optional Wi-Fi card or USB port and stores up to 150 product names.

304 Stainless Steel Construction

Polished type 304 stainless steel interior and exterior with 2 3/4" CFC-free polyurethane insulation for durability and temperature retention.

Remote Refrigeration System

Remote refrigeration system includes the evaporator, controls, TXV, solenoid valves, and blower system; refrigerant is R404A.

Maintenance-Friendly Design

Includes a removable magnetic door gasket, hinged swing-out vent panel for evaporator cleaning, wash-down fans, and one heated food probe.

Type Blast Chiller/Shock Freezer
Style Roll-In
Installation Type Floor Model
Refrigeration Type Remote
Refrigerant Type R404A
Capacity 300 lbs. Chill / 180 lbs. Freeze
Pan Capacity (24) 12" x 20" x 2.5" Pans or (12) 18" x 26" Pans
Controls Touchscreen
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Finish Polished
Voltage 208 Volts
Amps 8 Amps
Hertz 60 Hz
Phase 3-Phase
Breaker Size 15 Amps
BTU 50,000 BTU/HR
Liquid Line Connection 5/8 Inches
Suction Line Connection 1 3/8 Inches
Shipping Width 58 Inches
Shipping Depth 47 Inches
Shipping Height 89 Inches
Shipping Weight 1240 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on chiller and doors only.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operators manual PDF Download PDF Pos sheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It accepts one mobile rack, which is not included. The listed rack capacity is (24) 12" x 20" x 2.5" pans or (12) 18" x 26" pans, depending on the rack used.
The unit chills 300 lbs. from 160°F to 38°F in 90 minutes and freezes 180 lbs. from 160°F to 0°F in 240 minutes.
It uses a 7" glove-safe capacitive touchscreen with Quick Start, Soft Chill, Hard Chill, Shock Freeze, HACCP logging, and automated defrost/sanitation functions.
This is a remote-refrigeration model. The matching remote refrigeration option listed is RCU7BCF, available in air-cooled or water-cooled configurations.
The chiller and doors carry a 3-year parts and labor warranty. Food probes are excluded, and the remote refrigeration warranty is separate.
