American Panel Corporation

American Panel HURRiCHiLL Roll-In Remote Blast Chiller/Shock Freezer for 1 Mobile Rack

SKU: AP20BCF200-2
$71,990.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Panel Corporation Best Sellers Blast Chillers Blast Chillers & Freezers Commercial Refrigeration Commercial Refrigerators New Arrivals Restaurant Equipment Walk-In Coolers & Freezers

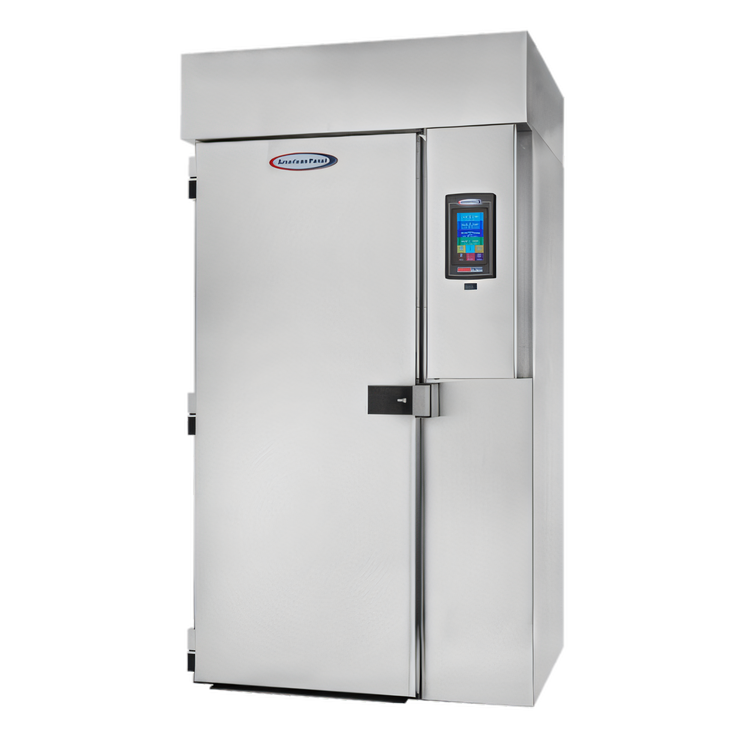

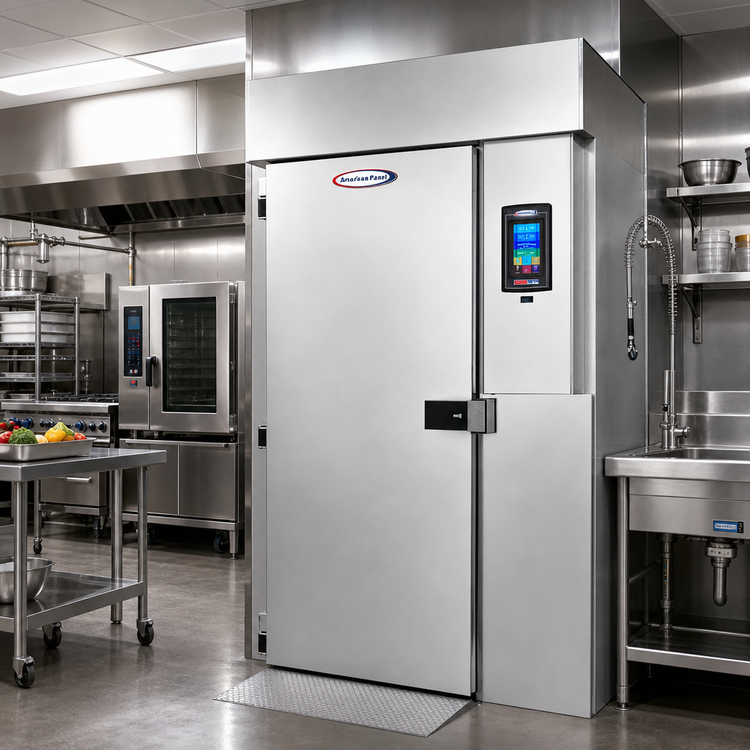

American Panel HURRiCHiLL Roll-In Remote Blast Chiller/Shock Freezer for 1 Mobile Rack

208V, 1-Phase, 200 lb. Chill / 120 lb. Freeze Capacity

Built for high-volume kitchens, this roll-in remote blast chiller/shock freezer rapidly brings food to safe temperatures while helping preserve quality and support HACCP workflows.

  • Accepts one mobile rack and is designed for roll-in operation in high-volume production kitchens.
  • Blast chills up to 200 lb. from 160°F to 38°F in 90 minutes and shock freezes up to 120 lb. from 160°F to 0°F in 240 minutes.
  • 7-inch glove-safe capacitive touchscreen with quick-start operation, alarms, and HACCP logging.
  • Polished 304 stainless steel interior and exterior with CFC-free polyurethane insulation for durable, easy-to-clean construction.
  • Includes one heated food probe standard, plus automated defrost and sanitation cycle capability.
  • Requires 208V, 1-phase power, field wiring, and a 15-amp circuit.

Overall Dimensions:

47.63"W x 42.0"D x 88.25"H

Product Weight:

1020.0 lb

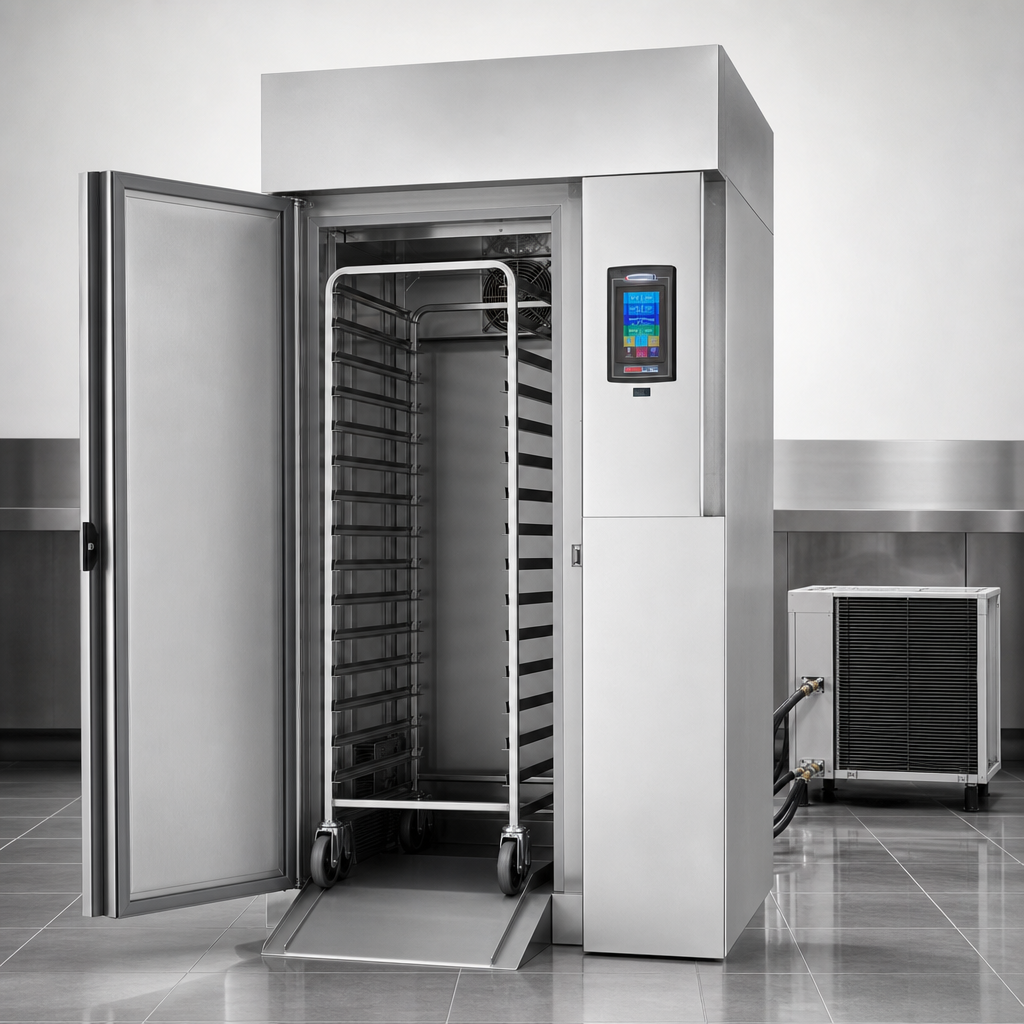

Roll-In Remote Design

Accepts one mobile rack for efficient roll-in loading and is designed for remote refrigeration applications.

Roll-In Remote Design

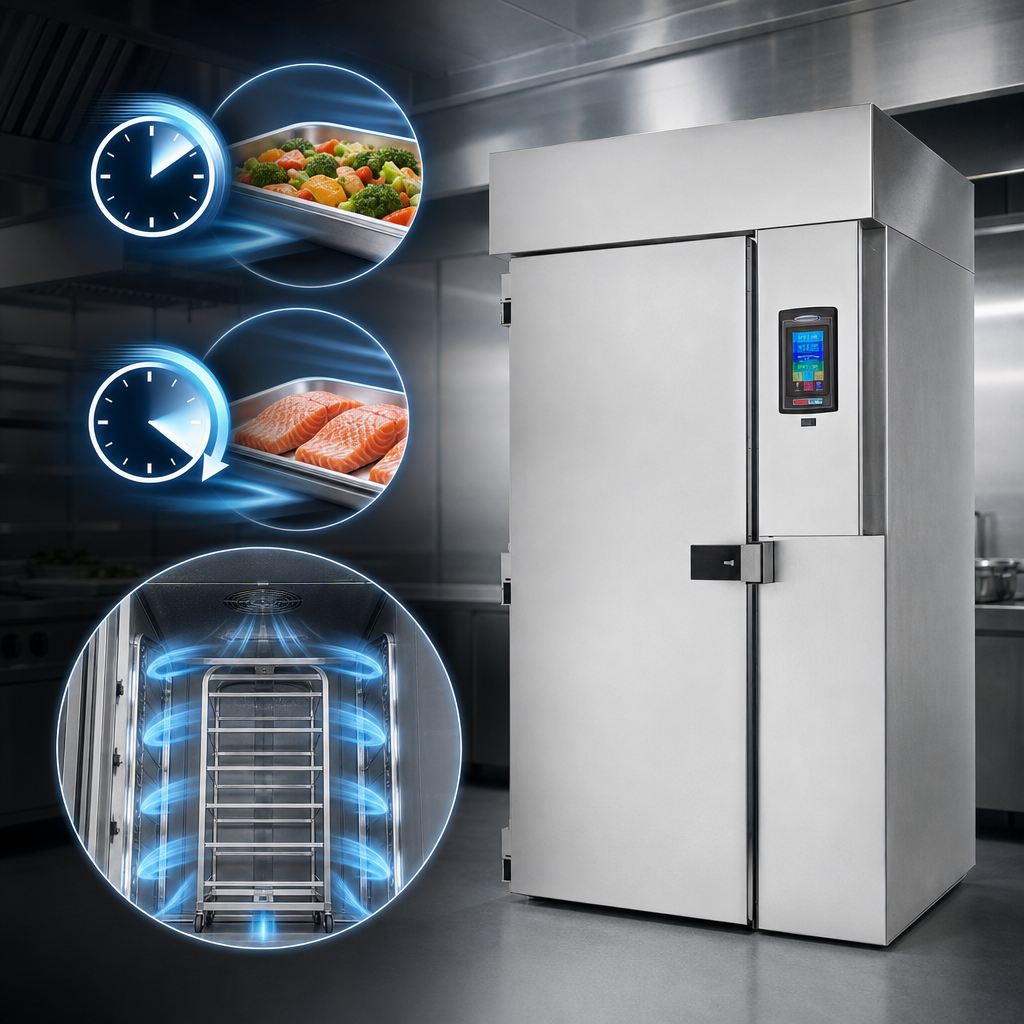

Rapid Chill and Freeze Performance

Chills food from 160°F to 38°F in 90 minutes and freezes food from 160°F to 0°F in 240 minutes, with high-velocity indirect airflow for even results.

Rapid Chill and Freeze Performance

7-Inch Touchscreen Controls

Glove-safe capacitive touchscreen provides quick access to cycles, quick-start operation, alarms, and user-friendly control from across the kitchen.

HACCP Logging and Automated Cycles

Includes HACCP logging plus automated defrost and sanitation cycles; data can be downloaded via optional Wi-Fi card or USB port.

Stainless Steel Cabinet Construction

Constructed of polished type 304 stainless steel with 2 3/4 inches of CFC-free polyurethane insulation, a fully rounded interior bottom, and a removable magnetic door gasket.

Integrated Refrigeration System

Includes the evaporator, TXV, solenoid valves, blower system, and wash-down style motorized impeller fans with sealed ball bearings and overload protection.

Included Heated Food Probe

One heated core temperature probe is included standard for accurate cycle monitoring.

Type Blast Chiller/Shock Freezer
Style Roll-In Remote
Installation Type Floor Model (Roll-In)
Capacity 200 lb. Chill / 120 lb. Freeze
Pan Capacity 20 12 x 20 x 2.5 Inch Pans or 10 18 x 26 Inch Pans
Controls Touchscreen
Voltage 208 Volts
Amps 8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Direct
Breaker Size 15 Amps
BTU 25,000 BTU/HR
Refrigeration Type Remote
Refrigerant Type R404A
Material Stainless Steel
Interior Finish Polished 304 Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 42 Inches
Shipping Height 89 Inches
Shipping Weight 1,020 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor; compressor covered for an additional 2 years parts only.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operators manual PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It accepts one mobile rack with maximum dimensions of 26" W x 32" D x 73.5" H; the rack is not included.
It can blast chill 200 lb. from 160°F to 38°F in 90 minutes and shock freeze 120 lb. from 160°F to 0°F in 240 minutes.
The unit requires 208V, 60 Hz, single-phase power, draws 8.0 amps, and needs a 15-amp circuit; it is field wired/direct connected.
It includes a 7-inch glove-safe capacitive touchscreen, quick-start operation, alarms, HACCP logging, and automated defrost and sanitation cycles.
It includes a 3-year parts and labor warranty; food probes are excluded, and the compressor is covered for an additional 2 years as parts only, with no labor.
Yes. HACCP data download is available through an optional USB port or Wi-Fi card, and Wi-Fi also supports remote monitoring and alarm notifications.
