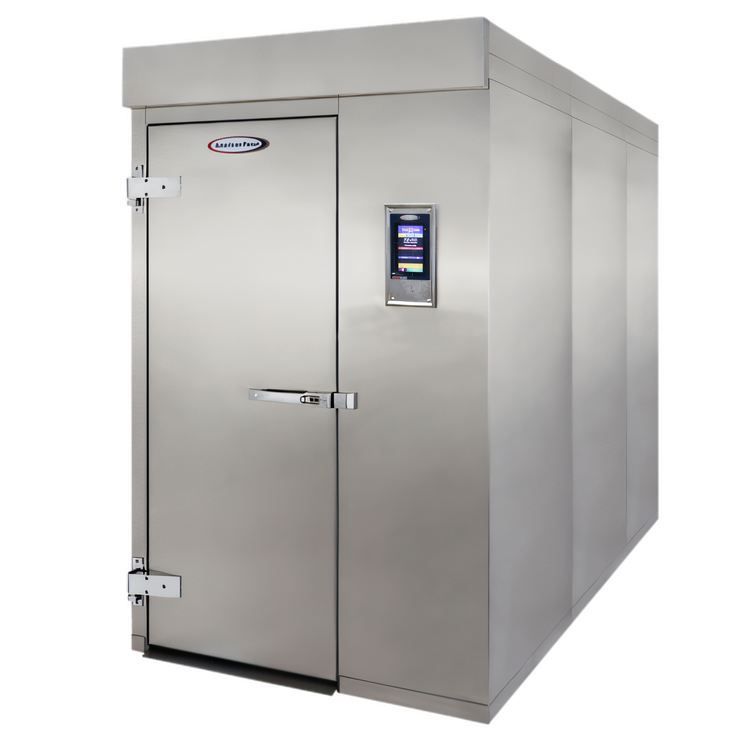

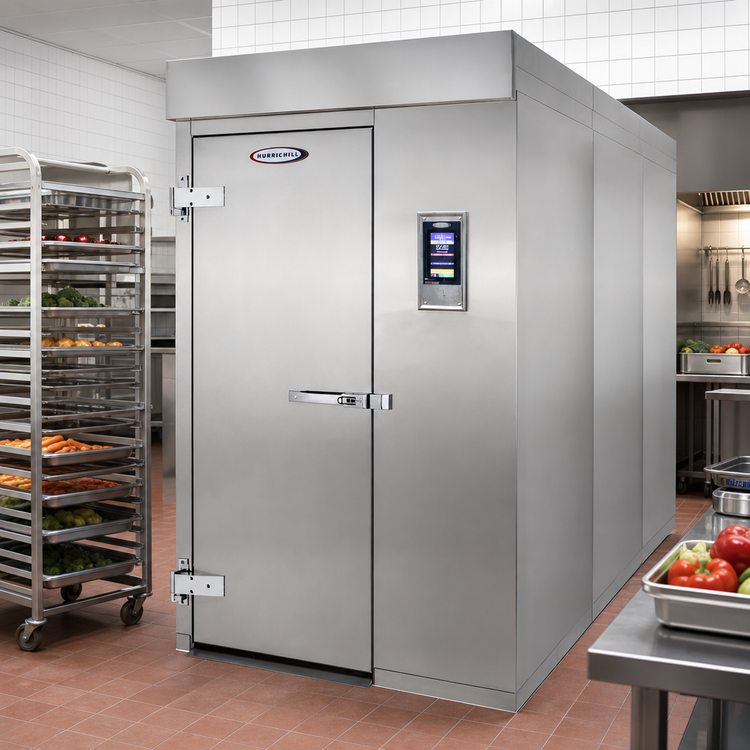

HURRiCHiLL AP20BCF-3T Modular Roll-In Blast Chiller/Shock Freezer, 3-Trolley, Remote Refrigeration
HURRiCHiLL AP20BCF-3T Modular Roll-In Blast Chiller/Shock Freezer, 3-Trolley, Remote Refrigeration
Full-Size, 600 lb. Chill Capacity, 360 lb. Freeze Capacity
Designed for high-volume operations, the HURRiCHiLL AP20BCF-3T modular unit provides exceptional blast chilling and shock freezing performance in a flexible, field-assembled design.
- Modular design with cam-lock insulated panels allows for easy assembly and installation in restricted spaces.
- Achieve rapid chilling of 600 lbs. from 160°F to 38°F in 90 minutes, meeting all FDA, NSF, and state regulations.
- Perform shock freezing of 360 lbs. from 160°F to 0°F in 4 hours, preserving food quality and extending shelf life.
- Intuitive 7-inch glove-safe capacitive touchscreen controller offers Quick Start, Soft Chill, Hard Chill, and Shock Freeze cycles.
- Accommodates up to three 26"W x 32"D x 73.5"H mobile racks (not included) for roll-in convenience.
- Constructed from polished Type 304 stainless steel with 4 inches of CFC-free polyurethane insulation for durability and efficiency.
- Features a remote refrigeration system (condensing unit not included) for optimized space and noise management.
- Includes three core temperature probes for precise monitoring and HACCP data logging capabilities via USB or optional Wi-Fi.
Overall Dimensions:
51.0"W x 120.0"D x 88.0"HProduct Weight:

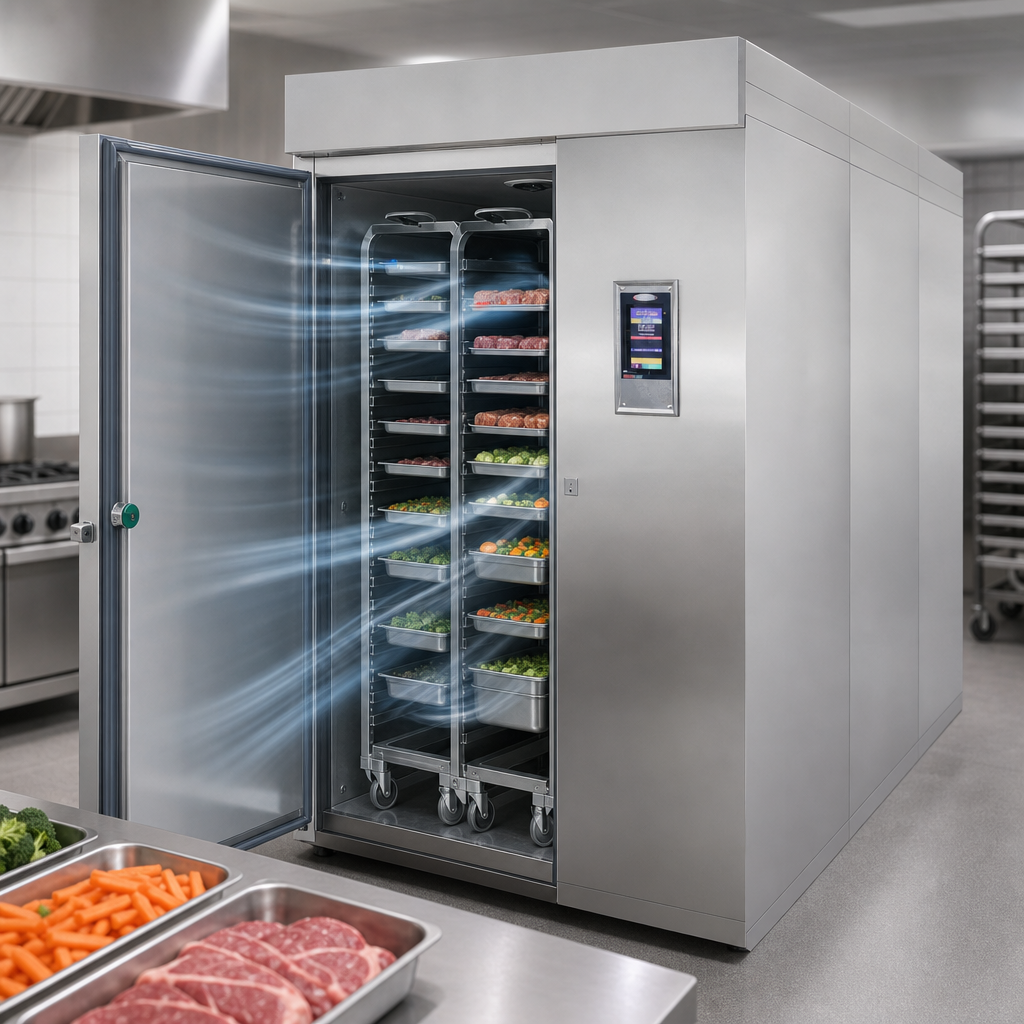

3138.0 lbRapid Blast Chilling
Quickly lowers food core temperature from 160°F to 38°F within 90 minutes for up to 600 lbs., ensuring food safety and quality.

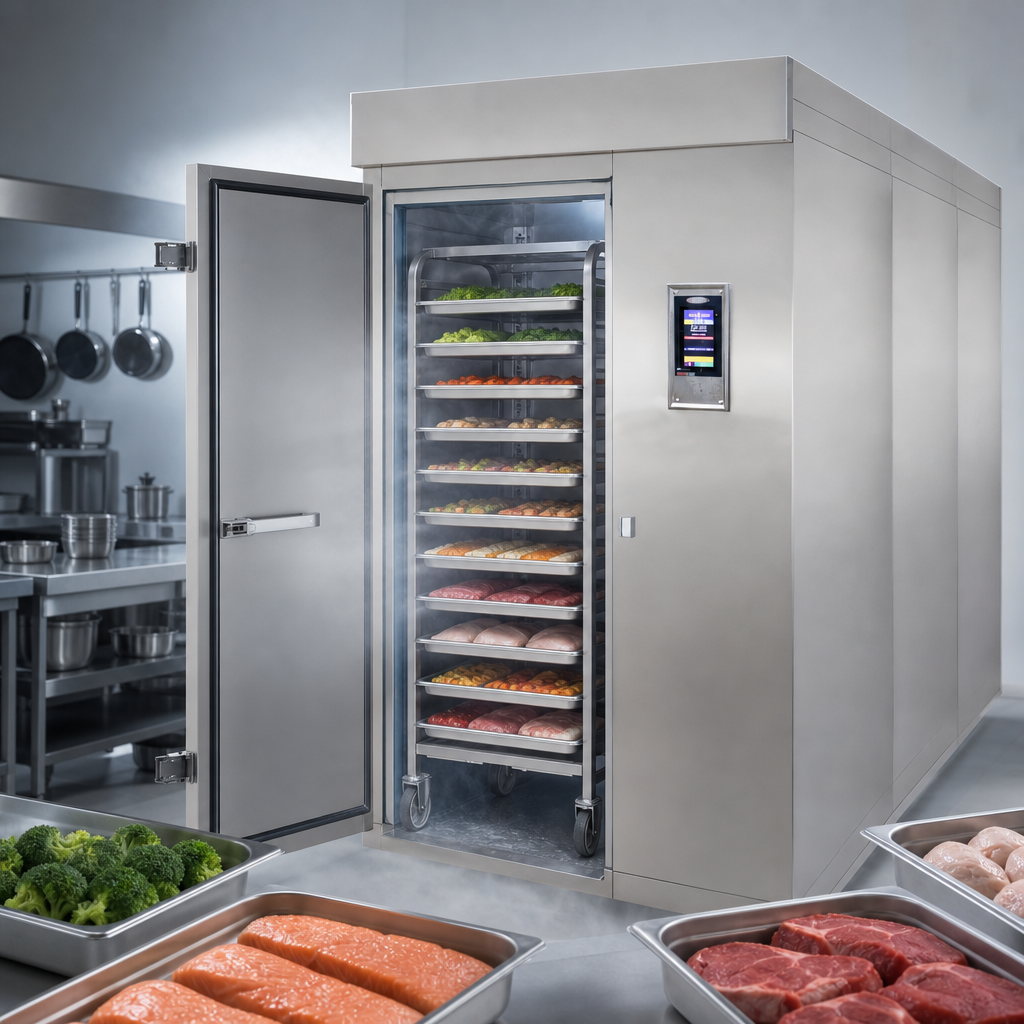

Efficient Shock Freezing
Freezes food core temperature from 160°F to 0°F within 4 hours for up to 360 lbs., preserving texture, flavor, and appearance.
7-Inch Touchscreen Controls
Glove-safe capacitive touchscreen is easily readable and offers a user-friendly interface with quick access to all functions including Soft Chill, Hard Chill, Shock Freeze, and Quick Start.
HACCP Logger
Records HACCP data, with download capability via optional Wi-Fi card or USB port, for compliance and quality control.
Modular Cam-Lock Assembly
Unit is manufactured with cam-lock insulated panels for easy assembly and ingress, making it suitable for locations with site restrictions.
Durable Stainless Steel Construction
Constructed of polished Type 304 stainless steel interior and exterior with fully rounded interior corners for hygiene and longevity.
High-Density Insulation
Features 4 inches of CFC-free, high-density polyurethane insulation for superior thermal efficiency.
Removable Magnetic Door Gasket
Ensures a tight seal and is easy to clean and replace for optimal performance.
Advanced Airflow Design
High velocity, indirect airflow pattern designed to cool all levels at identical rates, preventing product damage.
E-Coated Evaporator
Electro-deposition coated multiple circuits evaporator specifically designed for blast chilling operation, enhancing durability and efficiency.
Wash-Down Fans
Motorized impeller fans with sealed ball bearings and overload protection are designed for wash-down, ensuring easy cleaning and maintenance.
Integrated Core Temperature Probes
Includes three core temperature probes for accurate monitoring of food temperatures during cycles.
Automated Cycles
Capable of automated defrost and sanitation cycles for convenience and hygiene.
Holding Mode
Automatically switches to a holding mode at the end of any cycle to maintain food temperature.
Certifications & Compliance
Warranty & Protection
3-year parts and labor warranty
