American Panel Corporation

HURRiCHiLL Modular Roll-In Blast Chiller/Shock Freezer, Remote Refrigeration, 2-Trolley Capacity

SKU: AP20BCF-2T
$116,812.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

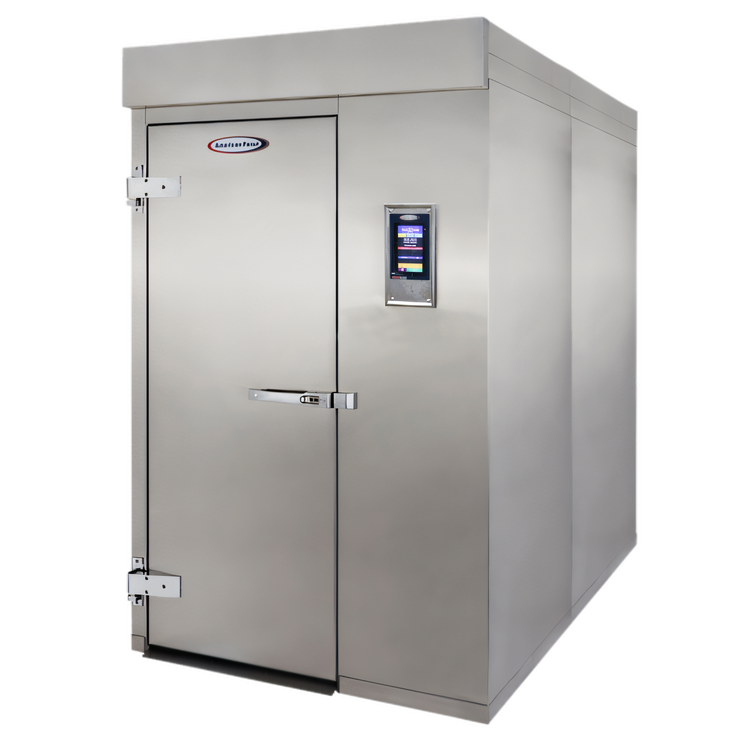

HURRiCHiLL Modular Roll-In Blast Chiller/Shock Freezer, Remote Refrigeration, 2-Trolley Capacity

400 lb. chill / 240 lb. freeze, 208V, 1-Phase

A high-capacity roll-in blast chiller/shock freezer that speeds food safely through chilling and freezing cycles while fitting two trolleys and remote refrigeration setups.

  • Accepts up to (2) 26" W x 32" D x 73.5" H trolleys for true roll-in loading.
  • Chills up to 400 lbs. from 160°F to 38°F in 90 minutes and 460 lbs. in 120 minutes.
  • Shock freezes up to 240 lbs. from 160°F to 0°F in 240 minutes.
  • 7" glove-safe capacitive touchscreen provides quick-start, programmable cycle control.
  • Remote refrigeration design is built for external condensing unit setups.
  • Stainless steel interior and exterior with cam-lock insulated panel construction.
  • Includes core temperature probes and supports HACCP data logging options.
  • Backed by a 3-year parts and labor warranty.

Overall Dimensions:

51.0"W x 82.0"D x 88.0"H

Product Weight:

2180.0 lb

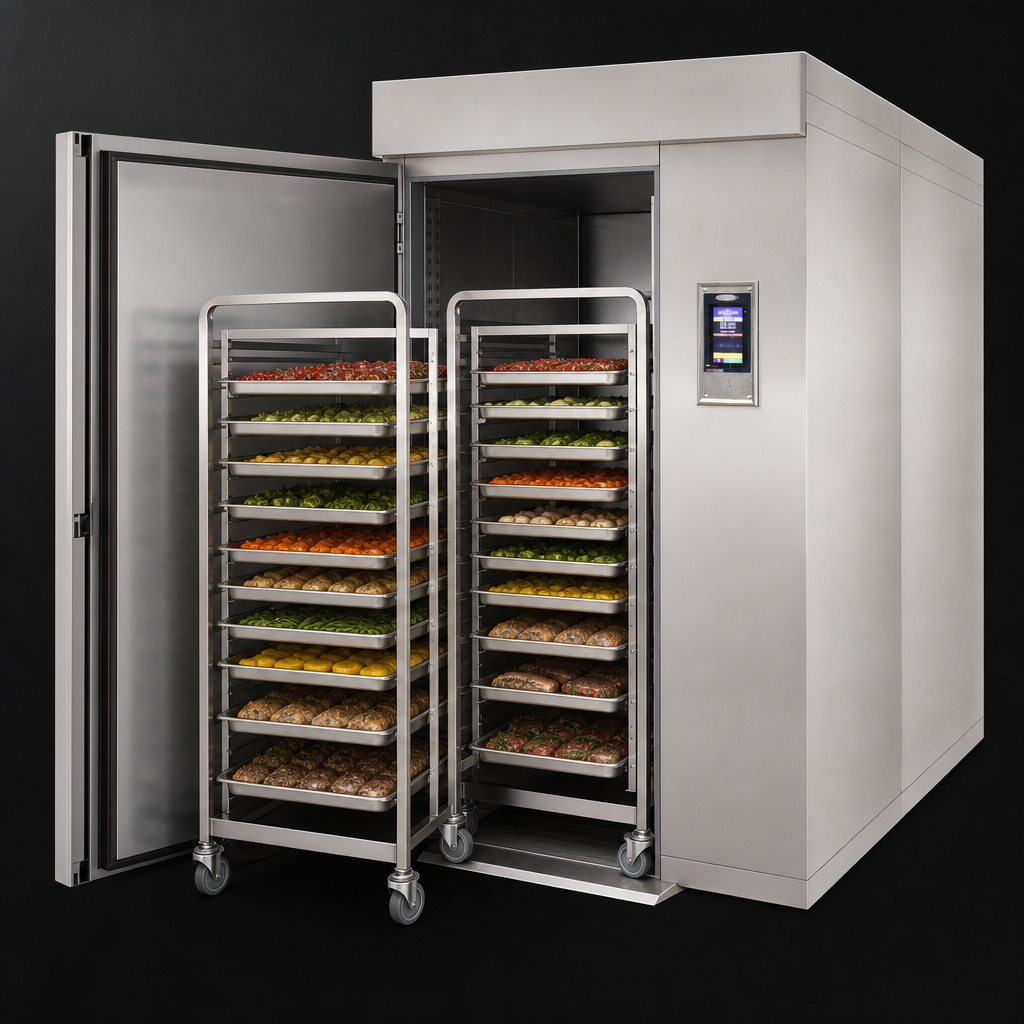

Roll-In Dual-Trolley Capacity

Accepts up to two mobile trolleys or racks, each up to 26" W x 32" D x 73.5" H, for high-volume batch loading.

Roll-In Dual-Trolley Capacity

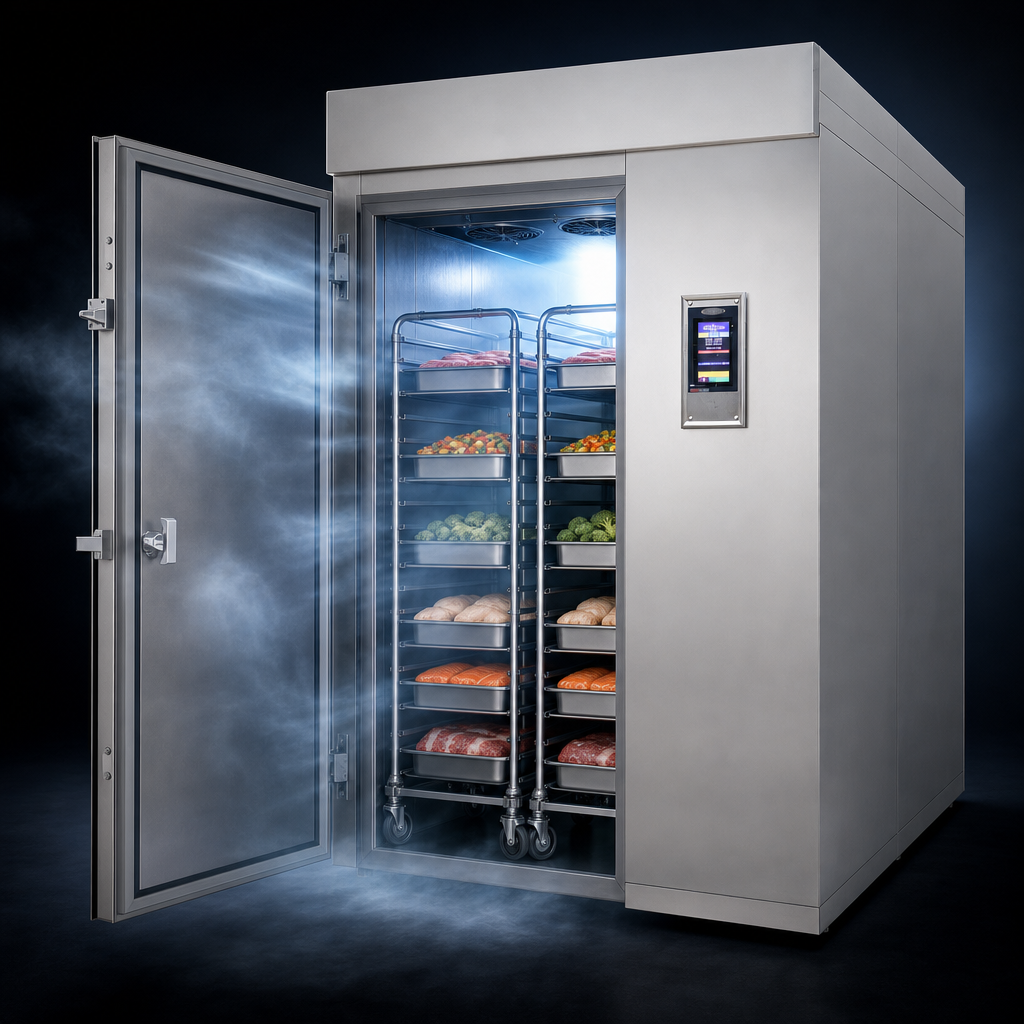

Blast Chilling Performance

Delivers blast chilling from 160°F to 38°F in 90 minutes for up to 400 lbs., with a 460 lb. yield in 120 minutes.

Blast Chilling Performance

Shock Freezing Performance

Freezes up to 240 lbs. from 160°F to 0°F in 240 minutes.

7-Inch Touchscreen Controller

Glove-safe capacitive touchscreen with Quick Start, Soft Chill, Hard Chill, Shock Freeze, holding, and defrost functions.

HACCP Data Logging

Tracks cycle data for food safety records; USB and Wi-Fi connectivity options are available.

Cam-Lock Modular Construction

Insulated cam-lock panels are designed for field assembly and easier installation through tight site openings.

304 Stainless Steel Cabinet

Polished type 304 stainless steel interior and exterior with rounded corners and a removable magnetic door gasket.

Remote Refrigeration Ready

Configured for a separate remote condensing unit rather than built-in refrigeration.

Standard Temperature Probes

Two core temperature probes are provided for product monitoring during cycles.

Warranty Coverage

Includes a 3-year parts and labor standard warranty; compressor coverage extends for two additional years, parts only.

Type Modular Blast Chiller/Shock Freezer
Style Roll-In
Installation Type Floor Model
Refrigeration Type Remote
Capacity 2 Trolleys
Controls Programmable Touchscreen
Voltage 208 Volts
Amps 155 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Direct
Breaker Size 20 Amps
BTU 56,000 BTU/HR
Refrigerant Type R404A
Material 304 Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Frequently Asked Questions

It chills up to 400 lbs. from 160°F to 38°F in 90 minutes, 460 lbs. in 120 minutes, and shock freezes up to 240 lbs. from 160°F to 0°F in 240 minutes.
The cabinet accepts up to (2) mobile trolleys or racks measuring 26" W x 32" D x 73.5" H.
No. This model is configured for remote refrigeration and requires a separate remote condensing unit.
It uses a 7" glove-safe capacitive touchscreen with Quick Start, Soft Chill, Hard Chill, Shock Freeze, holding, and defrost functions.
The standard warranty is 3 years parts and labor. The compressor is covered for an additional 2 years, parts only, and food probes are excluded.
