American Panel Corporation

HURRiCHiLL Modular Roll-In Blast Chiller/Shock Freezer, Remote Refrigeration, 1 Mobile Rack

SKU: AP20BCF-1T
$73,756.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

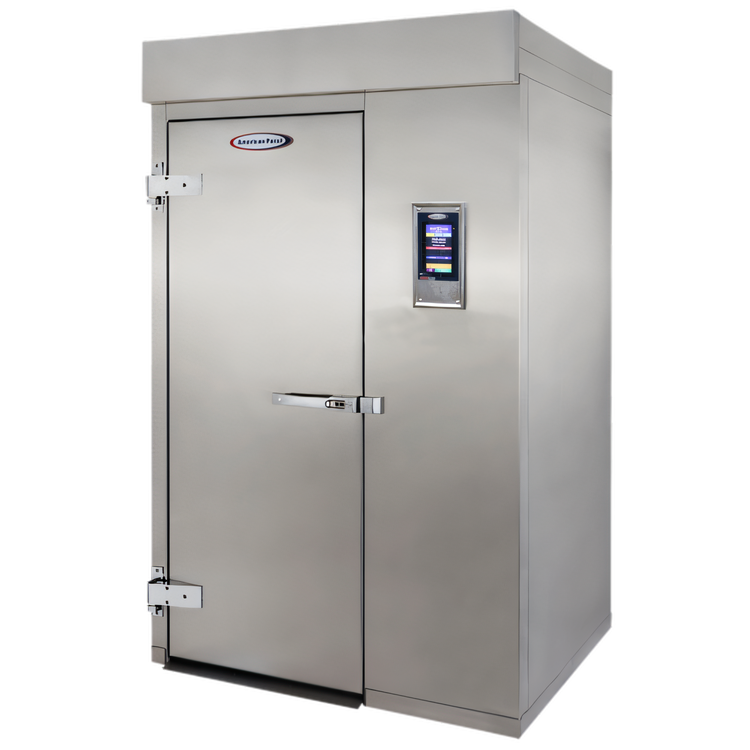

HURRiCHiLL Modular Roll-In Blast Chiller/Shock Freezer, Remote Refrigeration, 1 Mobile Rack

Accepts one 26" W x 32" D x 73.5" H trolley; 208V, 1-phase

This modular roll-in blast chiller/shock freezer delivers high-capacity chilling and freezing with on-site assembly, remote refrigeration, and intuitive touchscreen control.

  • Modular roll-in design assembles on-site and helps the cabinet fit through tight access routes.
  • Accepts one 26" W x 32" D x 73.5" H trolley for efficient load-in and load-out.
  • Handles 200 lb chill loads from 160°F to 38°F in 90 minutes and 120 lb freeze loads from 160°F to 0°F in 240 minutes.
  • 7" glove-safe touchscreen supports Quick Start, soft/hard chill, shock freeze, sanitation, defrost, and HACCP logging.
  • Polished 304 stainless steel construction with 4" insulation, rounded corners, a removable gasket, and an included core probe.

Overall Dimensions:

51.0"W x 44.0"D x 88.0"H

Product Weight:

1588.0 lb

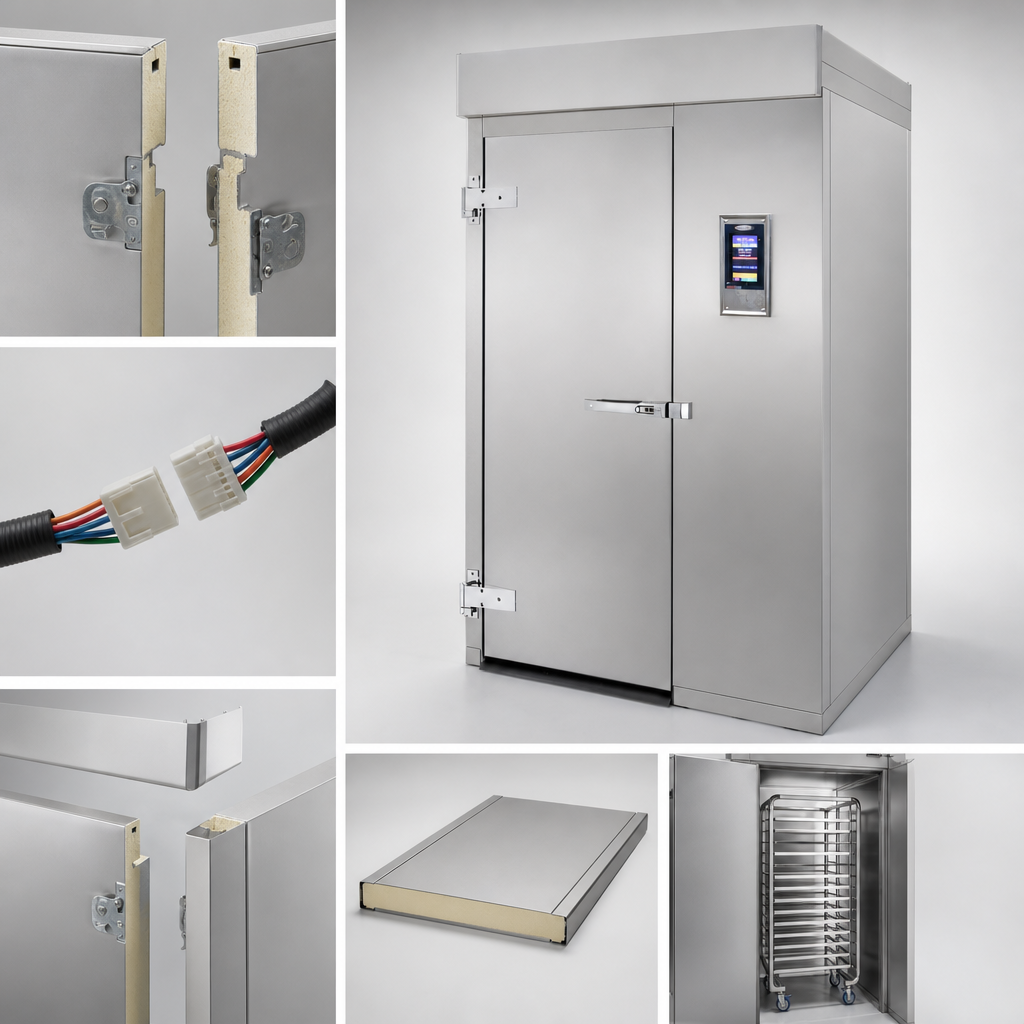

Modular Field Assembly

Cam-lock insulated panels and quick-connect electrical connections simplify on-site assembly and reduce installation challenges.

Modular Field Assembly

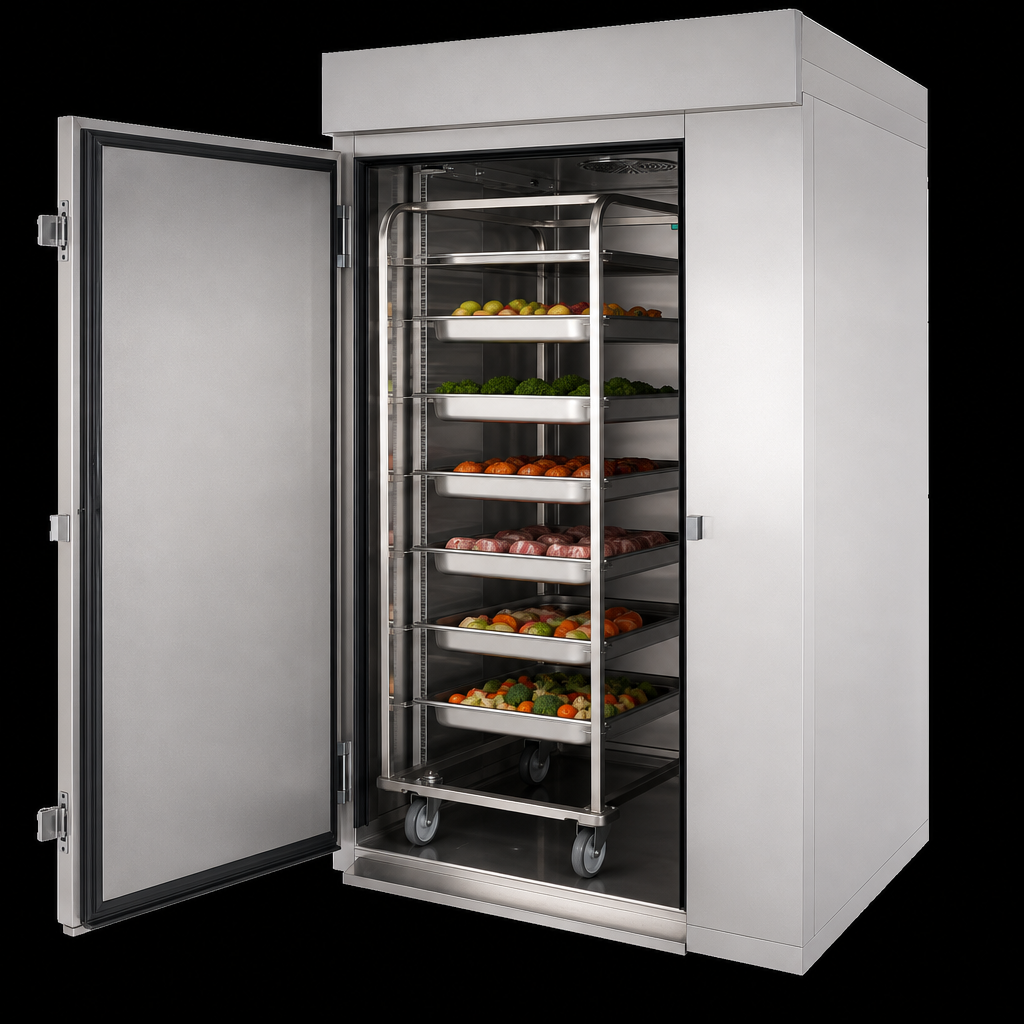

Roll-In Trolley Capacity

Designed to accept one mobile rack or trolley up to 26" W x 32" D x 73.5" H.

Roll-In Trolley Capacity

Blast Chill and Shock Freeze Performance

Rated to chill 200 lbs from 160°F to 38°F in 90 minutes and freeze 120 lbs from 160°F to 0°F in 240 minutes.

7-Inch Touchscreen Controller

Glove-safe capacitive LCD control includes Quick Start, Soft Chill, Hard Chill, Shock Freeze, sanitation, defrost, product naming, and HACCP logging.

Stainless Steel Cabinet

Polished type 304 stainless steel interior and exterior provide durability and a cleanable foodservice-ready finish.

Insulated Cabinet Construction

4" CFC-free high-density polyurethane insulation, fully rounded interior corners, and a removable magnetic door gasket help maintain performance and sanitation.

Remote Refrigeration Ready

Ships without refrigeration and requires a separate remote condensing unit; the system uses R404A refrigerant.

Included Core Probe

One core temperature probe is included for accurate product temperature monitoring during cycles.

Type Modular Blast Chiller/Shock Freezer
Style Roll-In
Installation Type Floor Model
Refrigeration Type Remote
Controls 7-Inch Touchscreen
Voltage 208 Volts
Amps 8.2 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 28,000 BTU/HR
Refrigerant Type R404A
Capacity 1 Mobile Rack
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Finish Polished
Shipping Width 51 Inches
Shipping Depth 44 Inches
Shipping Height 88 Inches
Shipping Weight 1,588 Lbs.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on chiller and doors only.

Frequently Asked Questions

It accepts one mobile rack or trolley up to 26" W x 32" D x 73.5" H.
The unit chills 200 lbs from 160°F to 38°F in 90 minutes and freezes 120 lbs from 160°F to 0°F in 240 minutes.
No. This model uses remote refrigeration and requires a separate condensing unit.
It includes a 7" glove-safe capacitive touchscreen with Quick Start, Soft Chill, Hard Chill, Shock Freeze, sanitation, defrost, HACCP logging, and one core temperature probe.
The standard warranty is 3 years parts and labor on the chiller and doors only. Food probes are excluded, and remote refrigeration warranty is separate.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
