American Panel Corporation

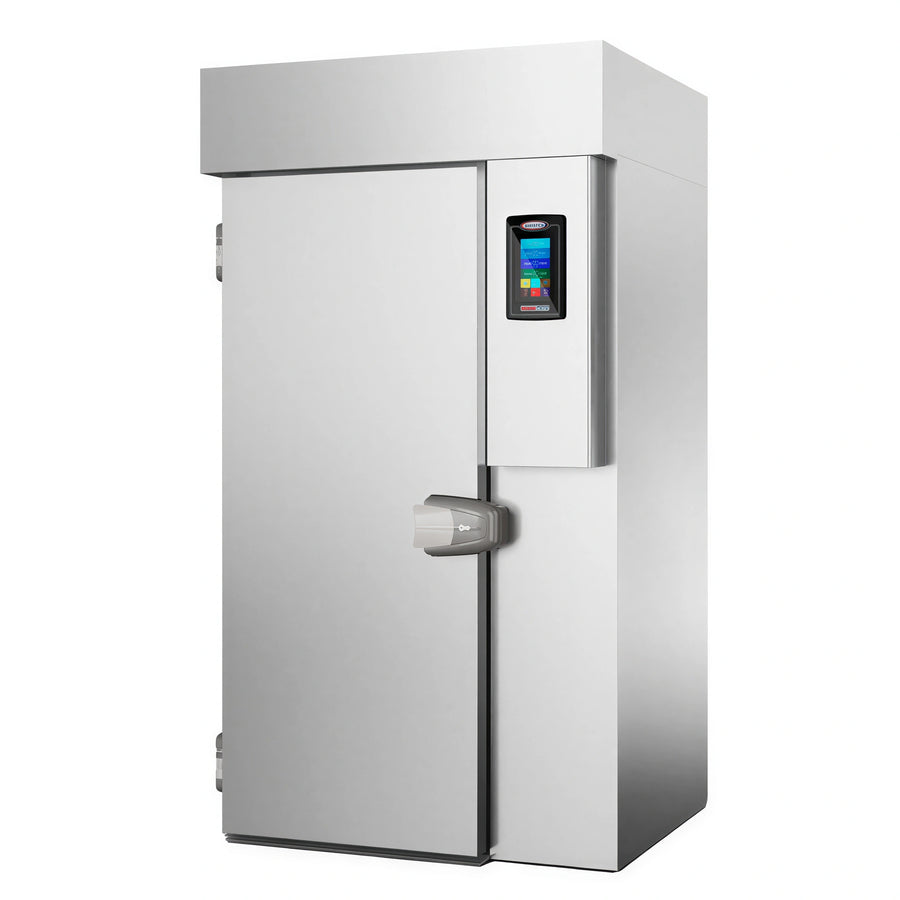

American Panel Corporation HURRiCHiLL AP20BC200-2 Roll-In Blast Chiller, Remote Refrigeration, 200-lb, 20-Pan

SKU: AP20BC200-2
$35,994.60
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The HURRiCHiLL AP20BC200-2 is a roll-in blast chiller with remote refrigeration. It chills up to 200 lb of food from 160°F to 38°F within 90 minutes.

  • Accepts one mobile rack with capacity for 20 12 in × 20 in × 2.5 in pans or 10 18 in × 26 in pans.
  • Features an electronic touchscreen control panel with VFD display, alarms, and a quick-start button.
  • Constructed with stainless steel interior and exterior surfaces.
  • Field wired for 208 V, 60 Hz, single-phase service and a required 15 A circuit.

Remote refrigeration is not included. One core temperature probe is provided, and the mobile rack is not included.

Overall Dimensions:

47.25"W x 42.0"D x 88.25"H

Product Weight:

1020.0 lb

Blast chilling performance

Chills up to 200 lb from 160°F to 38°F within 90 minutes.

Roll-in loading

Accepts one mobile rack. The mobile rack is not included.

Pan capacity

Supports 20 12 in × 20 in × 2.5 in pans or 10 18 in × 26 in pans.

Remote refrigeration

Designed for remote refrigeration; refrigeration is not included.

Touchscreen controls

Electronic touchscreen control panel with VFD display, alarms, and a quick-start button.

Stainless steel cabinet

Stainless steel interior and exterior; the cutsheet specifies polished type 304 stainless steel construction.

Core temperature probe

One core temperature probe is provided.

Related Searches

American Panel Corporation Best Sellers Blast Chiller Equipment Blast Chillers Blast Chillers & Shock Freezers Blast Chilling & Medical Refrigeration Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration & Ice Restaurant Equipment
Product type Roll-in blast chiller
Refrigeration Remote; refrigeration not included
Blast chilling capacity 200 lb from 160°F to 38°F in 90 minutes
Rack capacity 1 mobile rack
Steam table pan capacity 20 pans, 12 in × 20 in × 2.5 in
Sheet pan capacity 10 pans, 18 in × 26 in
Control panel Electronic touchscreen with VFD display and alarms
Available cycles Soft Chill, Hard Chill, Quick Start
Voltage 208 V
Frequency 60 Hz
Phase 1
Current 8.0 A
Wiring Field wired
Required circuit 15 A
Cabinet material Polished type 304 stainless steel
Insulation 2.75 in CFC-free high-density polyurethane
Door hinge Operator's left
Roll-in ramp Integral 2 in ramp

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor standard warranty for the chiller and doors.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Installation & operators manual PDF Download

Frequently Asked Questions

The unit chills up to 200 lb from 160°F to 38°F within 90 minutes.
It accommodates 20 pans measuring 12 in × 20 in × 2.5 in or 10 pans measuring 18 in × 26 in.
No. The AP20BC200-2 uses remote refrigeration, and refrigeration is not included.
It is field wired for 208 V, 60 Hz, single-phase service, draws 8.0 A, and requires a 15 A circuit.
No. The cutsheet states that shock freeze is not available on the AP20BC200-2.
