American Eagle Food Machinery AE-PS01 Countertop Dual-Pass Dough Roller, 3.5-Inch Stainless Steel Rollers, Adjustable Thickness, 1 HP

SKU: AE-PS01 GTIN: 853831006945
$15,544.45
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Eagle Food Machinery Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers Dough Sheeters & Rollers Equipment Food Prep Equipment Food Preparation Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

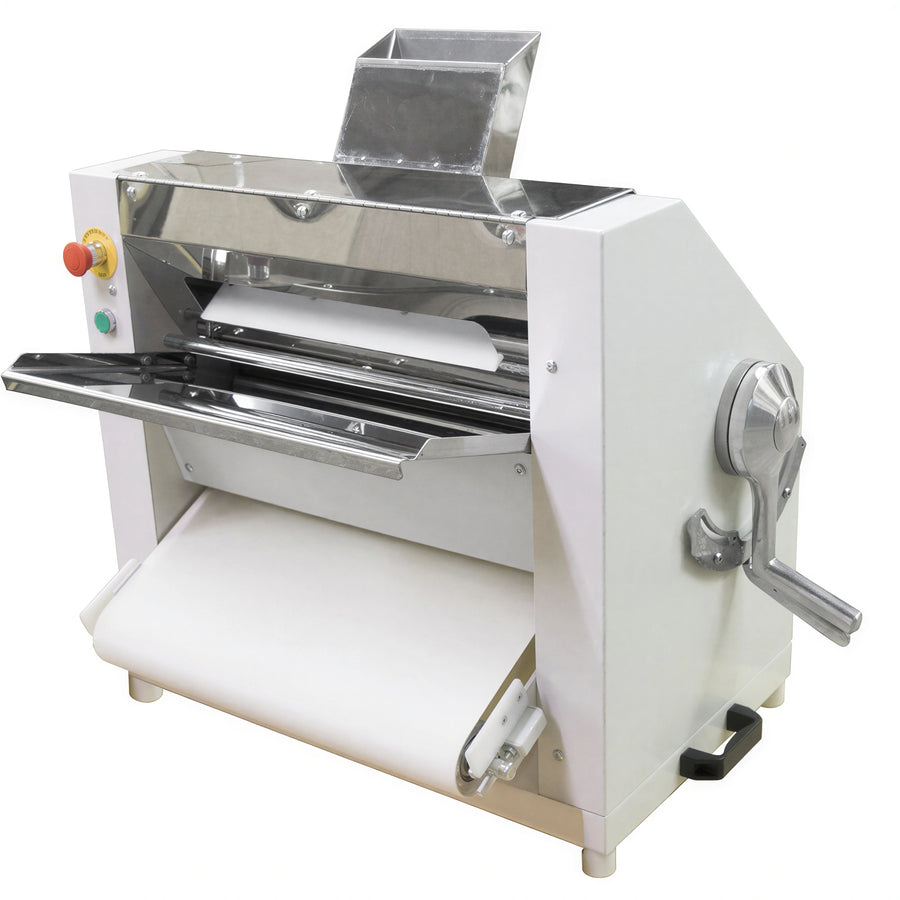

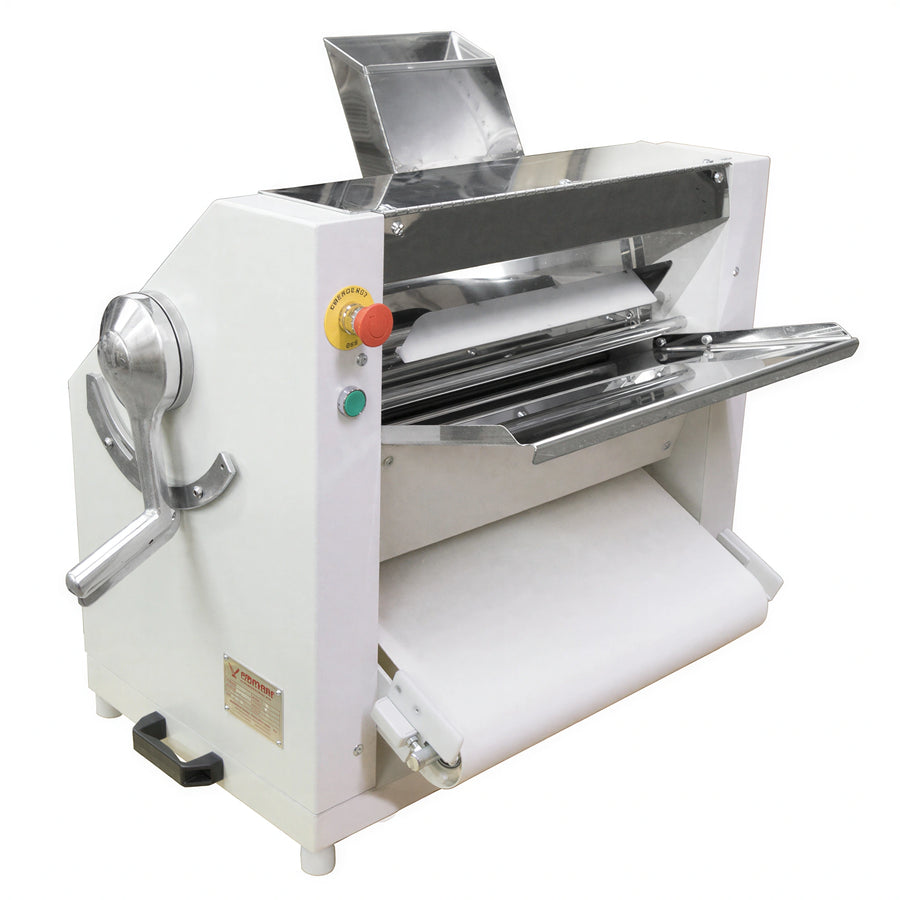

The AE-PS01 is a countertop, dual-pass dough roller with gear-and-chain drive, 3.5-inch-diameter stainless steel rollers, and adjustable thickness from 0.04 to 0.7 inch (1 to 18 mm).

It uses a 1 HP motor at 115 V/60 Hz/1 phase and includes an automatic safety shutoff, emergency stop switch, and thermal overload protection. Estimated productivity is 400-600 pieces per hour in continuous operation.

  • Steel frame and housing with a white enamel finish
  • Back panel lifts open for cleaning the rollers

Overall Dimensions:

32.3"W x 27.6"D x 31.9"H

Product Weight:

398.0 lb

Dual-pass operation

Dough feeds through a top chute, passes to the middle tray after the first pass, and exits as finished product after the second pass.

Adjustable thickness

Thickness adjusts from 0.04 to 0.7 inch (1 to 18 mm).

Stainless steel rollers

Uses 3.5-inch-diameter stainless steel rollers.

Gear-and-chain drive

The transmission is gear and chain driven.

Safety controls

Includes push-button start, an emergency stop switch, and automatic safety shutoff.

Motor protection

Thermal overload protection helps protect the motor.

Countertop format

The AE-PS01 is designed as a countertop dough roller.

Cleaning access

The back panel lifts open to allow cleaning of the rollers.

Product type Dough roller
Configuration Countertop, dual pass
Drive system Gear and chain driven
Roller material Stainless steel
Roller diameter 3.5 in
Productivity 400-600 pieces/hour, estimated from continuous operation
Adjustable thickness 0.04-0.7 in (1-18 mm)
Motor 1 HP
Voltage 115 V
Frequency 60 Hz
Phase 1 phase
Amperage 14 A
Safety Automatic safety shutoff and emergency stop switch
Motor protection Thermal overload protection
Frame and housing Steel with white enamel finish

Certifications & Compliance

Warranty & Protection

1-year limited warranty; registration required.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

The adjustable thickness range is 0.04 to 0.7 inch (1 to 18 mm).
Dough feeds into the top chute, the elongated dough passes to the middle tray, and the finished product exits after the second pass.
The AE-PS01 uses 115 V, 60 Hz, single-phase power and draws 14 A.
The machine includes an emergency stop switch, automatic safety shutoff, and thermal overload protection.
Yes. The AE-PS01 is specified as a countertop dough roller.
Estimated productivity is 400-600 pieces per hour from continuous operation.
