American Eagle Food Machinery AE-DMMS28 Floor-Model Dough Moulder/Sheeter, 1.1–12.3 oz Capacity, 400–600 Pieces/Hour

SKU: AE-DMMS28
$16,555.56
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Eagle Food Machinery Best Sellers Dough Moulders Dough Moulders & Dockers Dough Preparation Equipment Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Equipment Food Prep Equipment Food Preparation Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

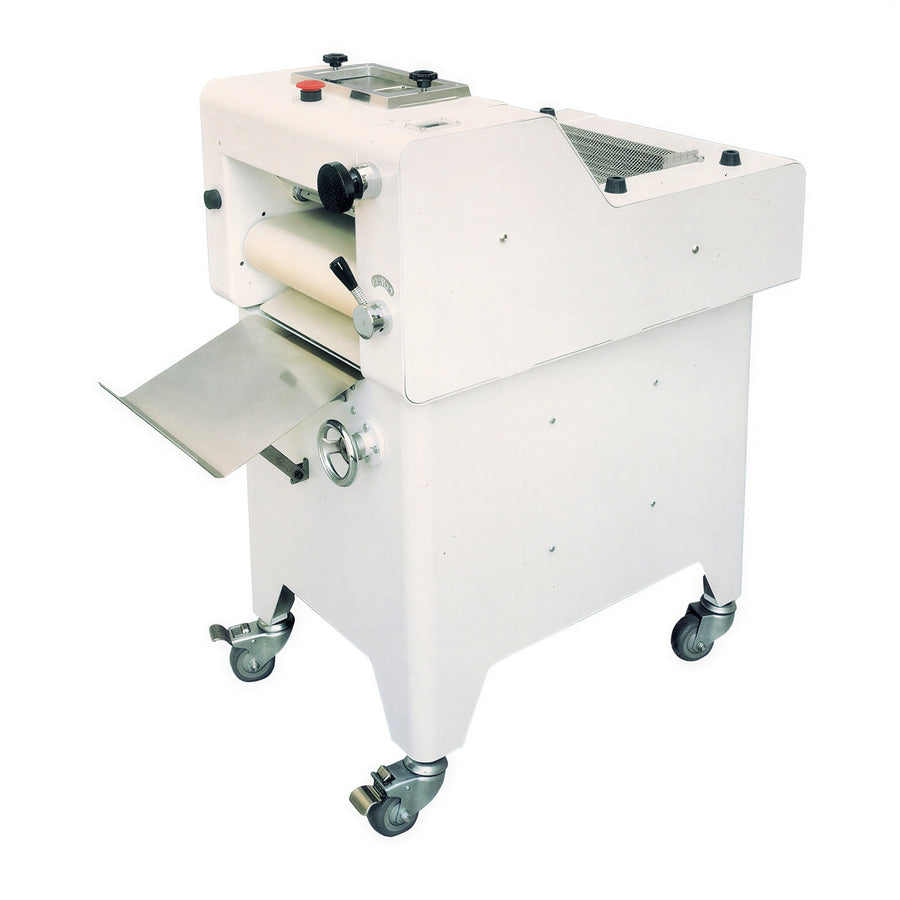

The American Eagle Food Machinery AE-DMMS28 is a commercial floor-model dough moulder/sheeter with dual-mode forward/reverse conveyor operation for moulding or sheeter-only use.

It processes 1.1–12.3 oz (30–350 g) dough pieces at an estimated 400–600 pieces per hour in continuous operation. The machine features stainless steel rollers and curling chains, polyurethane conveyor belts, adjustable roller and conveyor settings, thermal overload protection, a cast iron frame, steel panels, and a white enamel finish.

Overall Dimensions:

39.4"W x 20.9"D x 41.7"H

Product Weight:

399.0 lb

Dual-mode operation

The forward/reverse conveyor supports moulding or sheeter-only operation.

Dough range and output

Processes 1.1–12.3 oz (30–350 g) dough pieces at an estimated 400–600 pieces per hour in continuous operation.

Stainless steel roller assembly

Uses stainless steel rollers measuring 3.75 inches in diameter by 13 inches in length.

Polyurethane conveyor belts

Polyurethane conveyor belts provide forward/reverse function.

Adjustable processing

The roller and conveyor settings are adjustable.

Gear and chain drive

The transmission is gear and chain driven.

Motor and electrical specification

Equipped with a 1/2 HP motor rated at 220 V, 60 Hz, single phase, and 4.0 amps.

Protection and controls

Includes thermal overload protection, an independent on/off control, and an emergency stop button.

Construction and finish

Built with a cast iron frame, steel panels, and a white enamel finish.

Type Floor model
Function Dough moulder/sheeter
Dough piece weight range 1.1–12.3 oz (30–350 g)
Production rate 400–600 pieces/hour, estimated from continuous operation
Roller size 3.75 in diameter x 13 in length (9.5 cm diameter x 33 cm length)
Sheeter roller adjustment range 0.06–0.59 in (1.5–15 mm)
Pressure board adjustment range 0.38–1.6 in (9.5–41 mm)
Motor 1/2 HP
Electrical requirement 220 V / 60 Hz / 1 phase / 4.0 A
Roller material Stainless steel
Curling chain material Stainless steel
Conveyor system Polyurethane conveyor belts with forward/reverse function
Drive system Gear and chain driven
Frame material Cast iron
Panel material Steel
Finish White enamel
Protection Thermal overload protection
Controls Independent on/off and emergency stop button
Order status Special order

Certifications & Compliance

Warranty & Protection

1-year limited warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It processes dough pieces from 1.1–12.3 oz (30–350 g).
The estimated production rate is 400–600 pieces per hour in continuous operation.
Yes. Its dual-mode forward/reverse conveyor supports moulding or sheeter-only operation.
The machine uses 220 V, 60 Hz, single-phase power and draws 4.0 amps.
The listed dimensions are 39.4 inches wide, 20.9 inches deep, and 41.7 inches high.
Yes, the AE-DMMS28 is identified as a special-order item.
It has a 1-year limited warranty. The warranty must be registered, and improper installation or electrical connection voids the warranty.
