Play manufacturer video for American Eagle Food Machinery AE-5080 125-Quart Fixed-Bowl Spiral Mixer, 176 lb Dough Capacity, 2-Speed, Dual TimerAmerican Eagle Food Machinery AE-5080 125-Quart Fixed-Bowl Spiral Mixer, 176 lb Dough Capacity, 2-Speed, Dual Timer

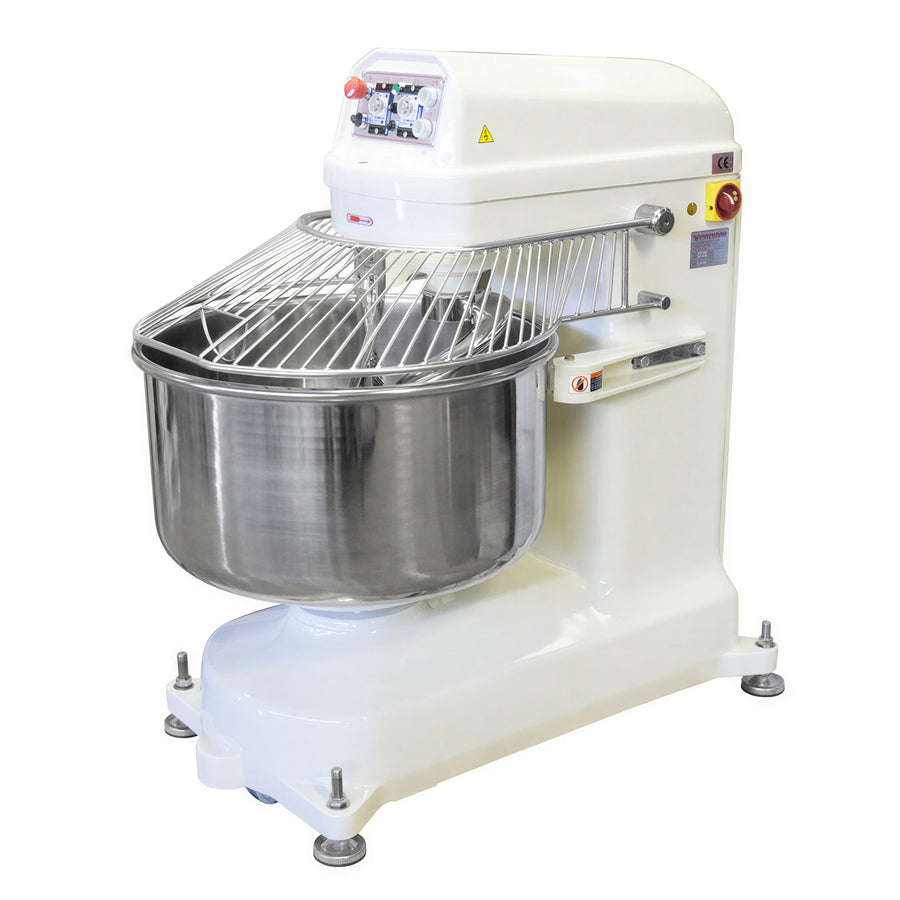

The American Eagle Food Machinery AE-5080 is a fixed-bowl spiral mixer with a 125-quart bowl and a 176 lb dough capacity.
It features two speeds, dual 30-minute timers with automatic switching between low and high speed, a belt-driven transmission, and a reversible mixing bowl with clockwise, stop, and counter-clockwise modes.
The mixer uses a 7 HP agitator motor and a 3 HP bowl motor. Cast iron construction with an enamel coating, a safety guard with auto-shutoff, and thermal overload protection are included.
Electrical requirements are 220 V, 60 Hz, 3 phase, with listed amperage of 24.2 / 16.3 A. Certifications include CE, cETLus, and ETL-Sanitation.
Overall Dimensions:
44.9"W x 30.0"D x 68.5"HProduct Weight:
1346.0 lbFixed 125-quart bowl
The AE-5080 has a fixed bowl with a listed capacity of 125 quarts.
Dough capacity
The listed dough capacity is 176 lb.
Two-speed operation
Low speed is listed at 122 RPM and high speed at 243 RPM.
Dual timers
Two 30-minute timers provide a 60-minute total timer range and automatic switching between low and high speed.
Reversible mixing bowl
The bowl has clockwise, stop, and counter-clockwise modes.
Dual motor system
A 7 HP agitator motor and 3 HP bowl motor separate agitator and bowl loads.

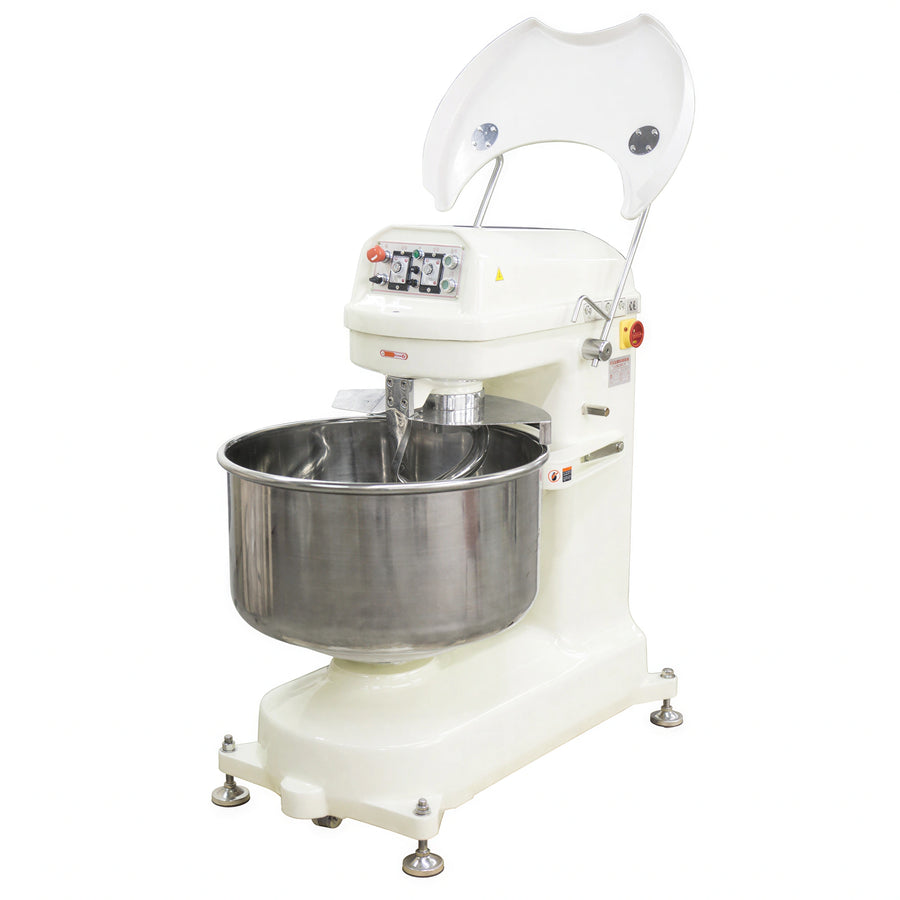

Safety protection
The safety guard has auto-shutoff, and the mixer includes thermal overload protection.
Cast iron construction
The mixer uses cast iron construction with an enamel coating.
Belt-driven transmission
The transmission is belt driven.
Certifications & Compliance
Warranty & Protection
1-year limited parts warranty and 90 days labor.
