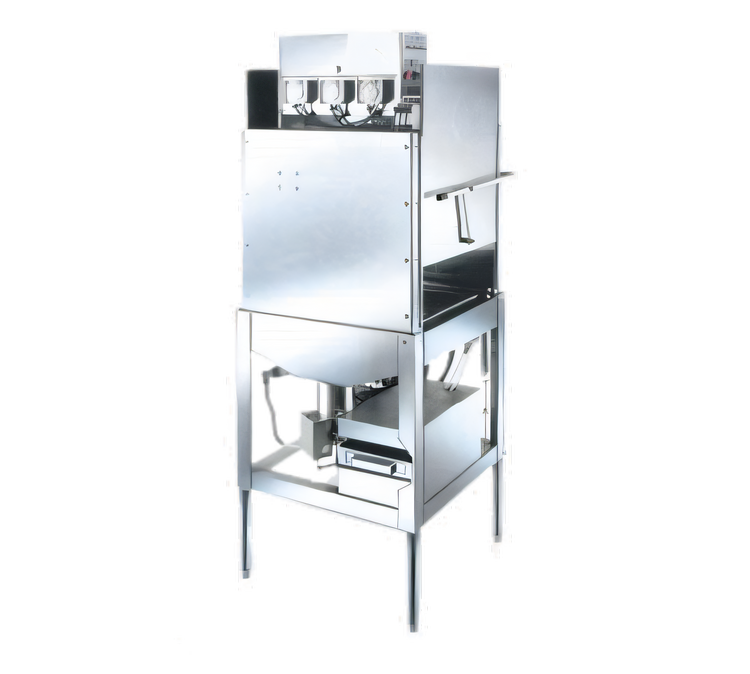

American Dish Service L-3DW-S-3DUP Low Temperature Door-Type Commercial Dishwasher
American Dish Service L-3DW-S-3DUP Low Temperature Door-Type Commercial Dishwasher
Convertible 3-Door, Low Temp Chemical Sanitizing, 55 Racks/Hour
Experience remarkable ware washing performance with the American Dish Service L-3DW-S-3DUP, a low-energy, low-water chemical sanitizing dishwasher designed for efficiency and high-speed operation in commercial kitchens.
- Achieves a maximum capacity of 55 racks per hour with a rapid 60-second time cycle.
- Utilizes only 1.2 gallons of water per rack, significantly reducing water and sewer surcharges.
- Features a convertible 3-door design, allowing flexible installation for straight-thru or corner operations.
- Equipped with built-in chemical dispensing and an internal scrap accumulator for streamlined dishwashing.
- Designed for low-energy consumption, contributing to lower heating costs.
- Constructed with a durable stainless steel sump and impeller for long-lasting reliability.

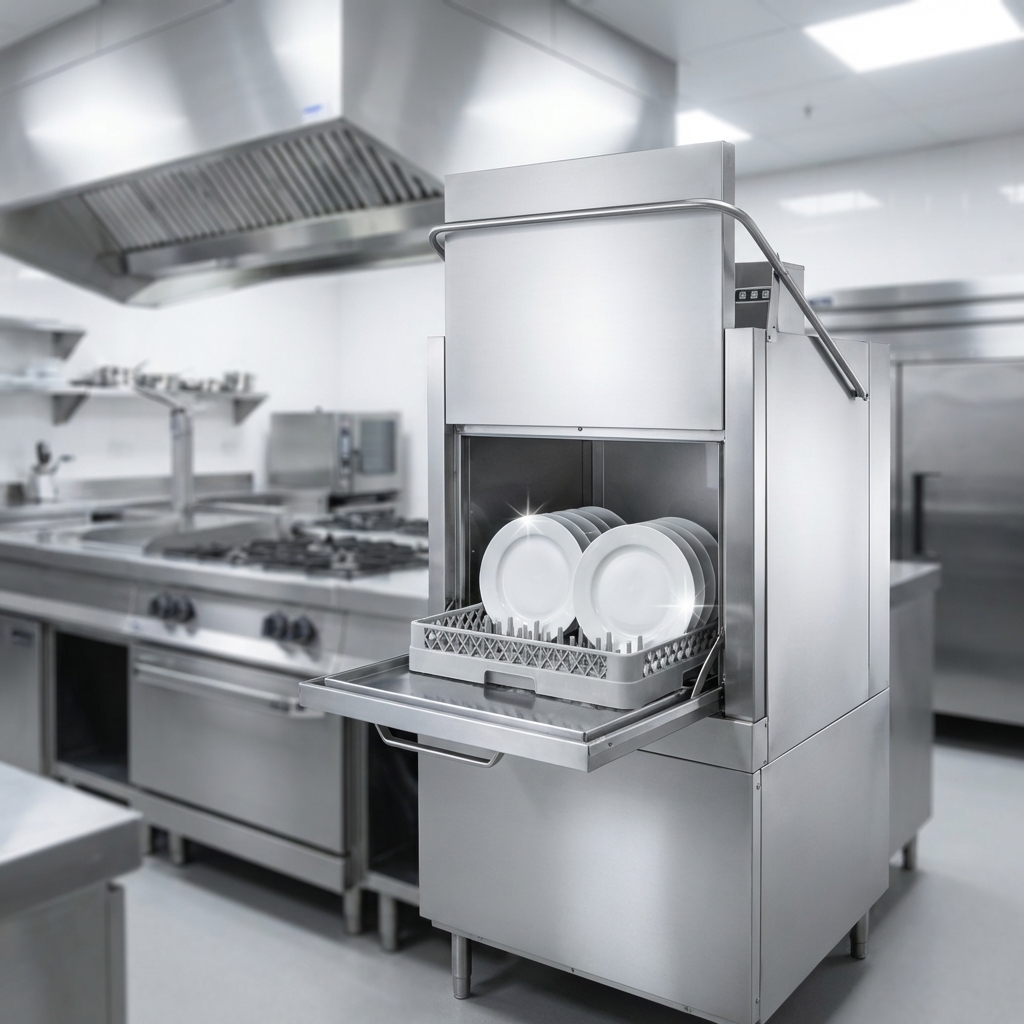

Remarkable Performance
Operates efficiently with only 1.2 gallons of water per rack, minimizing resource consumption.

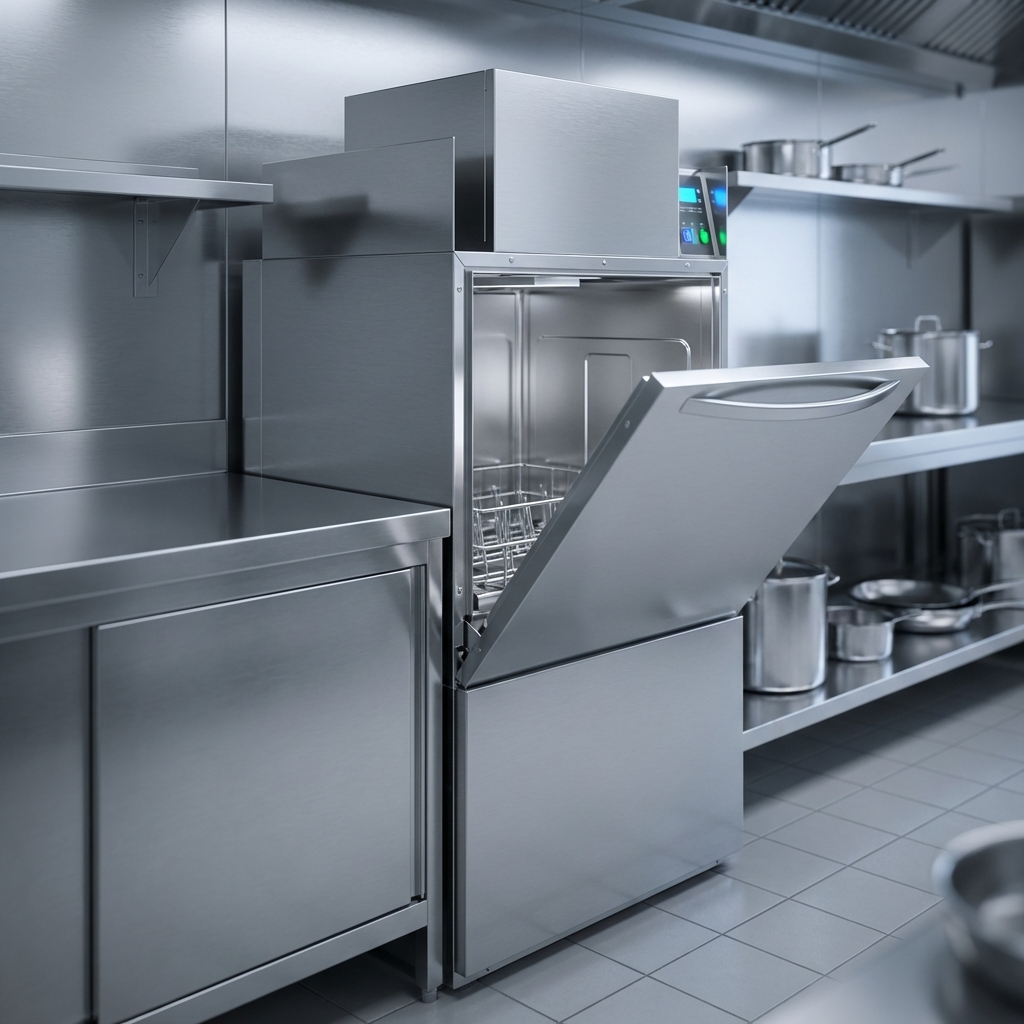

Low-Energy Operation
A true 'dump and fill' dishmachine engineered for low energy use, effectively reducing heating costs.

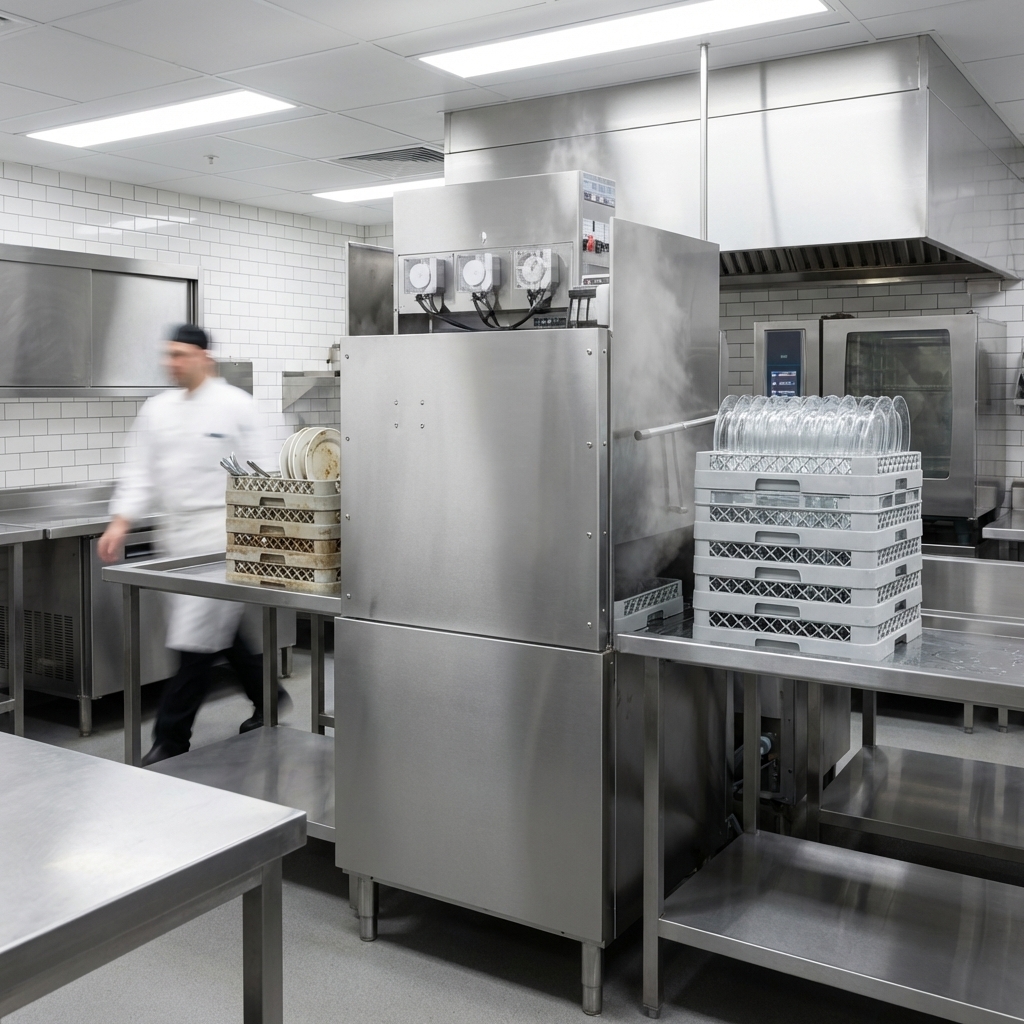

High Capacity
Capable of washing up to 55 racks per hour, based on a quick 60-second time cycle, ensuring high throughput.
Convertible Design
Easily adapts to various kitchen layouts by converting from corner to pass-thru or pass-thru to corner configurations.
True 3-Door Design
Features three doors, with only two opening in either configuration, which prevents water from splashing on the back wall and keeps doors in proper alignment.
Built-in Scrap Accumulator
An internal scrap accumulator located inside the sump efficiently collects food debris, protecting the pump and spray jets.
Automatic Chemical Feed
Includes built-in chemical dispensing with exterior-mounted chemical pump heads, ensuring consistent and precise chemical sanitization.
Top Mount Controls
User-friendly controls are conveniently located on the top of the unit for easy access and operation.
Easy Service Access
Equipped with quick-disconnect electrical controls for simplified maintenance and service.
Eye-Level Temperature Gauge
Provides a clear and convenient display of operating temperature for easy monitoring.
Built-in De-liming Switch
A dedicated switch simplifies the de-liming process, helping maintain machine efficiency and hygiene.
Two-Stage Filter
A robust two-stage filter system protects the pump and spray jets from food particles and debris.
Durable Construction
Features a stainless steel sump and impeller for enhanced durability, along with Nylatron® strips to protect the stainless steel doors.
No-Adjustment Solenoid Replacement
Designed for hassle-free solenoid replacement without the need for adjustments.
Prime Switches
Dedicated prime switches for efficient chemical pump priming.
Air-Gap Fill
Utilizes an air-gap fill system to ensure proper water levels and prevent backflow.
Auto Start
Automatic start functionality enhances operational convenience.
Specifications
| Type | Door-type Dishwasher |
|---|---|
| Style | Low Temperature Chemical Sanitizing |
| Installation Type | Floor Model (Convertible Pass-thru/Corner) |
| Rack Capacity | 55 racks per hour |
| Water Per Rack | 1.2 Gallons |
| Time Cycle | 60 Seconds |
| Door Opening | 20.5 Inches |
| Pump Horsepower | 1.5 HP |
| Controls | Top Mount, Auto Start |
| Water Inlet Size | 1/2" F.P.T. |
| Electrical Connection Size | 1/2" Conduit |
| Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 25 Inches |
| Shipping Depth | 28 Inches |
| Shipping Height | 72 Inches |
| Shipping Weight | 310 lb. |
Overall Dimensions:
25.0"W x 28.0"D x 71.25"HProduct Weight:
310.0 lbFrequently Asked Questions
